Rust Resistant

Rust-Resistant Body

1. General

Rust-resistant performance is enhanced by extensive use of anti-corrosion sheet steel, as well as by an anti-corrosion treatment, which includes the application of anti-rust wax, sealer and anti-chipping paint to easily corroded parts such as the doors and rocker panels.

2. Anti-Corrosion Sheet Steel

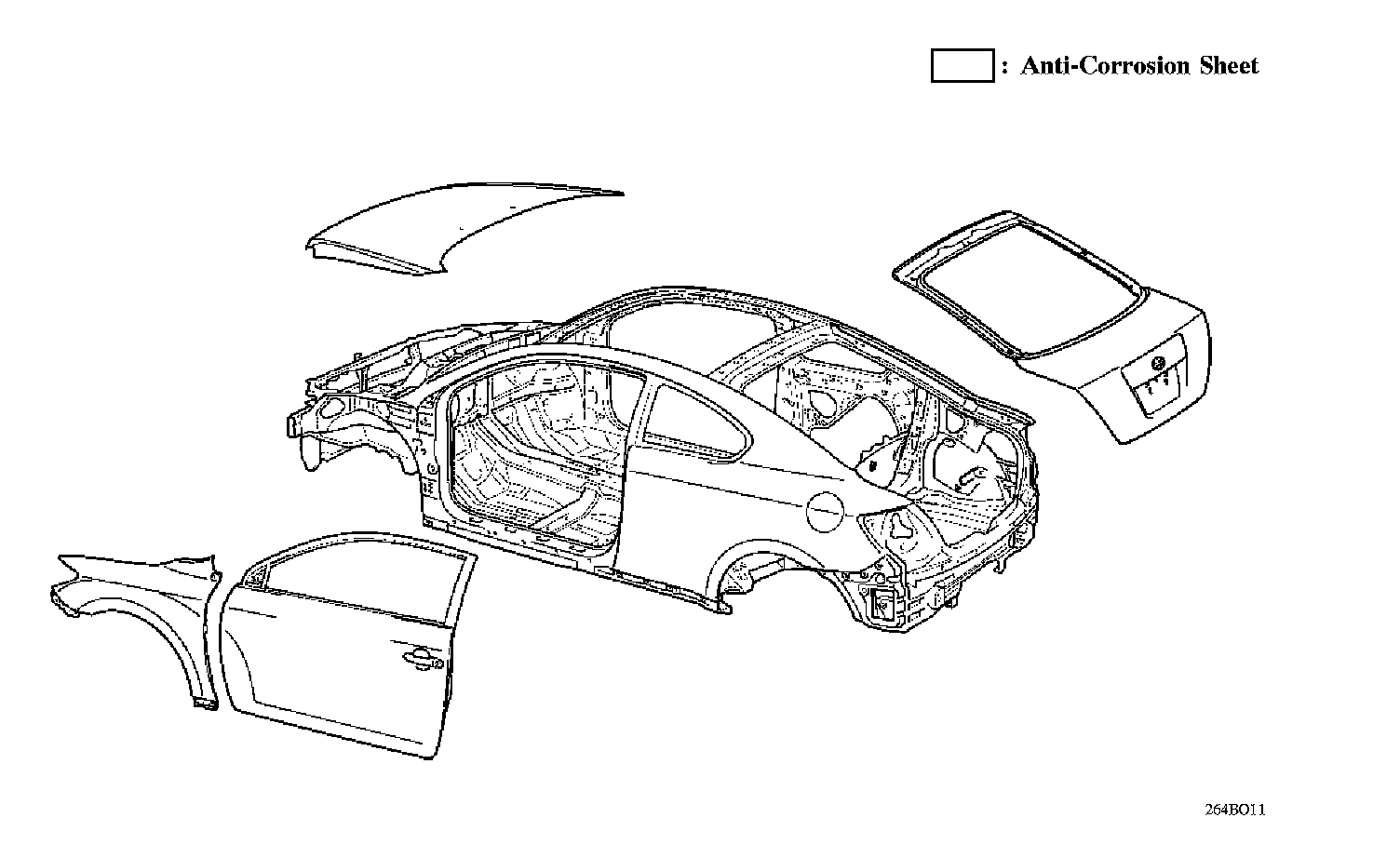

Anti-corrosion sheet steel is used as the following illustration.

3. Under Coat

PVC (Polyvinyl Chloride) is applied to the underside of the body, other parts that locate to be affected by stone chipping damage, thus improving the rust-resistant performance of these areas.
