Front No.2 Speaker Assy

REPLACEMENT

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- Installation is in the reverse order of removal.

1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH
2. REMOVE ASSIST GRIP COVER LH
3. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

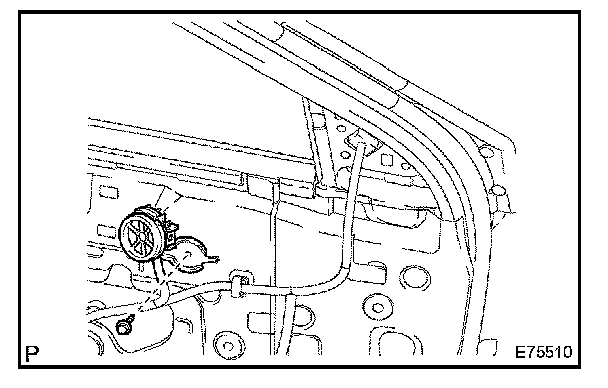

4. REMOVE FRONT NO.2 SPEAKER ASSEMBLY
a. Disconnect the connector.
b. Remove the screw and the front No.2 speaker assembly.
