Component Tests and General Diagnostics

ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION
This circuit provides power to operate the transponder key ECU.

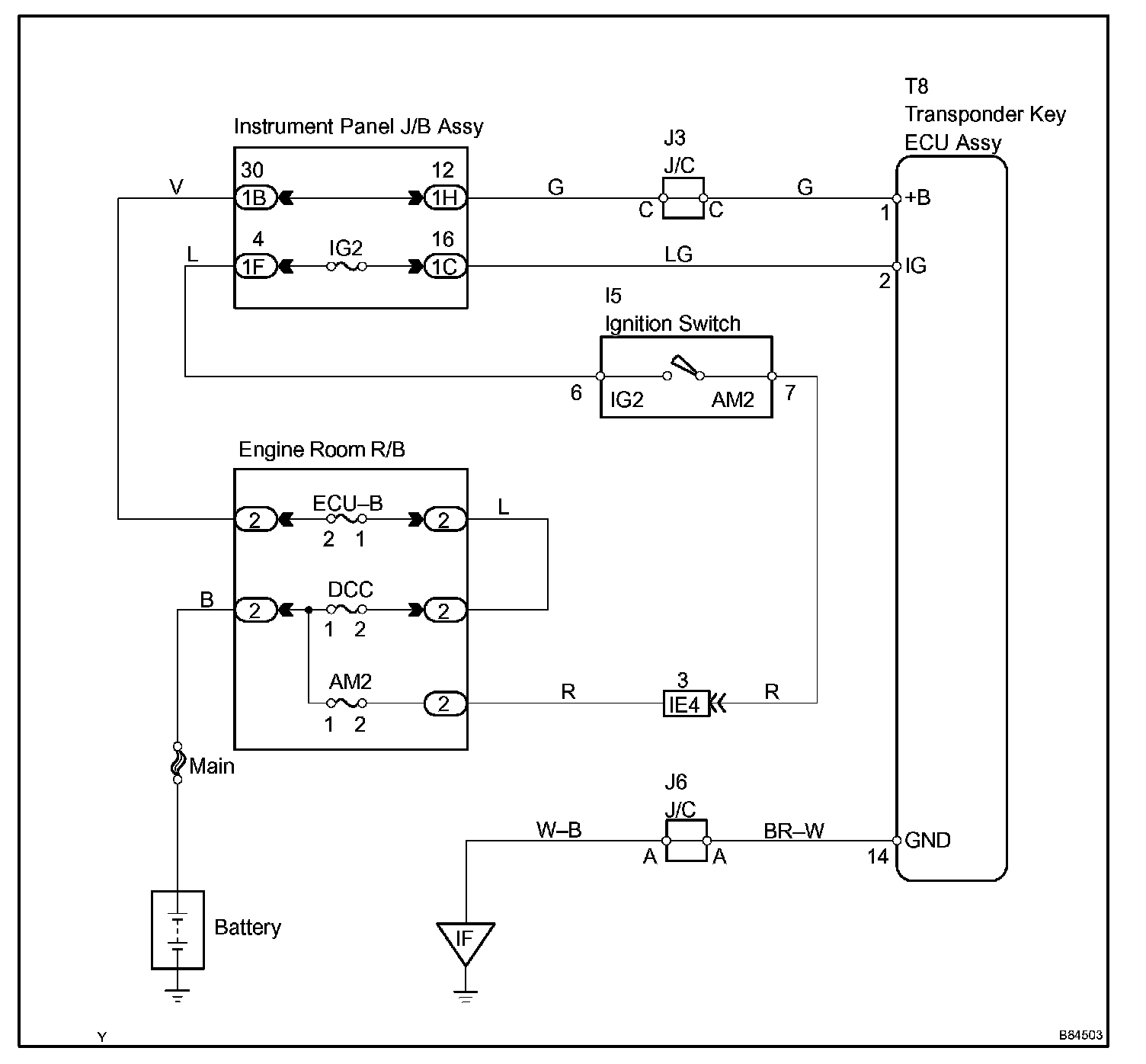

Wiring Diagram:

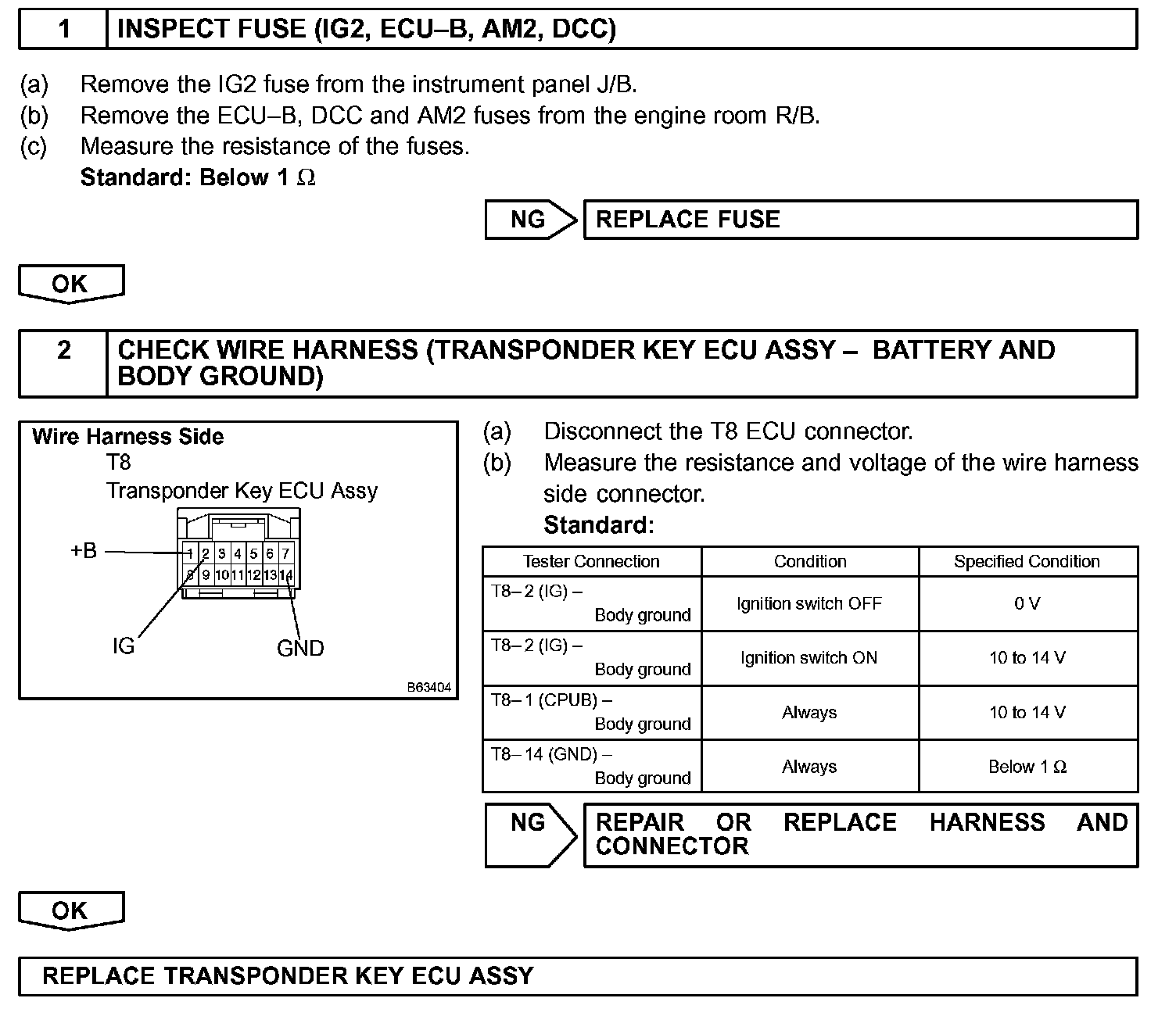

Step 1 - 2:




INSPECTION PROCEDURE
