No Answer Back (Hazard Warning Lamp)

NO ANSWER-BACK (HAZARD WARNING LAMP)

CIRCUIT DESCRIPTION
In some cases, wireless control functions are normal but the hazard warning lamp is not. Malfunction may be present in the integration relay hazard warning lamp signal outputs from the integration relay.

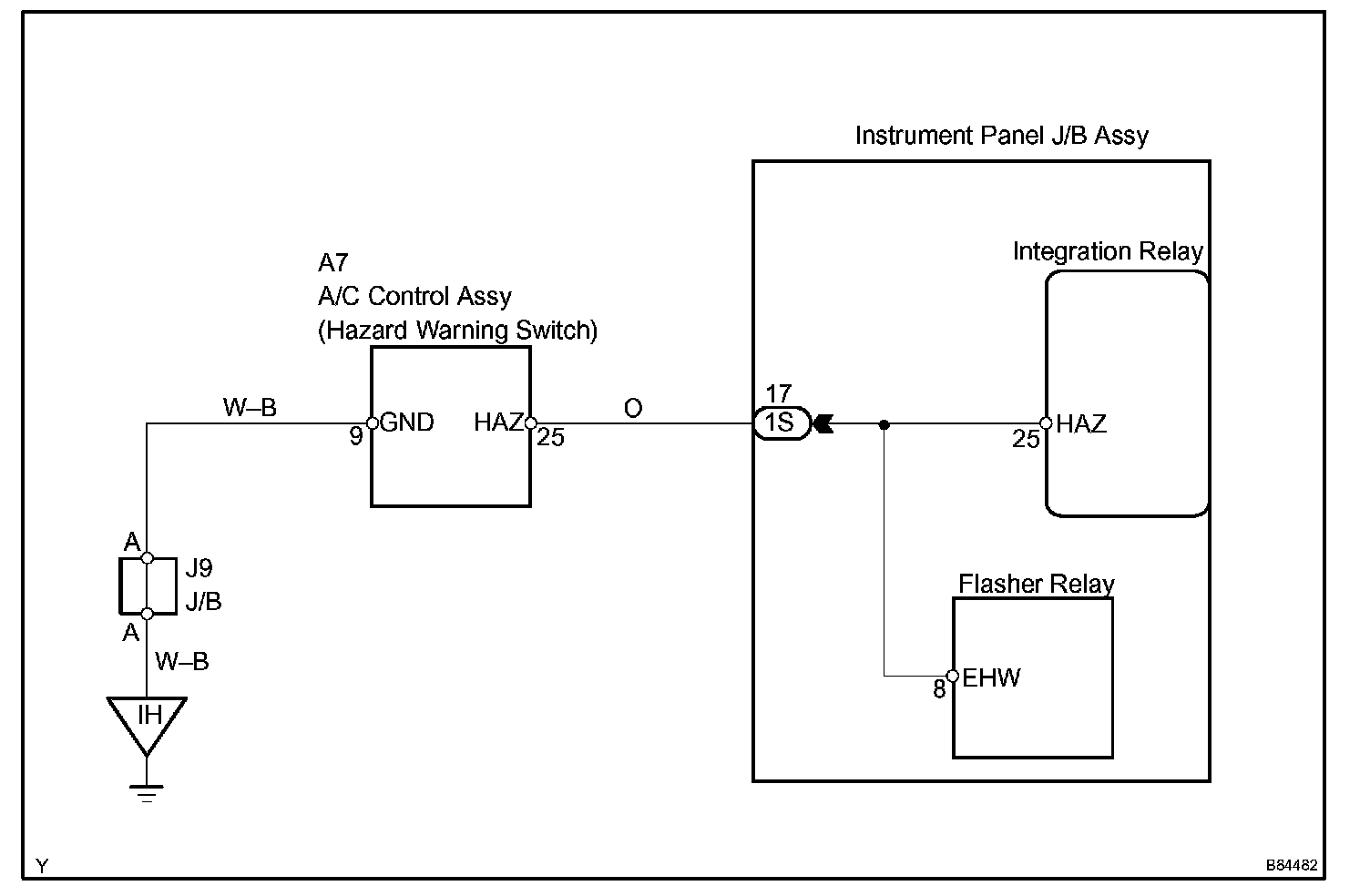

Wiring Diagram:

Step 1 - 3:

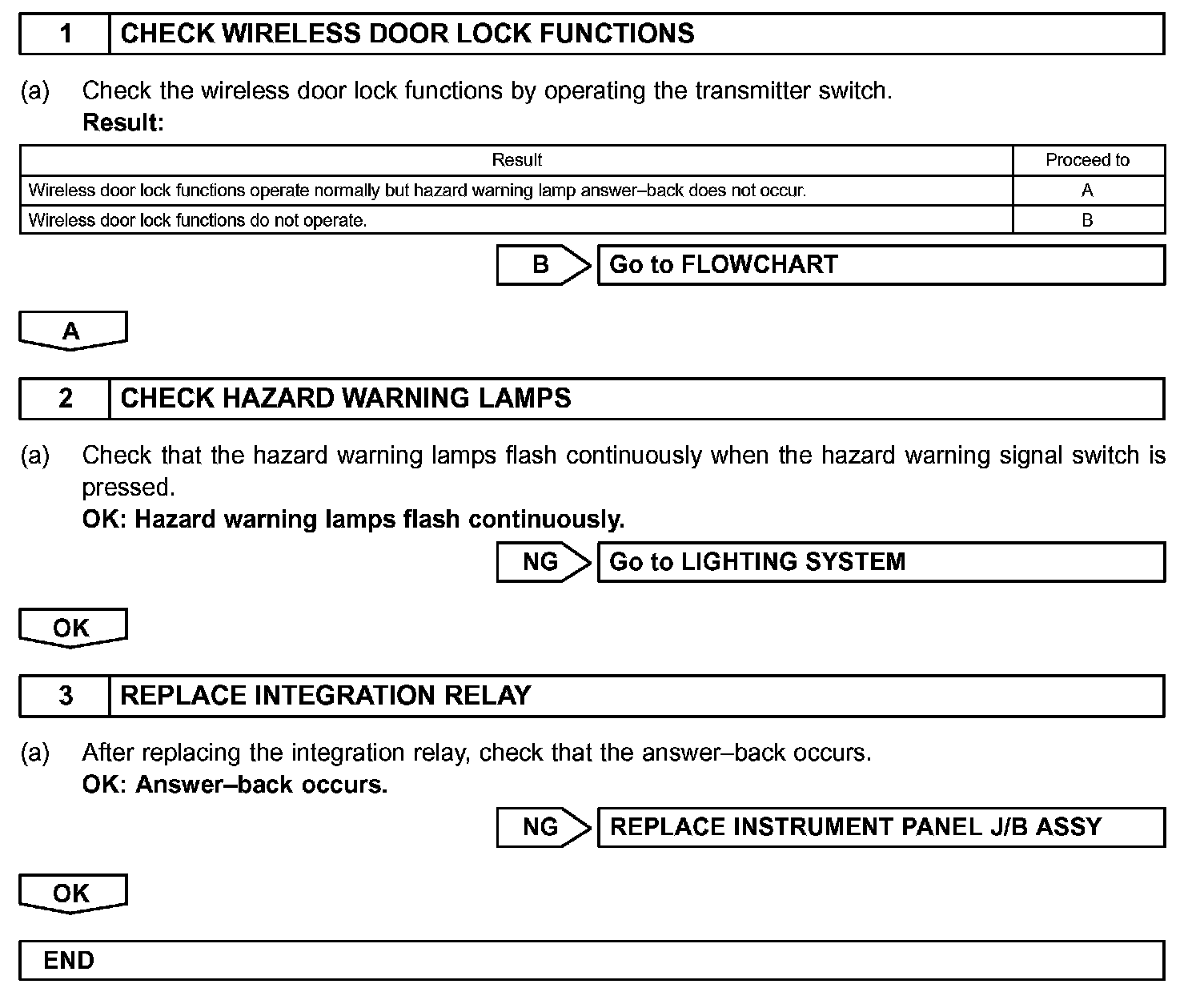

INSPECTION PROCEDURE
