Antenna Cable: Service and Repair

ANTENNA CORD SUB-ASSEMBLY

REPLACEMENT

HINT: Installation is in the reverse order of removal.

1. REMOVE TONNEAU COVER ASSEMBLY
2. REMOVE DECK BOARD SUB-ASSEMBLY
3. REMOVE BACK DOOR SCUFF PLATE
4. REMOVE DECK FLOOR BOX LH
5. REMOVE DECK FLOOR BOX RH
6. REMOVE ROPE HOOK ASSEMBLY
7. REMOVE REAR FLOOR BOARD NO.1
8. REMOVE FRONT SEAT TRACK COVER RH REAR OUTER
9. REMOVE SEAT TRACK BRACKET COVER INNER RH
10. REMOVE FRONT SEAT ASSEMBLY RH
11. REMOVE REAR SEAT CUSHION ASSEMBLY
12. REMOVE REAR SEATBACK ASSEMBLY RH
13. REMOVE LAP BELT OUTER ANCHOR COVER
14. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH
15. REMOVE FRONT DOOR SCUFF PLATE RH
16. REMOVE LUGGAGE COMPARTMENT TRIM HOOK NO.1
17. REMOVE SIDE NO.1 TRIM ASSEMBLY RH
18. REMOVE LUGGAGE COMPARTMENT TRIM HOOK NO.2
19. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
20. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (MANUAL TRANSAXLE)
21. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPR FR
22. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
23. REMOVE CONSOLE BOX ASSEMBLY RR
24. REMOVE HEATER CONTROL & ACCESSORY ASSEMBLY

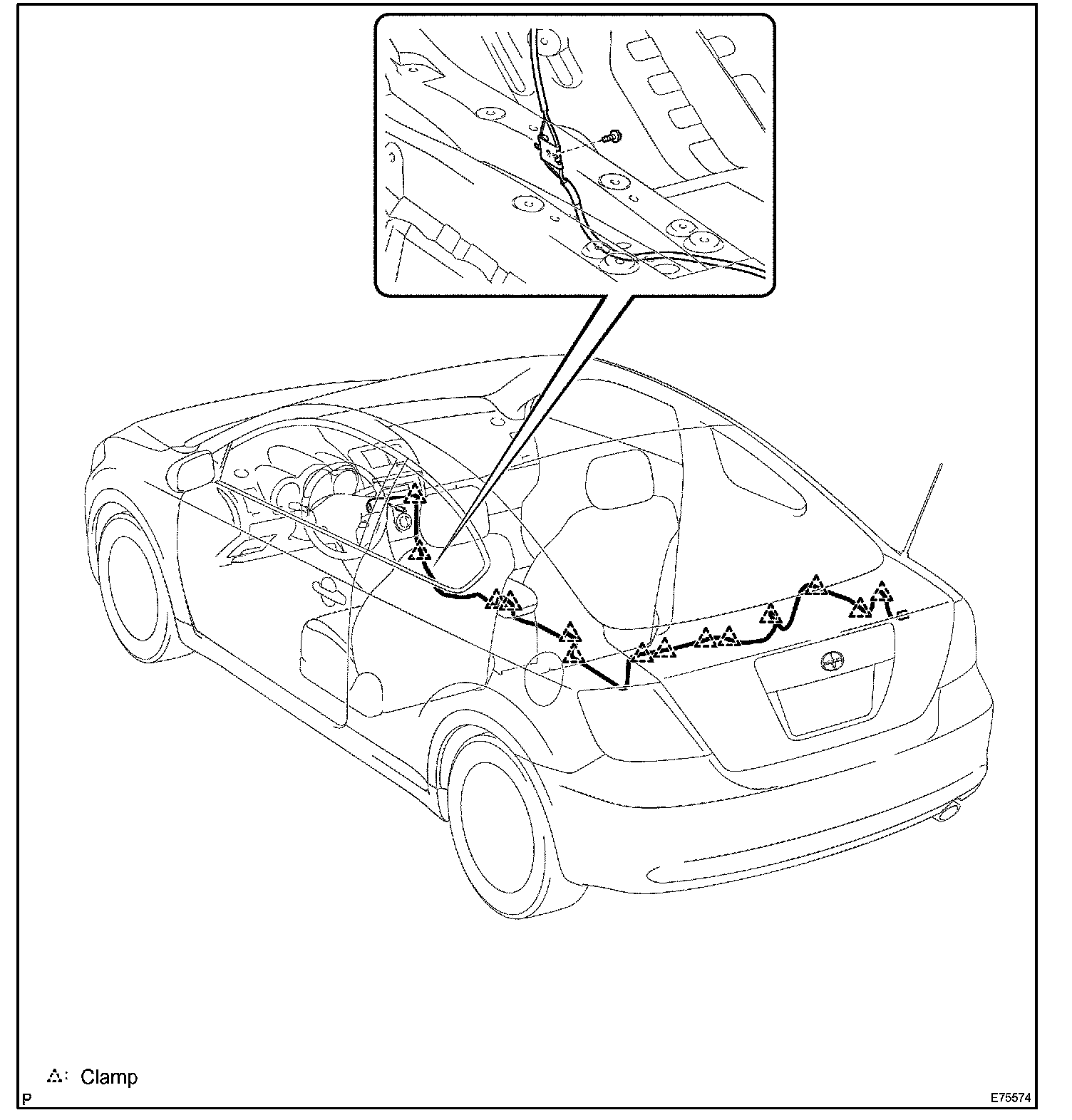

25. REMOVE ANTENNA CORD SUB-ASSEMBLY
a. Remove the bolt.
b. Remove the all clamps and the antenna cord sub-assembly.

26. INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH
27. INSTALL REAR SEATBACK ASSEMBLY RH
28. INSTALL FRONT SEAT ASSEMBLY RH
