Antenna Amplifier: Service and Repair

AMPLIFIER ANTENNA ASSEMBLY






REPLACEMENT

HINT: Installation is in the reverse order of removal.

1. REMOVE TONNEAU COVER ASSEMBLY
2. REMOVE DECK BOARD SUB-ASSEMBLY
3. REMOVE BACK DOOR SCUFF PLATE
4. REMOVE DECK FLOOR BOX LH
5. REMOVE DECK FLOOR BOX RH
6. REMOVE ROPE HOOK ASSEMBLY
7. REMOVE REAR FLOOR BOARD NO.1
8. REMOVE REAR SEAT CUSHION ASSEMBLY
9. REMOVE REAR SEATBACK ASSEMBLY RH
10. REMOVE FRONT DOOR SCUFF PLATE RH
11. REMOVE LUGGAGE COMPARTMENT TRIM HOOK NO.1
12. REMOVE SIDE NO.1 TRIM ASSEMBLY RH
13. REMOVE LUGGAGE COMPARTMENT TRIM HOOK NO.2
14. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
15. REMOVE ROOF ANTENNA POLE SUB-ASSEMBLY




16. REMOVE ANTENNA NUT

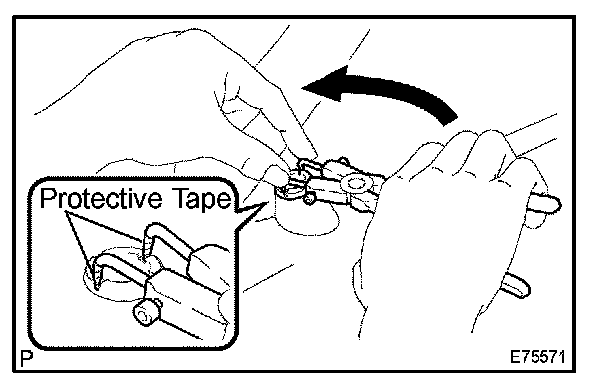

a. Using a snap ring pliers, remove the antenna nut as shown in the illustration.

Tool Part Number:
Snap Ring Pliers: 09905-00013
Claw: 09904-00060

HINT: Wrap the tip of the snap ring pliers with protective tape to prevent damage to the parts.




17. REMOVE ANTENNA ORNAMENT

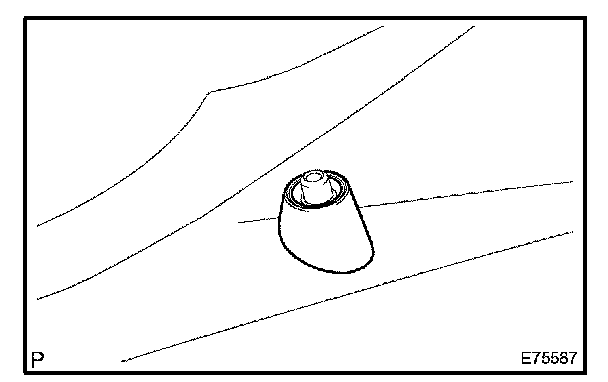

a. Remove the antenna ornament.

18. REMOVE AMPLIFIER ANTENNA ASSEMBLY




a. Disconnect the connector.

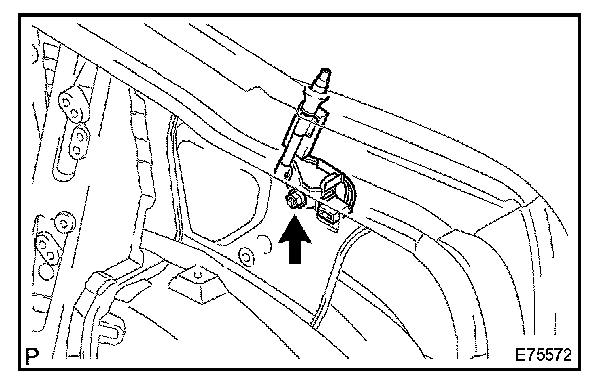

b. Remove the nut.

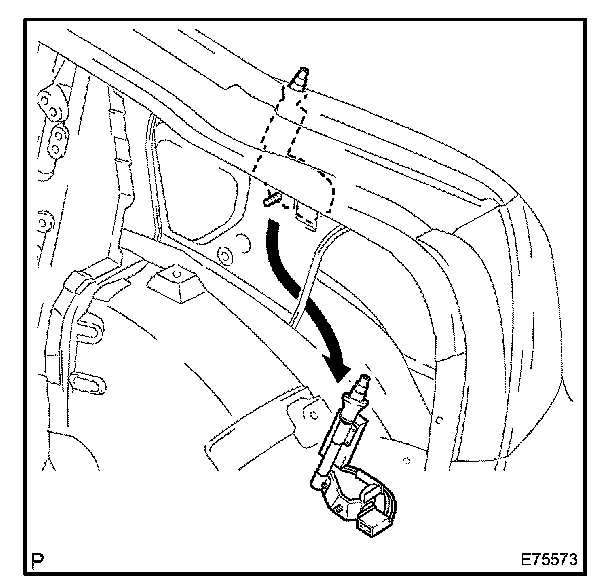

c. Remove the amplifier antenna assembly in the direction shown by the arrow in the illustration.

19. INSTALL REAR SEATBACK ASSEMBLY RH
