Cruise Control System
Cruise Control System

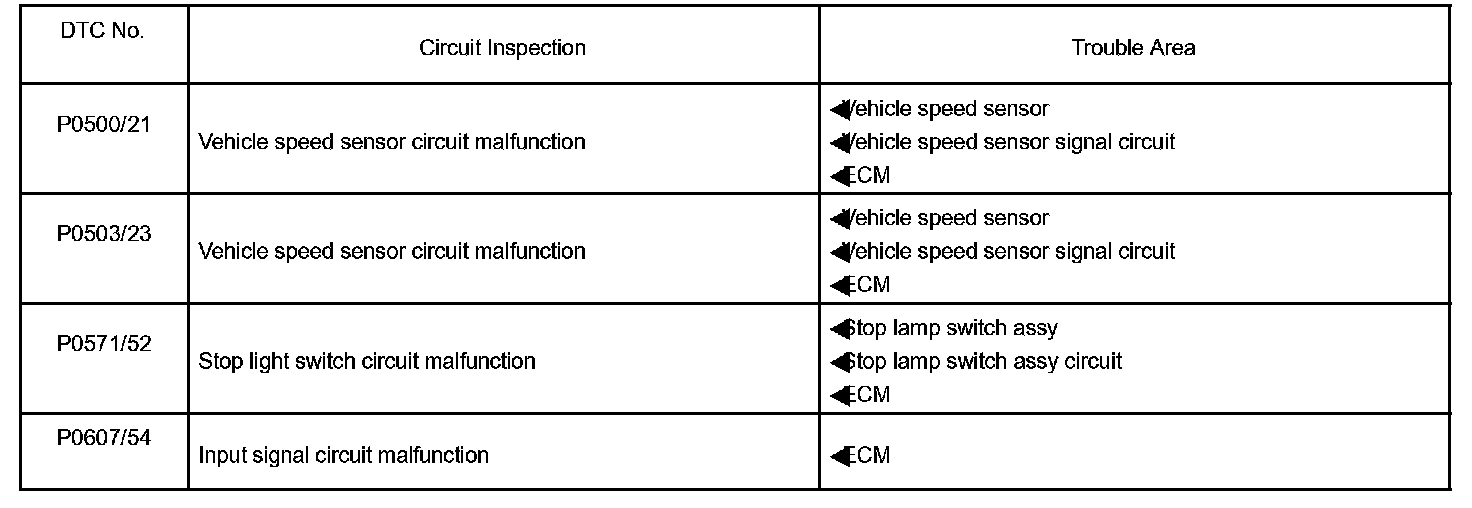

DIAGNOSTIC TROUBLE CODE CHART
P0500/21 - P0607/54:
HINT:
If a trouble code is displayed during the DTC check, check the circuit listed for that code. For details of each code, refer to respective "DTC No." in the DTC chart.
