B2797

DTC B2797 COMMUNICATION MALFUNCTION NO.1

CIRCUIT DESCRIPTION

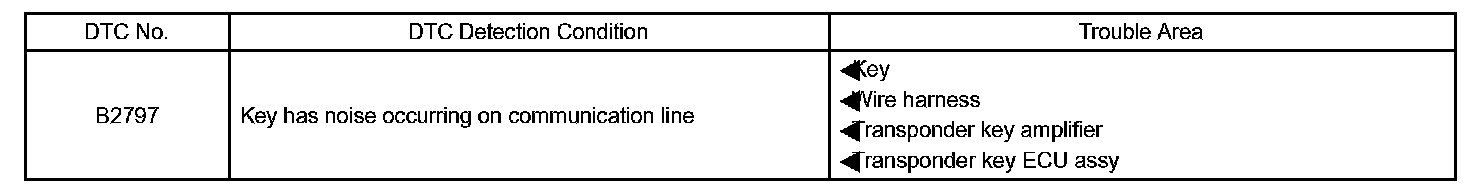

DTC Detection Condition:

This DTC is output when a communication error occurs between the transponder key amplifier and transponder key ECU. A possible reason for the communication error is that noise is occurring on the communication line.

Wiring Diagram:

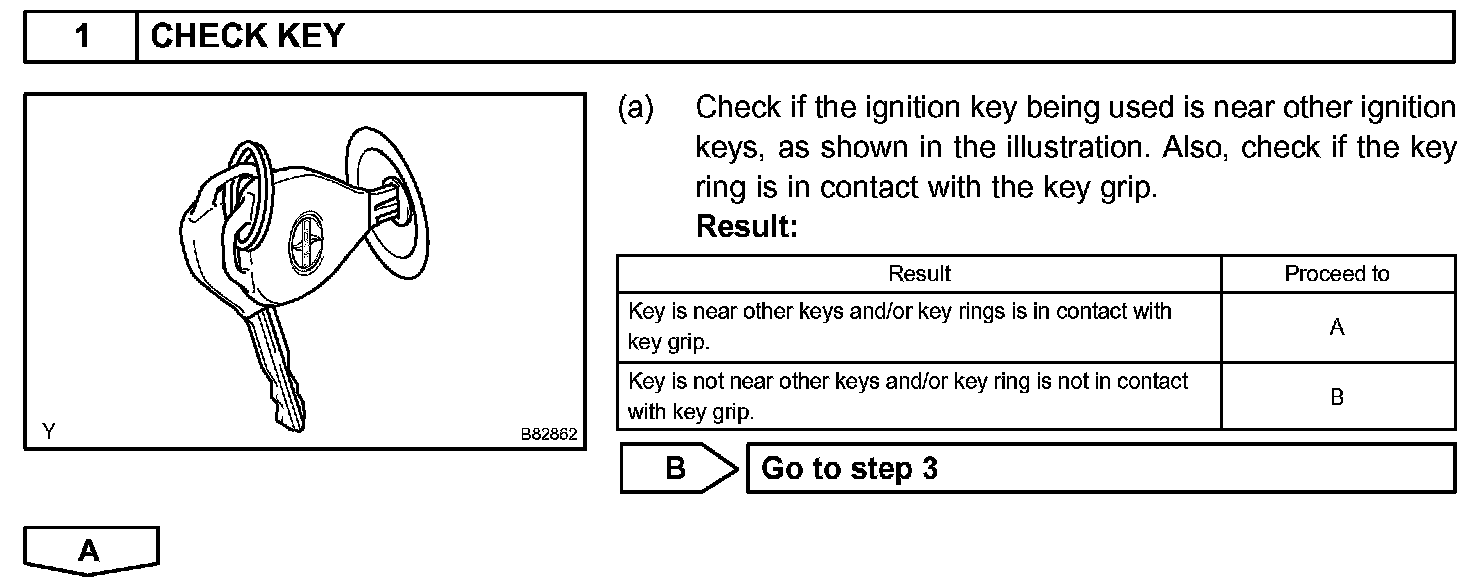

Step 1:

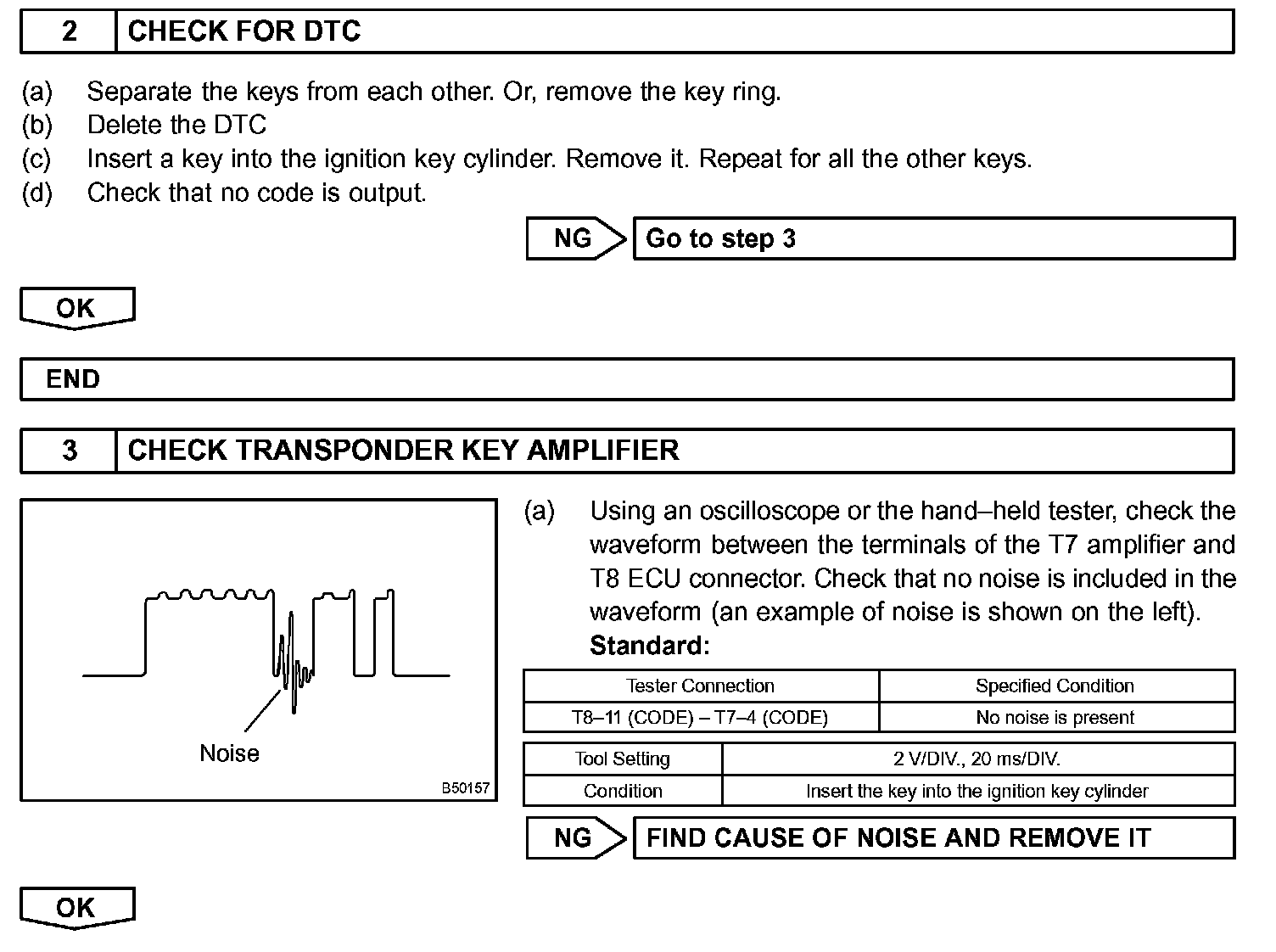

Step 2 - 3:

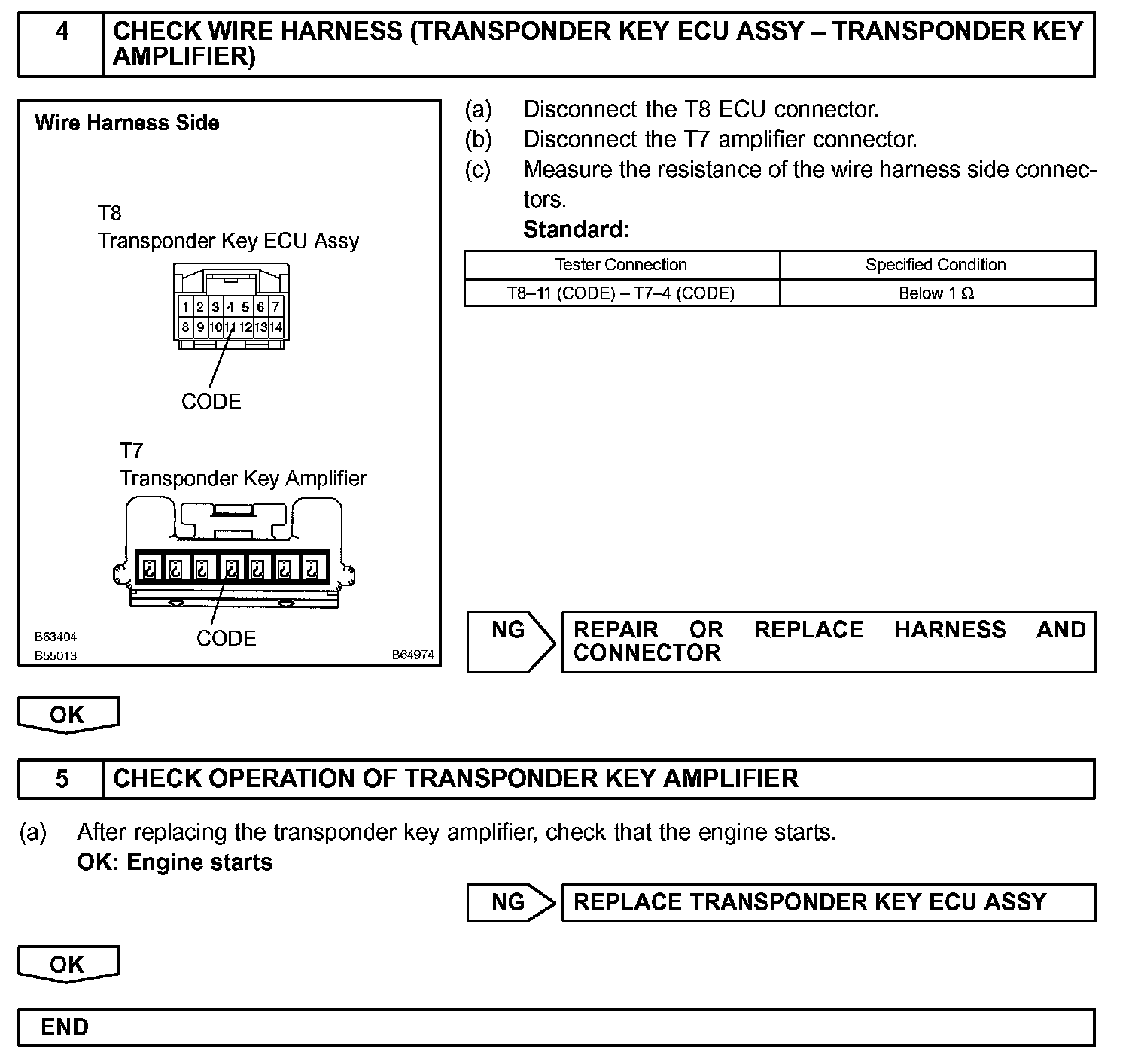

Step 4 - 5:

INSPECTION PROCEDURE
