B2784

DTC B2784 ANTENNA COIL OPEN/SHORT

CIRCUIT DESCRIPTION

DTC Detection Condition:

This DTC is detected when the antenna coil is open or short circuited.

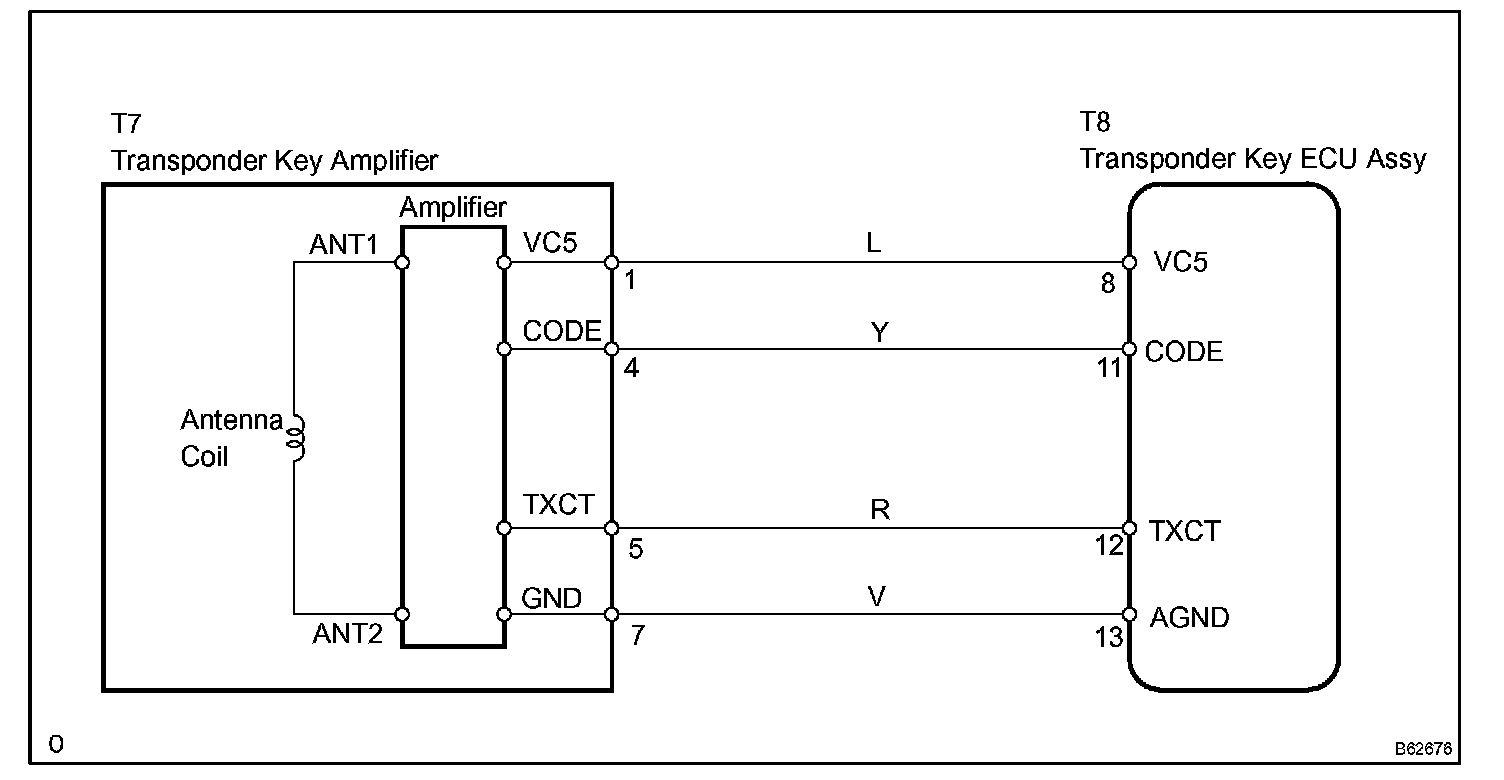

Wiring Diagram:

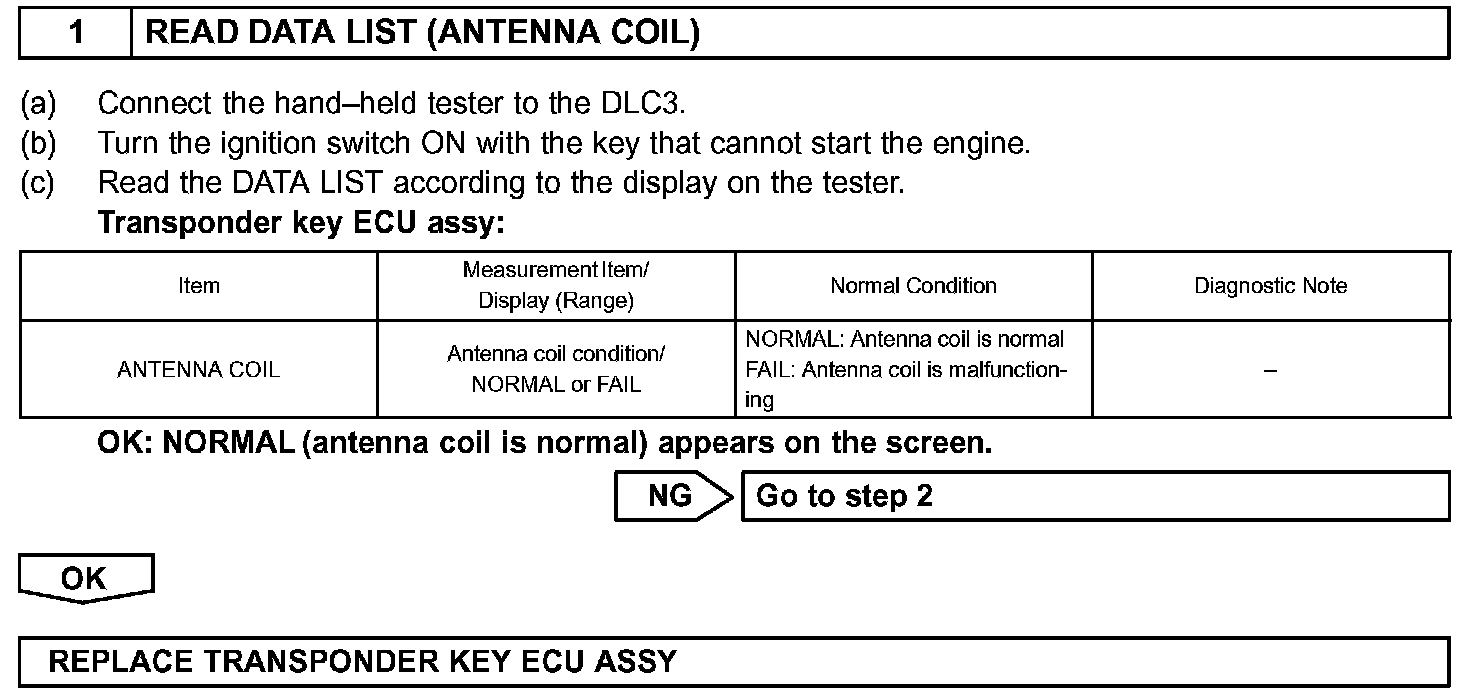

Step 1:

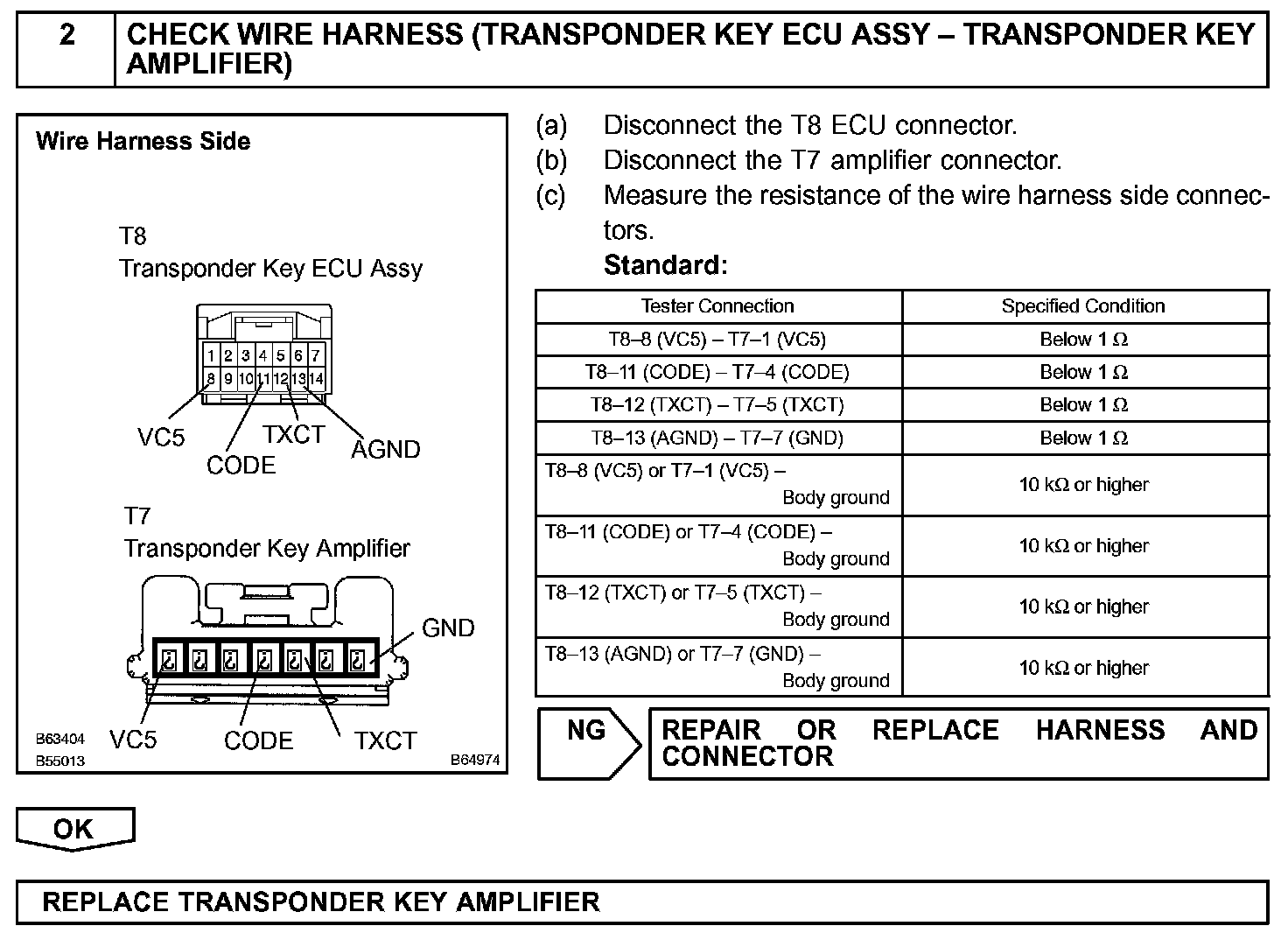

Step 2:

INSPECTION PROCEDURE
