Home >> Scion >> 2004 >> xB L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Tools and Equipment

Automatic Transmission/Transaxle: Tools and Equipment

PREPARATION

Part 1 Of 2:




Part 2 Of 2:

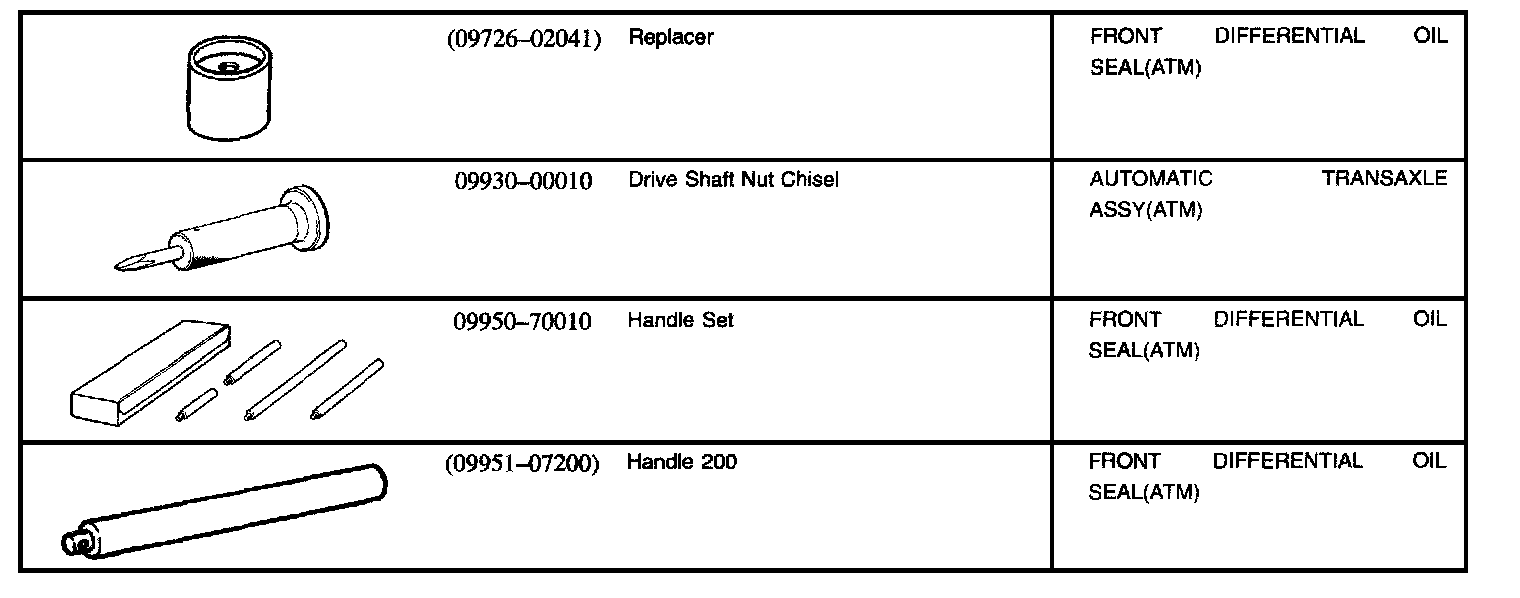

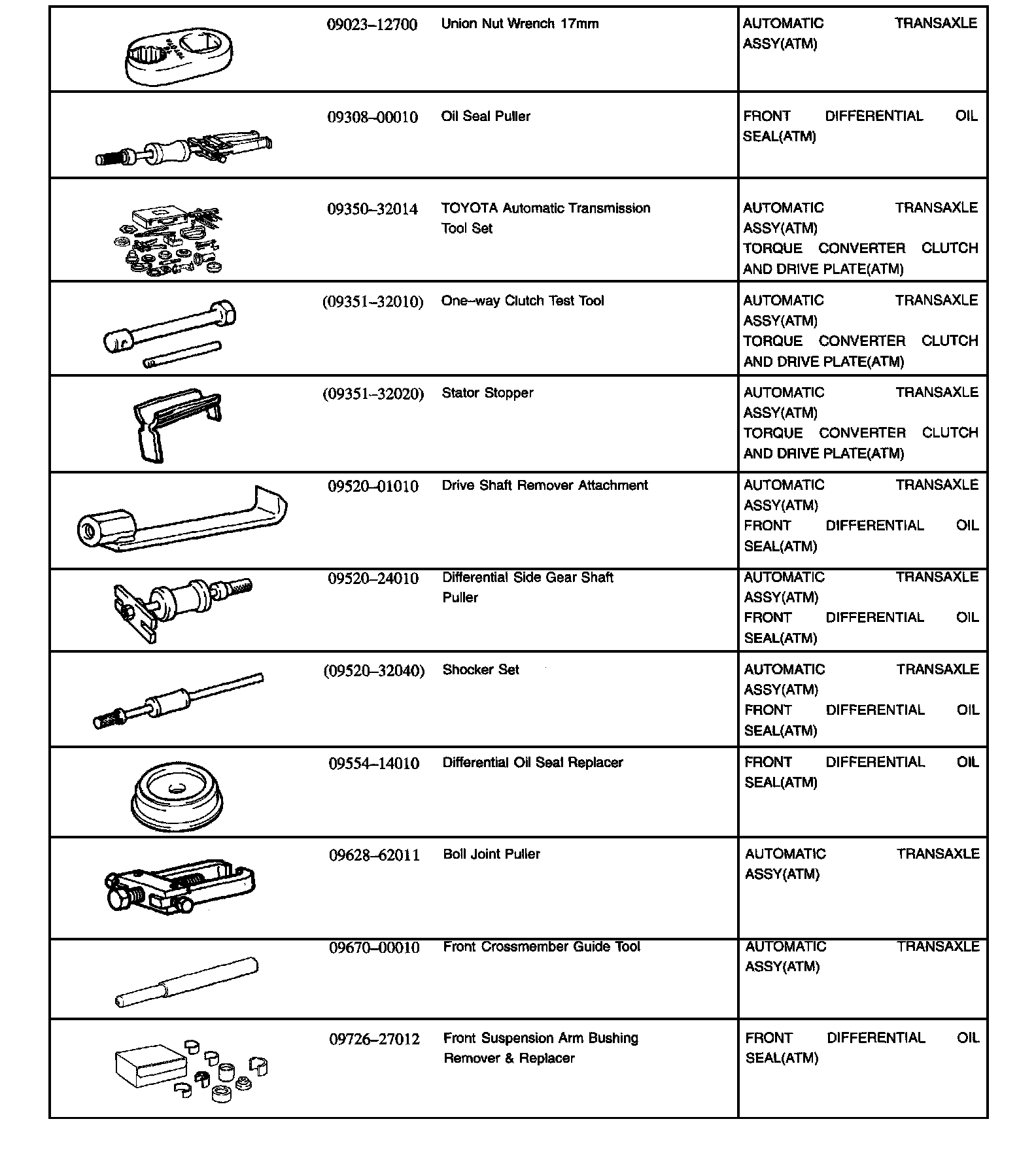

SST

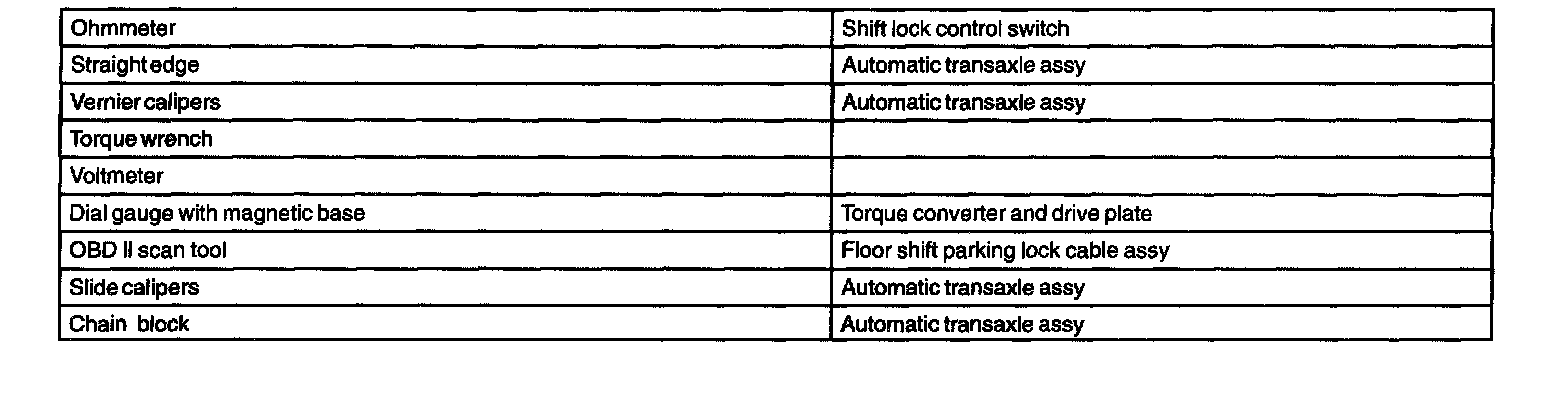

Recommended Tools





SSM





Equipment

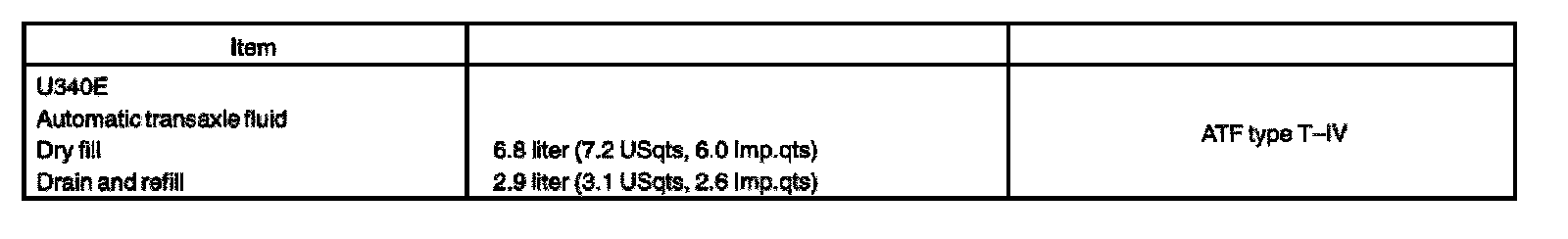

Lubricant
