Release Method of Activation Prevention Mechanism

RELEASE METHOD OF ACTIVATION PREVENTION MECHANISM

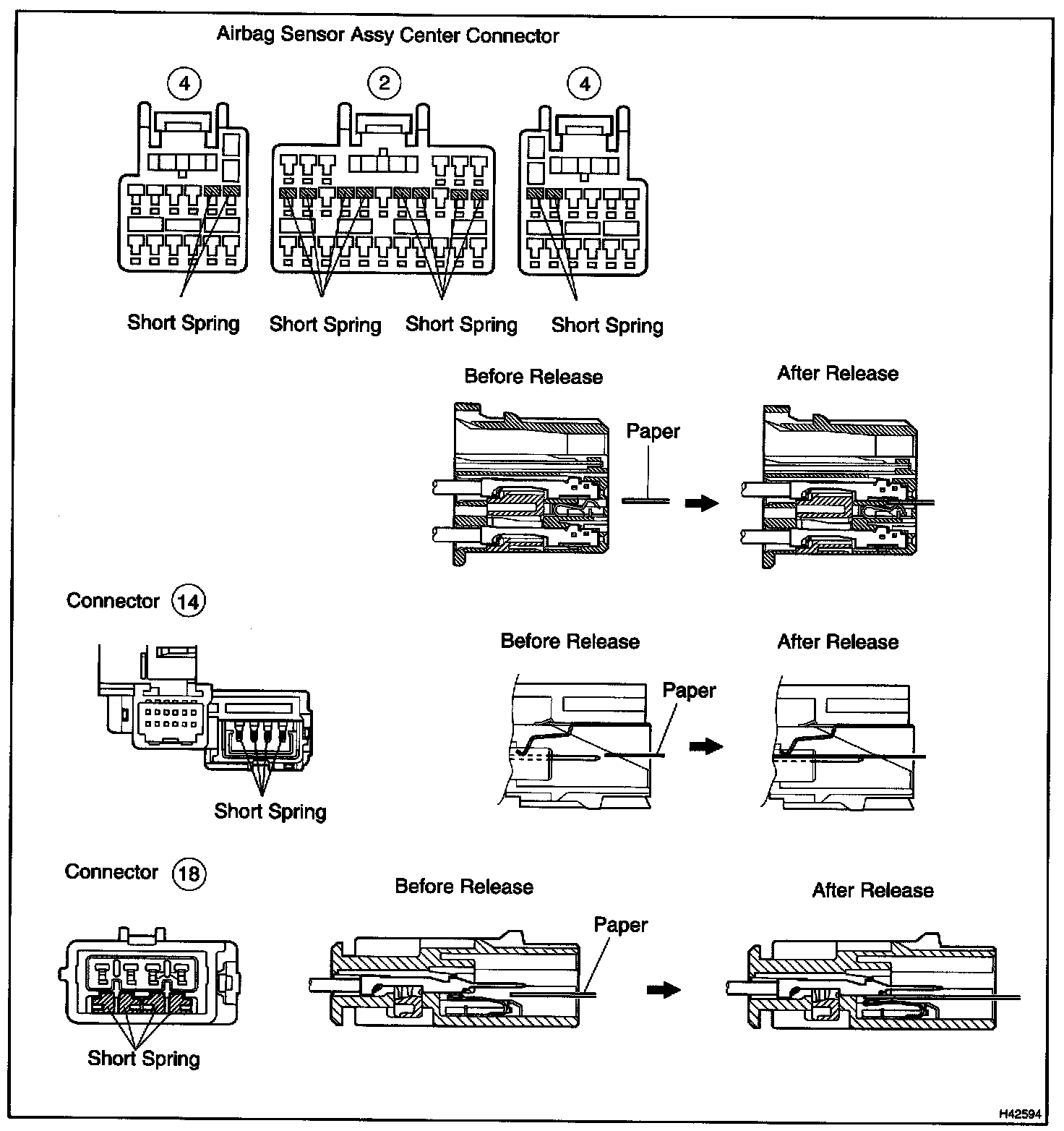

The activation prevention mechanism is built in the connector for the squib circuit of the SRS. As explained in the troubleshooting section, insert a piece of paper that is the same thickness as the male terminal between the terminal and the short spring to release it.

CAUTION: Never release the activation prevention mechanism on the squib connector.

NOTE:
- Do not release the activation prevention mechanism unless specially directed by the troubleshooting procedure.
- To prevent the terminal and the short spring from becoming damaged, always use a piece of paper that is the same thickness as the male terminals.
