TC Terminal Circuit

CIRCUIT DESCRIPTION

DTC output mode is set by connecting terminals TC and CG of the DLC3. The DTCs are displayed by blinking the SRS warning light.

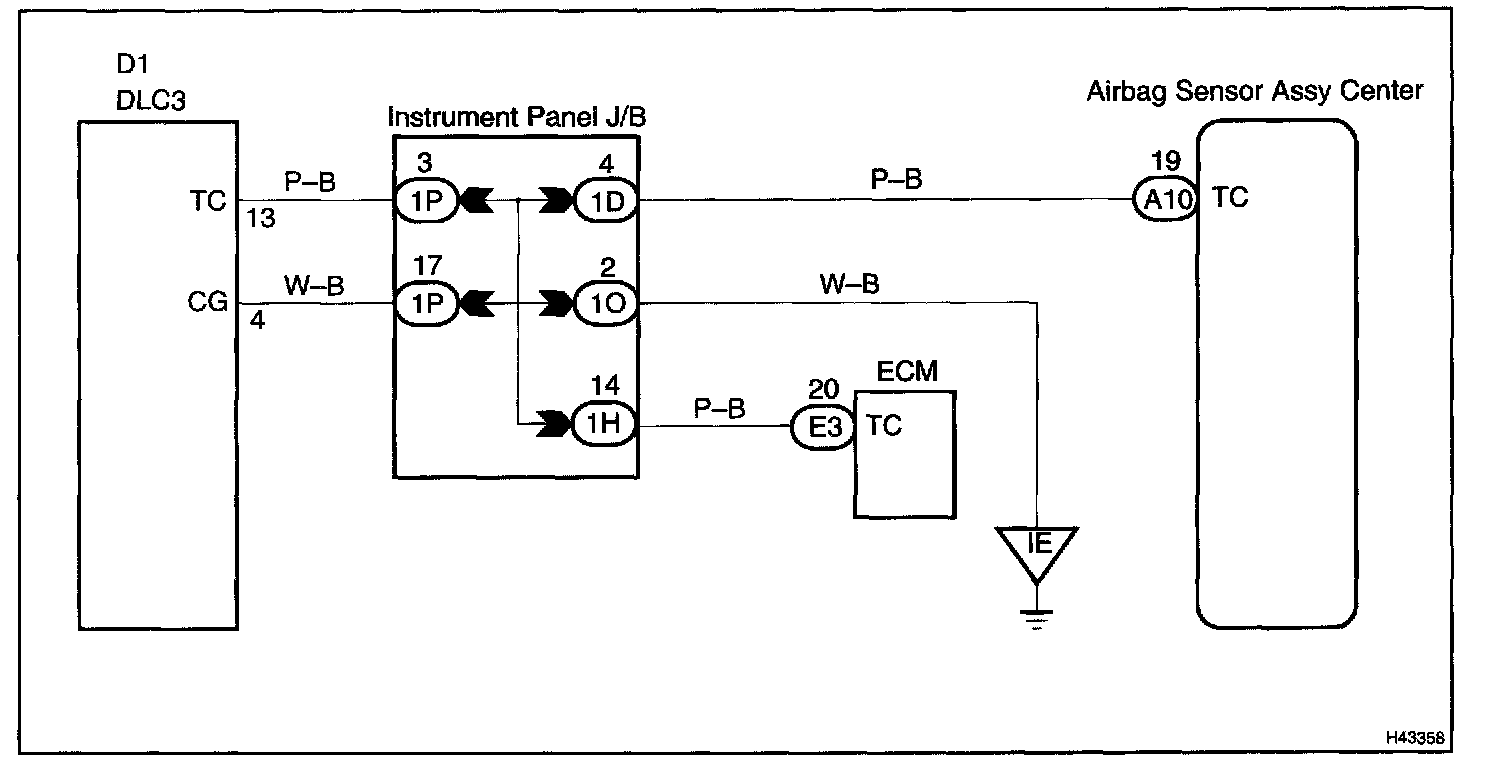

Wiring Diagram:

HINT: When each warning light stays blinking, a ground short in the wiring of terminal TC of the DLC3 or an internal ground short in each ECU is suspected.

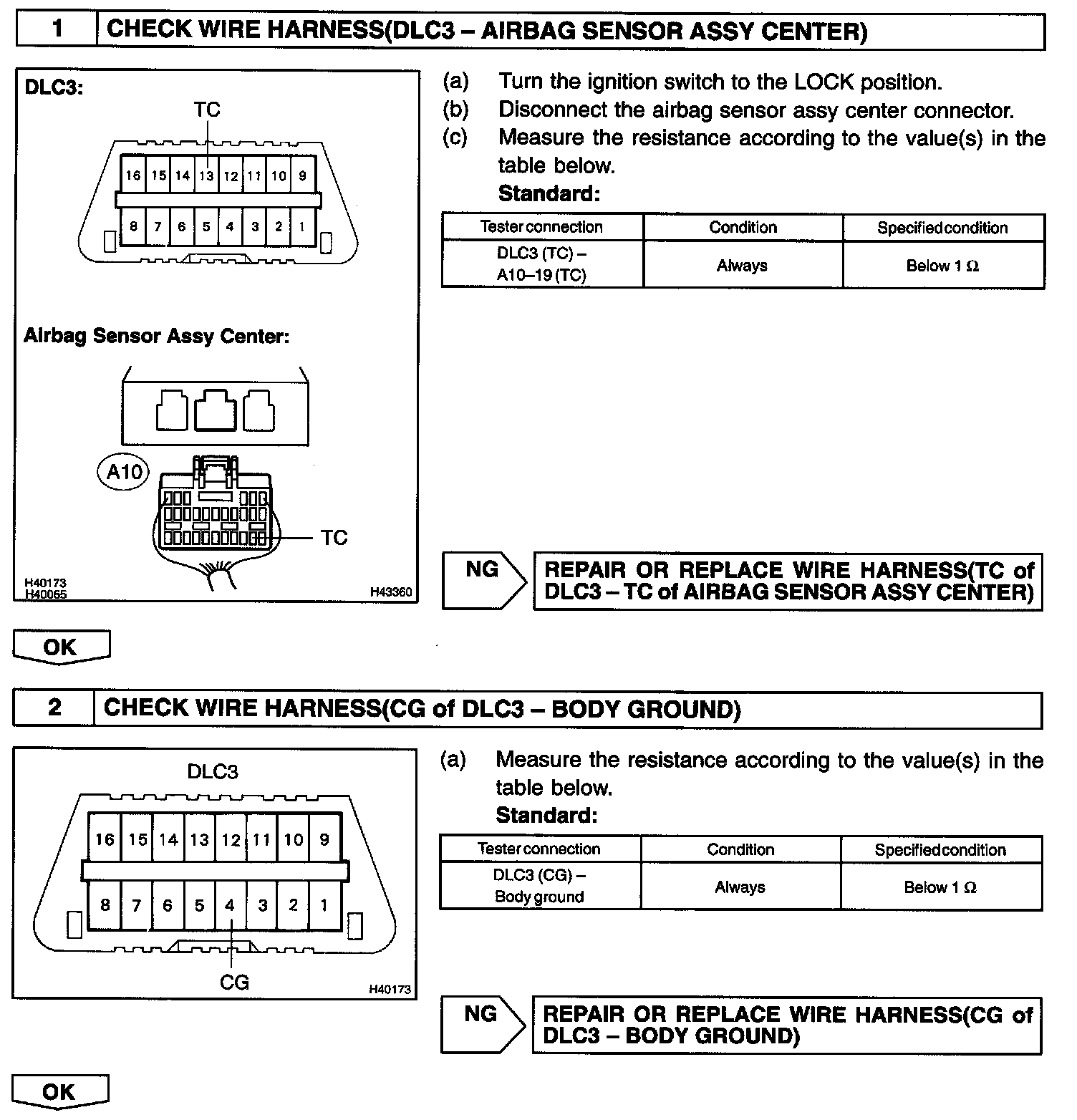

Step 1 - 2:

Step 3:

INSPECTION PROCEDURE
