Skid Control ECU Communication Stop Mode

Circuit Description:

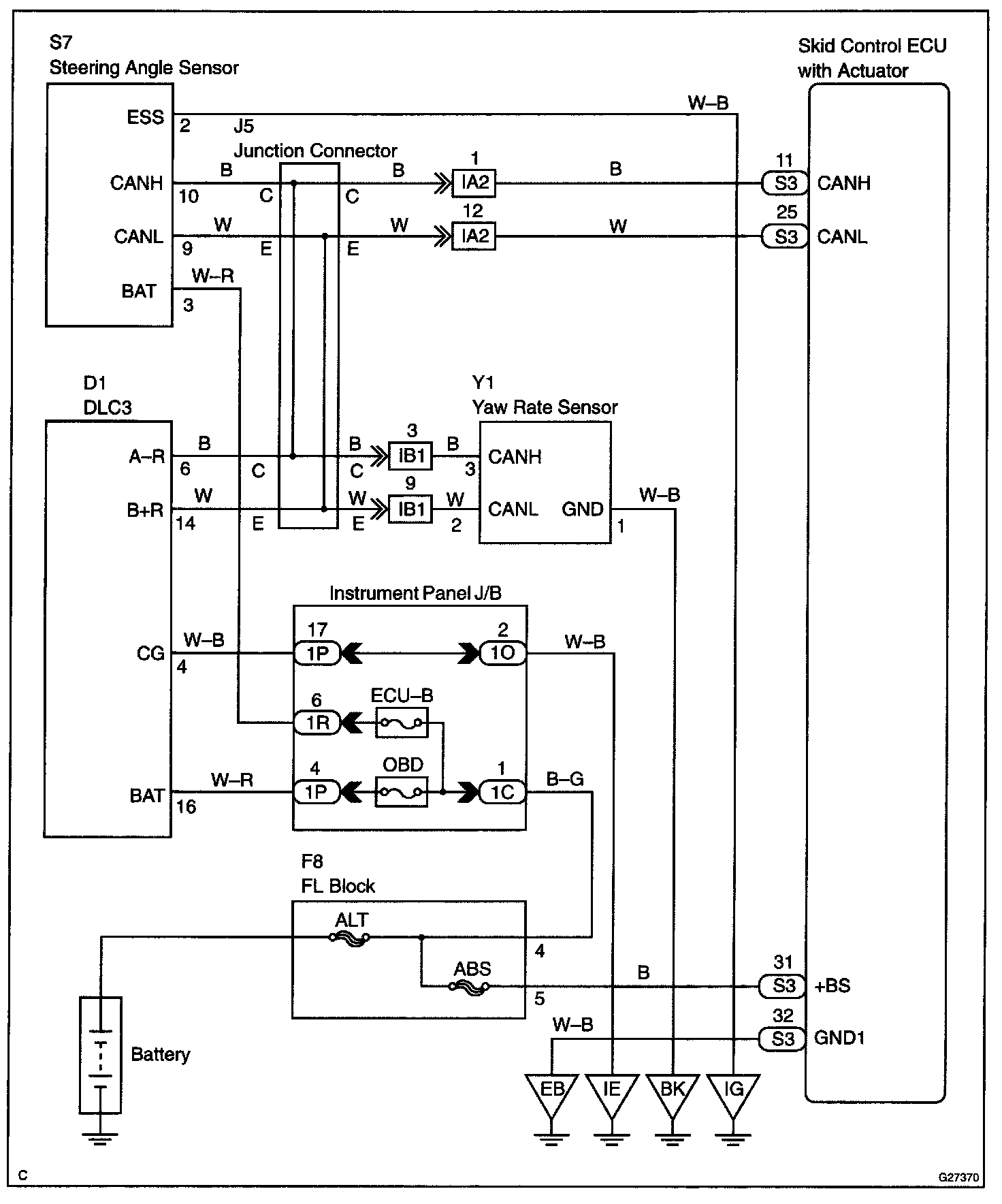

Wiring Diagram:

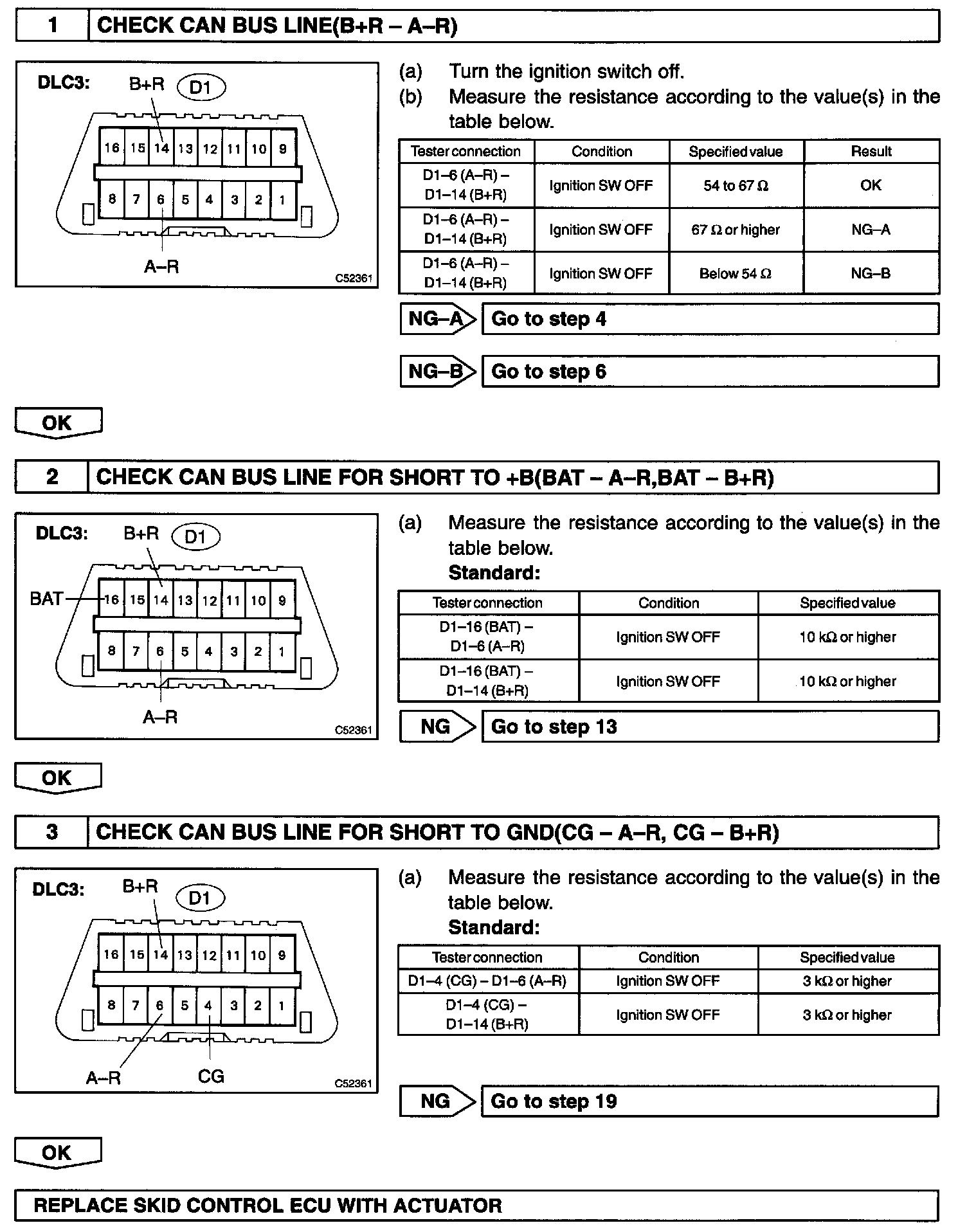

Step 1 - 3:

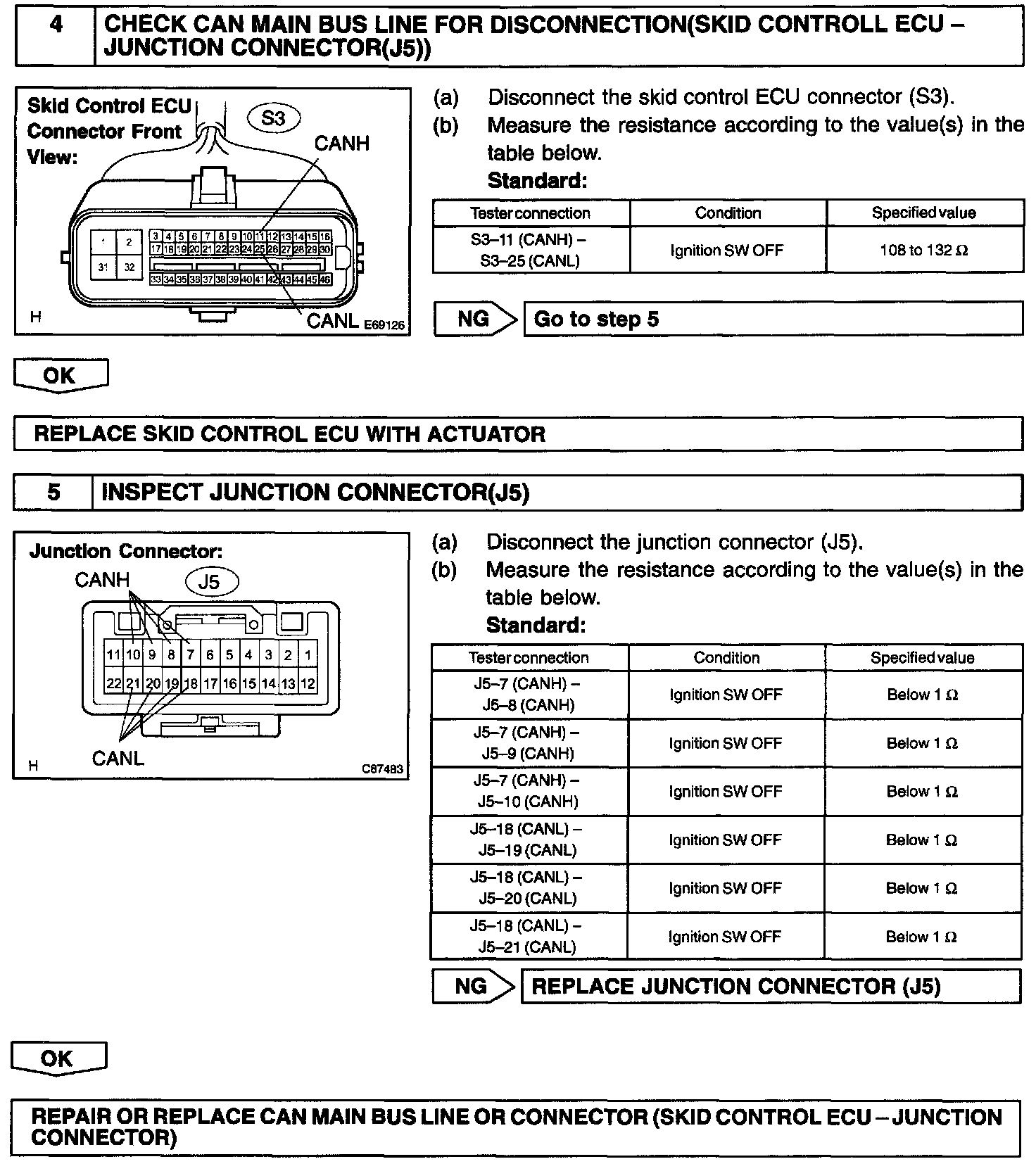

Step 4 - 5:

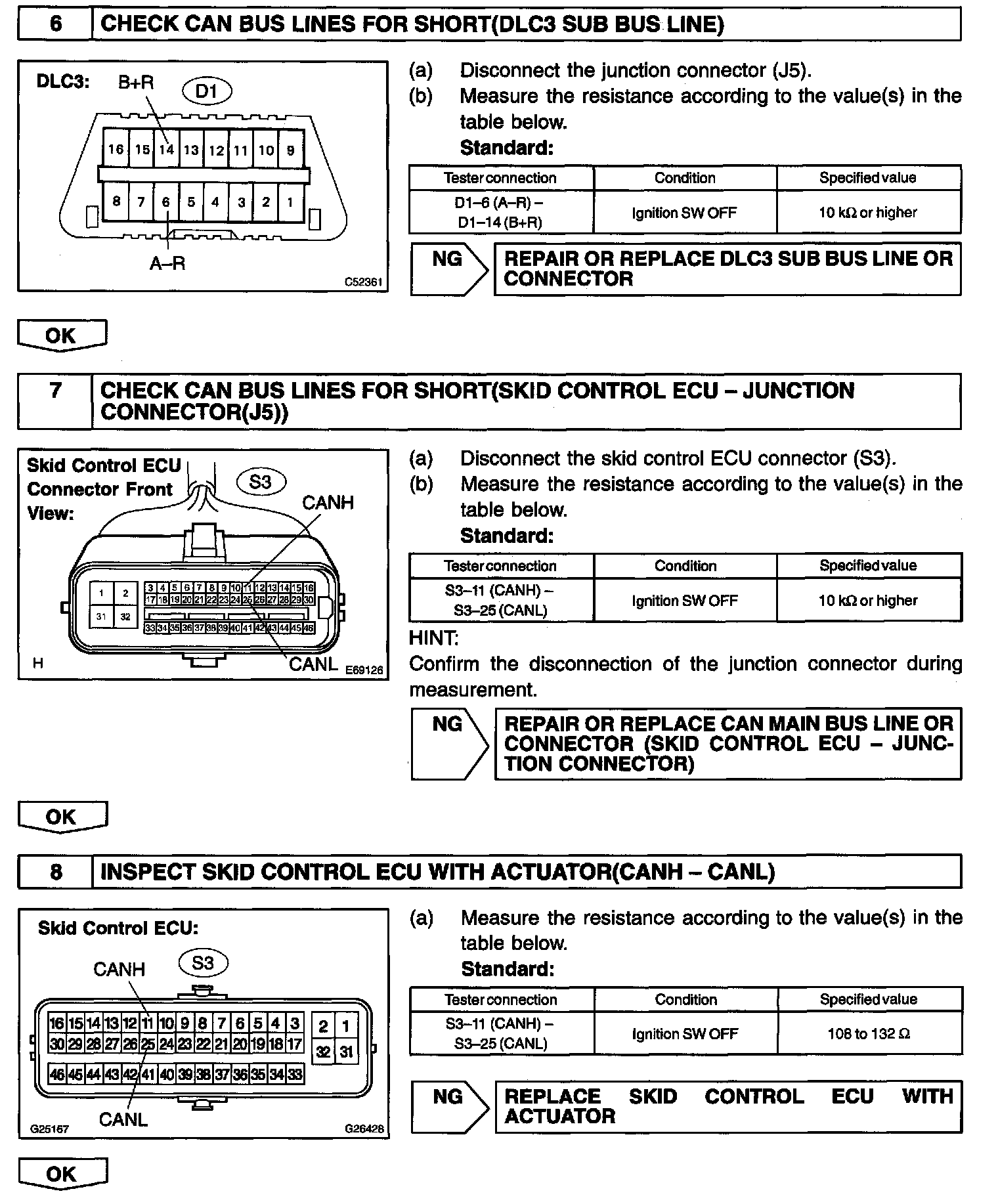

Step 6 - 8:

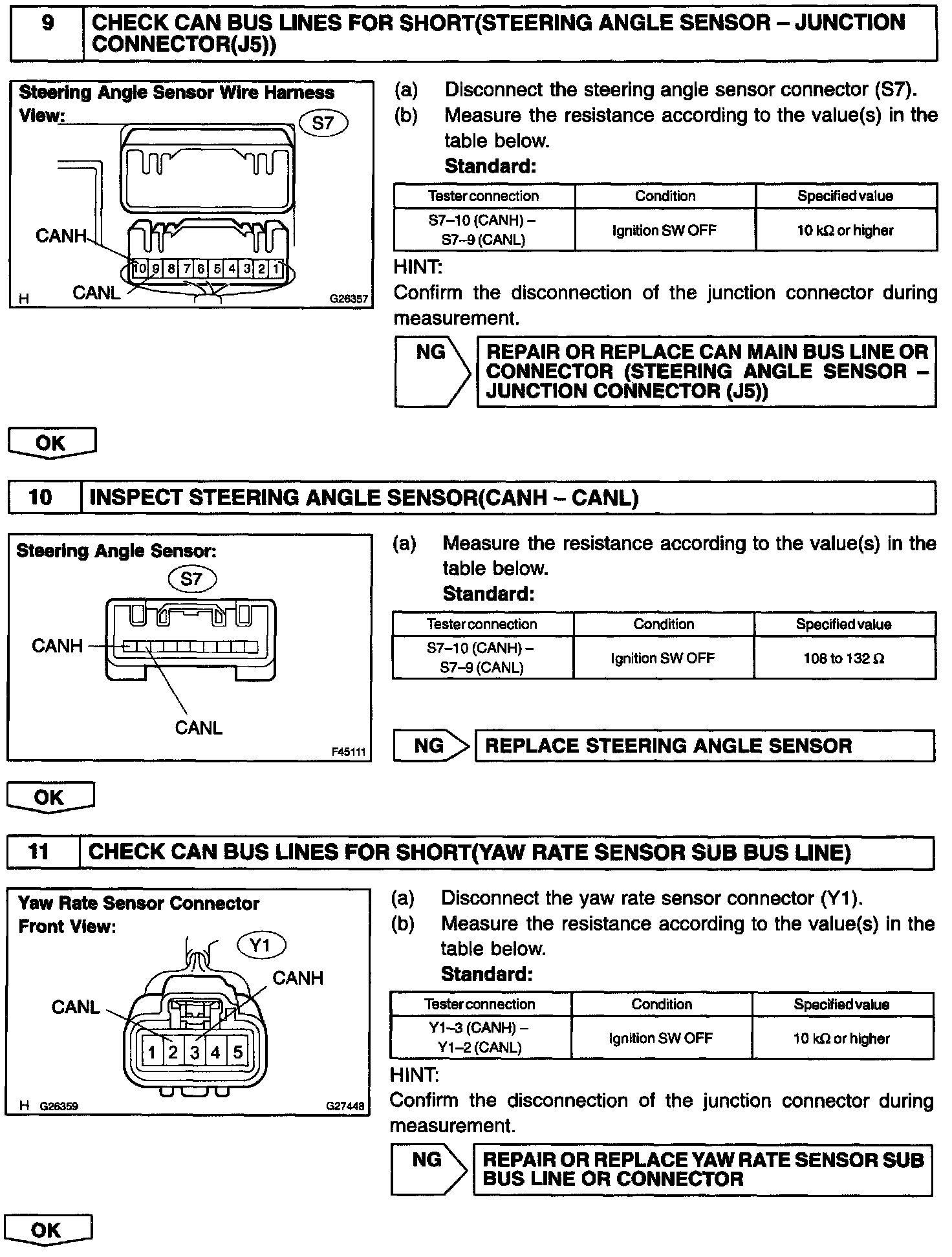

Step 9 - 11:

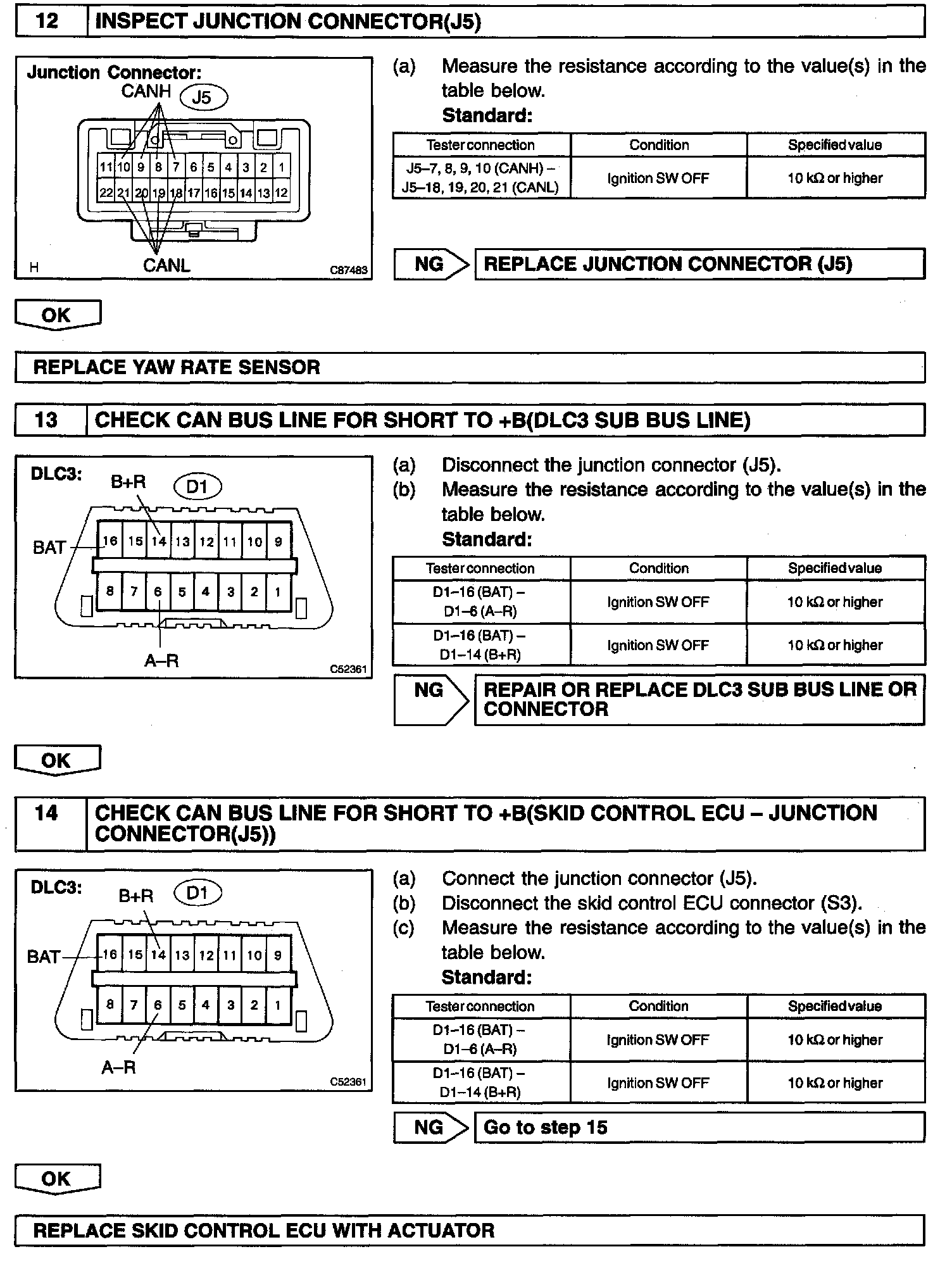

Step 12 - 14:

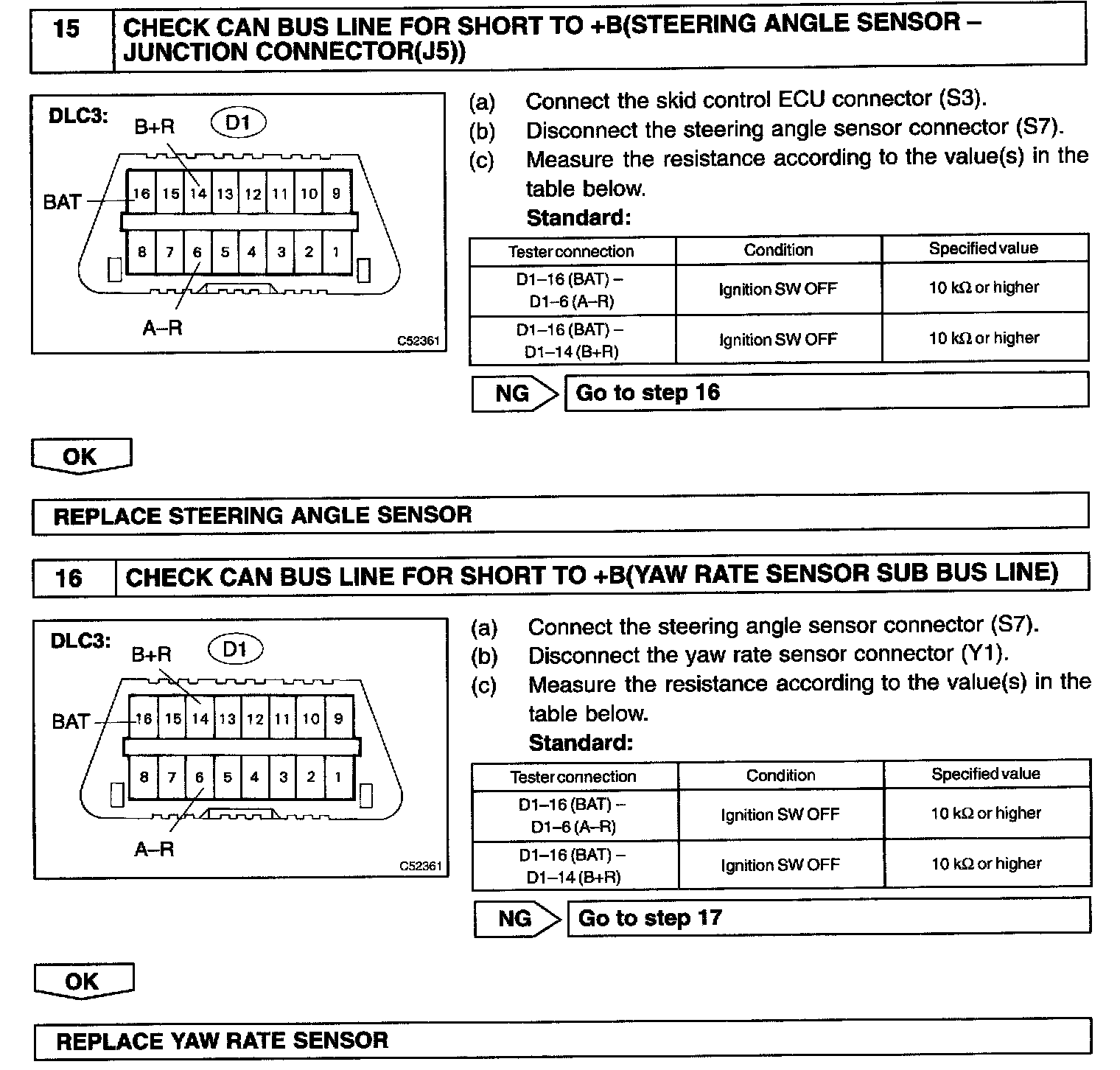

Step 15 - 16:

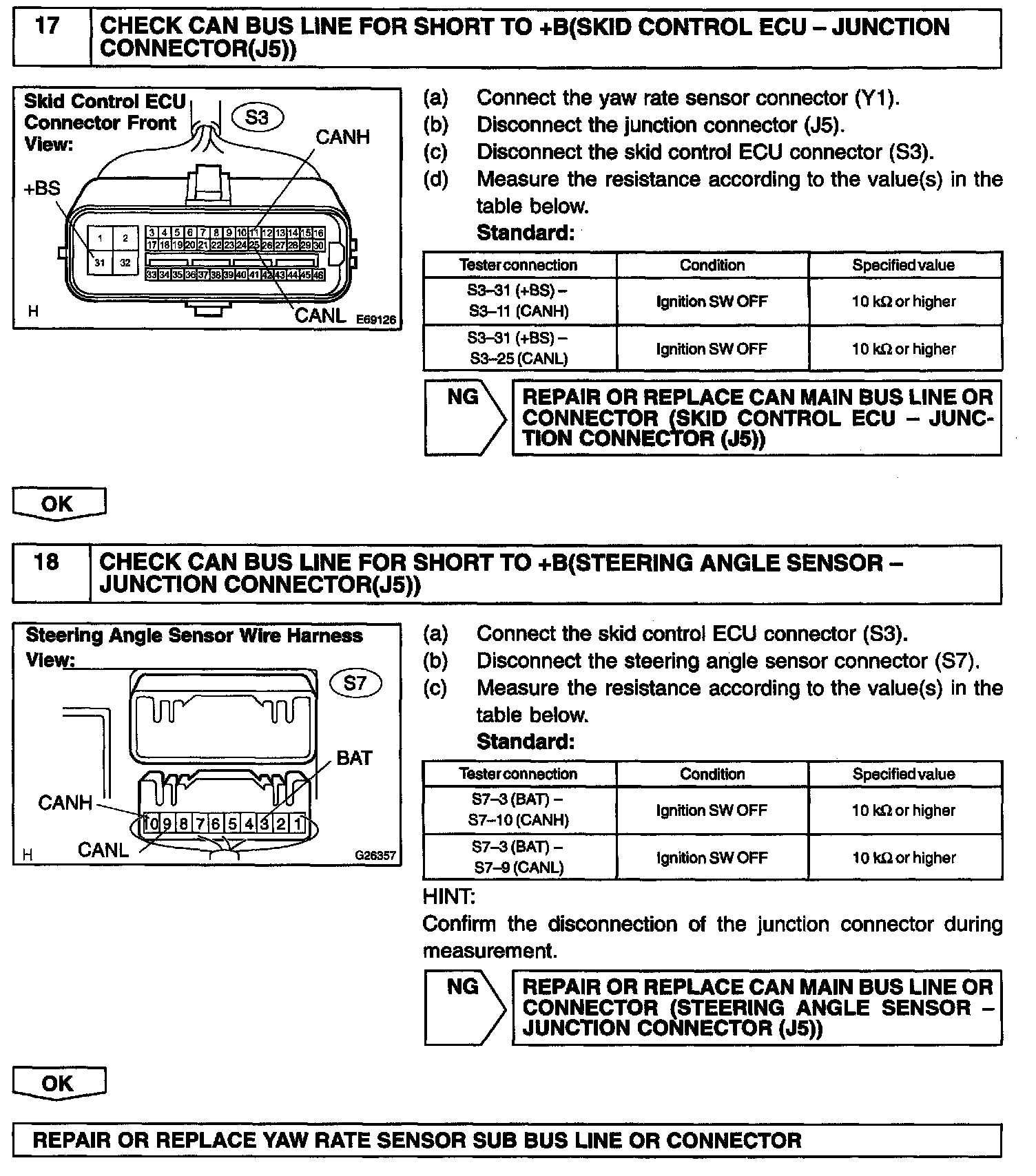

Step 17 - 18:

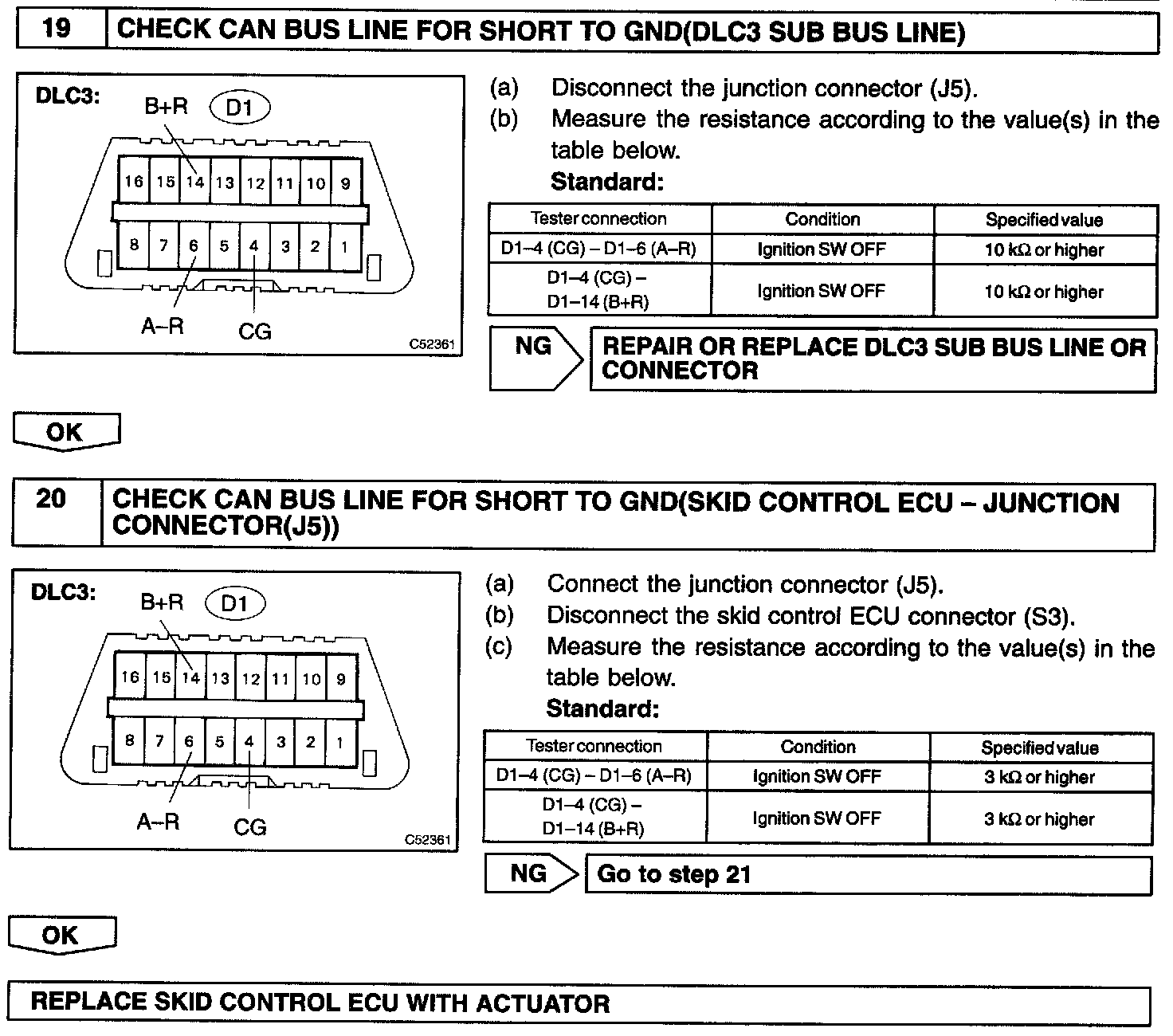

Step 19 - 20:

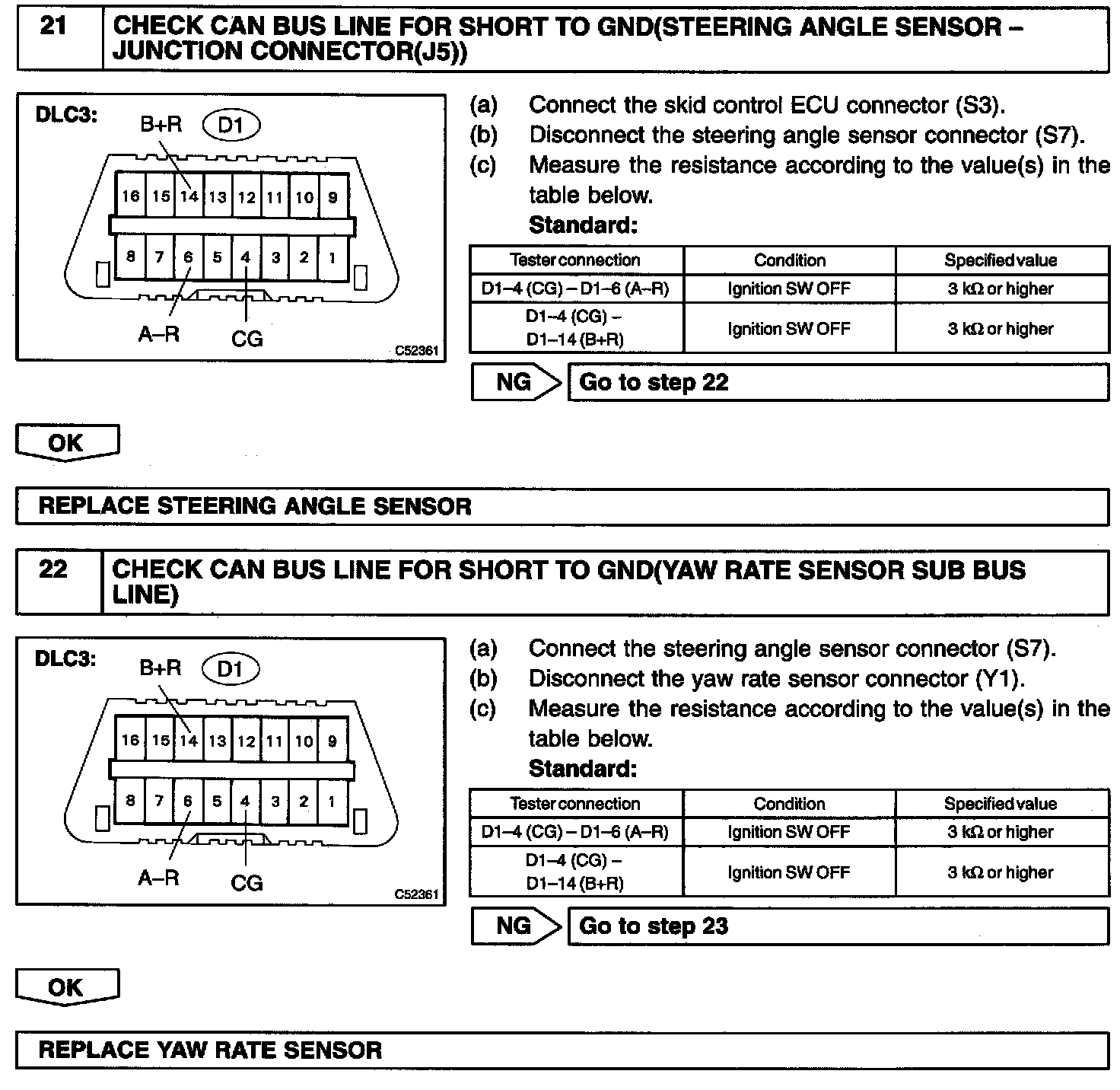

Step 21:

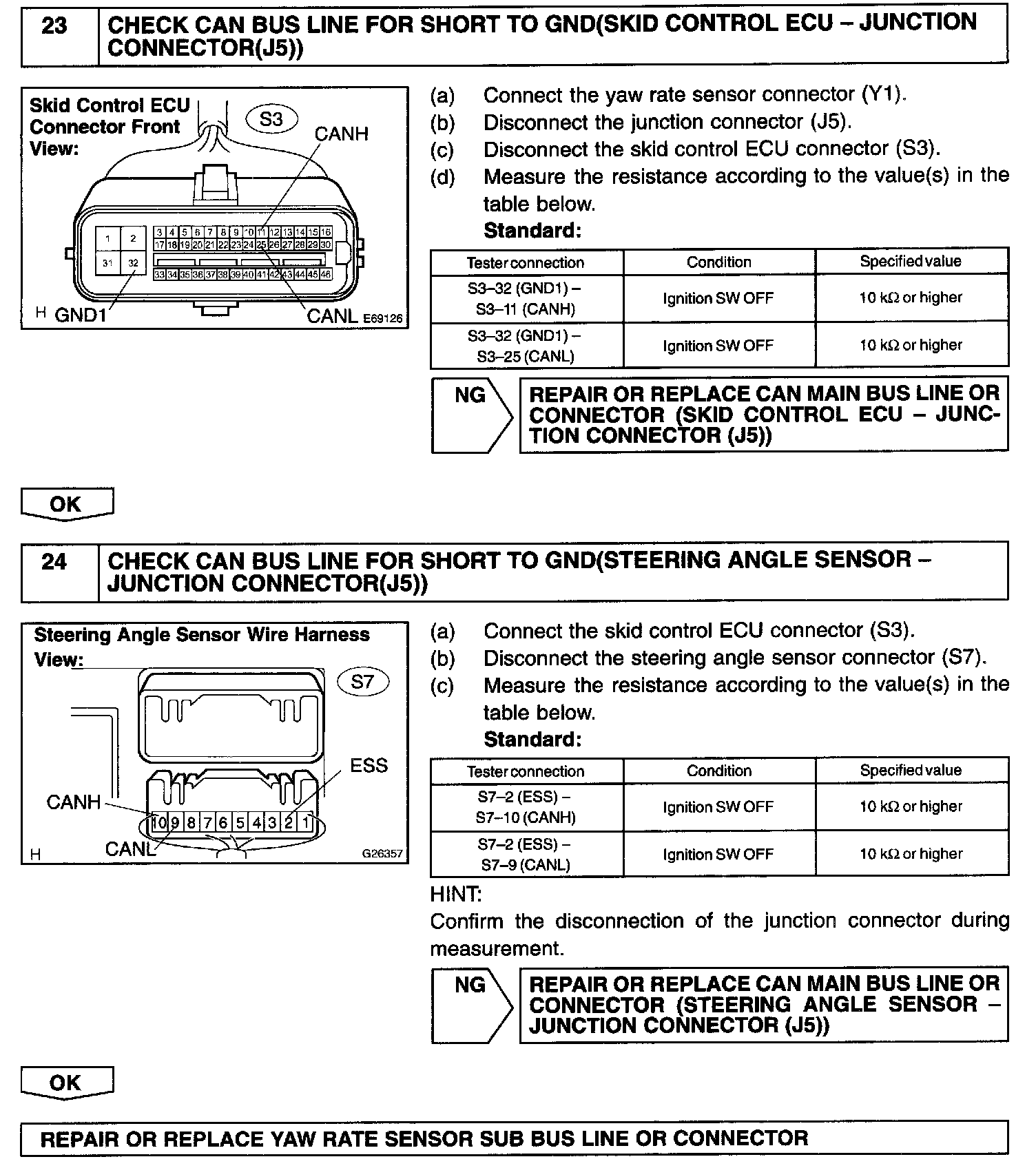

Step 23 - 24:
