Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

HINT: This section describes the standard CAN values for all CAN related components.

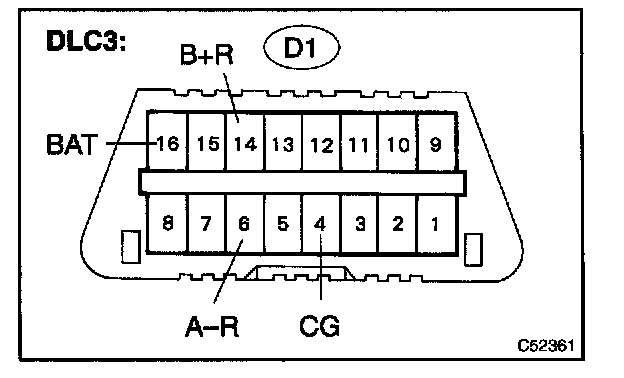

1. DLC3




a. Terminals.

HINT: To inspect value(s).

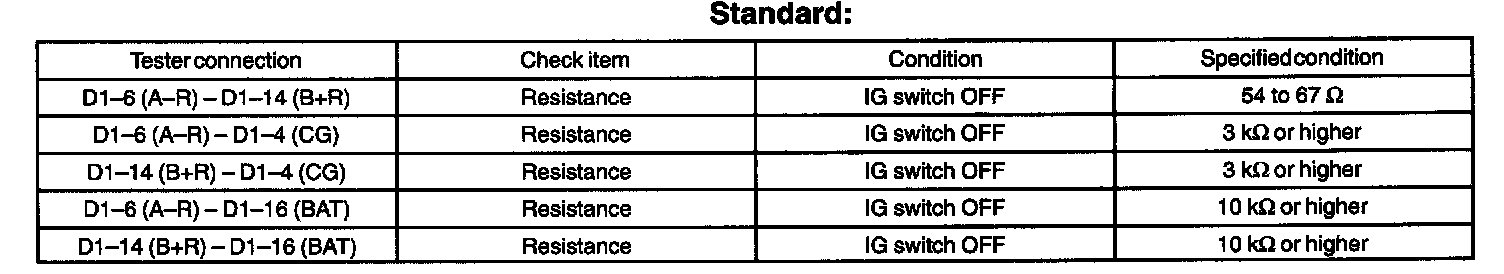

Standard:

2. SKID CONTROL ECU

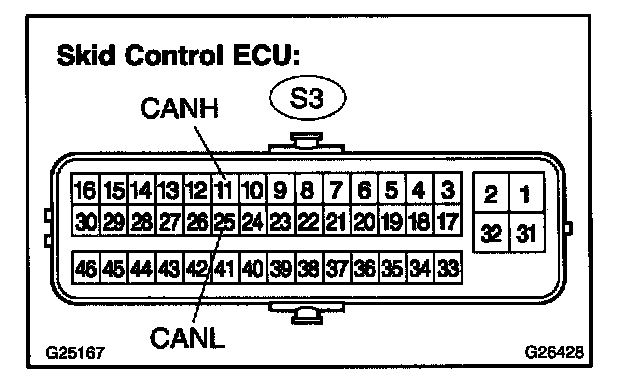

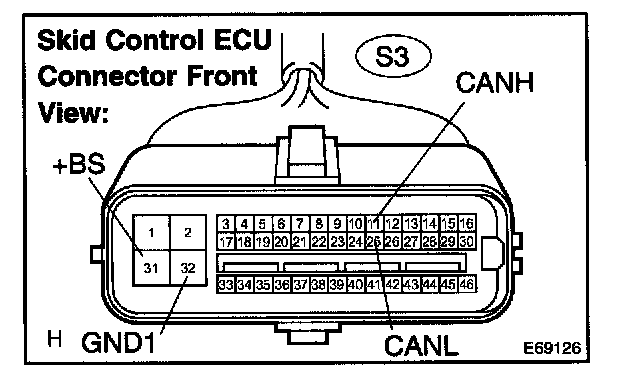

a. Terminals (skid control ECU).

HINT: To inspect value(s).

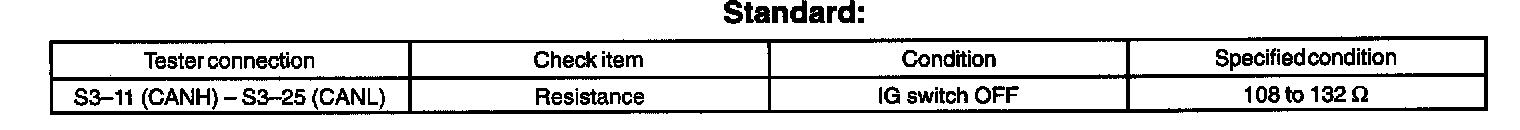

Standard:




b. Terminals (skid control ECU vehicle side harness connector).

HINT: To inspect value(s).

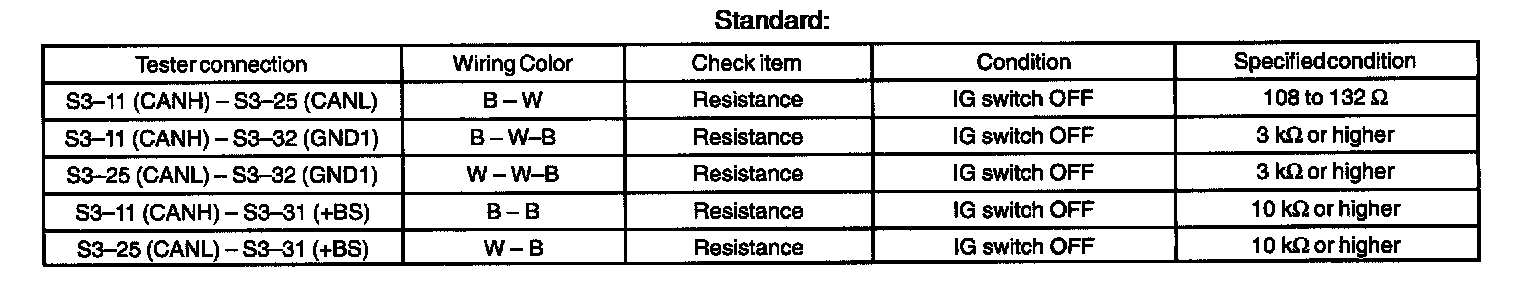

Standard:

3. STEERING ANGLE SENSOR

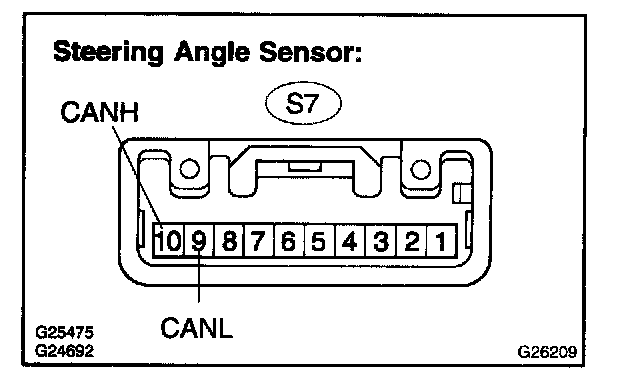

a. Terminals (steering angle sensor).

HINT: To inspect value(s).

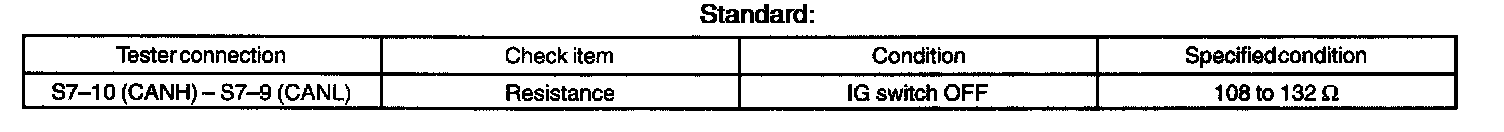

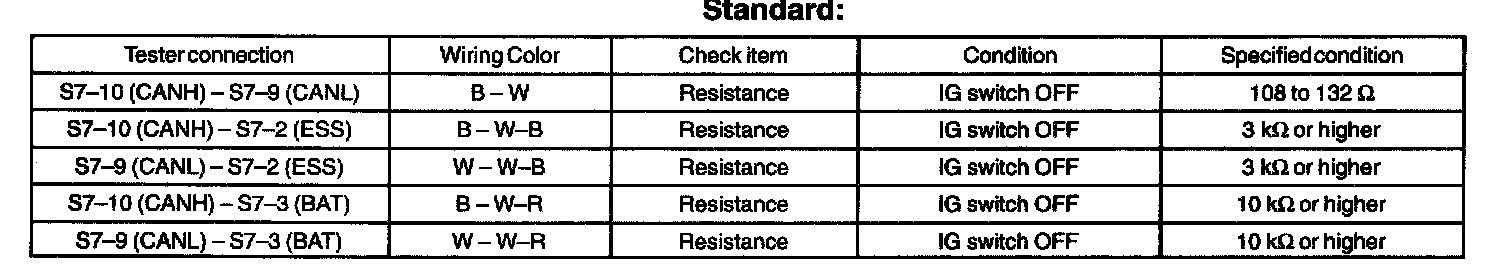

Standard:

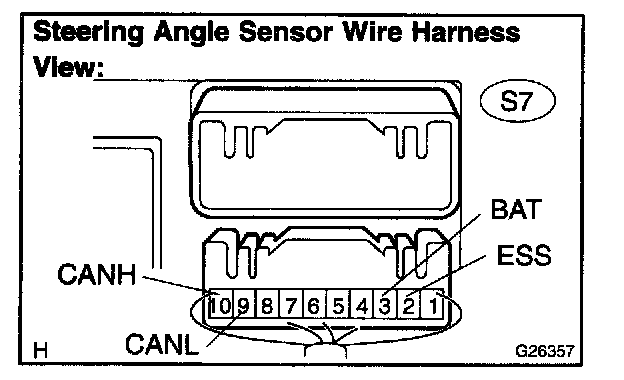

b. Terminals (steering angle sensor vehicle side harness connector).

HINT: To inspect value(s).




Standard:

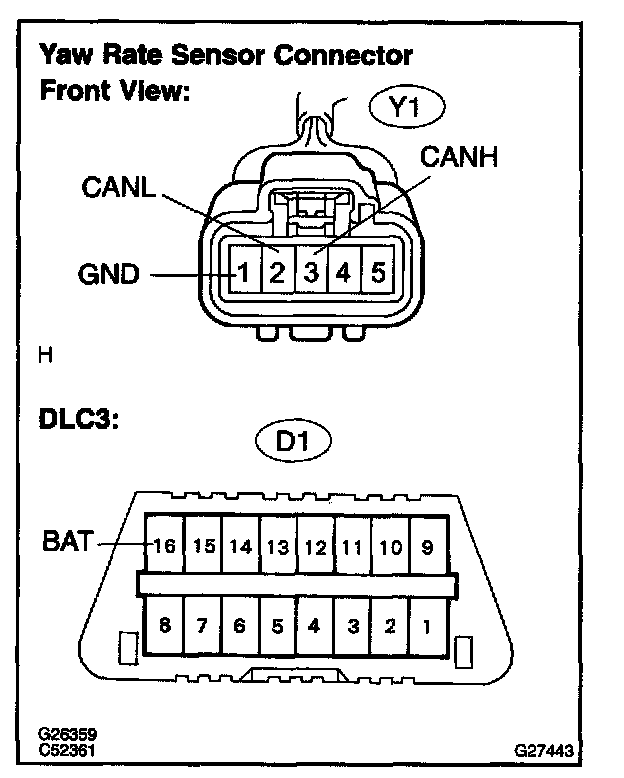

4. YAW RATE SENSOR




a. Terminals.

HINT: To inspect value(s).

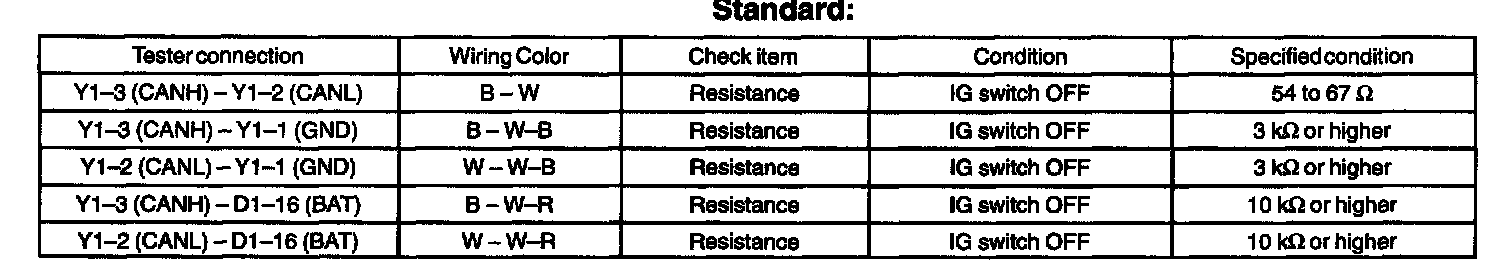

Standard:

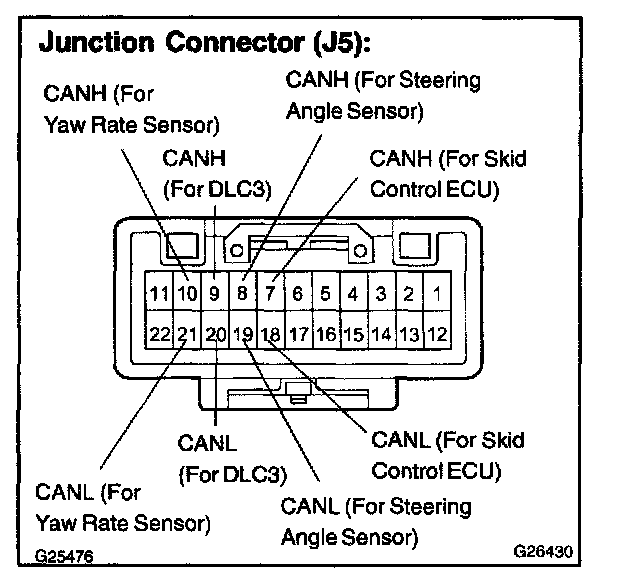

5. JUNCTION CONNECTOR (J5)




a. Terminals.

HINT: To inspect value(s).

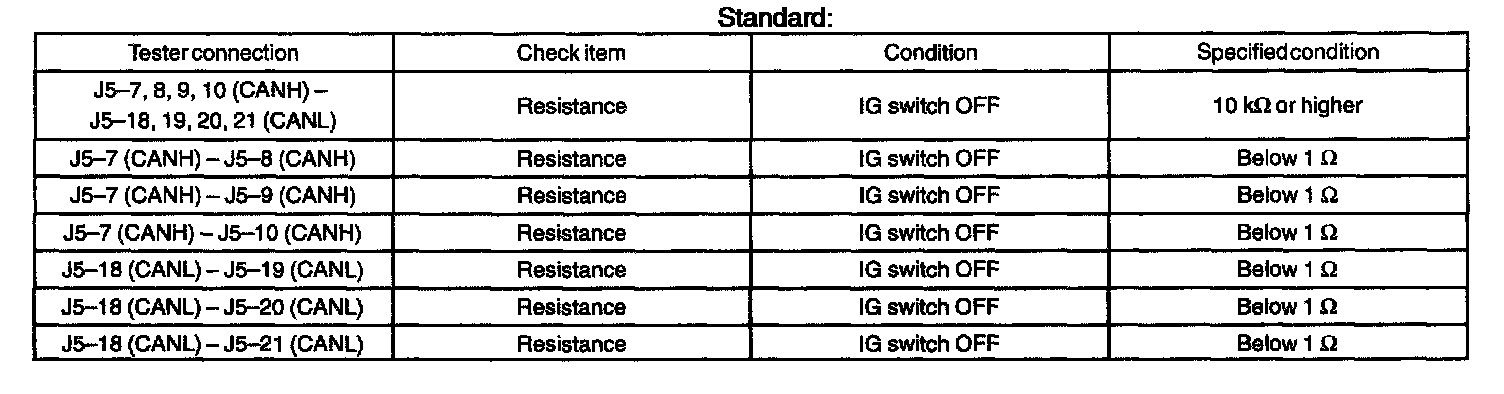

Standard:
