License Plate Lamp: Service and Repair

LAMP SET REAR

OVERHAUL
1. REMOVE BACK DOOR TRIM BOARD
2. REMOVE BACK DOOR GARNISH OUTSIDE




3. REMOVE LAMP SET REAR

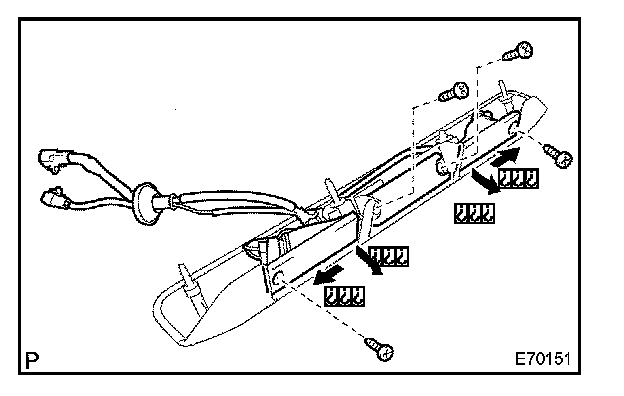

a. Remove the 4 screws and the lamp set rear.




4. REMOVE LICENSE PLATE LAMP BULB

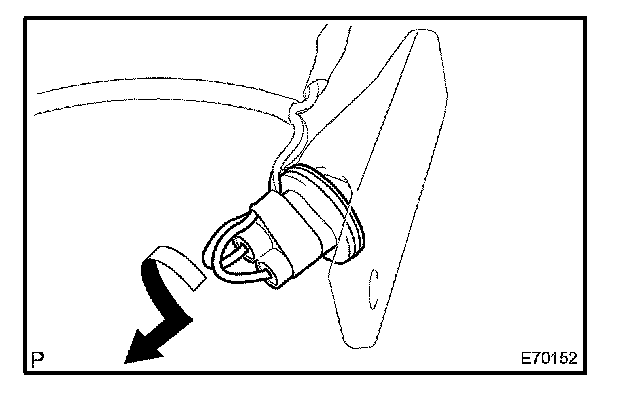

a. Remove the license plate lamp bulb and socket as shown in the illustration.
b. Remove the license plate lamp bulb from the socket.

5. REMOVE LICENSE PLATE LAMP BODY
