VSC Warning Light Circuit (Remains ON)

VSC WARNING LIGHT CIRCUIT (REMAINS ON)

CIRCUIT DESCRIPTION

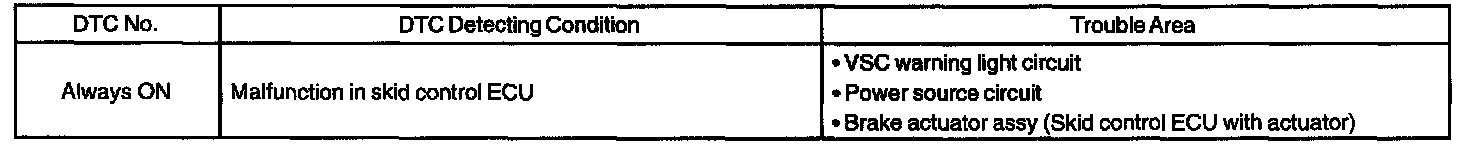

DTC Detecting Condition:

If the ECU stores DTC, the VSC warning light lights on the combination meter.

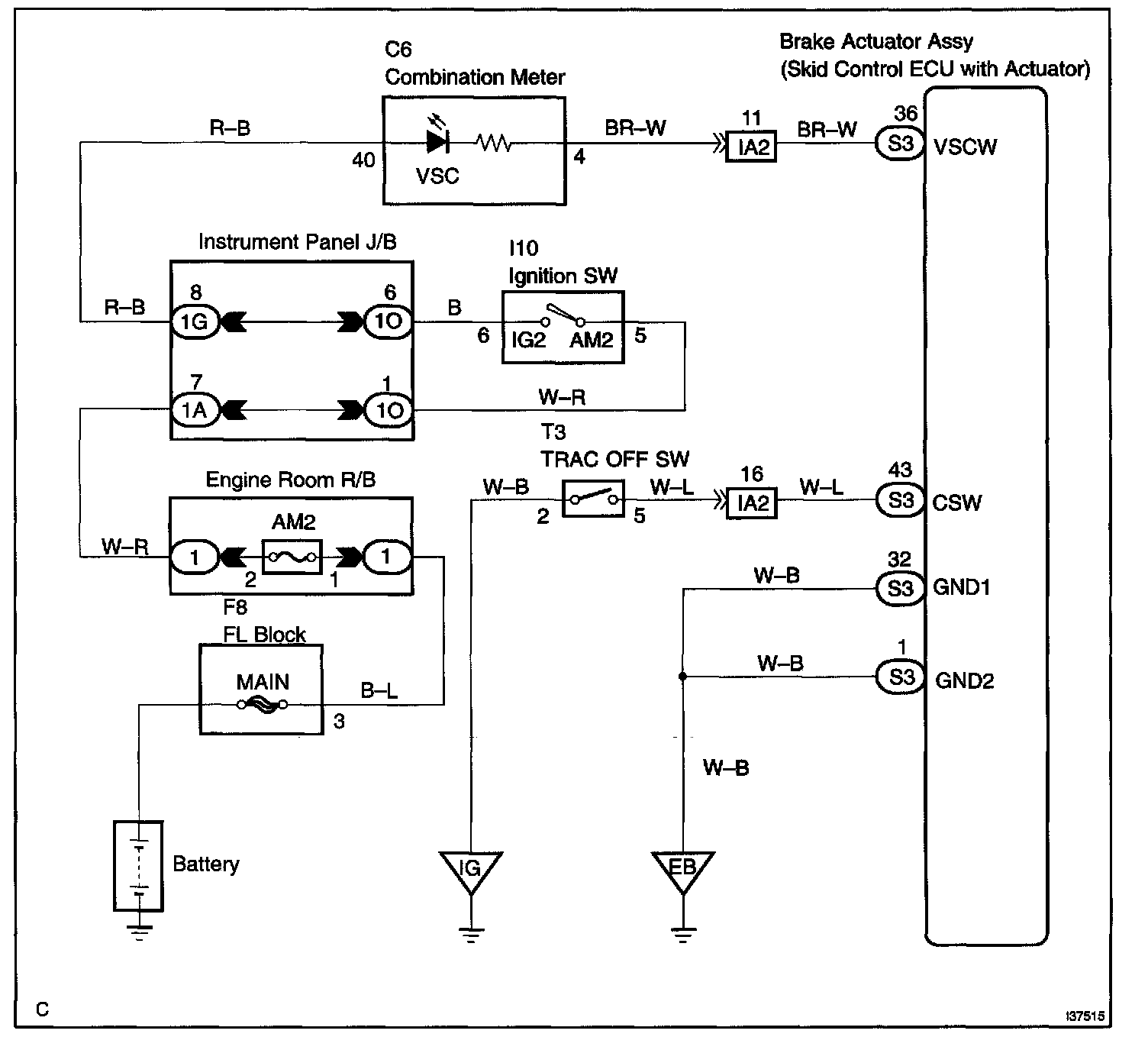

Wiring Diagram:

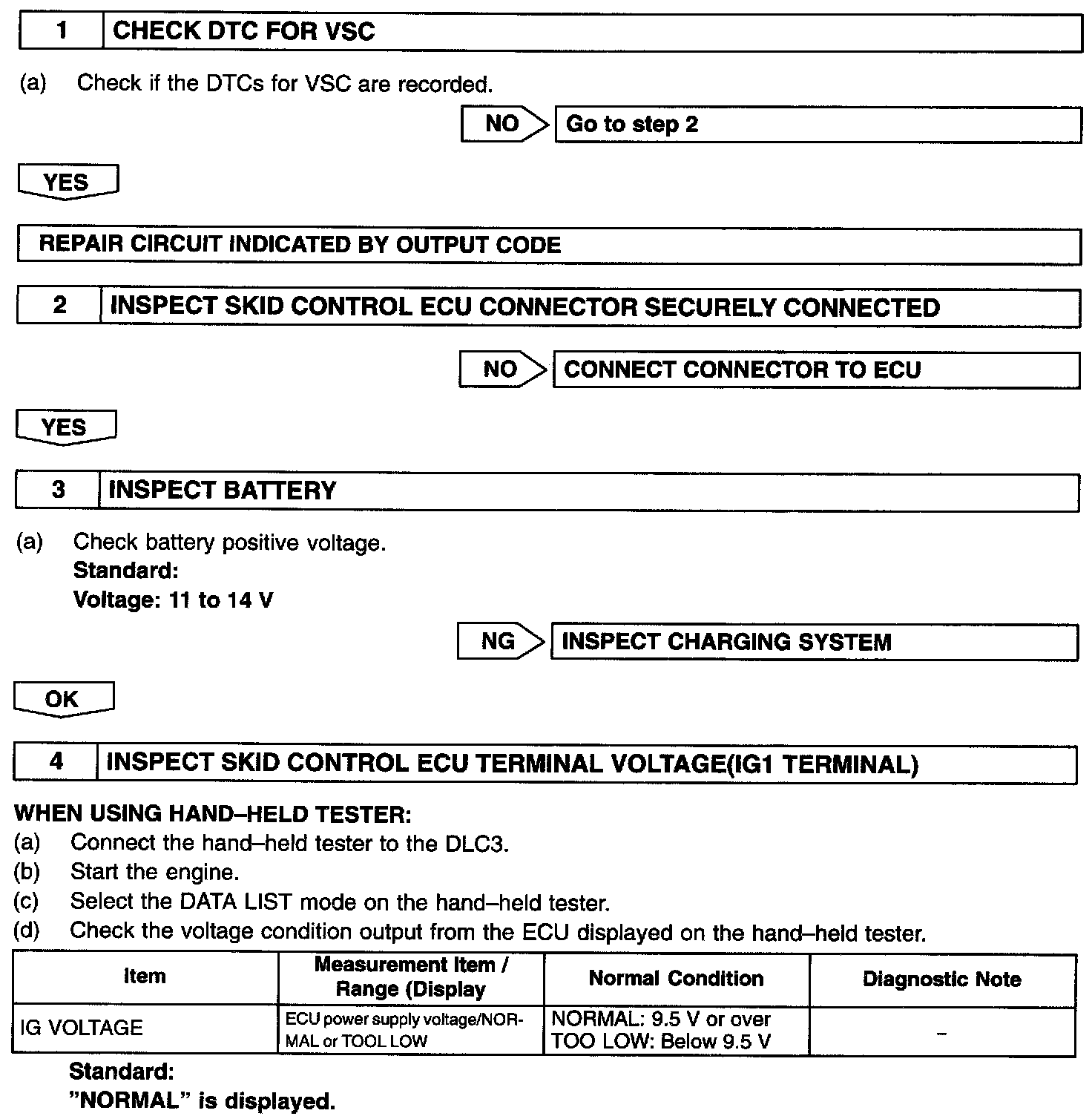

Step 1 - 4:

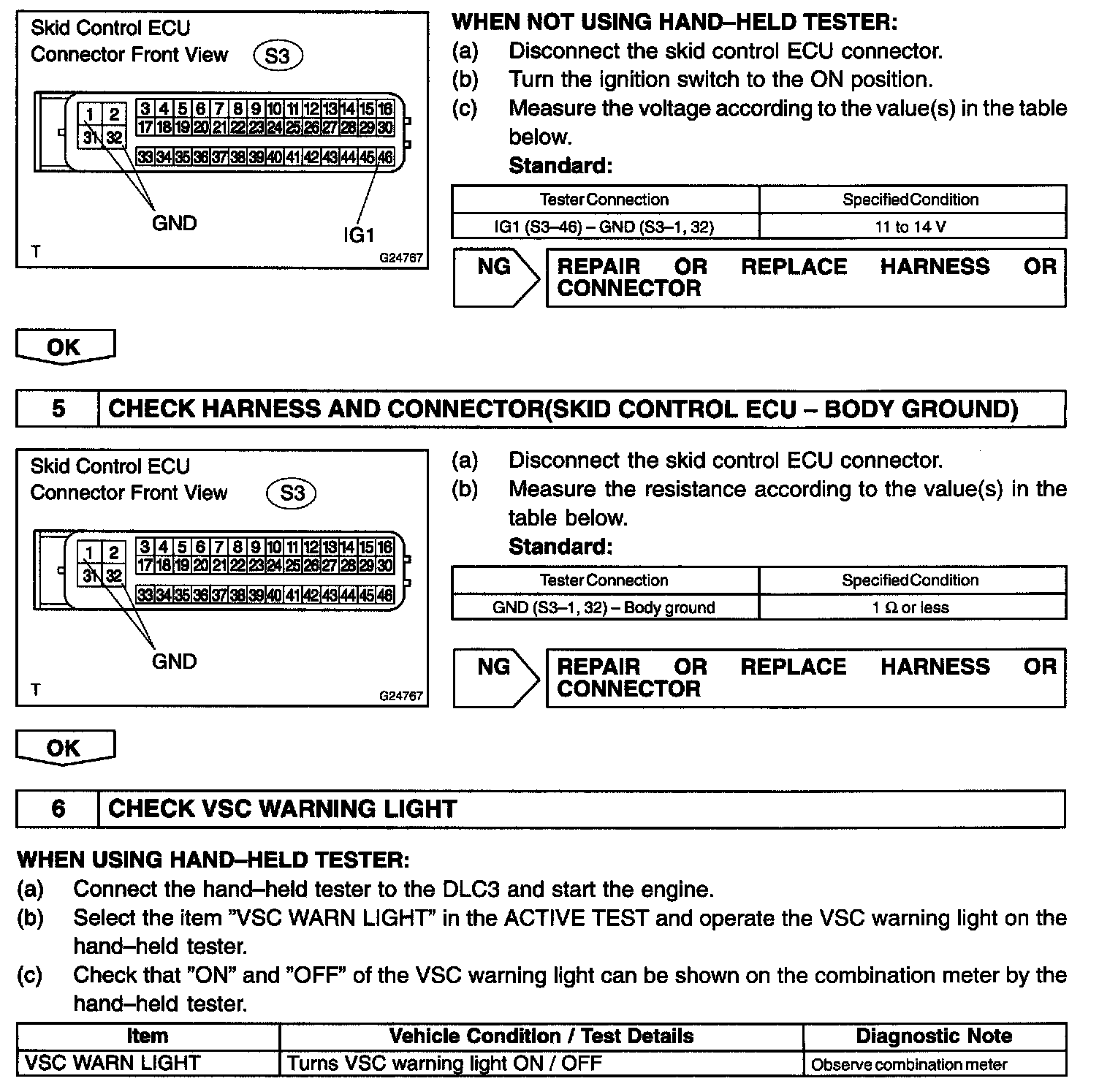

Step (4 Continued - 6):

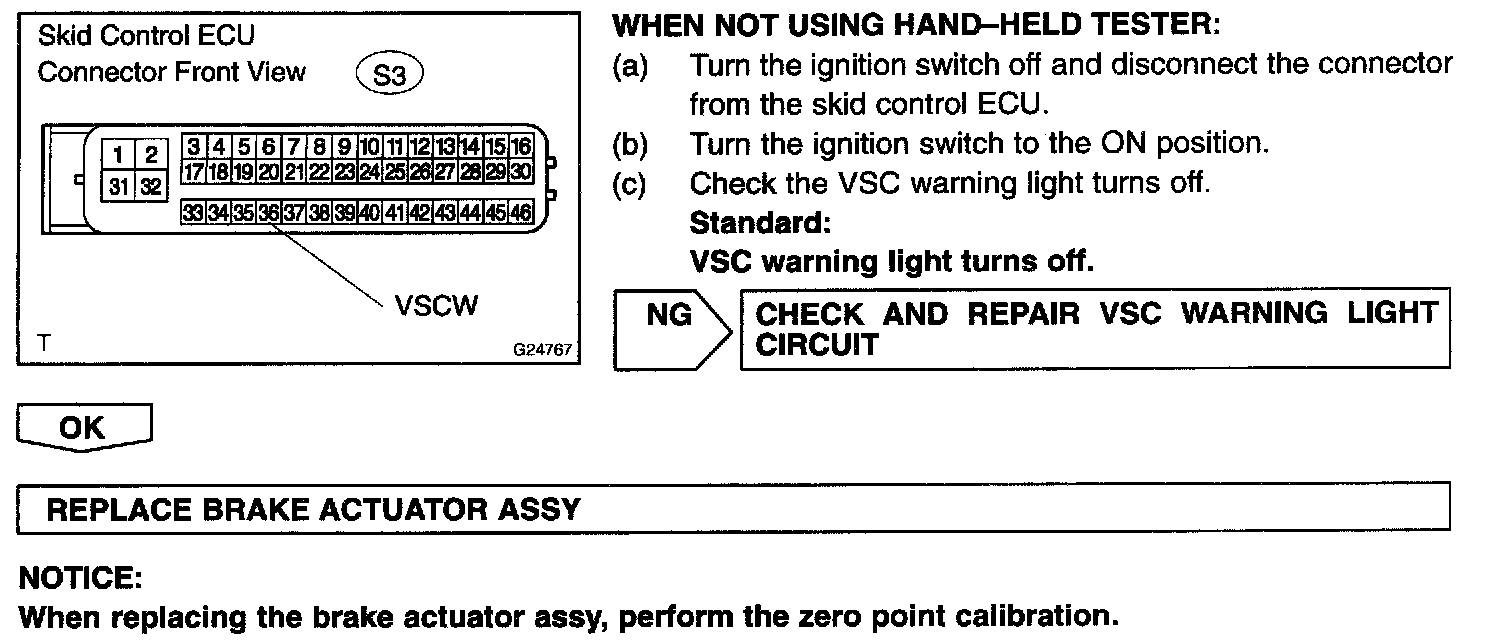

Step (6 Continued):

INSPECTION PROCEDURE
