Slip Indicator Light Circuit

SLIP INDICATOR LIGHT CIRCUIT

CIRCUIT DESCRIPTION
The SLIP indicator blinks during TRAC & VSC operation.

Wiring Diagram:

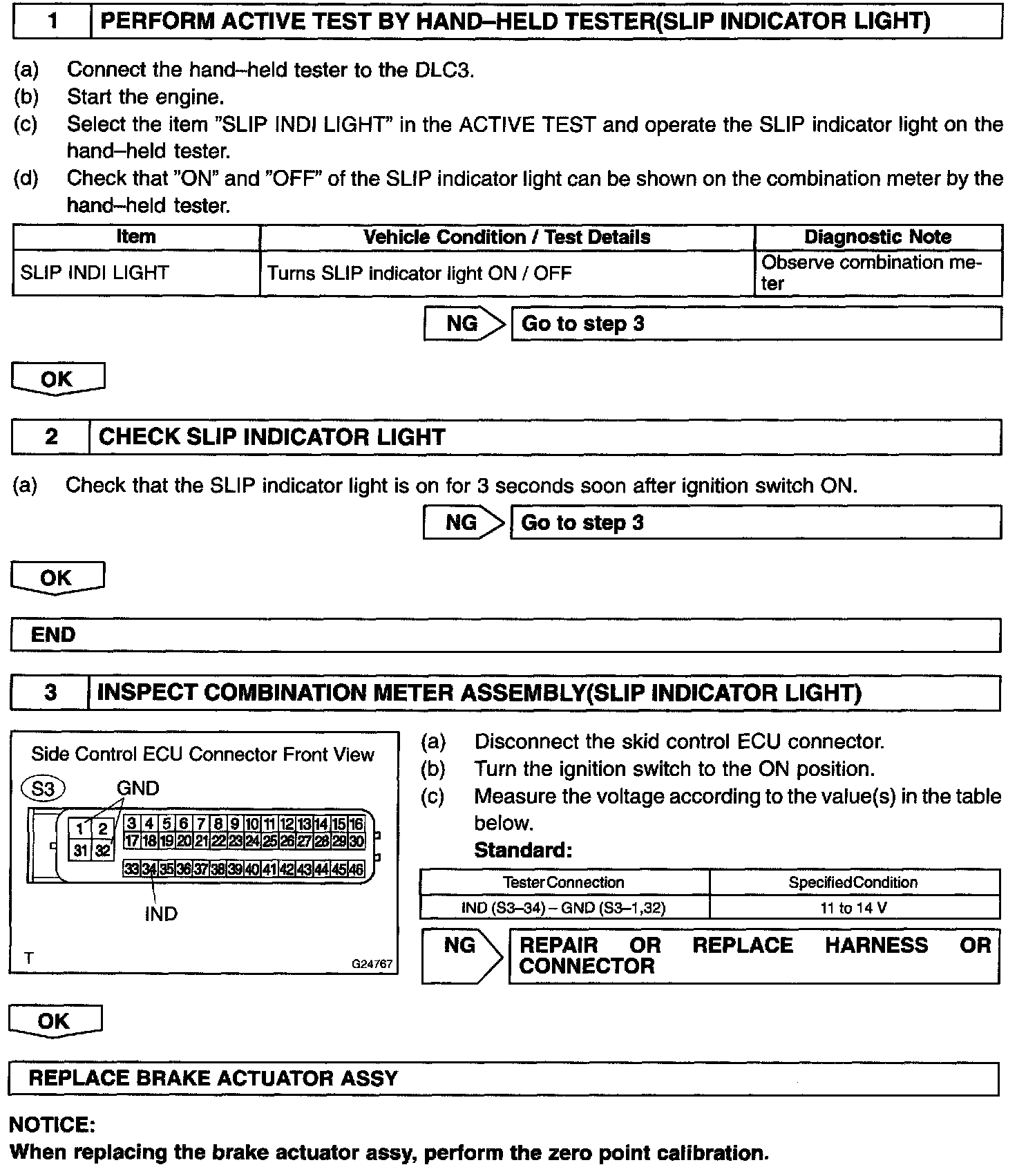

Step 1 - 3:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the hand-held tester and start from step 2 in case of not using the hand-held tester.
