Operating Light Control Rheostat Does Not Change Light Brightness

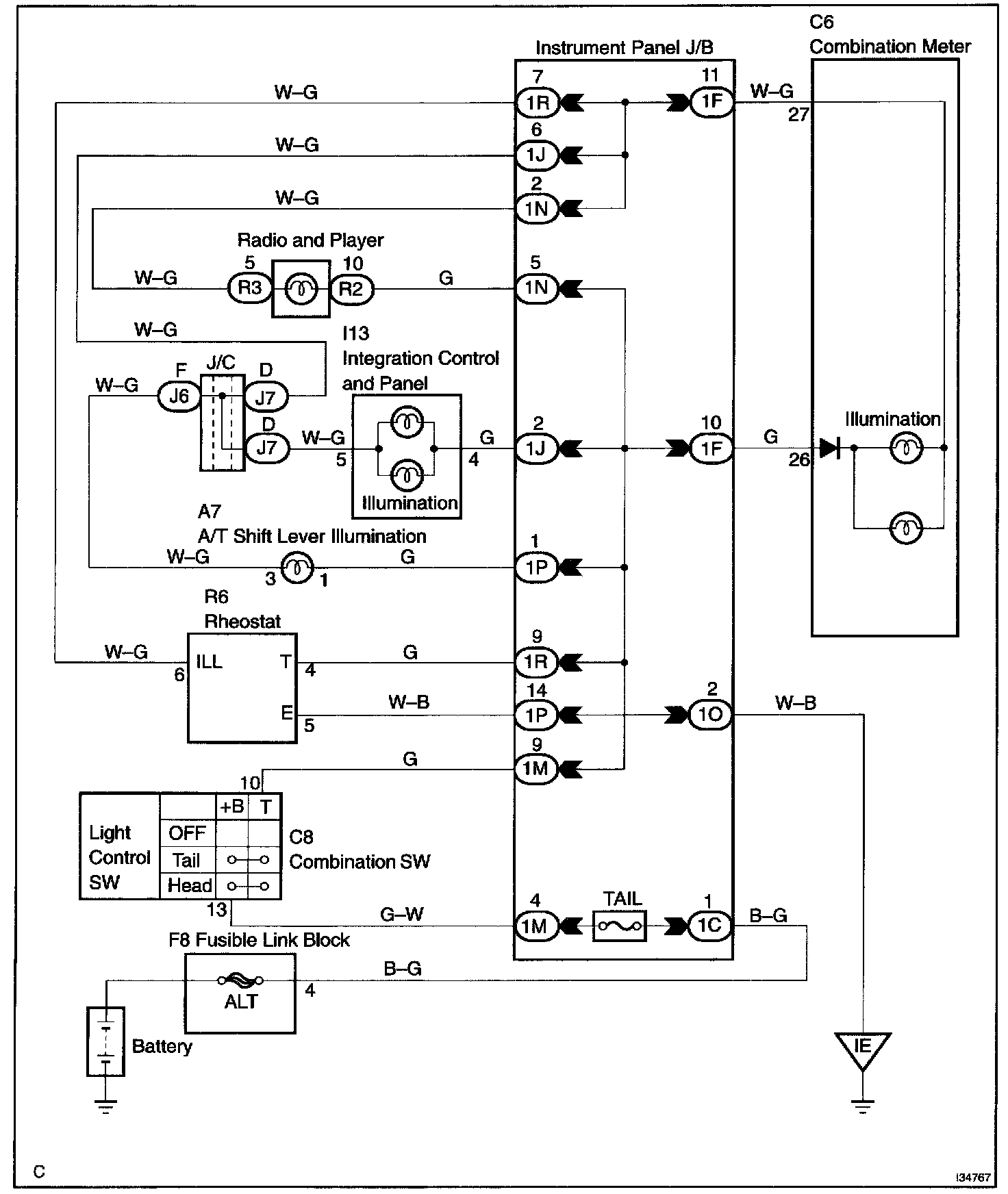

Wiring Diagram:

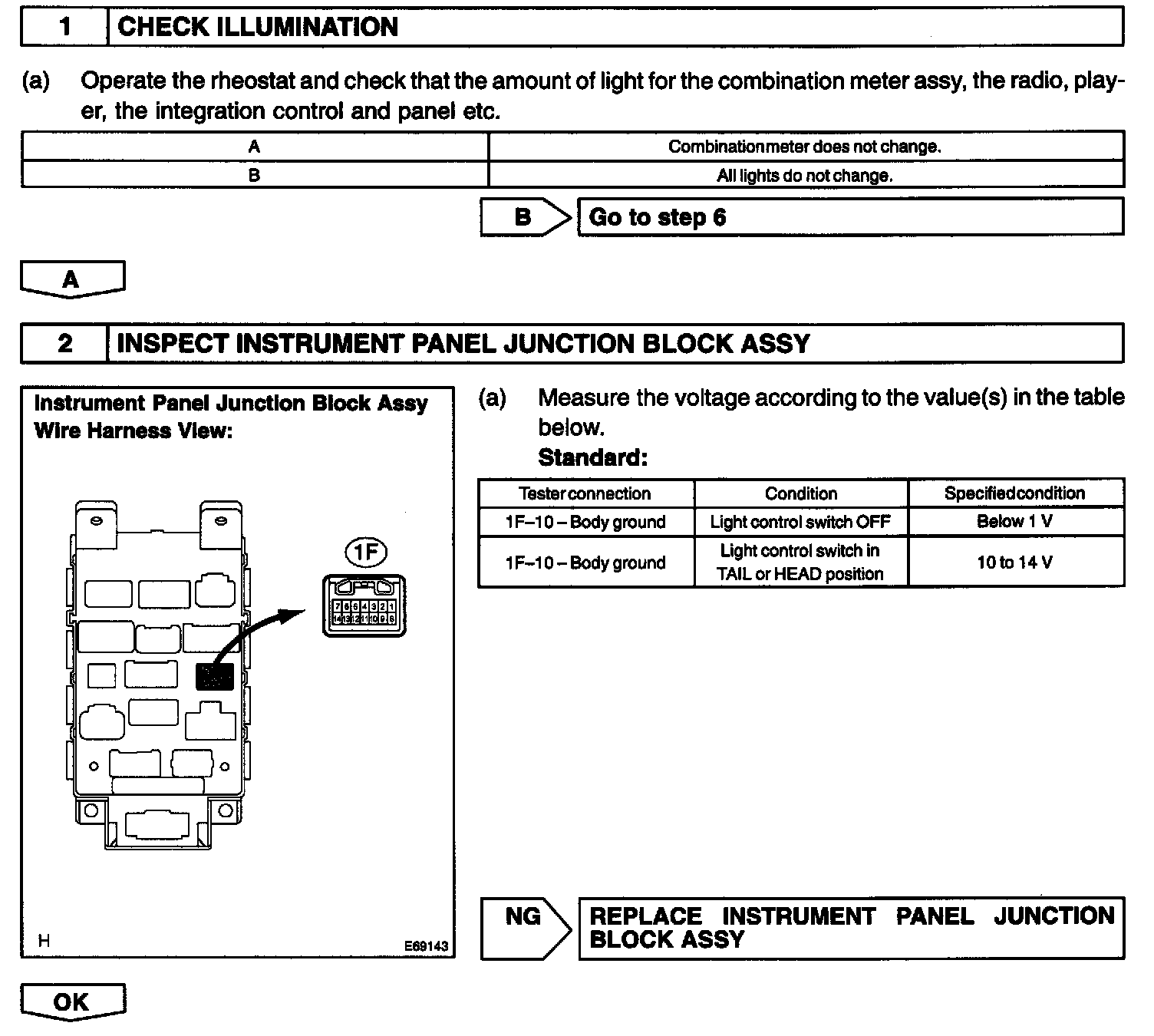

Step 1 - 2:

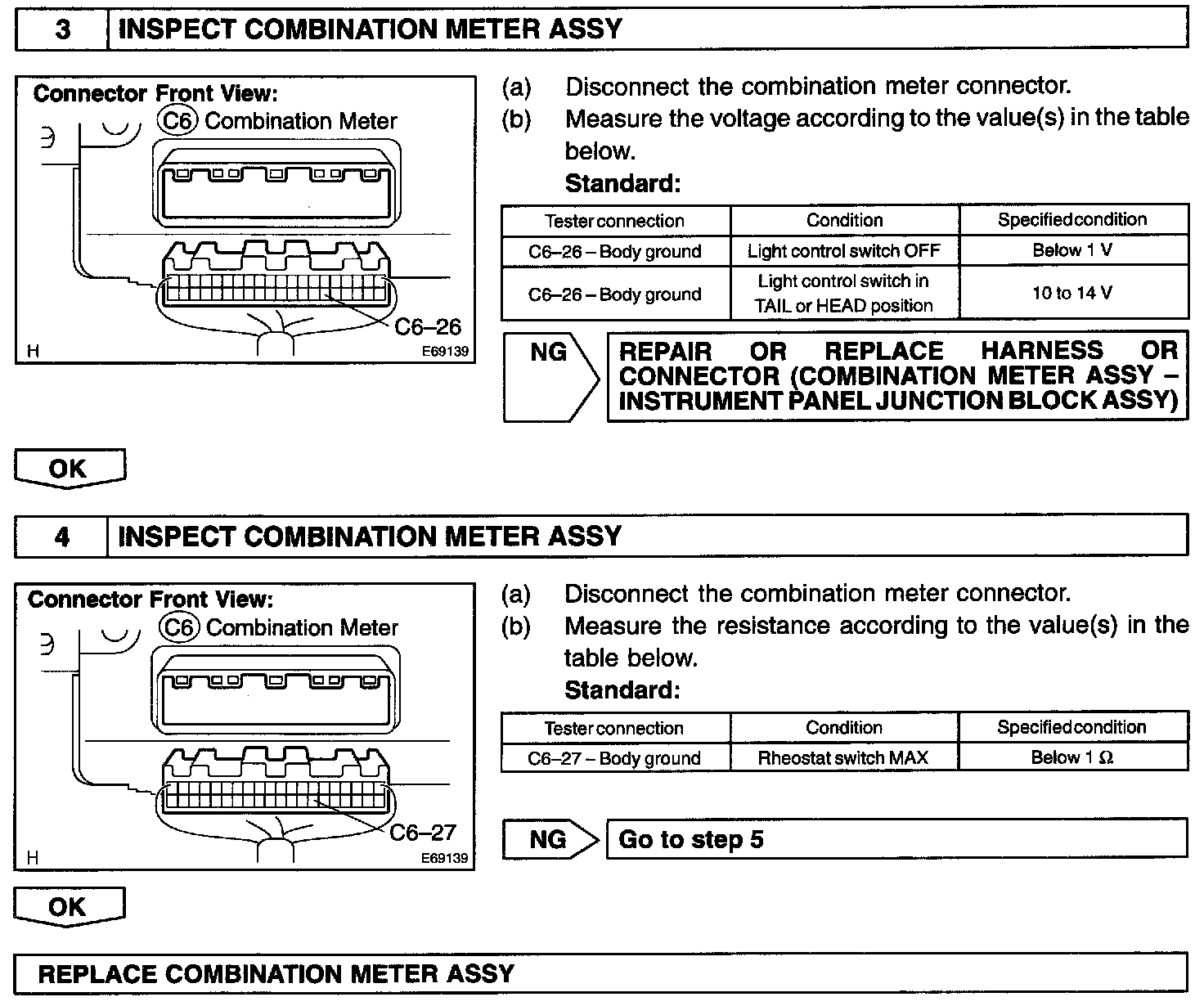

Step 3 - 4:

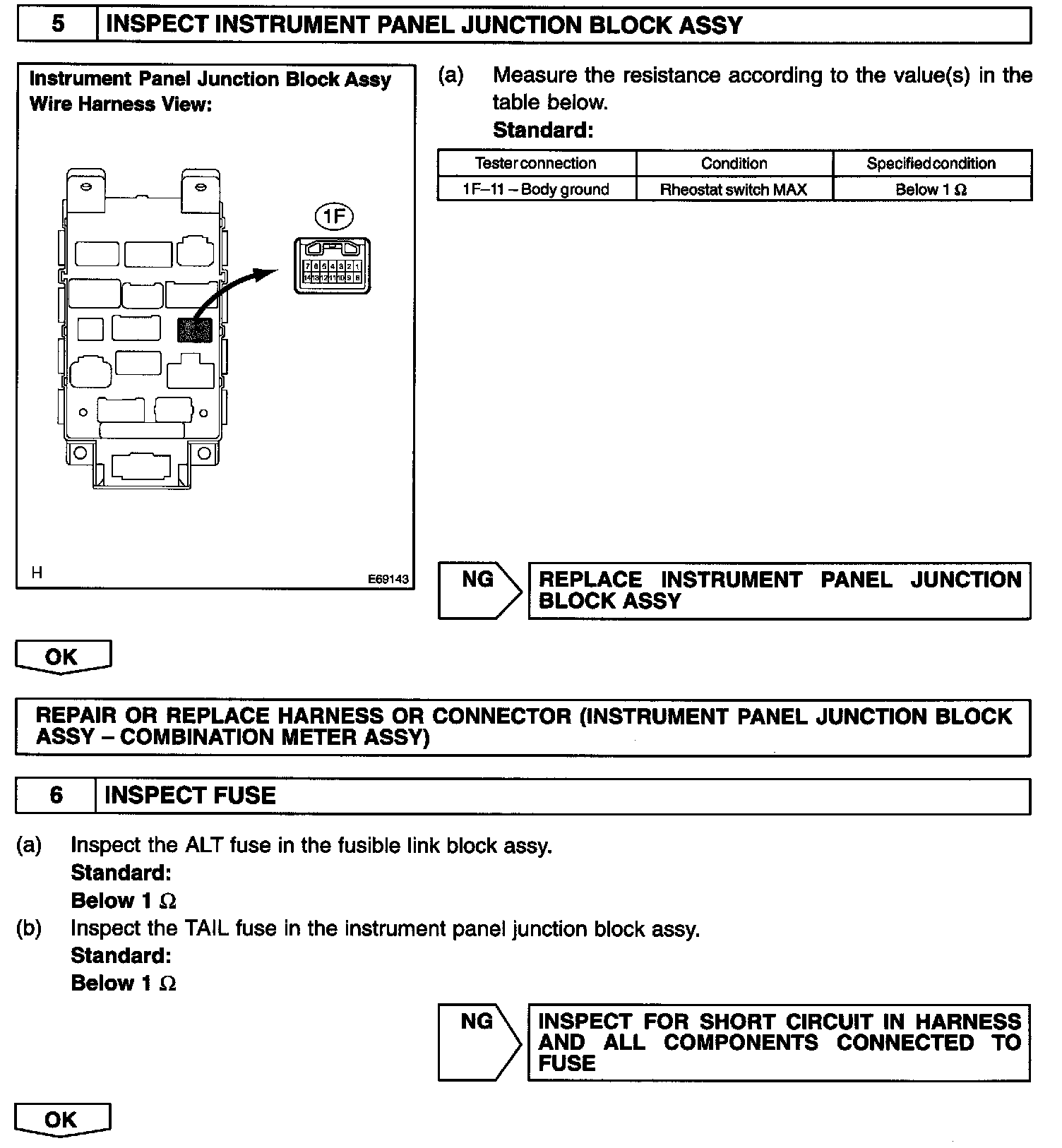

Step 5 - 6:

Step 7 - 9:

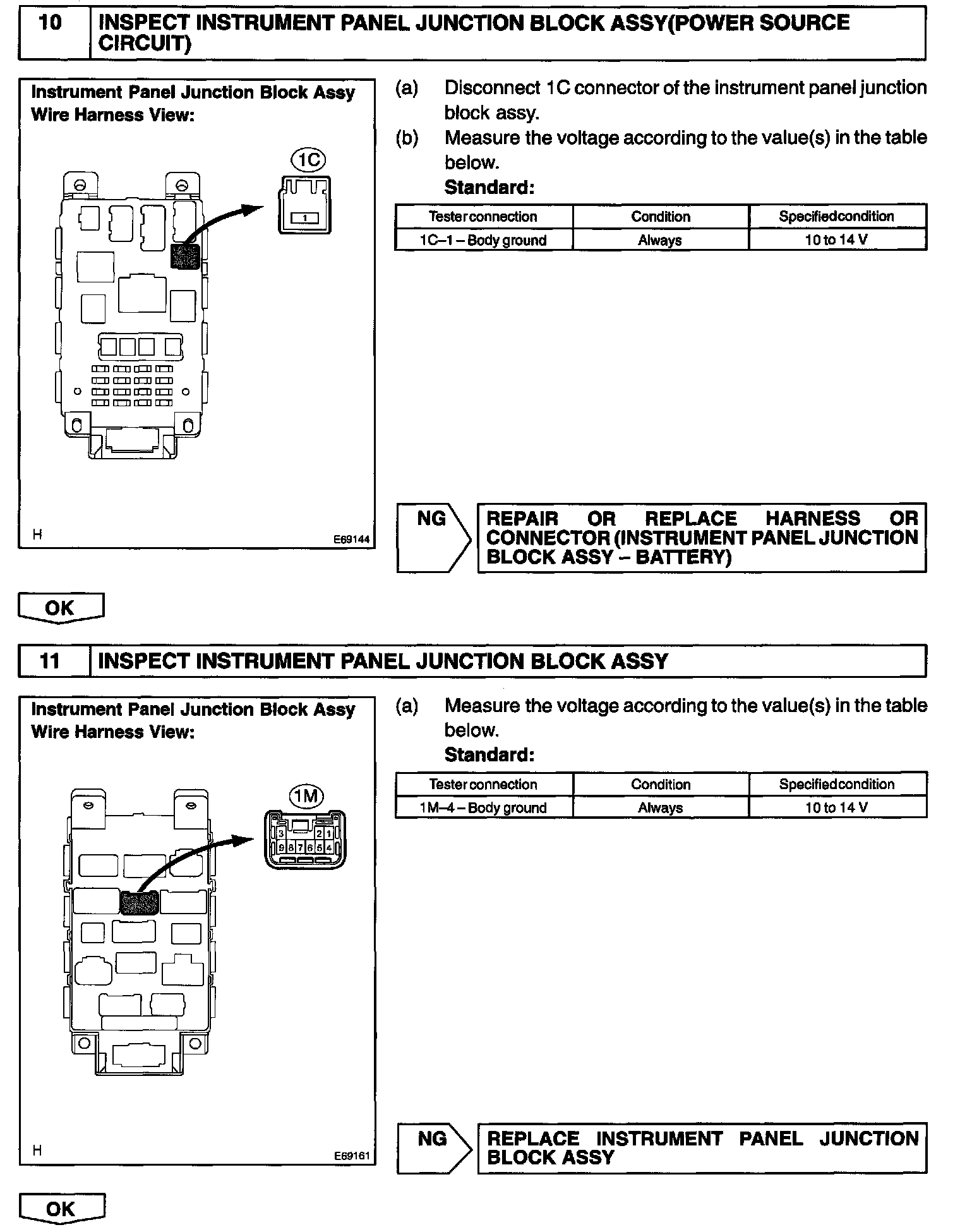

Step 10 - 11:

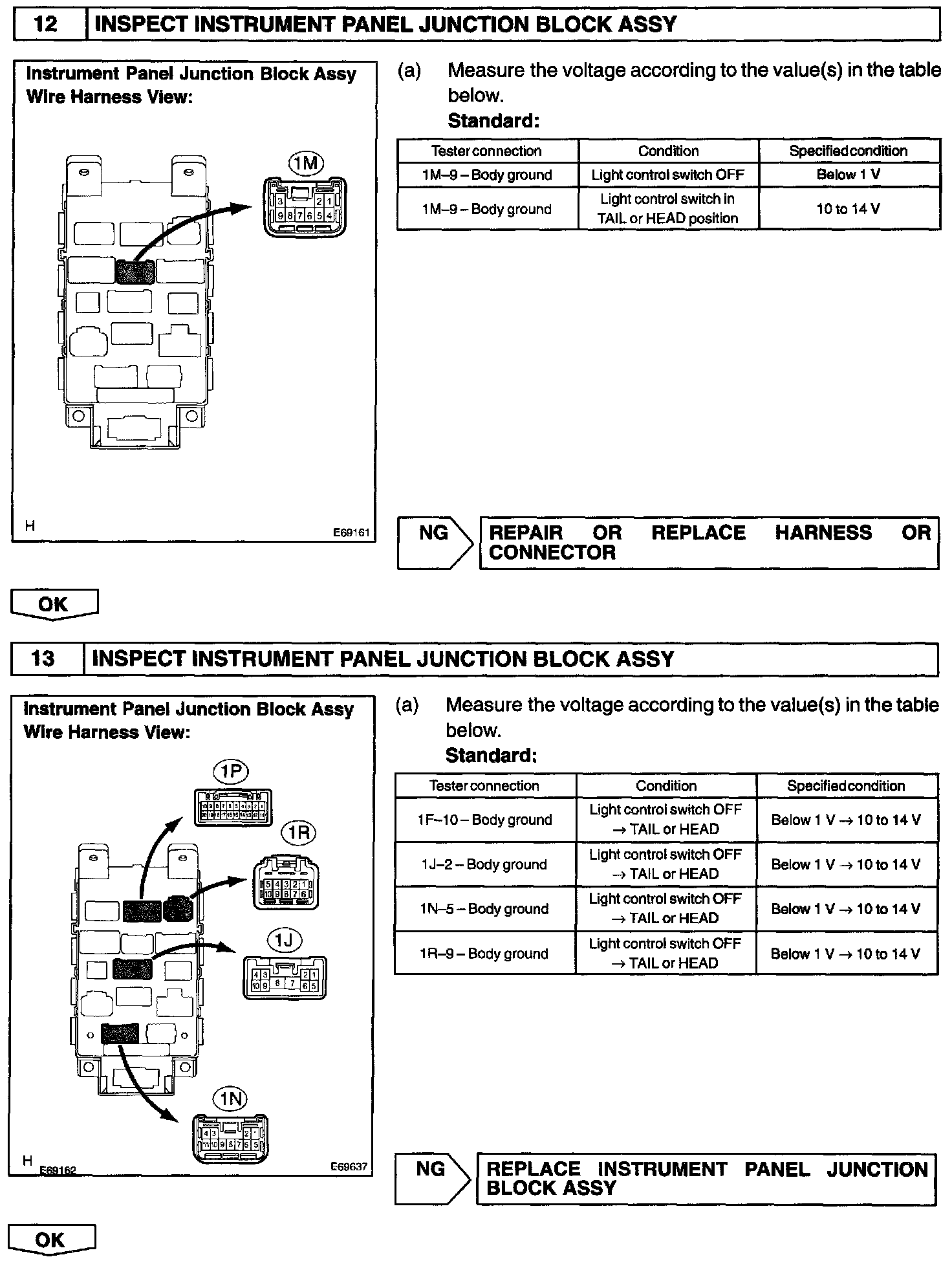

Step 12 - 13:

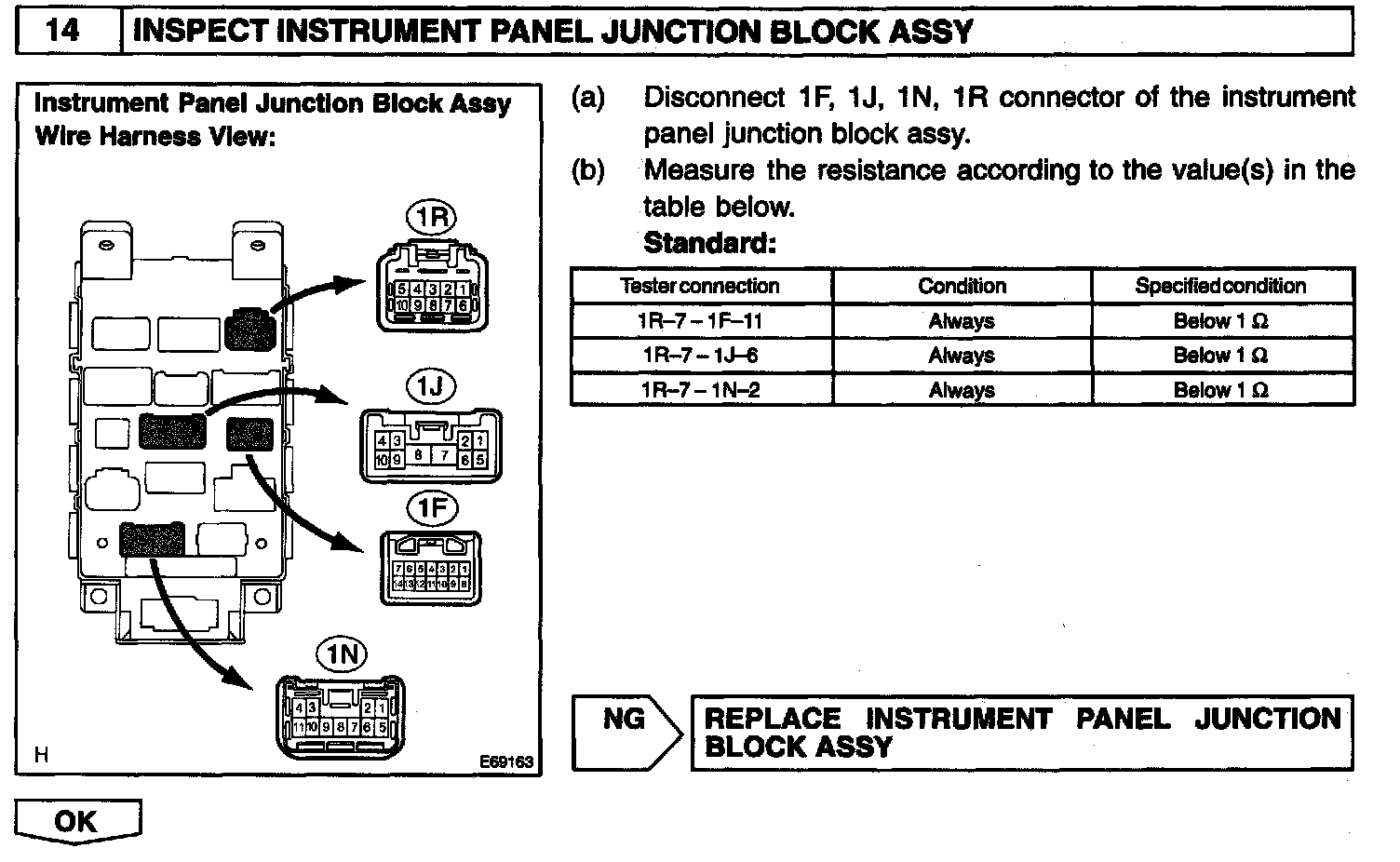

Step 14:

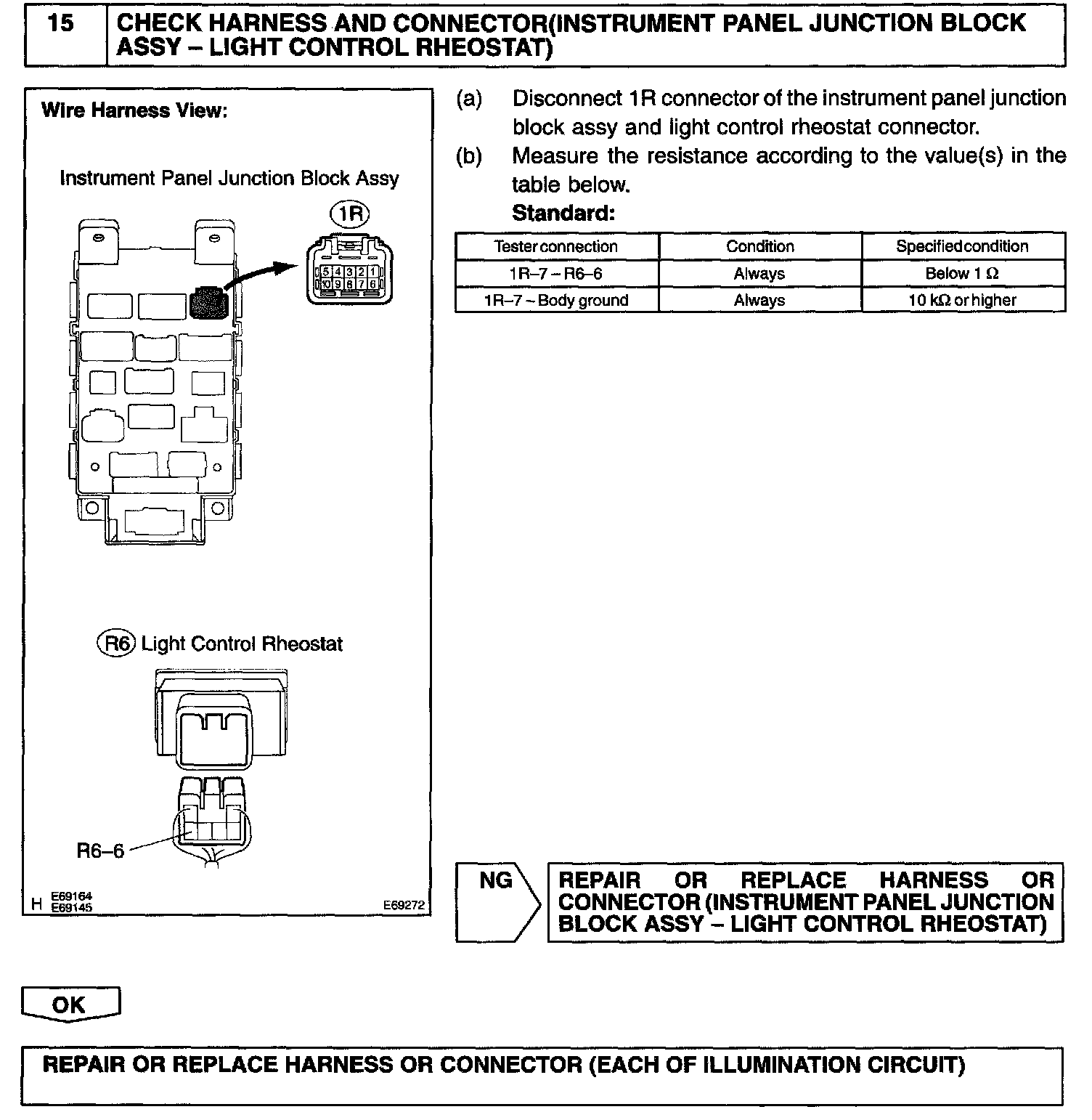

Step 15:

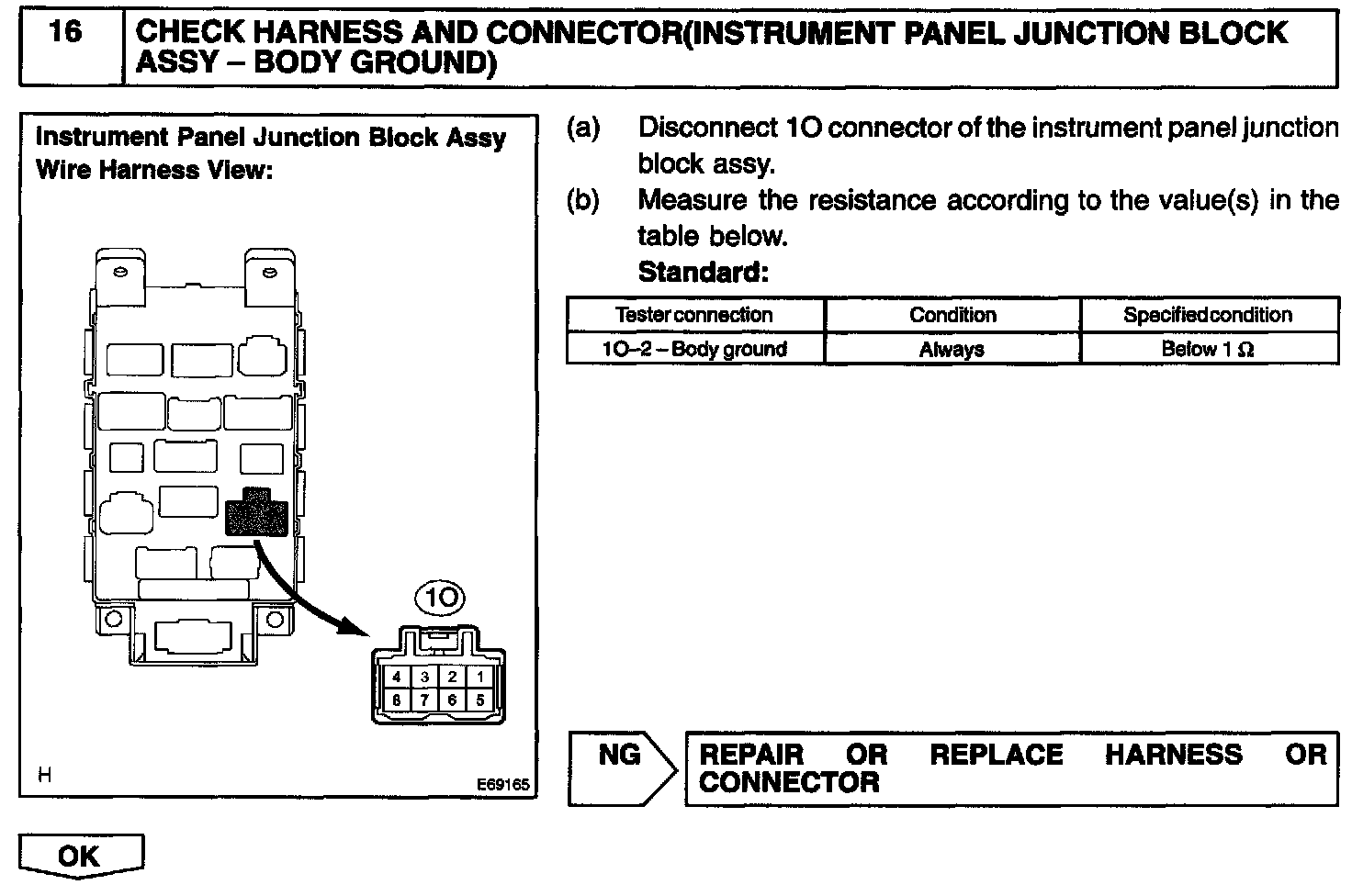

Step 16:

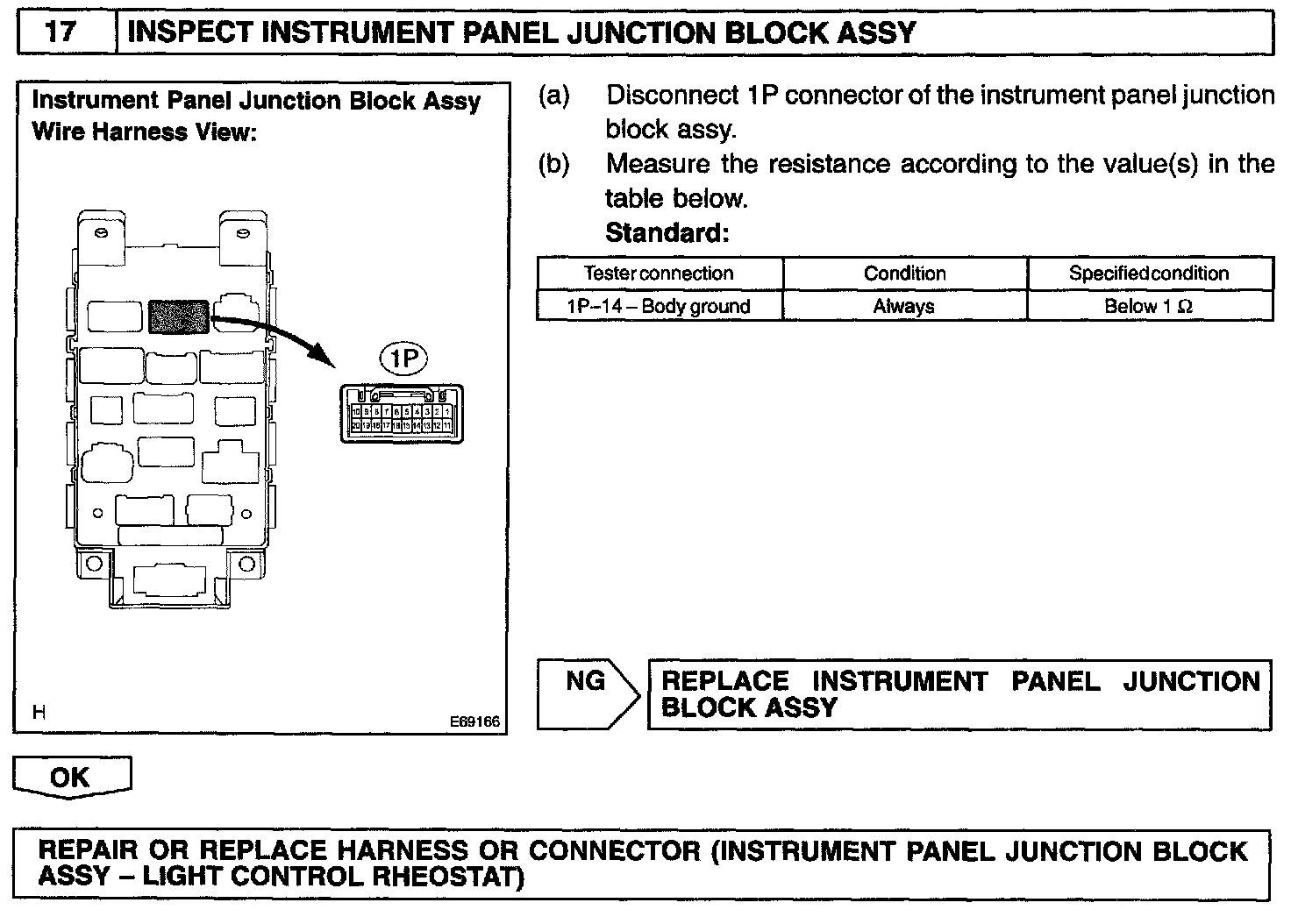

Step 17:
