Home >> Scion >> 2004 >> xB L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Tools and Equipment

Cooling System: Tools and Equipment

PREPARATION

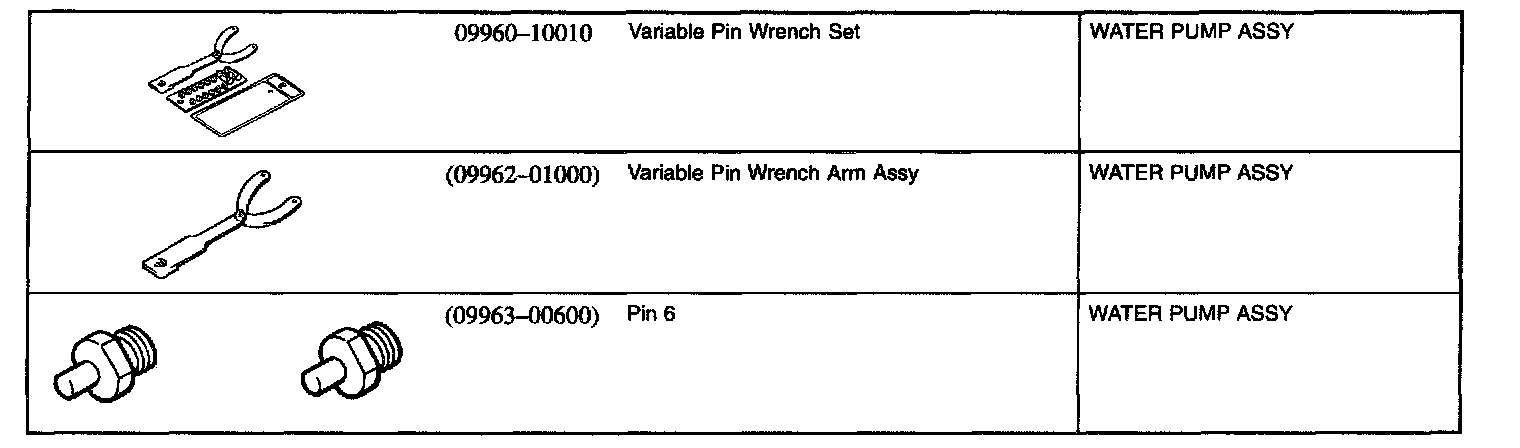

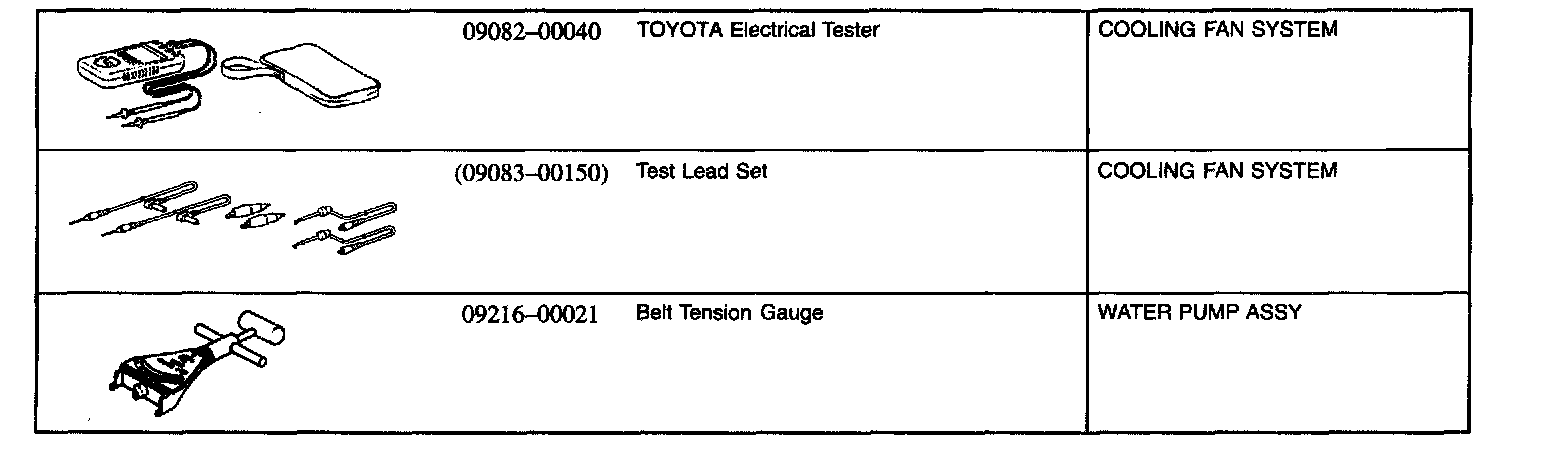

SST

Recommended Tools

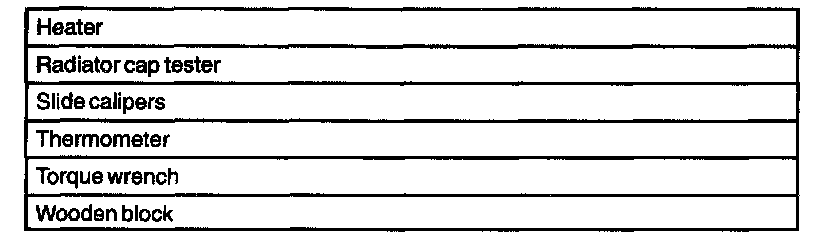

Equipment

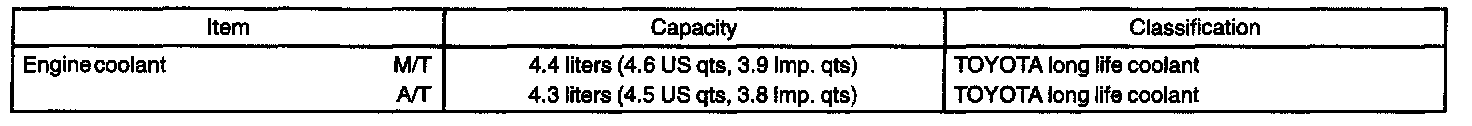

Coolant
