Thermostat: Testing and Inspection
THERMOSTATINSPECTION
1. INSPECT THERMOSTAT

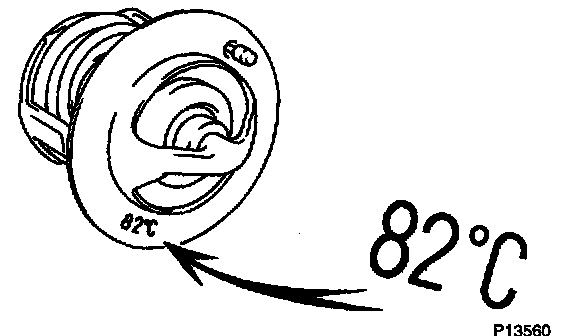

HINT: The valve opening temperature is inscribed on the thermostat.

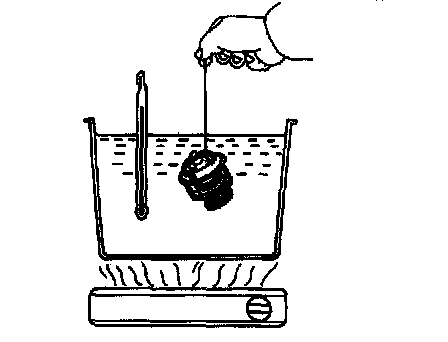

a. Immerse the thermostat in water and gradually heat the water.
b. Check the valve opening temperature of the thermostat.
Valve opening temperature: 80 to 84 °C (176 to 183 °F)
If the valve opening temperature is not as specified, replace the thermostat.

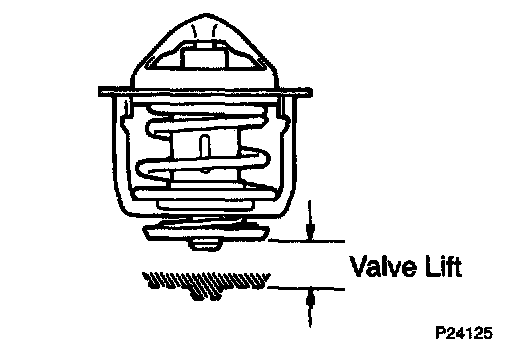

c. Check the valve lift.
Valve lift
If the valve lift is not as specified, replace the thermostat.
d. Check that the valve is fully closed when the thermostat is at low temperature (below 77 °C (171 °F)).
If not closed, replace the thermostat.
