TRAC Off Indicator Light, TRAC Off Switch Circuit

CIRCUIT DESCRIPTION

This is the TRAC control main switch. When the TRAC control switch is pushed on, TRAC control goes off and the TRAC OFF indicator lights up. Turn the ignition switch off, TRAC control surely comes on when the ignition switch turns ON next time.

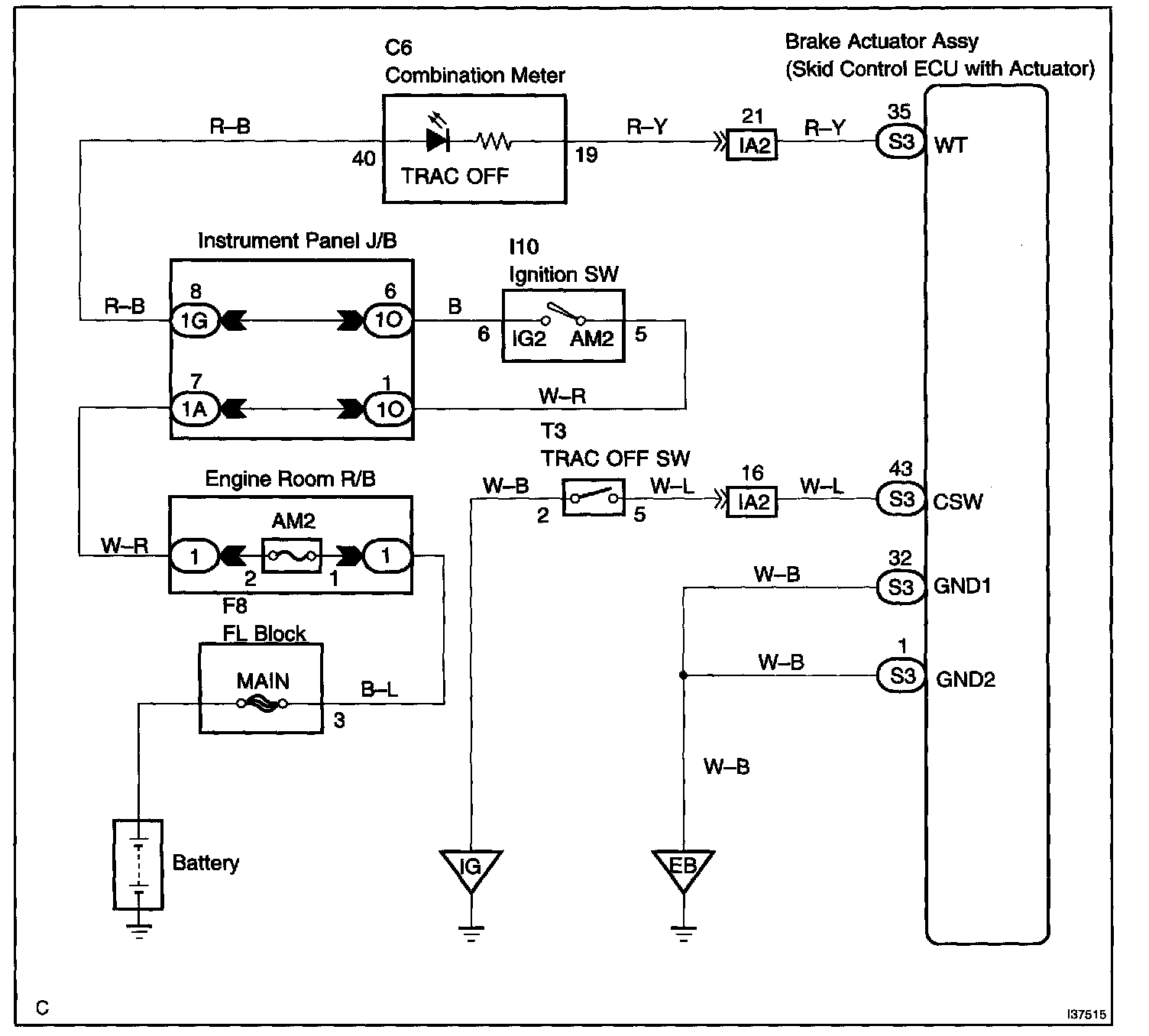

Wiring Diagram:

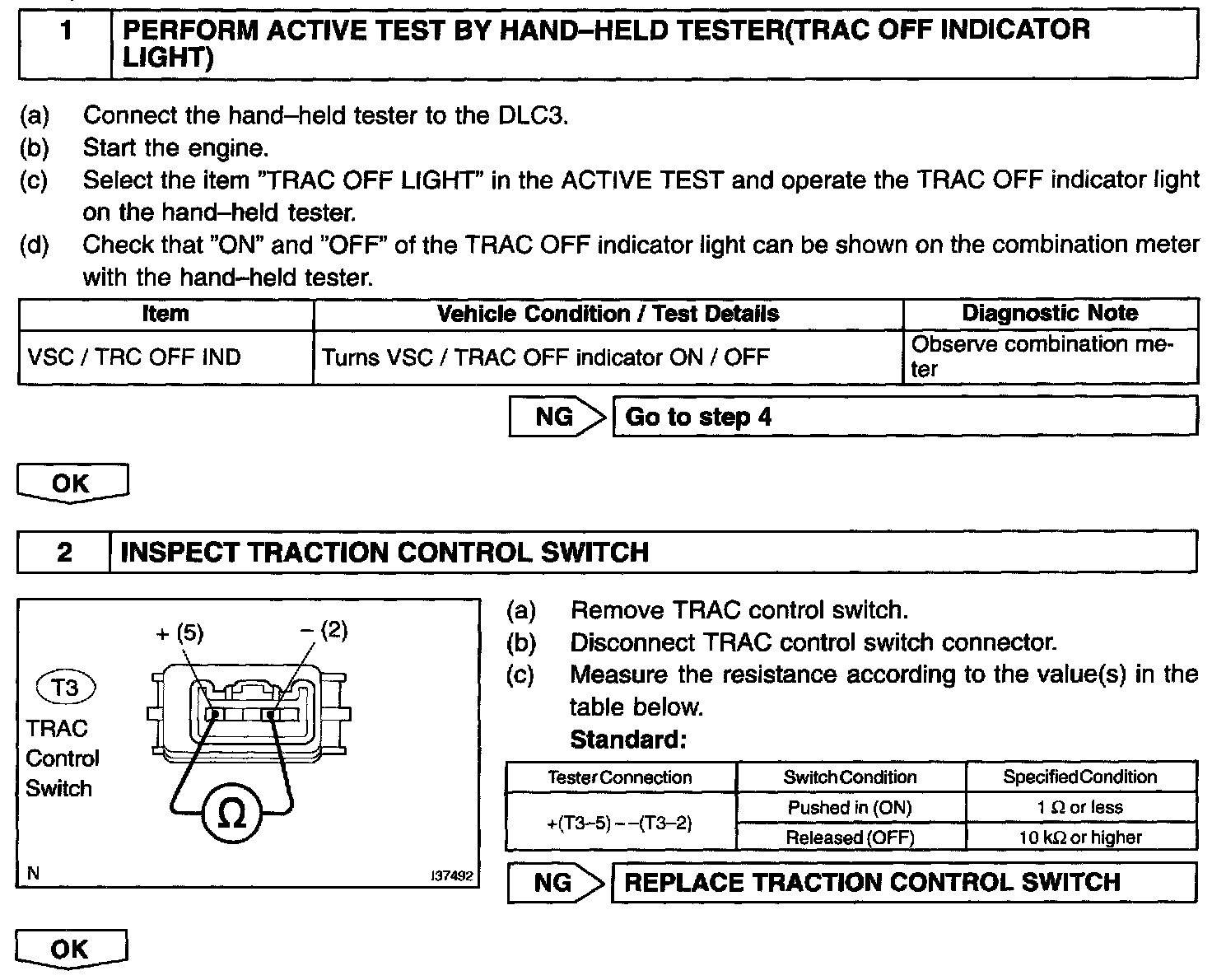

Step 1 - 2:

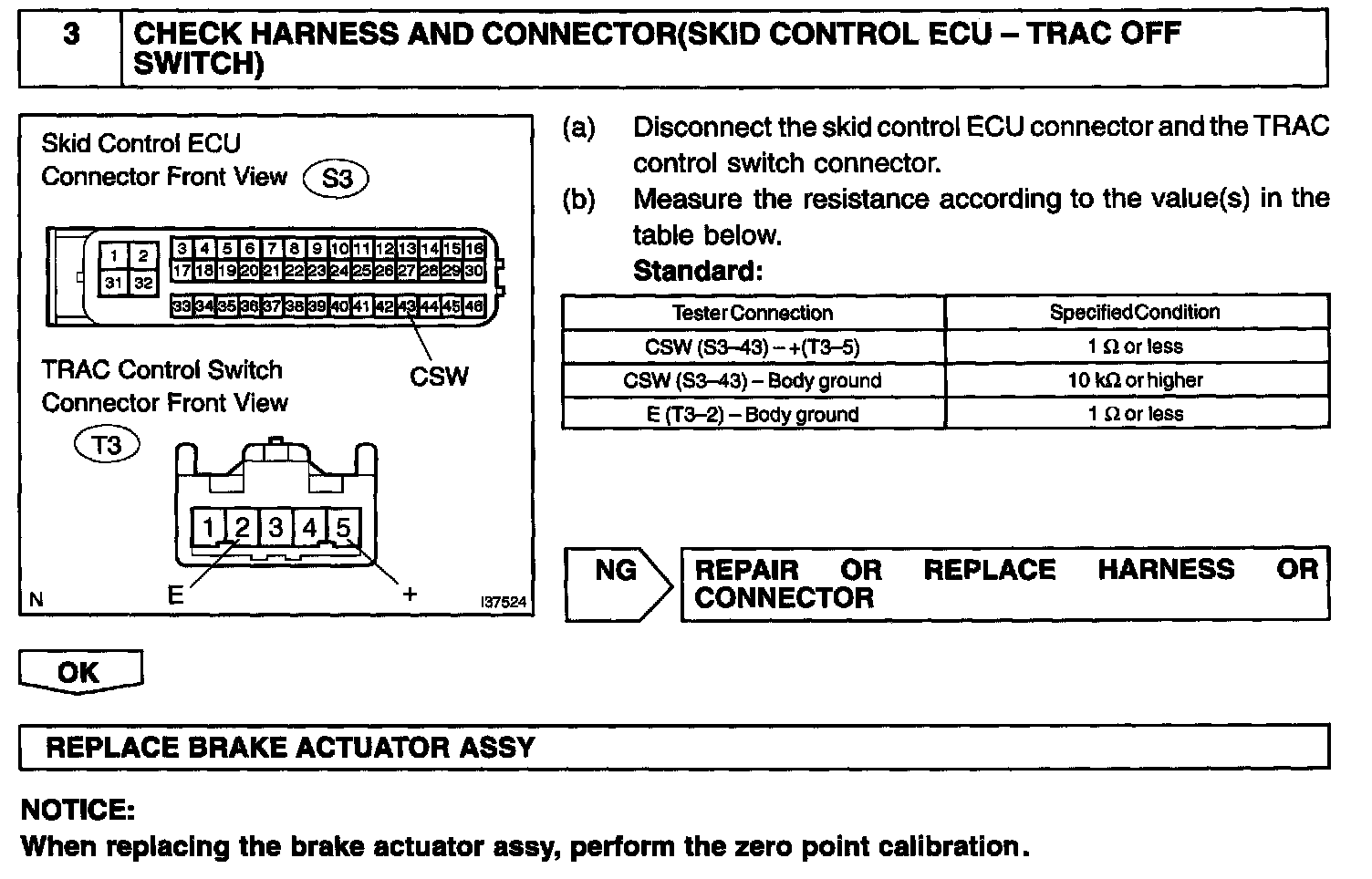

Step 3:

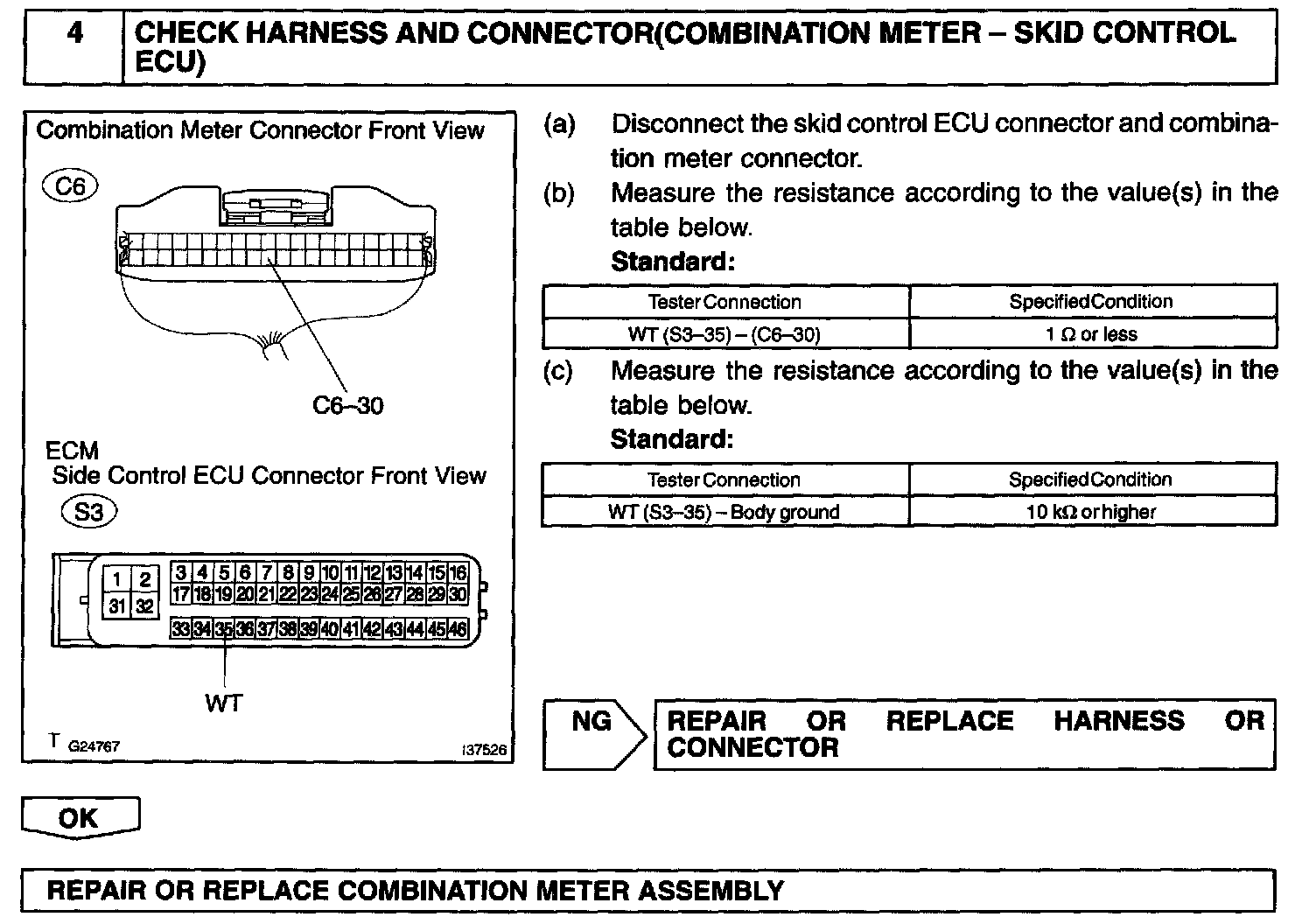

Step 4:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the hand-held tester and start from step 2 in case of not using the hand-held tester.
