ABS Warning Light Circuit (Remains ON)

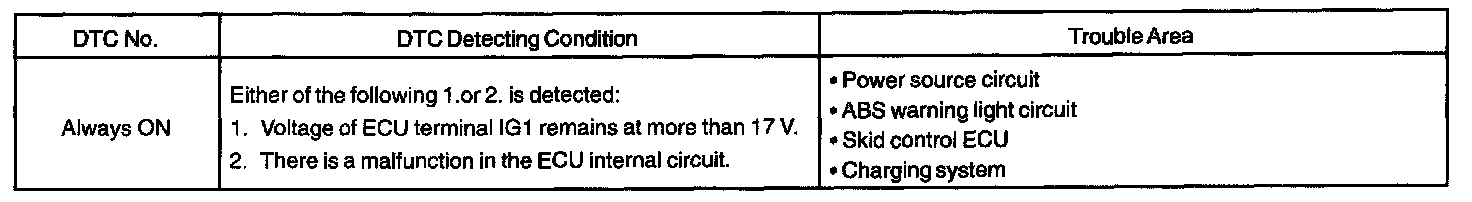

DTC Detecting Condition:




CIRCUIT DESCRIPTION

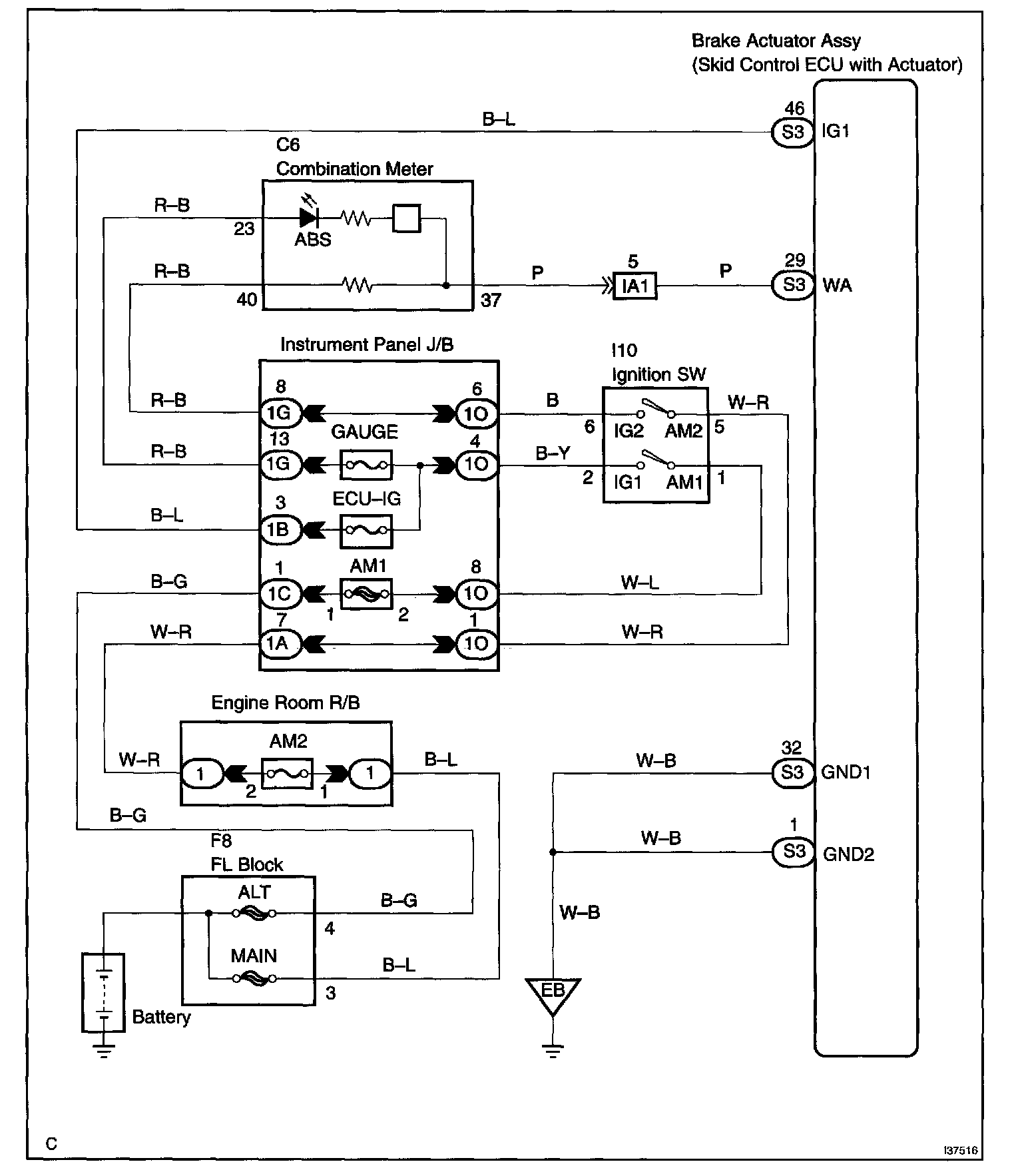

Wiring Diagram:

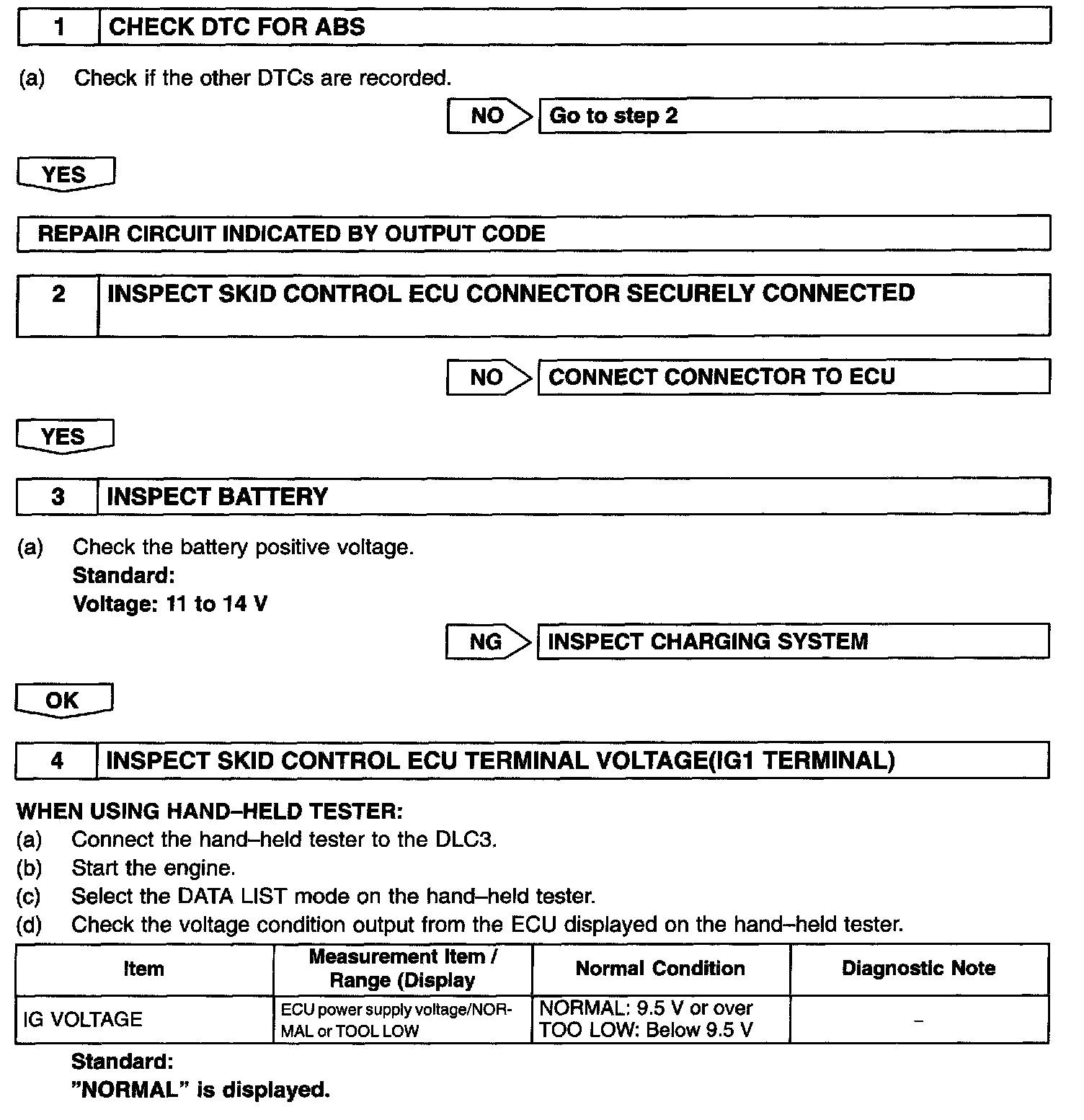

Step 1 - 4:

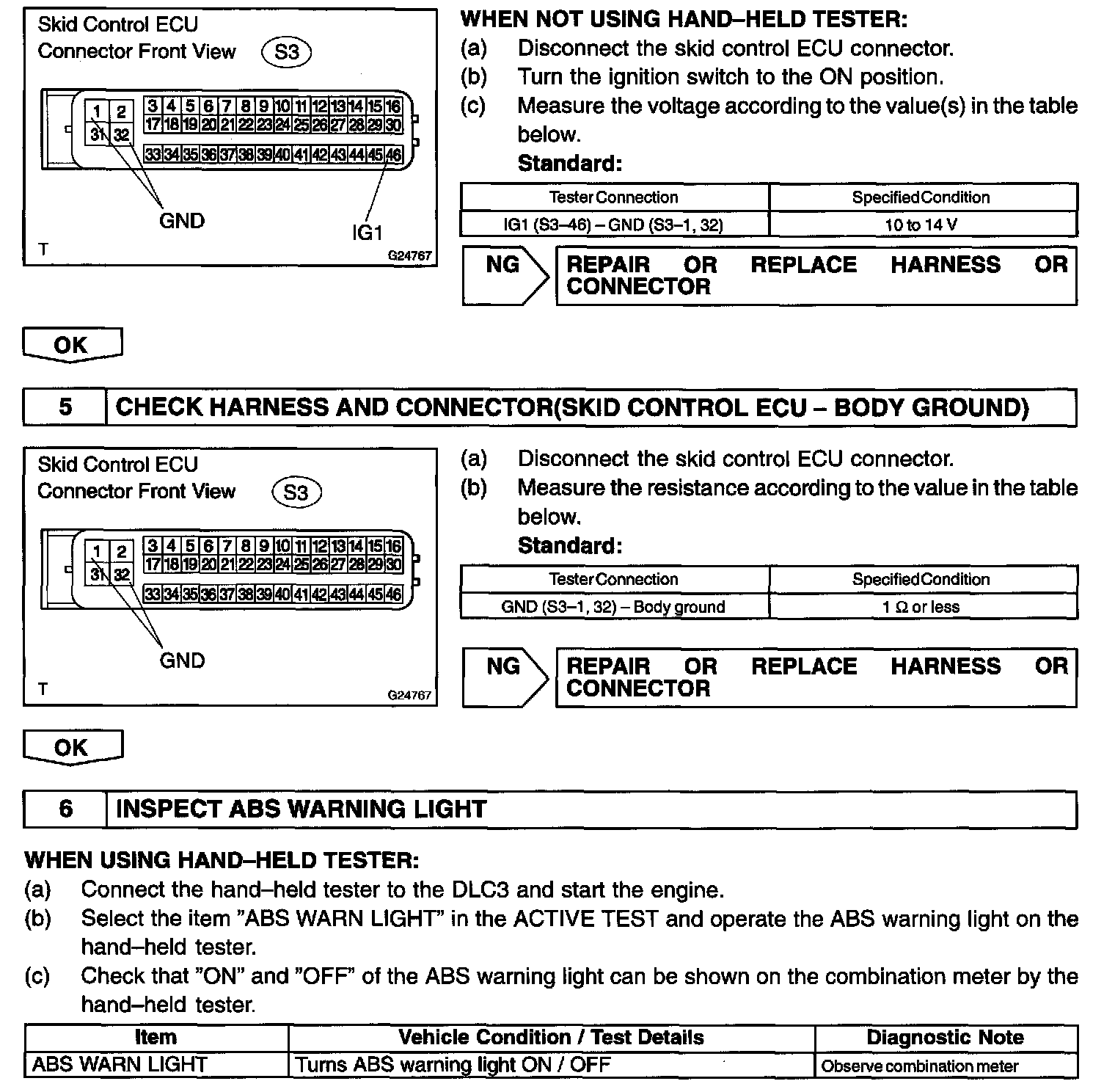

Step (4 Continued - 6):

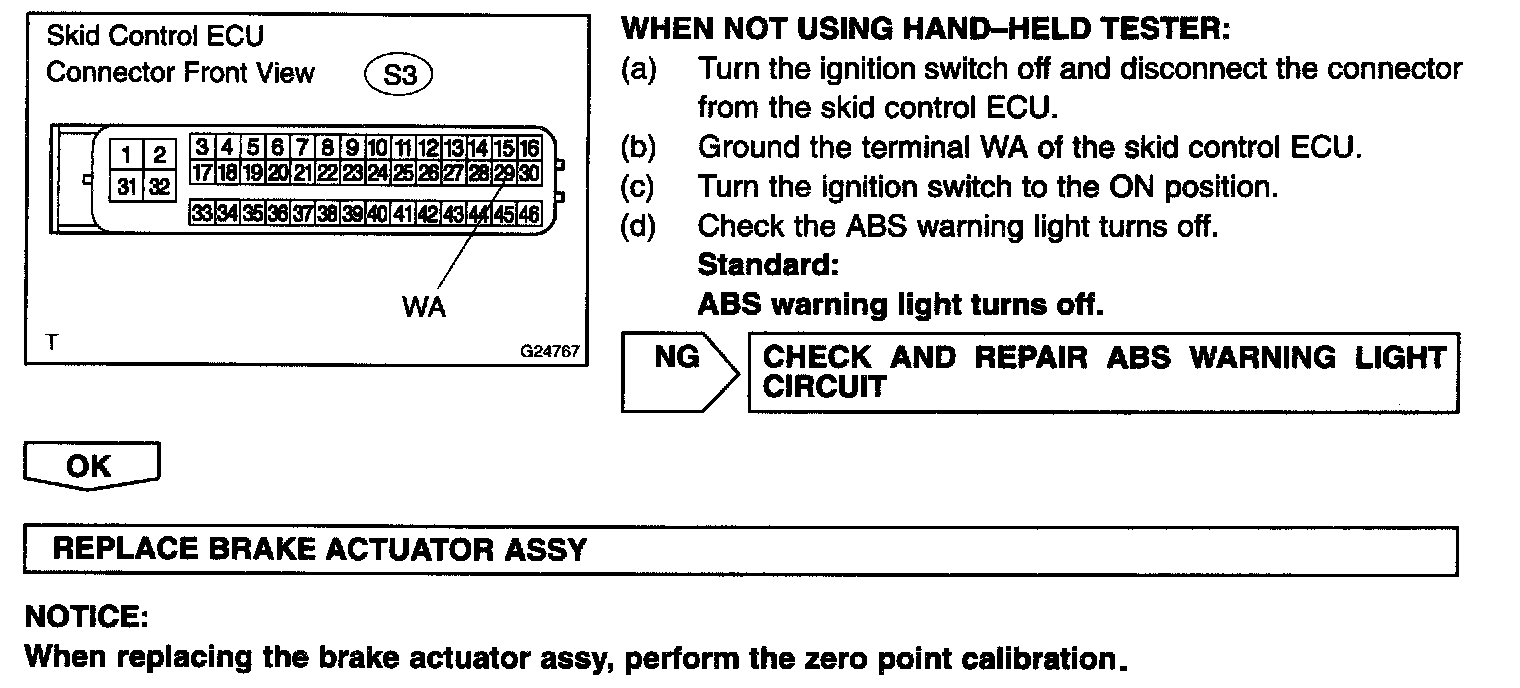

Step (6 Continued):




INSPECTION PROCEDURE
