Without Scan Tool

DTC CHECK (USING SST CHECK WIRE)

a. Checking DTCs using a SST check wire.
SST 09843-18040

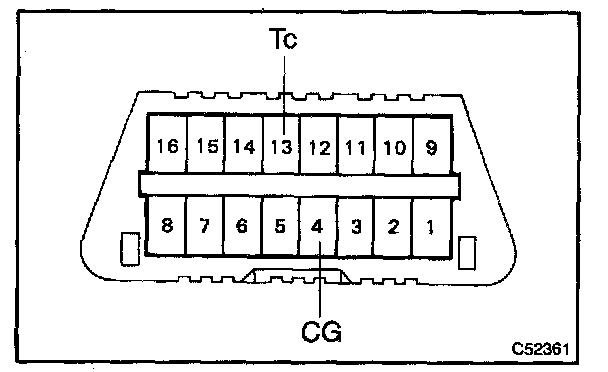

1. Using SST, connect terminals Tc and CG of DLC3.
2. Turn the ignition switch to the ON position.
3. Read the DTC from the ABS warning light and VSC warning light on the combination meter.

HINT:
- If no code appears, inspect the diagnostic circuit, ABS warning light circuit or VSC waning light circuit.

Trouble Area
Tc terminal circuit
ABS warning light circuit
VSC warning light circuit

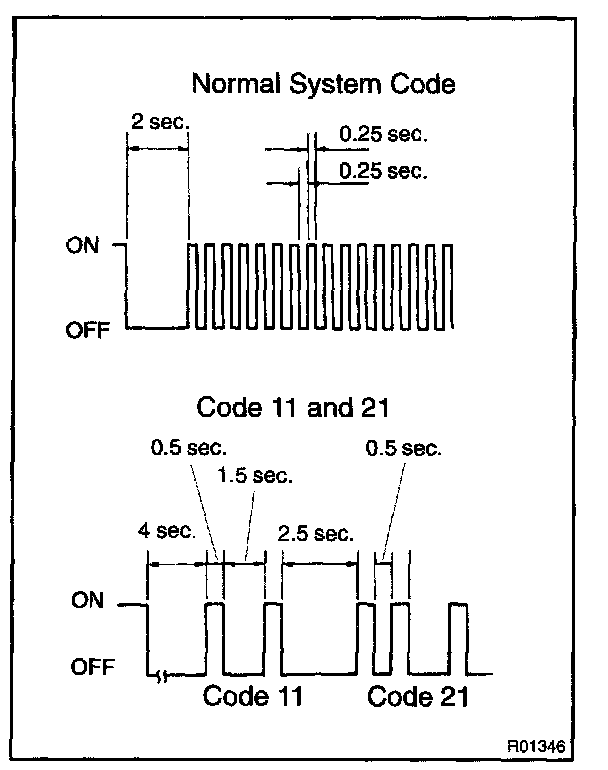

- As an example, the blinking patterns for normal system code and codes 11 and 21 are shown.

4. Codes are explained in Trouble Code Descriptions.
5. After completing the check, disconnect terminals Tc and CG of DLC3, and turn off the display.

If 2 or more are DTCs are detected at the same time, the DTCs will be displayed in ascending order.
