Brake Warning Light Circuit

CIRCUIT DESCRIPTION

The BRAKE warning light comes on when the brake fluid is insufficient, the parking brake is applied or the EBD is defective.

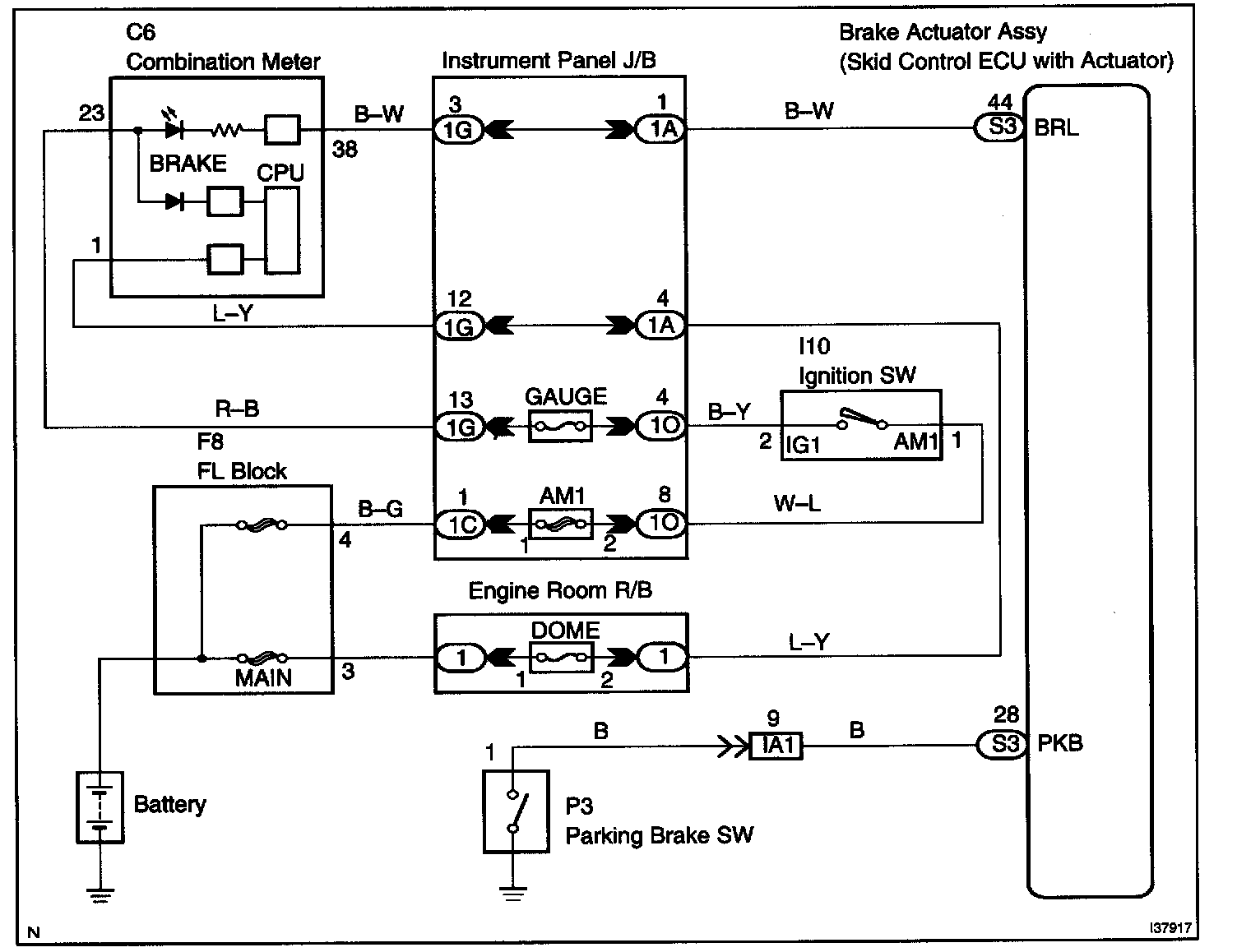

Wiring Diagram:

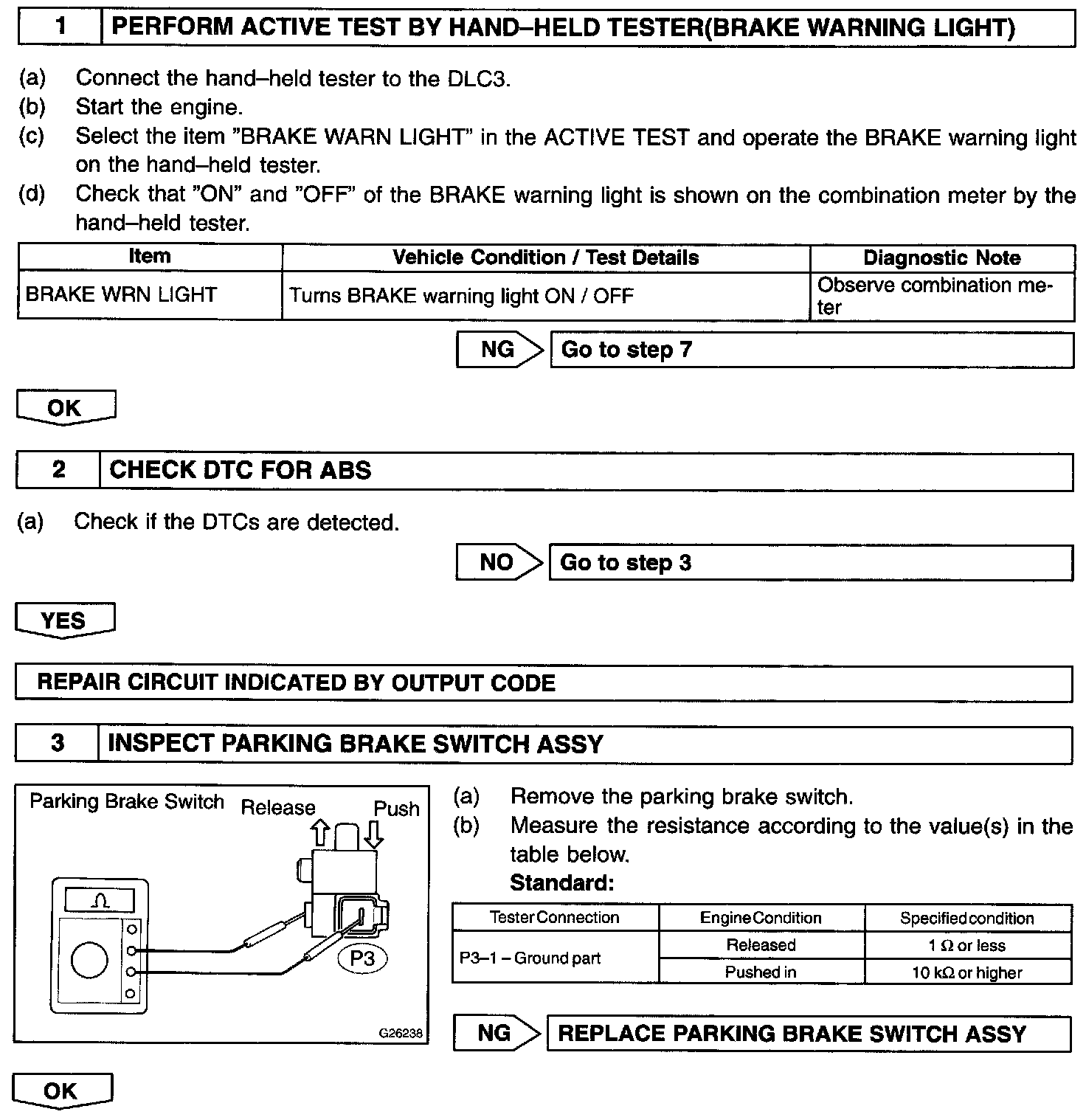

Step 1 - 3:

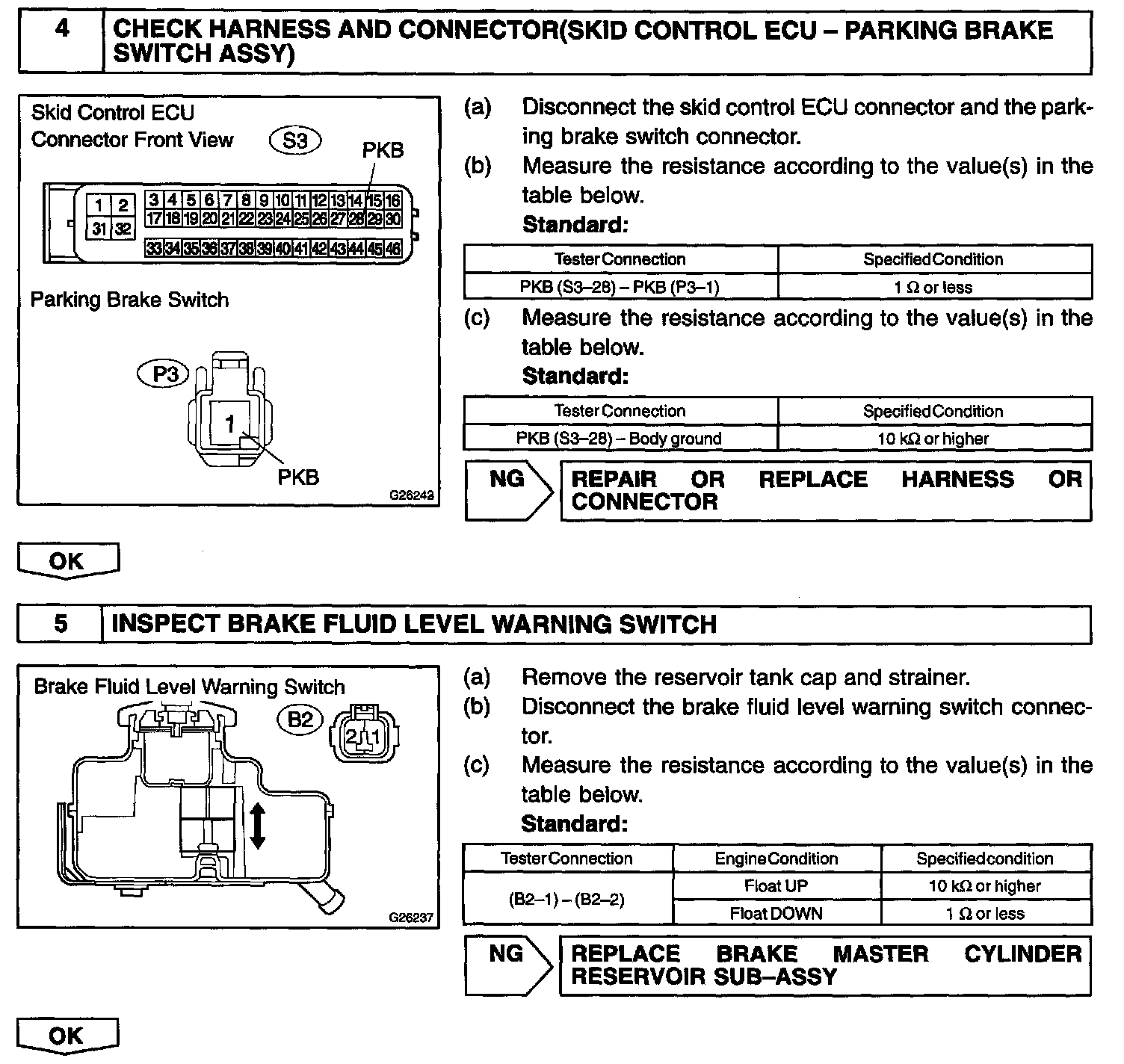

Step 4 - 5:

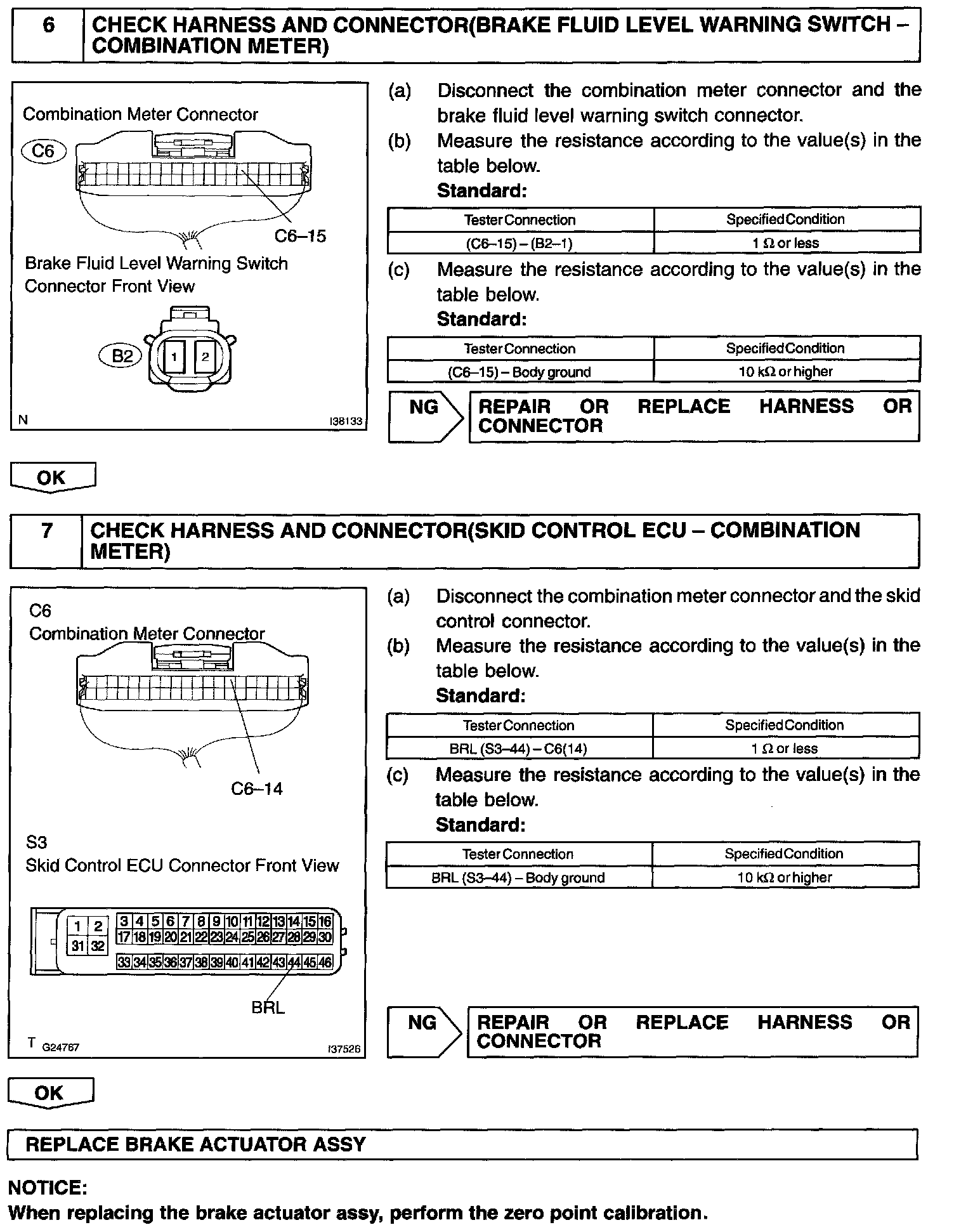

Step 6 - 7:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the hand-held tester and start from step 2 in case of not using the hand-held tester.
