Rear Speaker Assy

Audio & Visual System:

REAR SPEAKER ASSY

REPLACEMENT
1. REMOVE REAR DOOR SCUFF PLATE RH
2. REMOVE REAR DOOR SCUFF PLATE LH
3. REMOVE REAR DOOR OPENING TRIM RH
4. REMOVE REAR DOOR OPENING TRIM LH
5. REMOVE BACK DOOR WEATHERSTRIP
6. REMOVE SPARE WHEEL COVER ASSY
7. REMOVE REAR SEATBELT ASSY
8. REMOVE DECK TRIM COVER REAR
9. REMOVE BENCH TYPE REAR SEAT BACK ASSY




10. REMOVE REAR SPEAKER ASSY

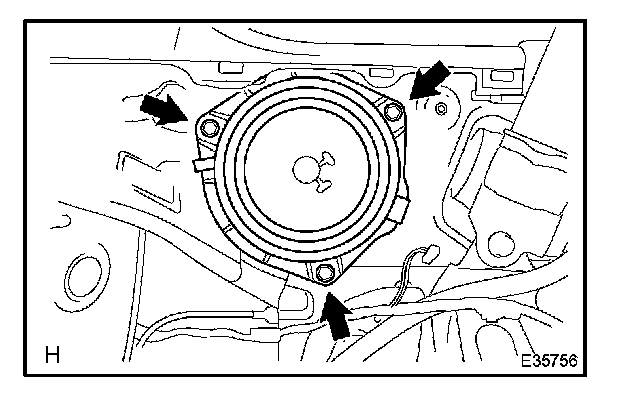

a. Remove the 3 bolts and the rear speaker assy.
b. Disconnect the connector.

11. INSTALL REAR SPEAKER ASSY
