P0116

DTC P0116 ENGINE COOLANT TEMP. CIRCUIT RANGE/PERFORMANCE PROBLEM

CIRCUIT DESCRIPTION

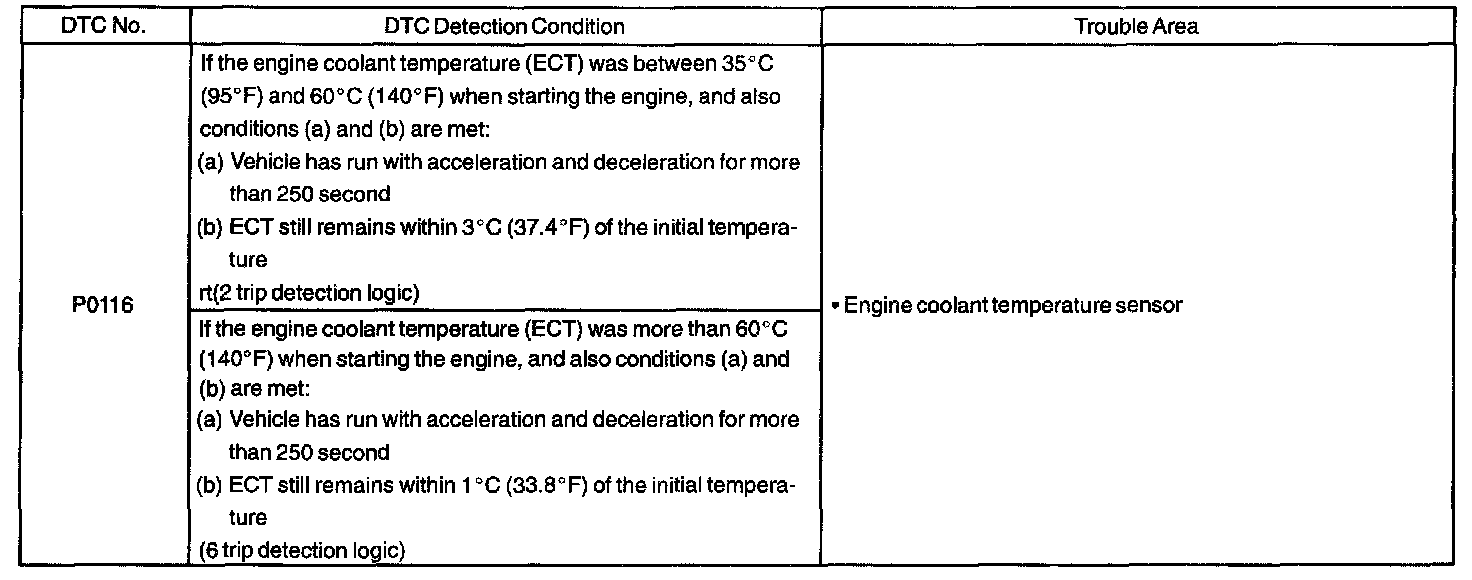

DTC Detecting Condition:

A thermistor is built in the engine coolant temperature sensor and changes the resistance value according to the engine coolant temperature.

The structure of the sensor and connection to the ECM is the same as those of the intake air temperature sensor.

MONITOR DESCRIPTION

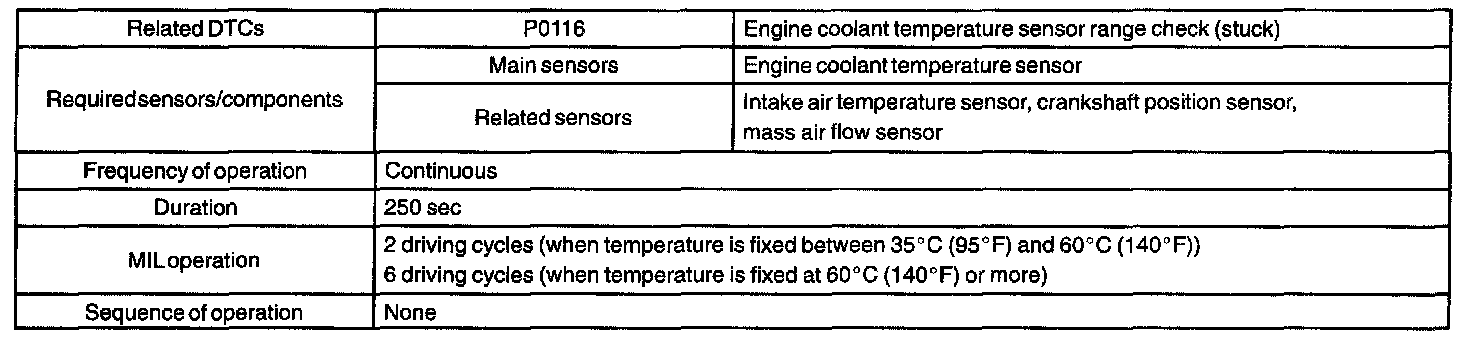

Monitor Strategy:

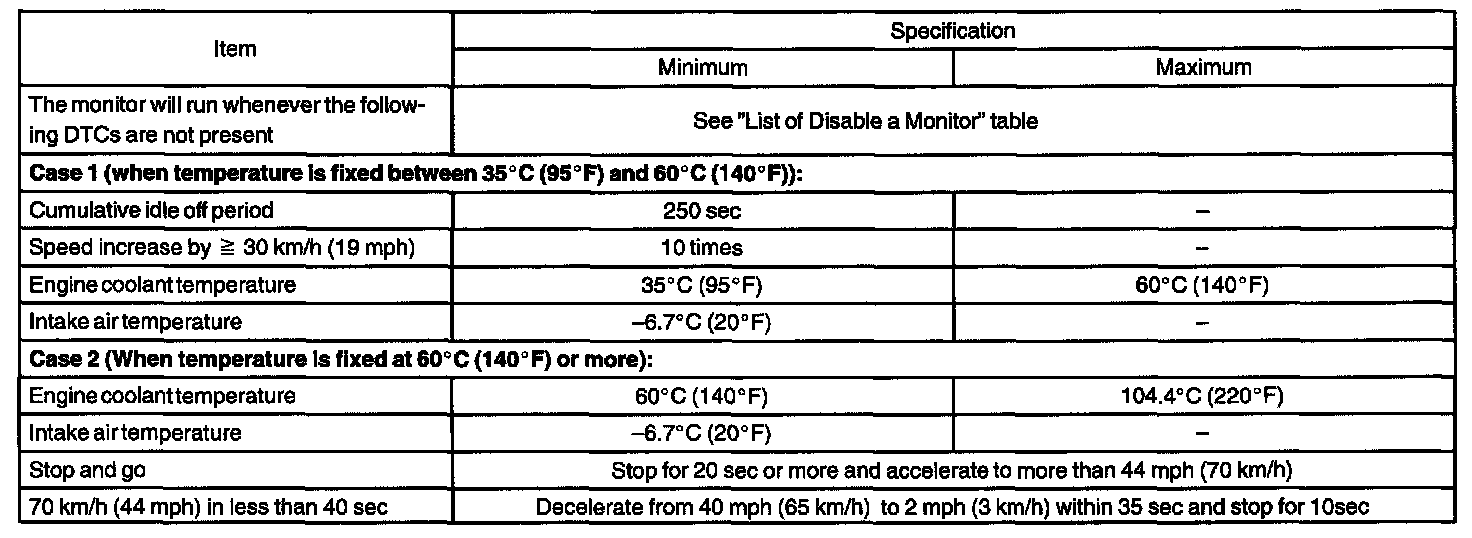

Typical Enabling Conditions:

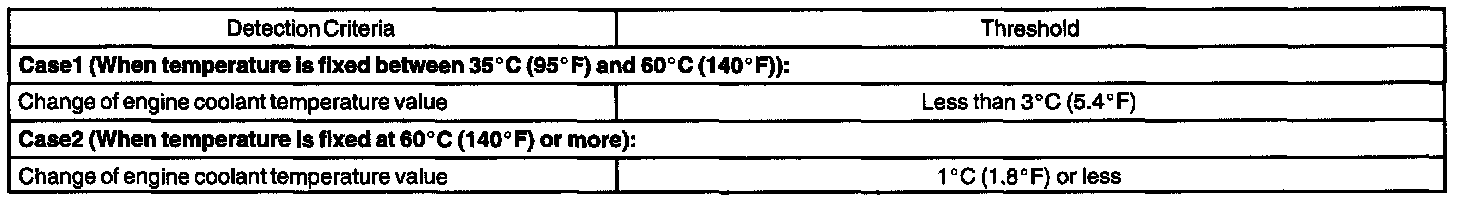

Typical Malfunction Thresholds:

Component Operating Range:

The engine coolant temperature (ECT) sensor is used to monitor the engine coolant temperature. The ECT sensor has a thermistor that varies its resistance depending on the temperature of the engine coolant. When the coolant temperature is low, the resistance in the thermistor increases. When the temperature is high, the resistance drops. The variations in resistance are reflected in the voltage output from the sensor. The ECM monitors the sensor voltage and uses this value to calculate the engine coolant temperature. When the sensor output voltage deviates from the normal operating range, the ECM interprets this as a fault in the ECT sensor and sets a DTC.

Examples:
1. Upon starting the engine, the coolant temperature (ECT) was between 35°C (95°F) and 60°C (140°F). If after driving for 250 seconds, the ECT still remains within 3°C (5.4°F) of the staring temperature, a DTC will be set. (2 trip detection logic)
2. Upon starting the engine, the coolant temperature (ECT) was over 60°C (140°F). If after driving for 250 seconds, the ECT still remains within 1°C (1.8°F) of the starting temperature, a DTC will be set. (6 trip detection logic)

Wiring Diagram:

INSPECTION PROCEDURE

HINT:
- If DTCs "P0115, P0116, P0117, P0118 and P0125" are output simultaneously, engine coolant temperature sensor circuit may be open or short. Perform the troubleshooting of DTC "P0115, P0117 or P0118" first.
- Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air fuel ratio was lean or rich, etc. at the time of the malfunction.

1 REPLACE ENGINE COOLANT TEMPERATURE SENSOR
