CAN Communication System

DIAGNOSTIC TROUBLE CODE CHART

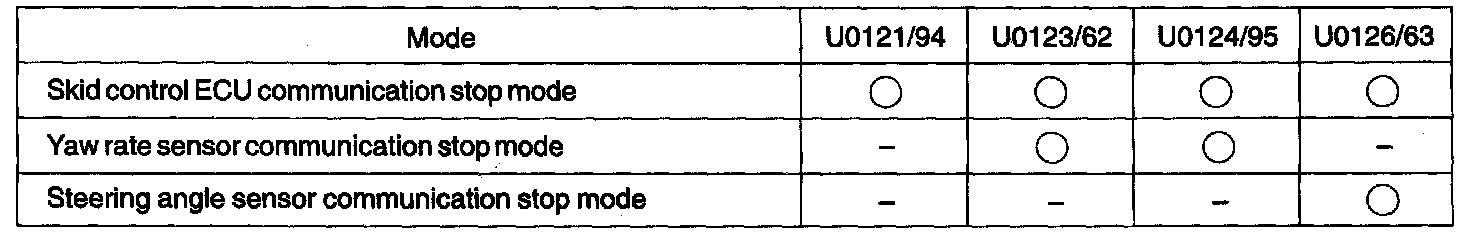

1. DTCS COMBINATION TABLE

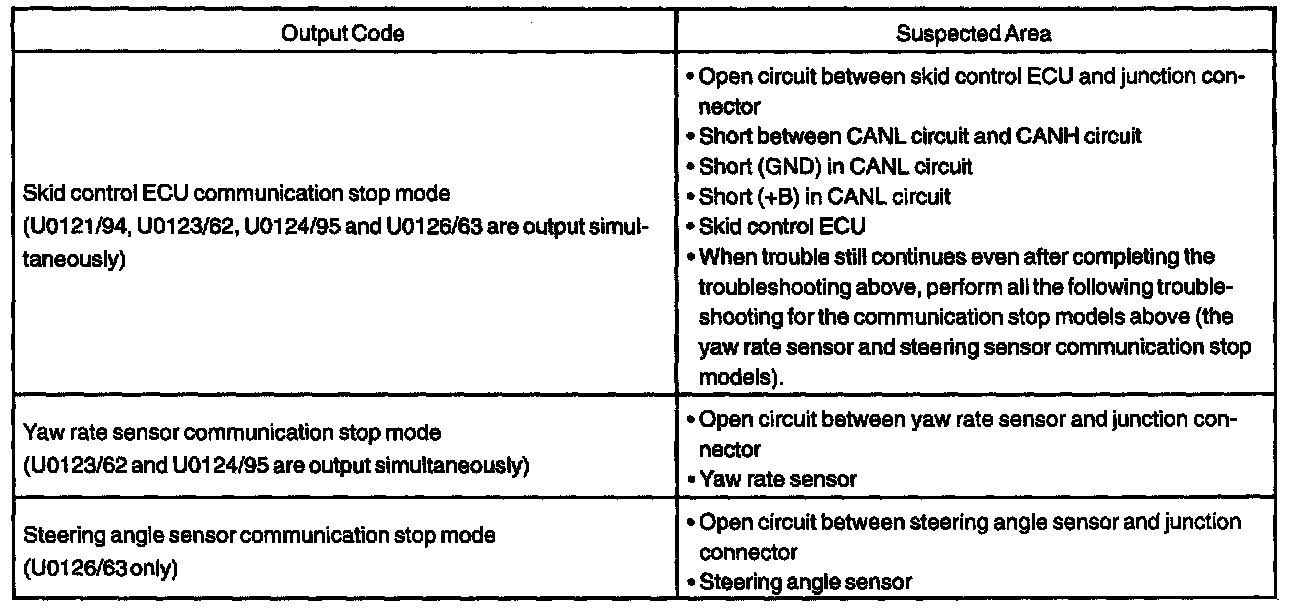

a. Confirm the according to combination of output DTCs.




b. Perform troubleshooting for the applicable mode.

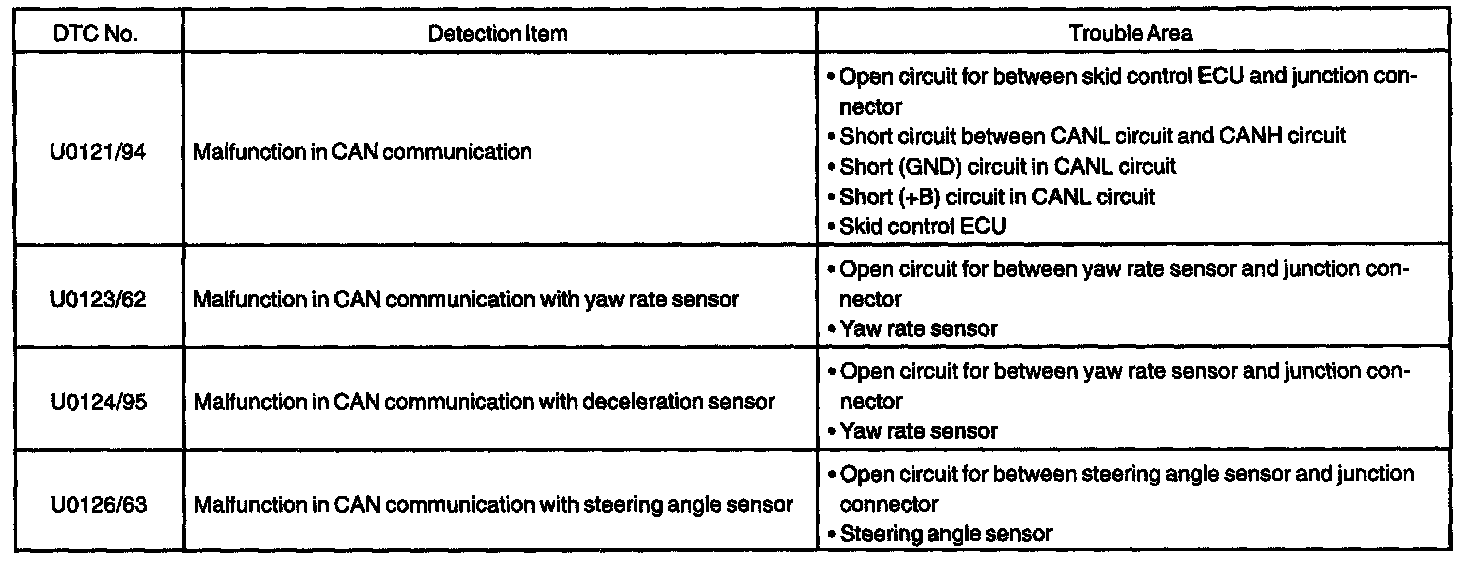

2. DIAGNOSTIC TROUBLE CODE CHART

DTC U0121/94 - U0126/23:

HINT: When troubleshooting, refer to the DTCs COMBINATION TABLE.
