ABS (Antilock Brake System)

DIAGNOSTIC TROUBLE CODE CHART

HINT: If a malfunction code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, refer to the respective "DTC No." in the DTC chart.

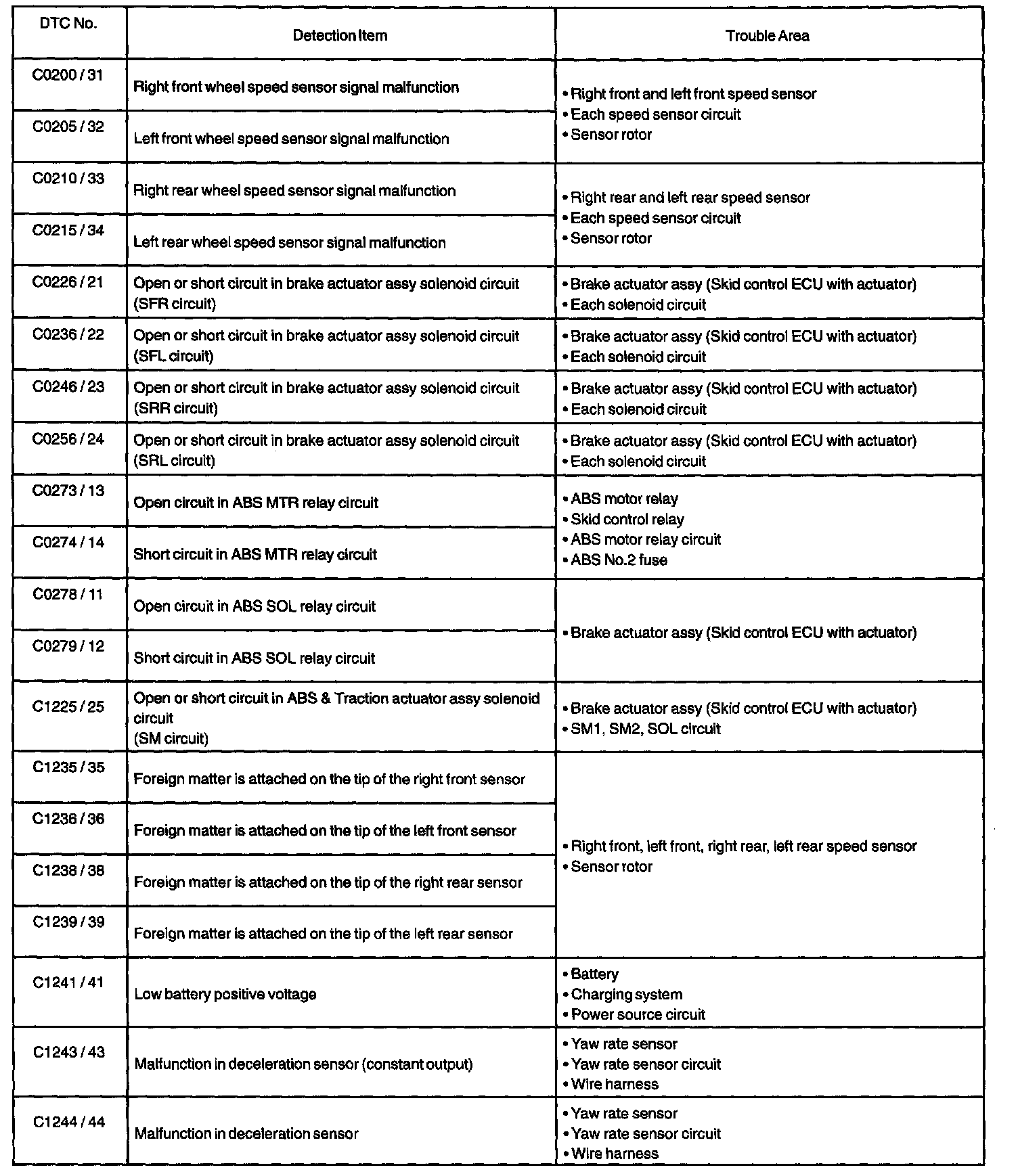

DTC C0200/31 - C1244/44:

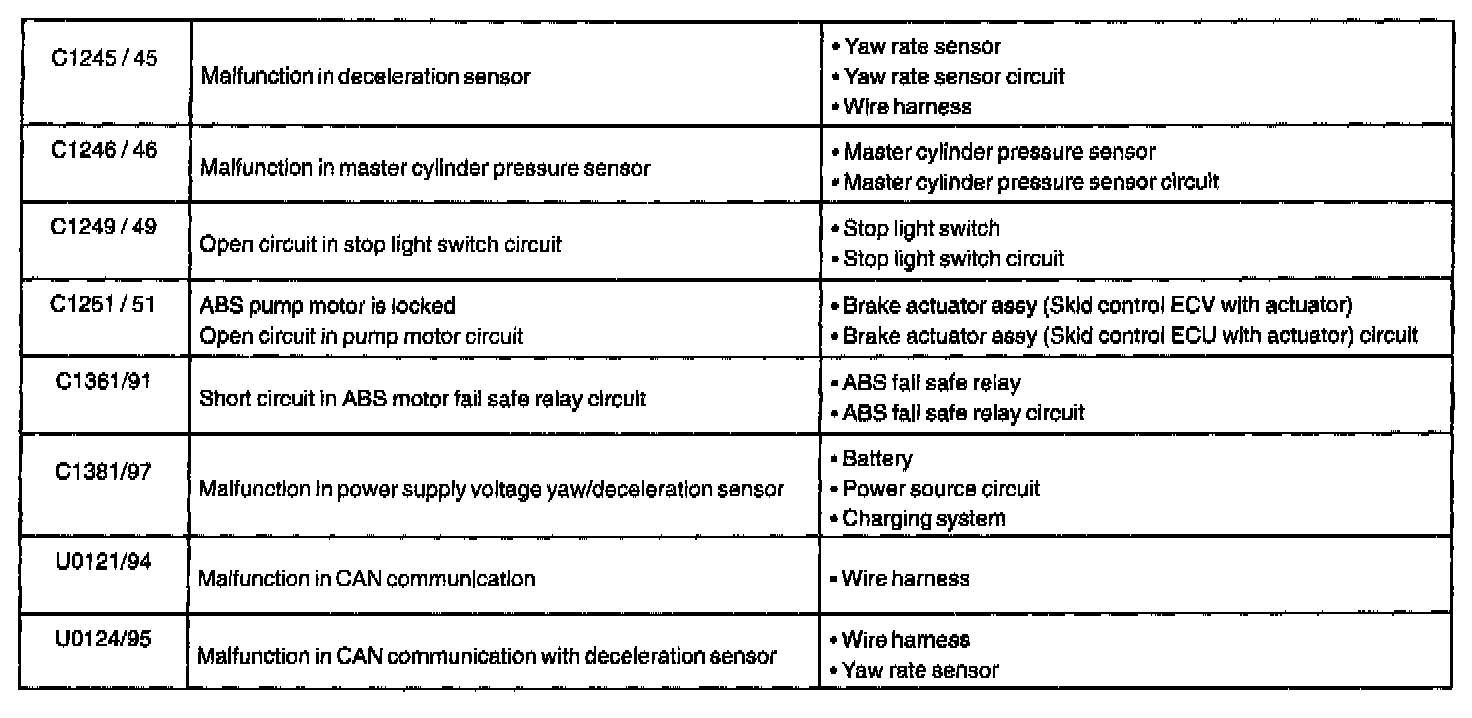

C1245/45 - U0124/95:

DTC chart of ABS

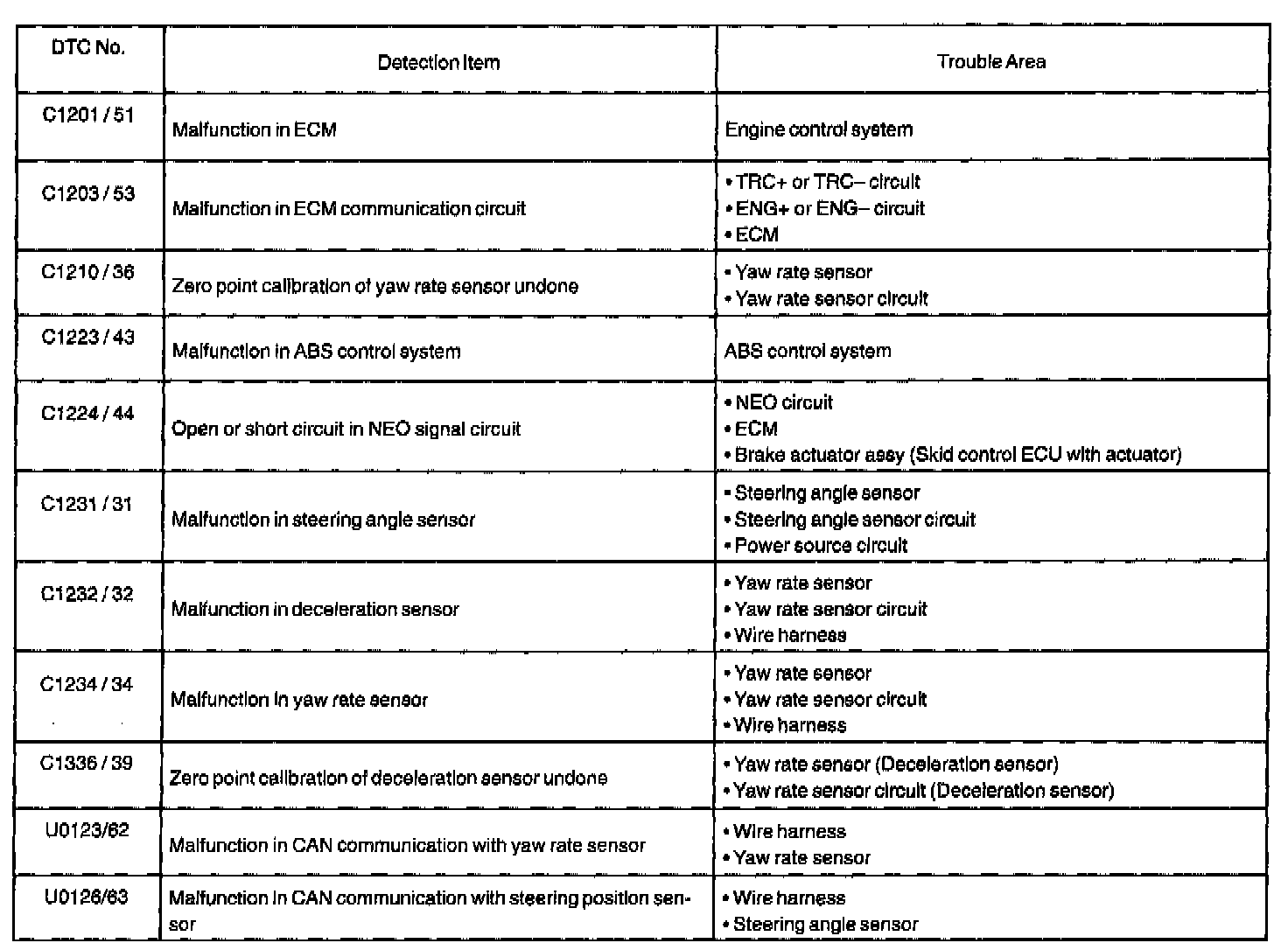

C1201/51 - U0126/63:

DTC chart of VSC

HINT: In some cases, the hand-held tester cannot be used when VSC warning light is always on.

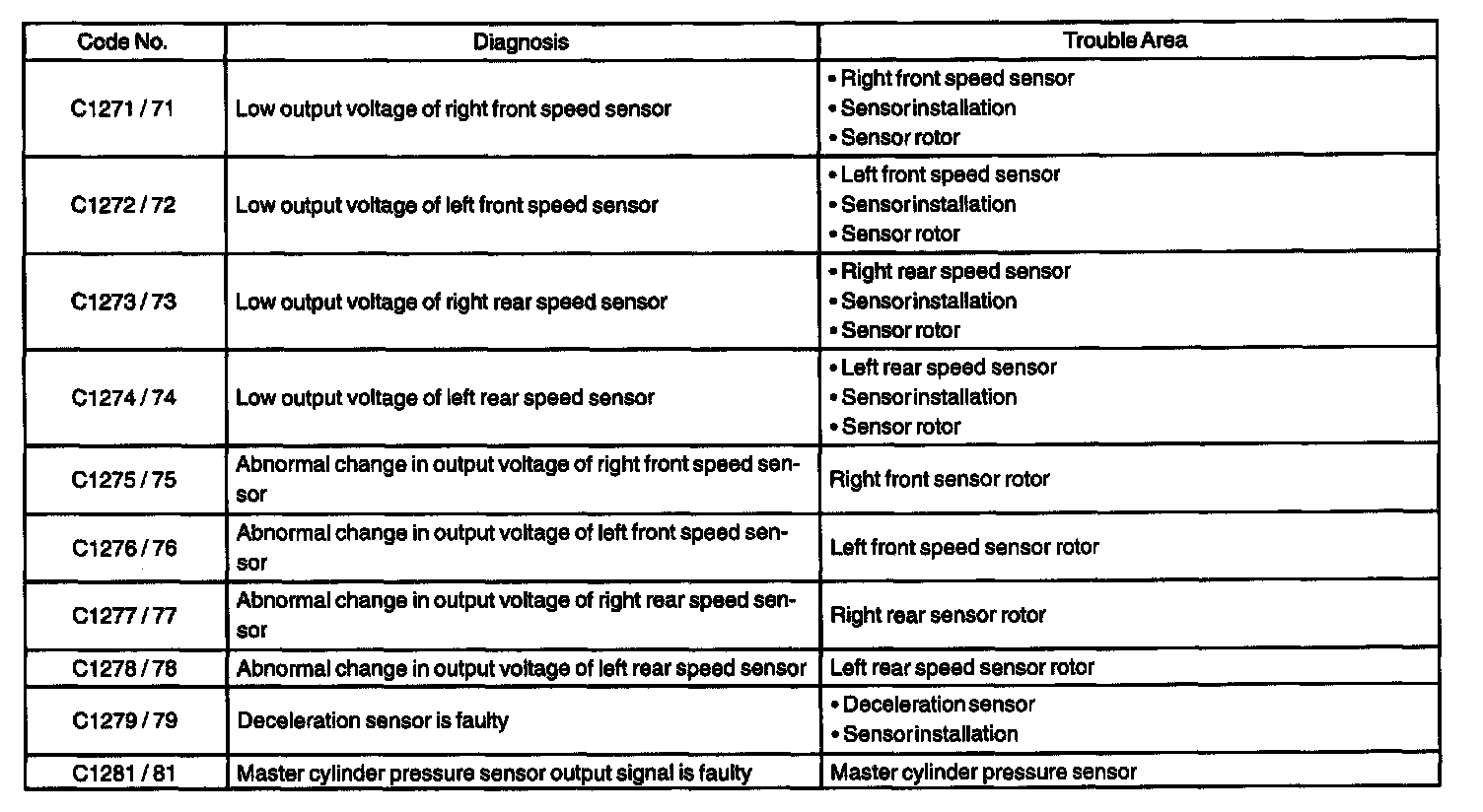

DTC C1271/71 - C1281/81:

DTC of sensor check function
