Rear

REAR AXLE HUB BOLT
REPLACEMENT

HINT: COMPONENTS: See Wheel Hub; Diagrams; Exploded Views.

1. REMOVE REAR WHEEL
2. REMOVE REAR BRAKE DRUM SUB-ASSY





3. REMOVE REAR AXLE LH HUB BOLT

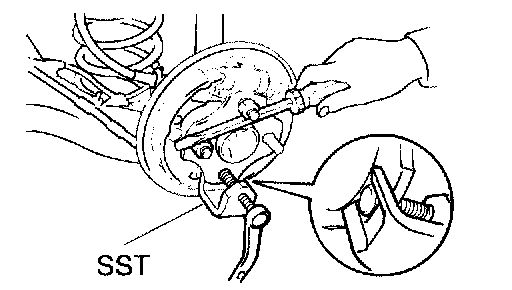

a. Using SST and a screwdriver or an equivalent, remove the LH hub bolt.
SST 09628-10011





4. INSTALL REAR AXLE LH HUB BOLT

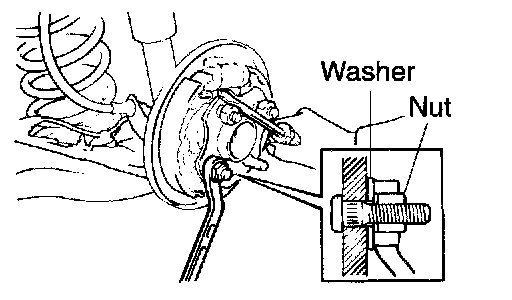

a. Install the washer and the nut to a new LH hub bolt as shown in the illustration.
b. Using a screwdriver or an equivalent to hold the hub & bearing assy, install the LH hub bolt by tightening the nut.
5. INSTALL REAR BRAKE DRUM SUB-ASSY
6. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
