Front

FRONT AXLE LH HUB BOLT
REPLACEMENT

HINT: COMPONENTS: See Wheel Hub; Diagrams; Exploded Views.

1. REMOVE FRONT WHEEL
2. SEPARATE FRONT DISC BRAKE CALIPER ASSY LH
3. REMOVE FRONT DISC





4. REMOVE FRONT AXLE LH HUB BOLT

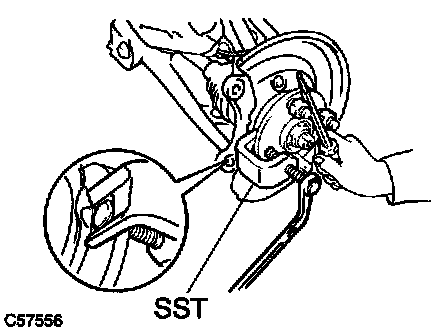

a. Using SST and a screwdriver or an equivalent to hold the axle hub sub-assy LH, remove the LH hub bolt.
SST 09628-10011





5. INSTALL FRONT AXLE LH HUB BOLT

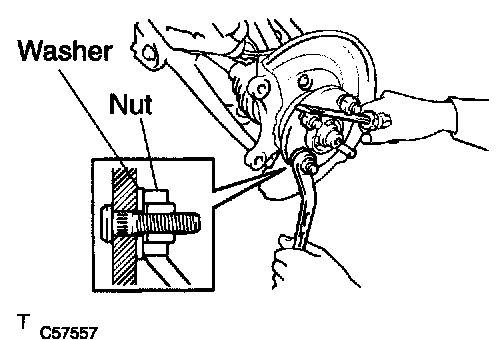

a. Install the washer and the nut to a new LH hub bolt as shown in the illustration.
b. Using a screwdriver or an equivalent to hold the axle hub sub-assy LH, install the LH hub bolt by tightening the nut.
6. INSTALL FRONT DISC
7. INSTALL FRONT DISC BRAKE CALIPER ASSY LH
8. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
