Warning Buzzer Does Not Sound

Wiring Diagram:

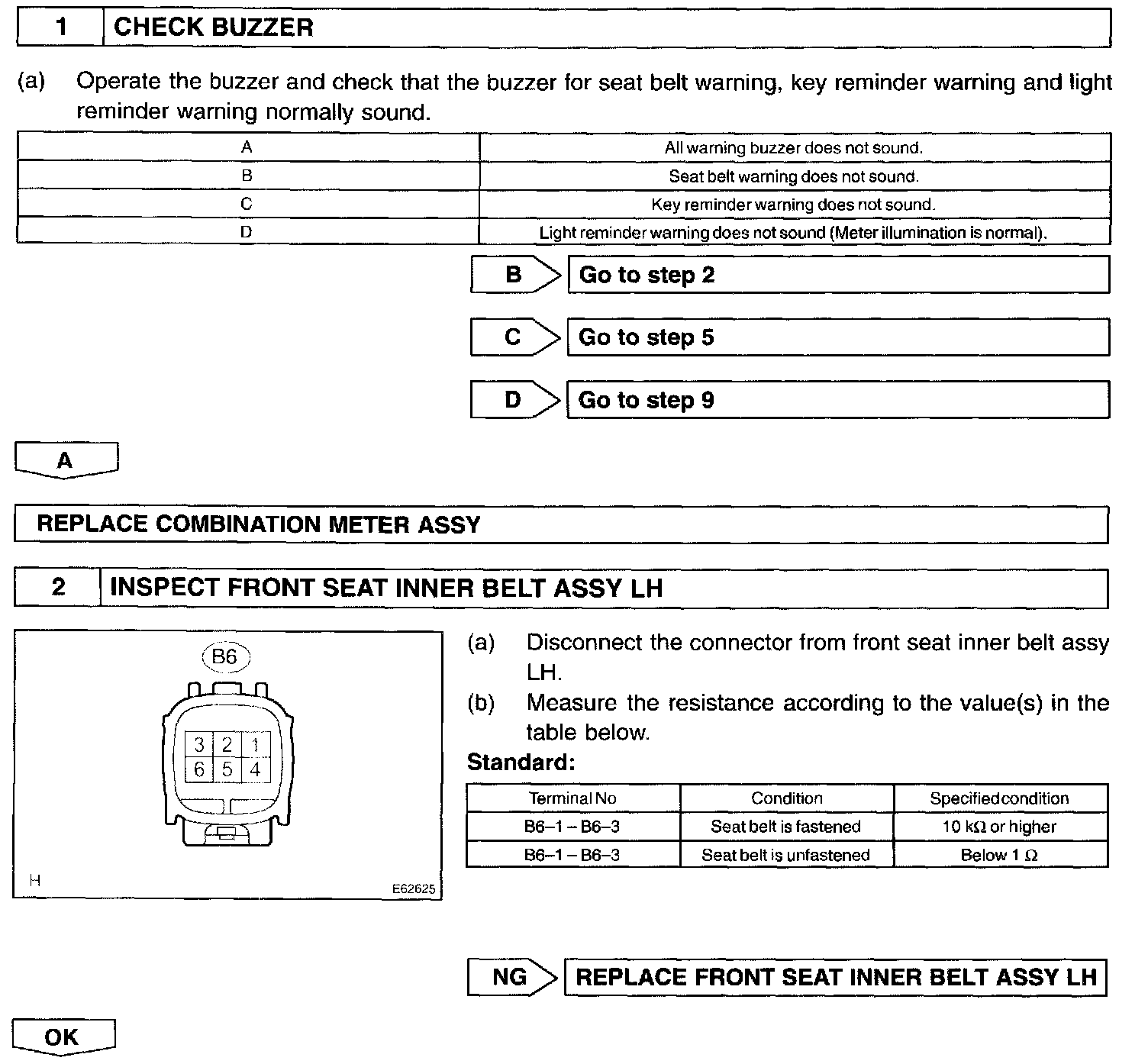

Step 1 - 2:

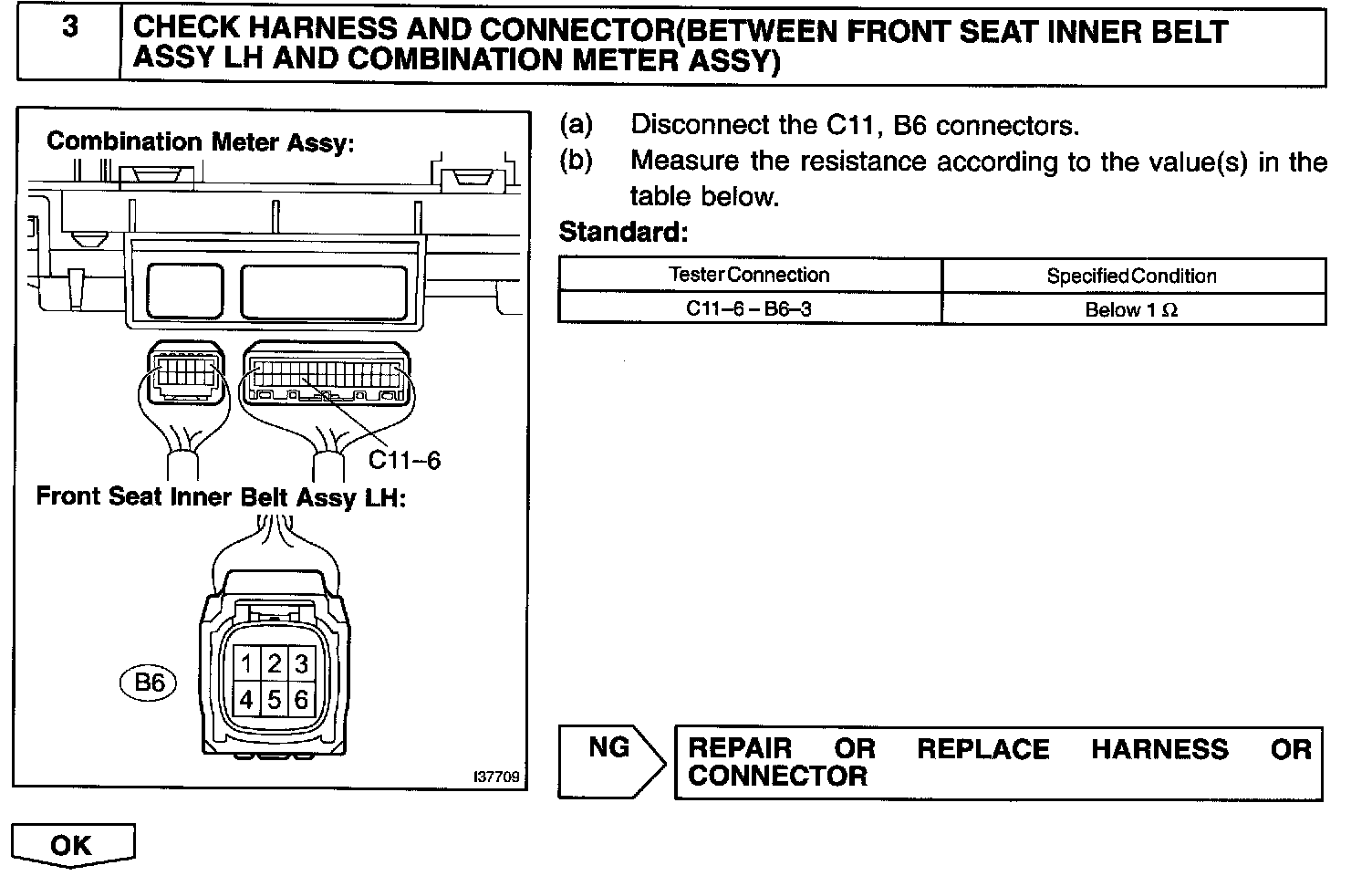

Step 3:

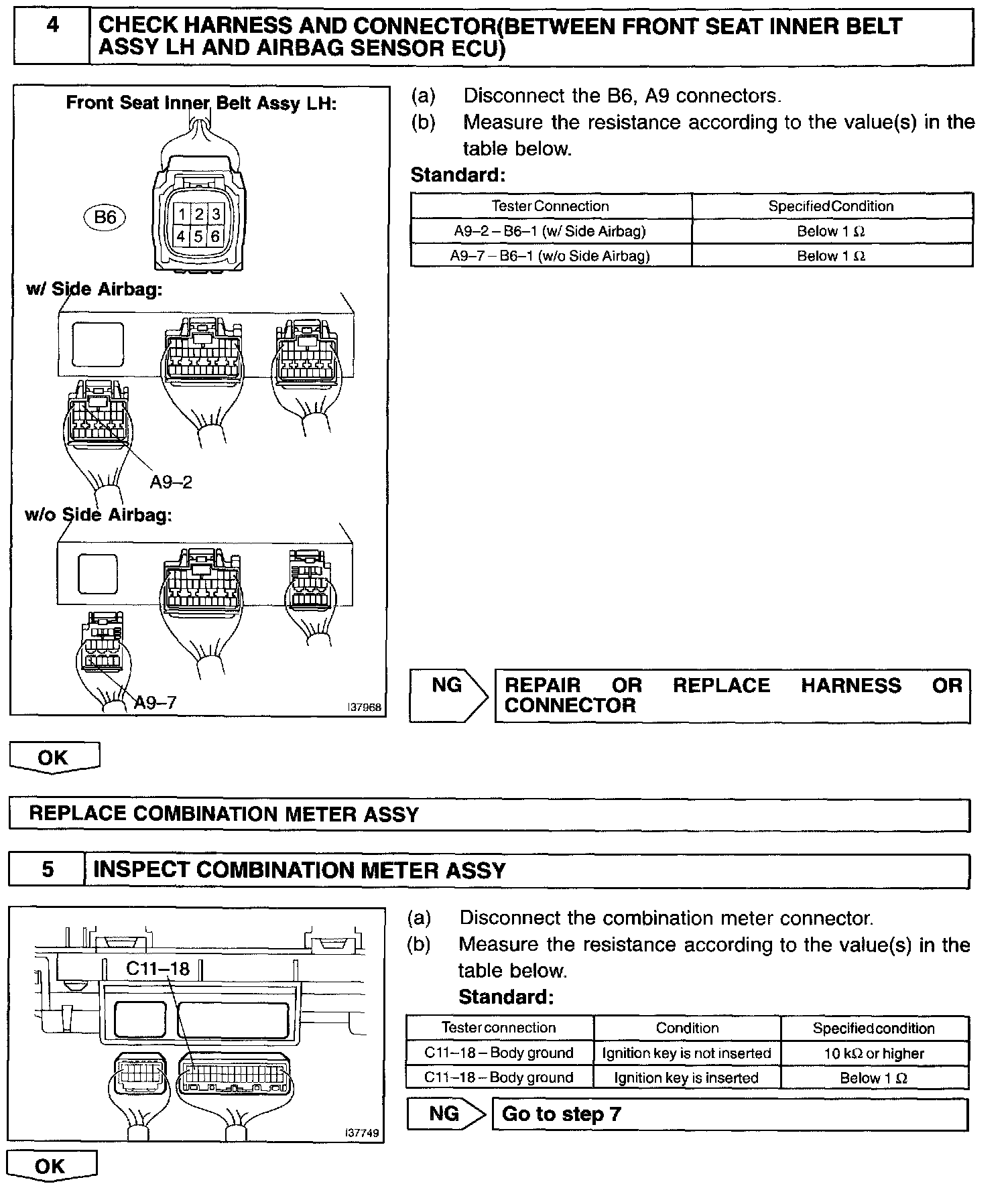

Step 4 - 5:




Step 6 - 8:

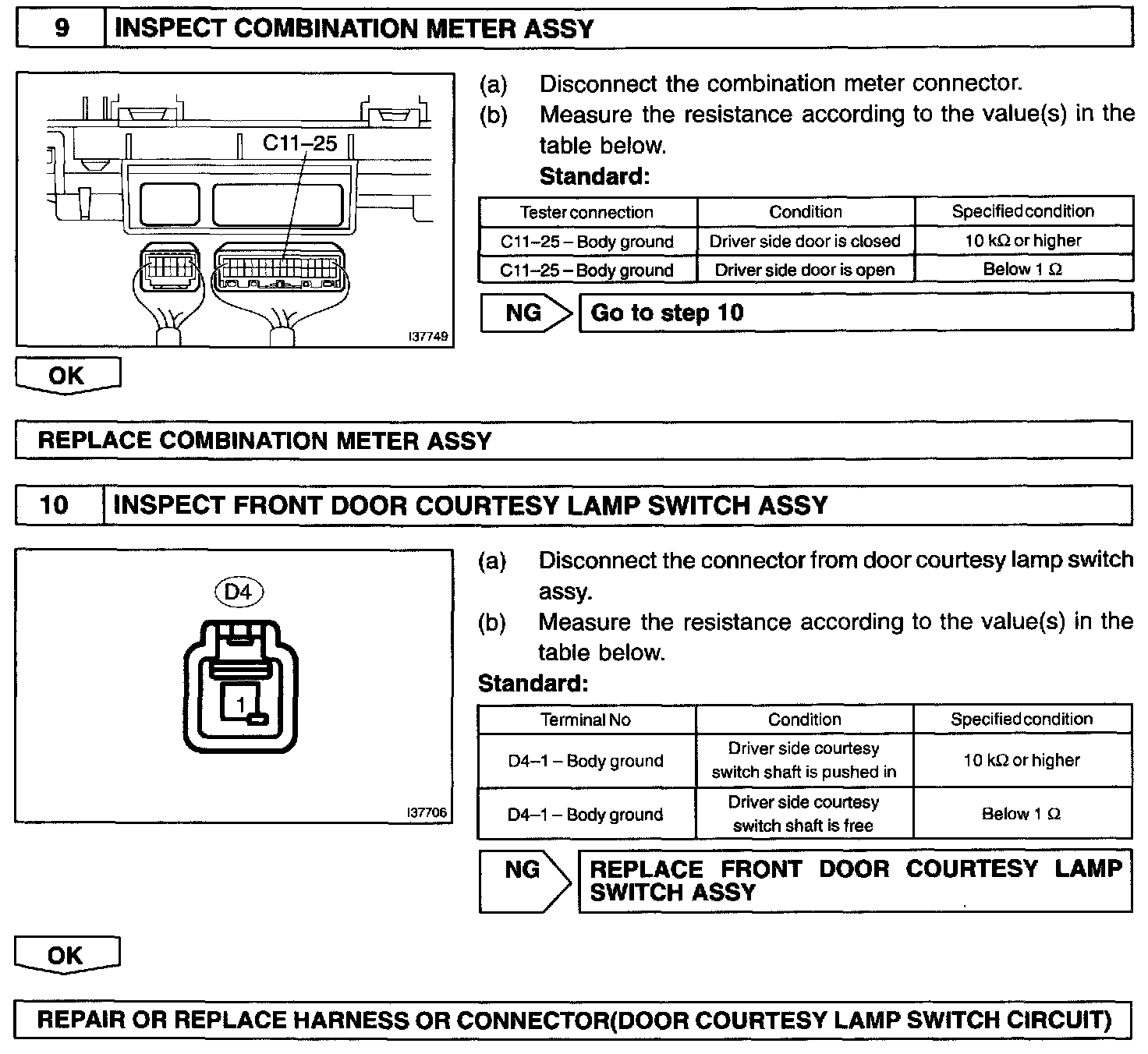

Step 9 - 10:




INSPECTION PROCEDURE
