Seat Belt Warning Lamp For Front Passenger Seat Does Not Flash

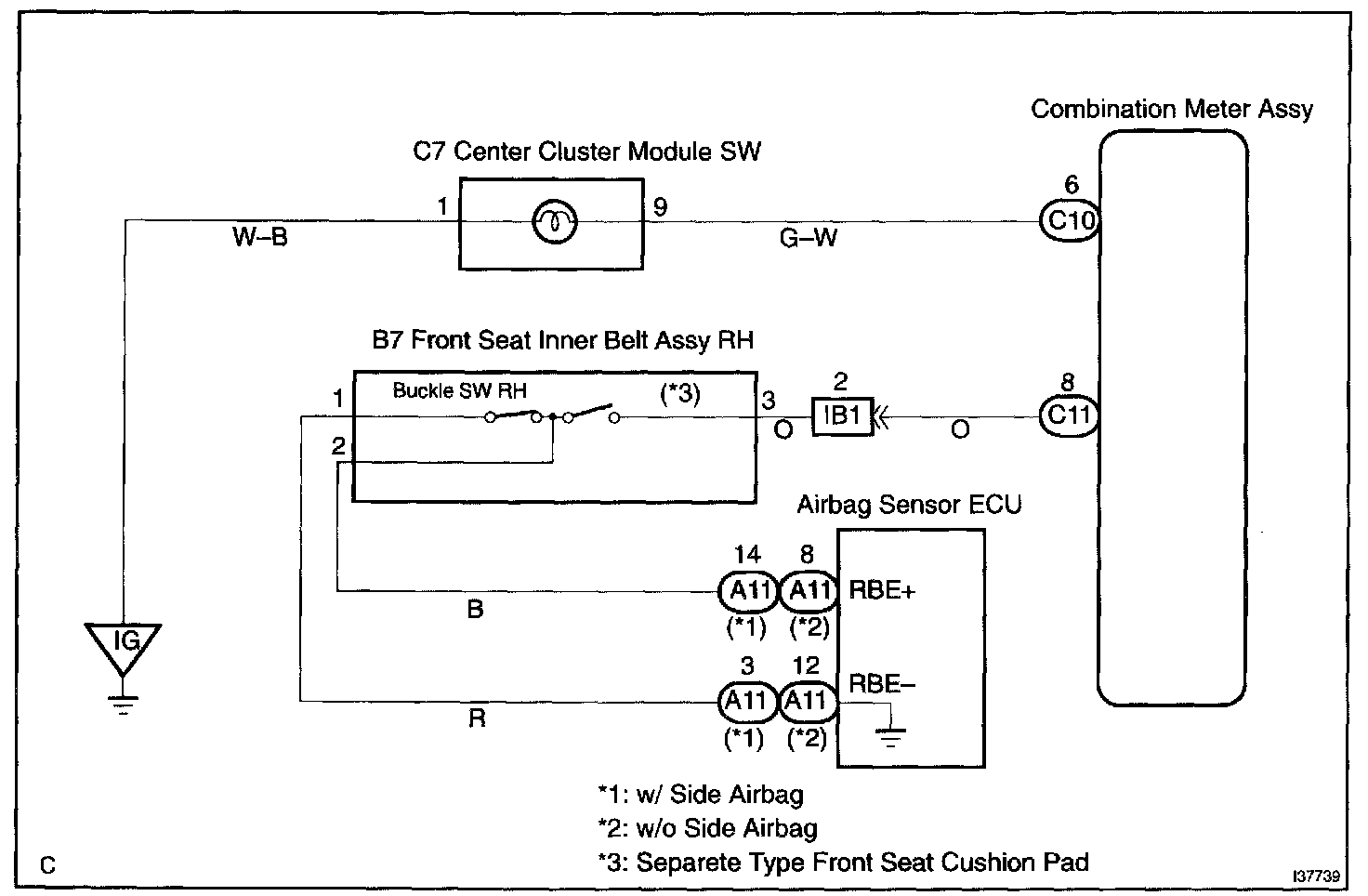

Wiring Diagram:

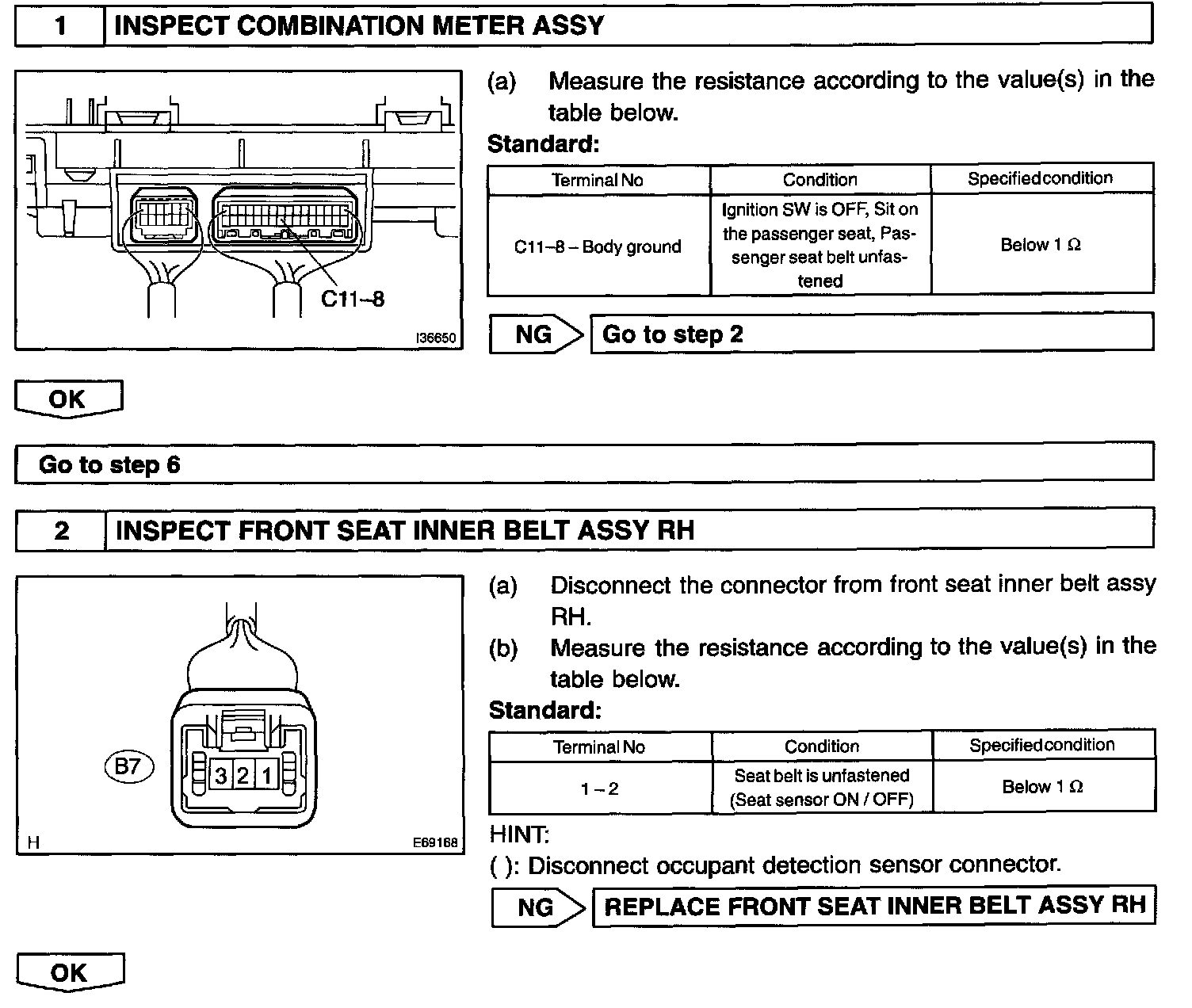

Step 1 - 2:

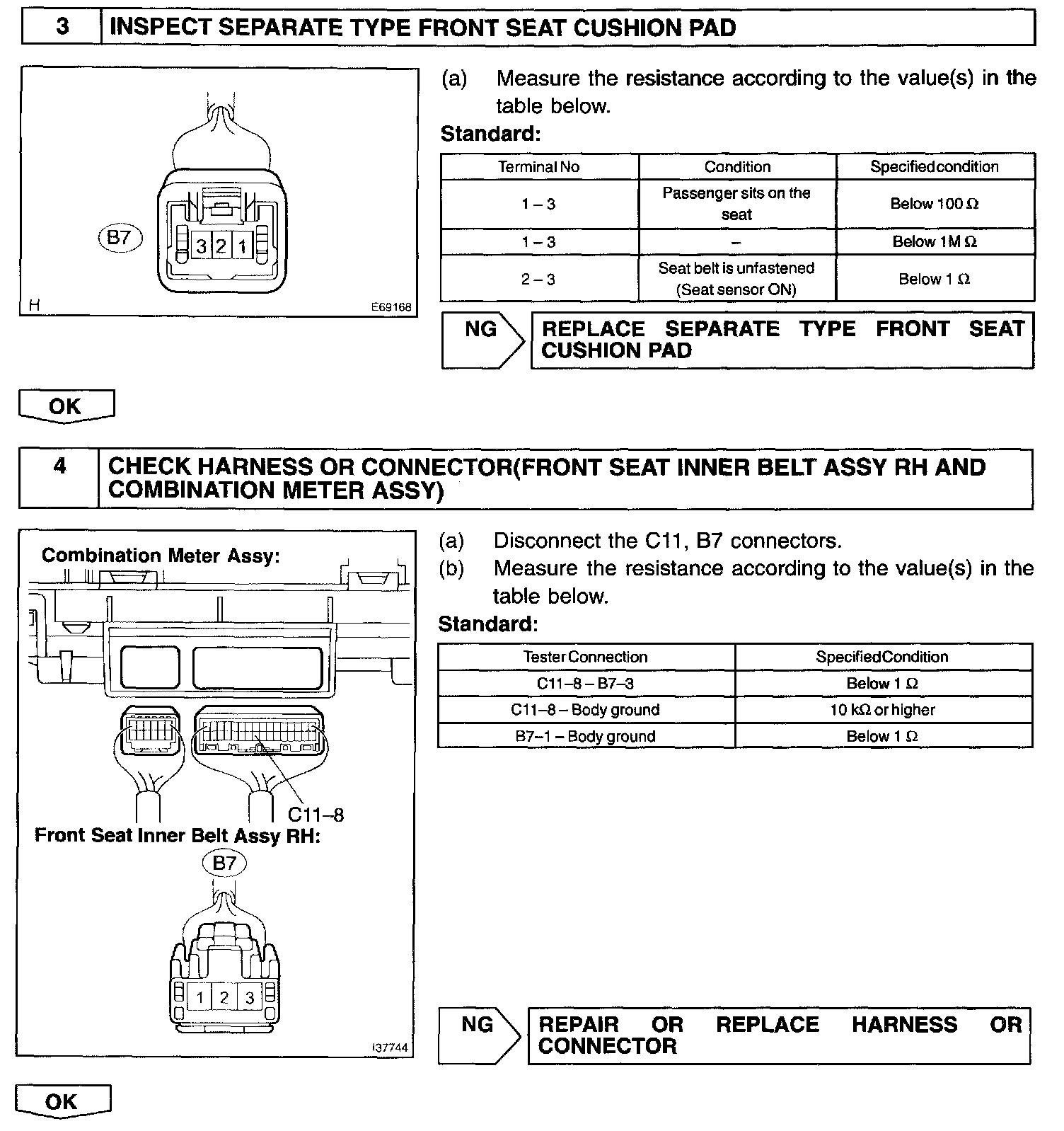

Step 3 - 4:

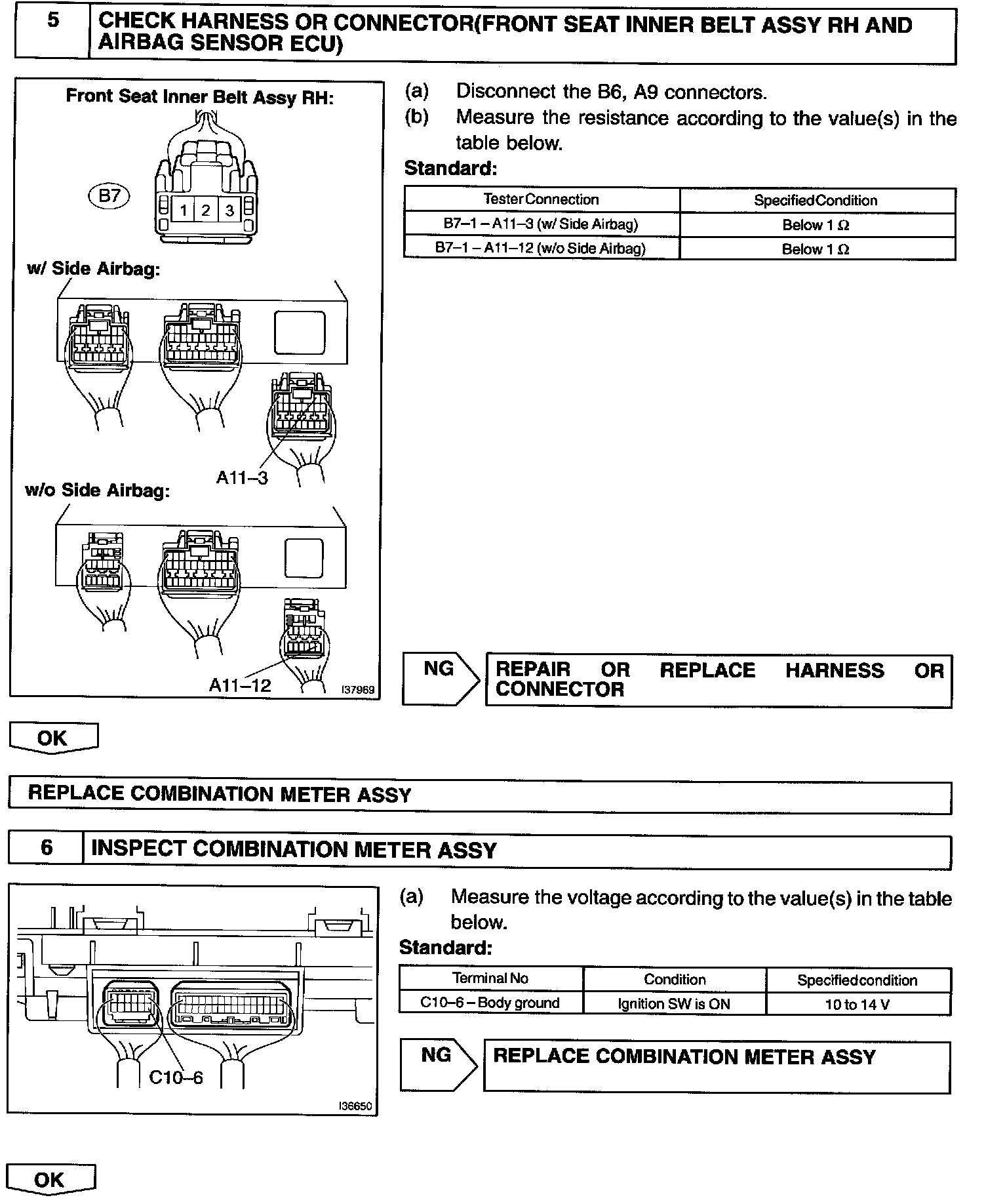

Step 5 - 6:

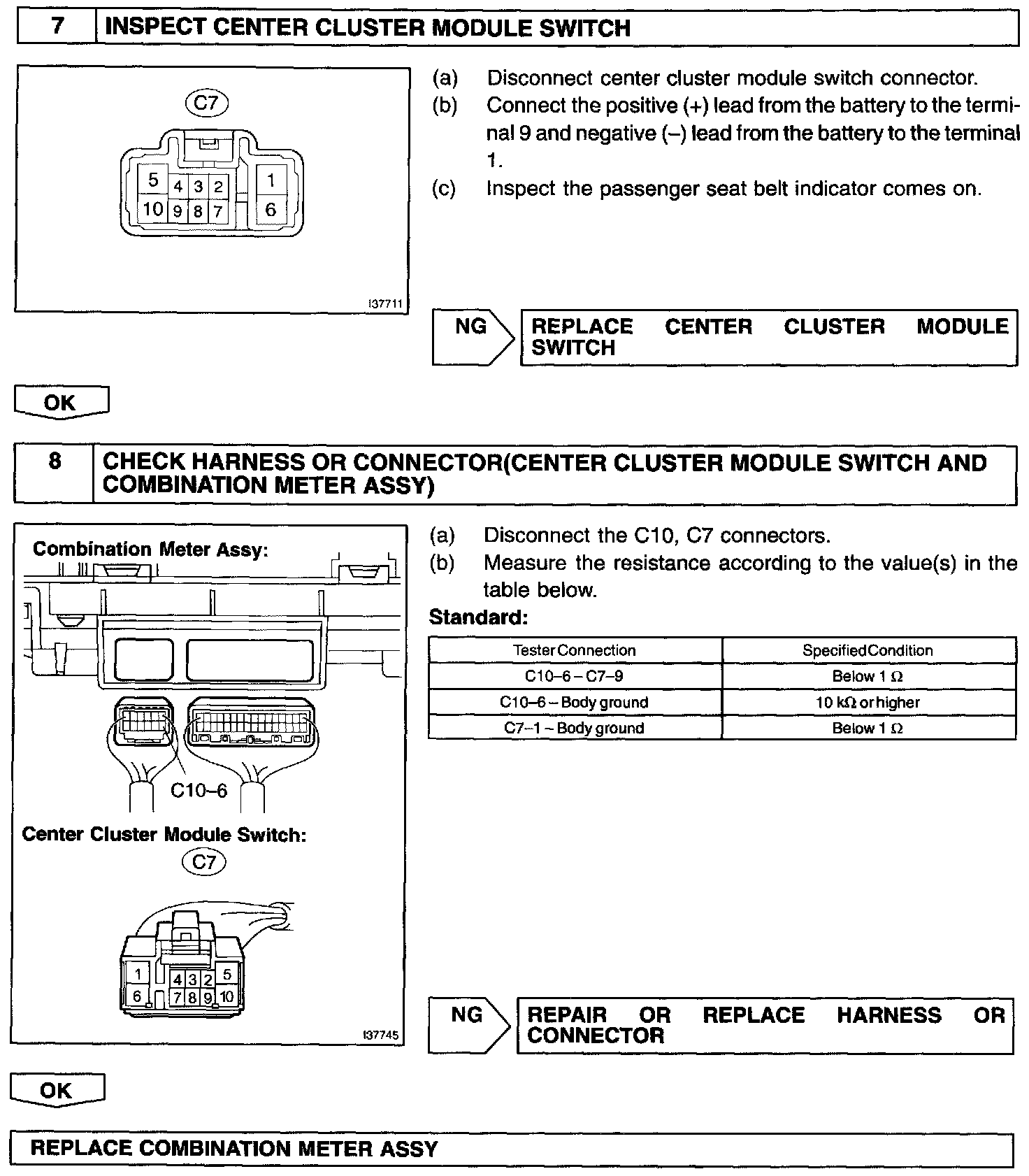

Step 7 - 8:

INSPECTION PROCEDURE

HINT: If there is an open in the ground circuit (Airbag sensor ECU), the airbag sensor ECU outputs DTCs. Perform troubleshooting with the Supplemental Restraint system.
