Symptom Diagnostic Procedures

CIRCUIT DESCRIPTION

The door control relay drives the door lock motors with switch signals from the master switch, the door control switch, and the driver/passenger side door key cylinder.

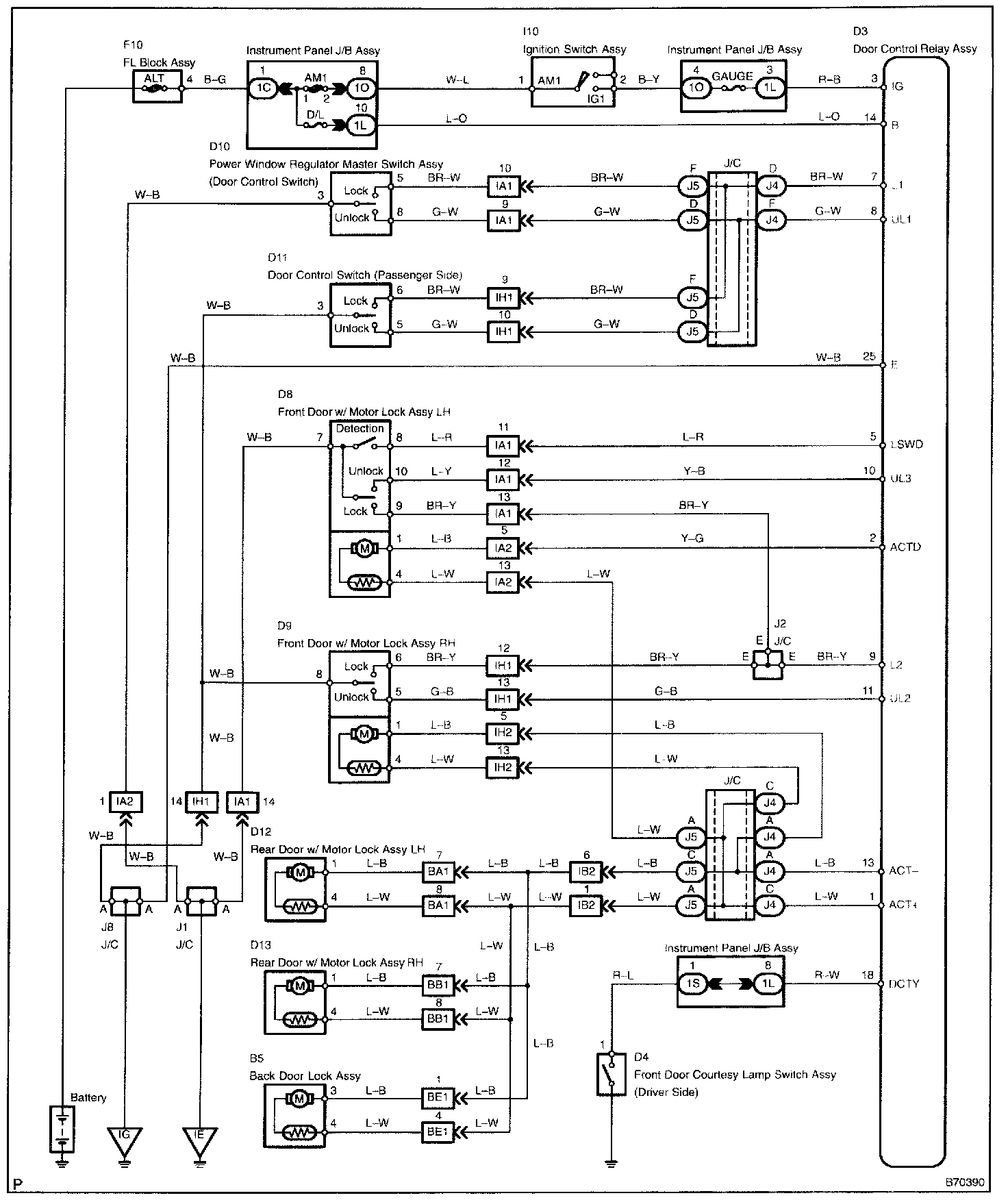

Wiring Diagram:

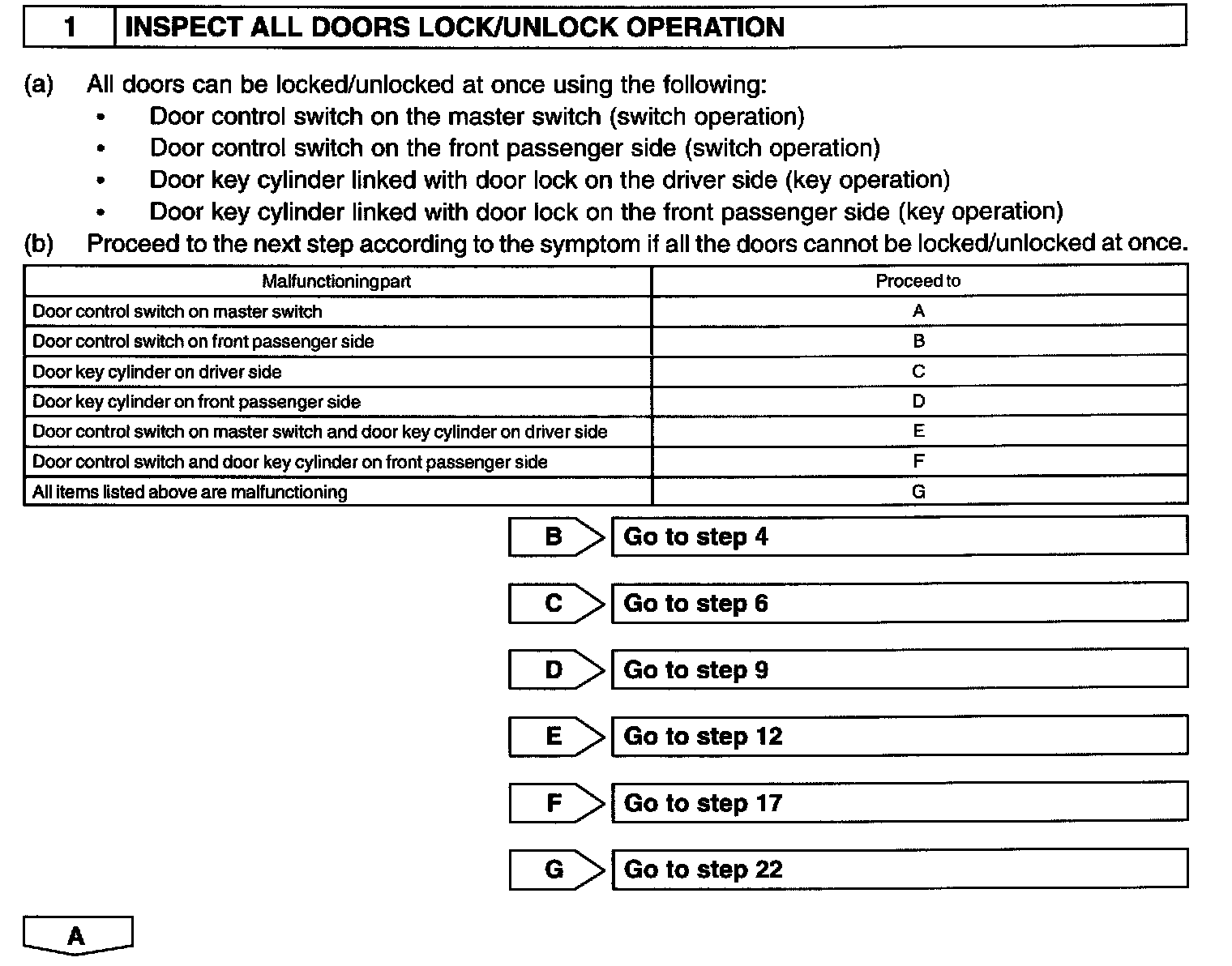

Step 1:

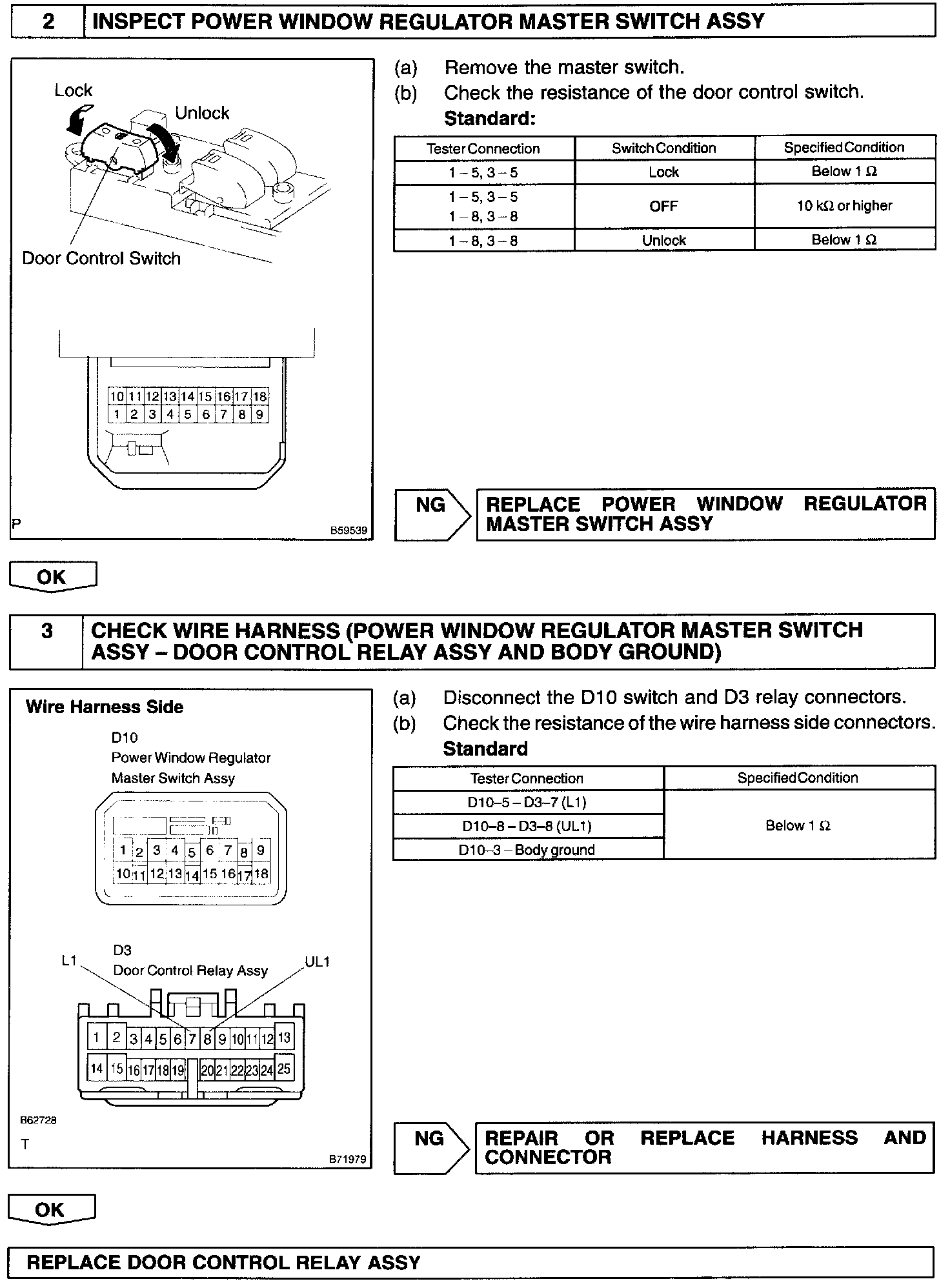

Step 2 - 3:

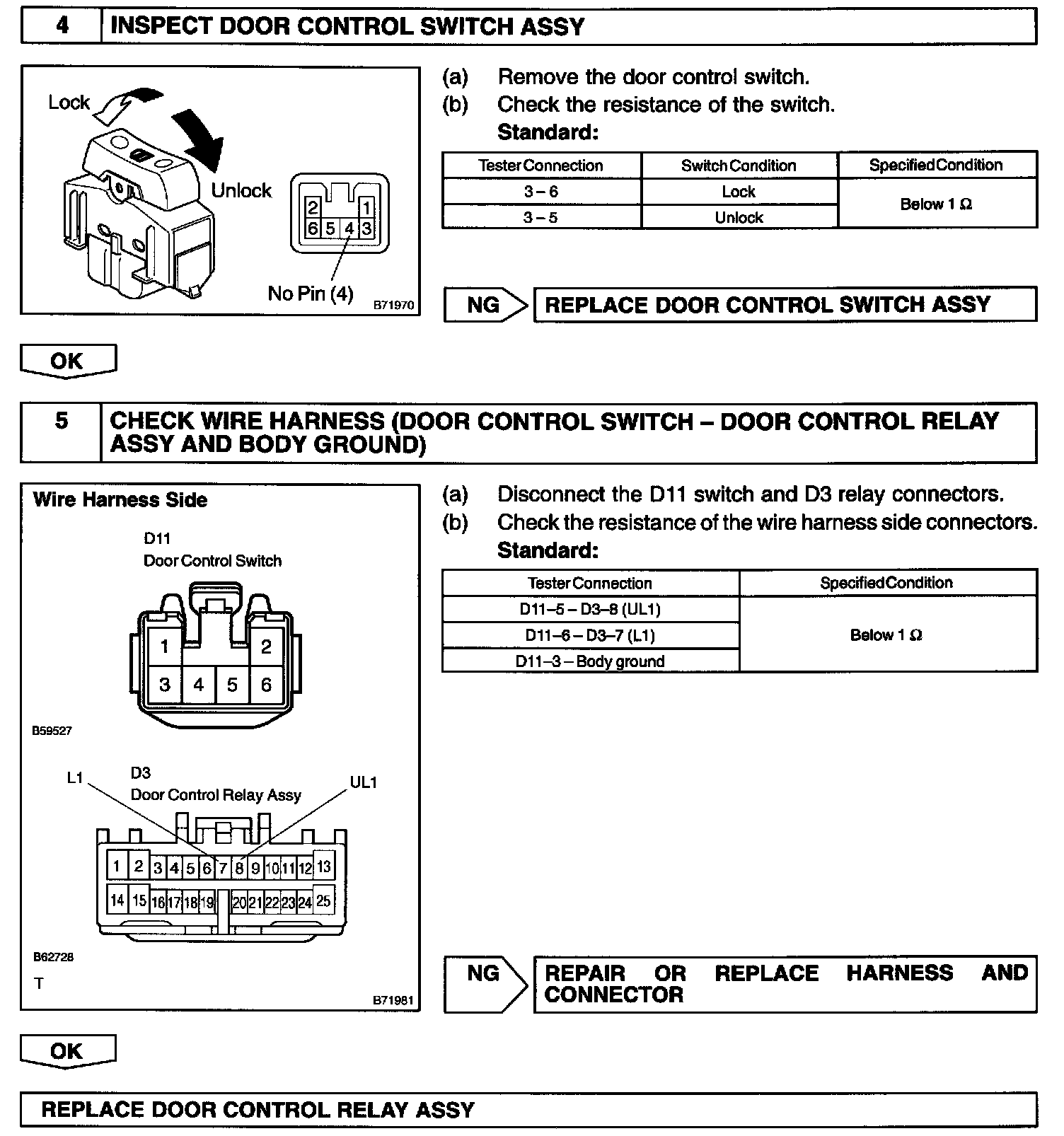

Step 4 - 5:

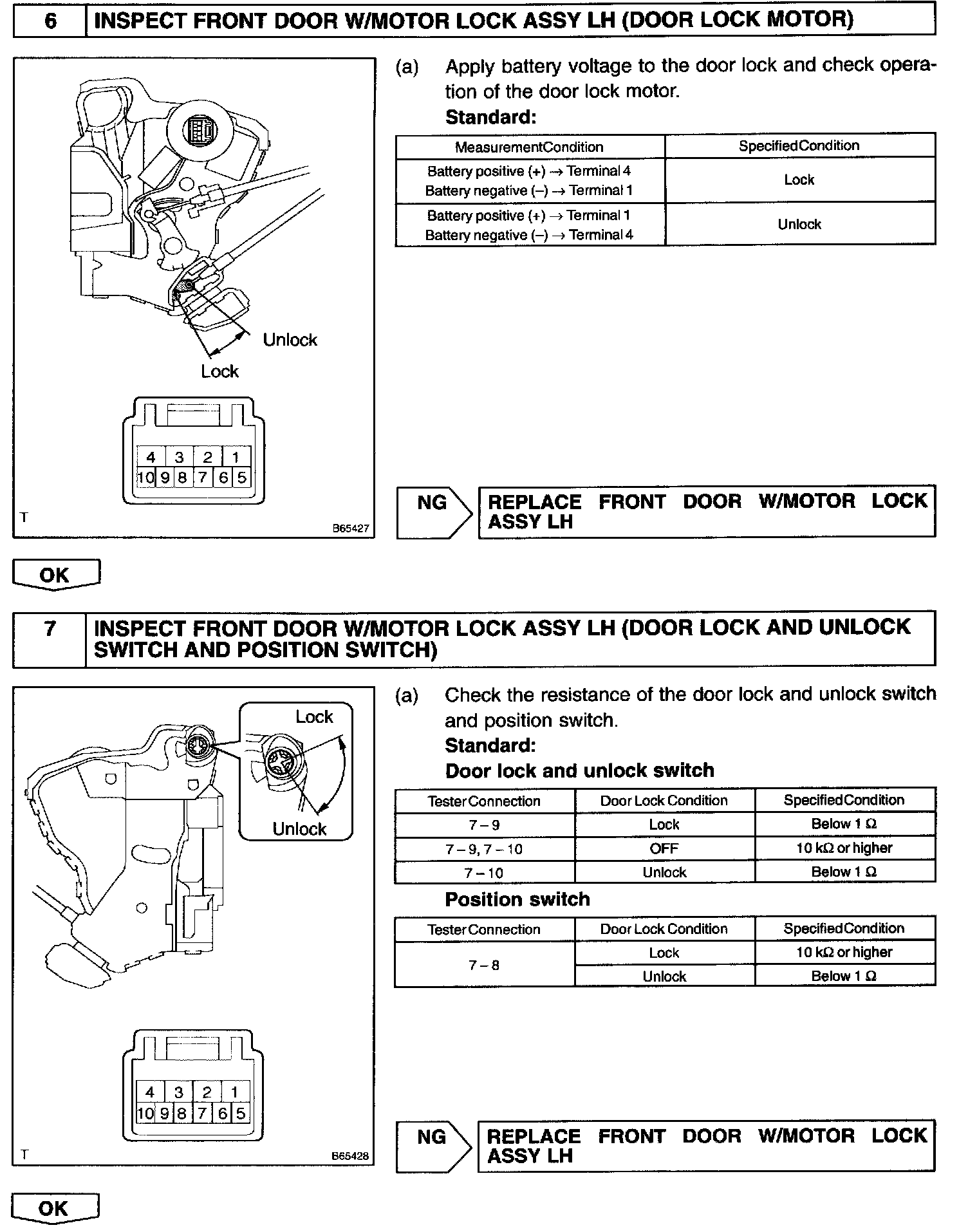

Step 6 - 7:

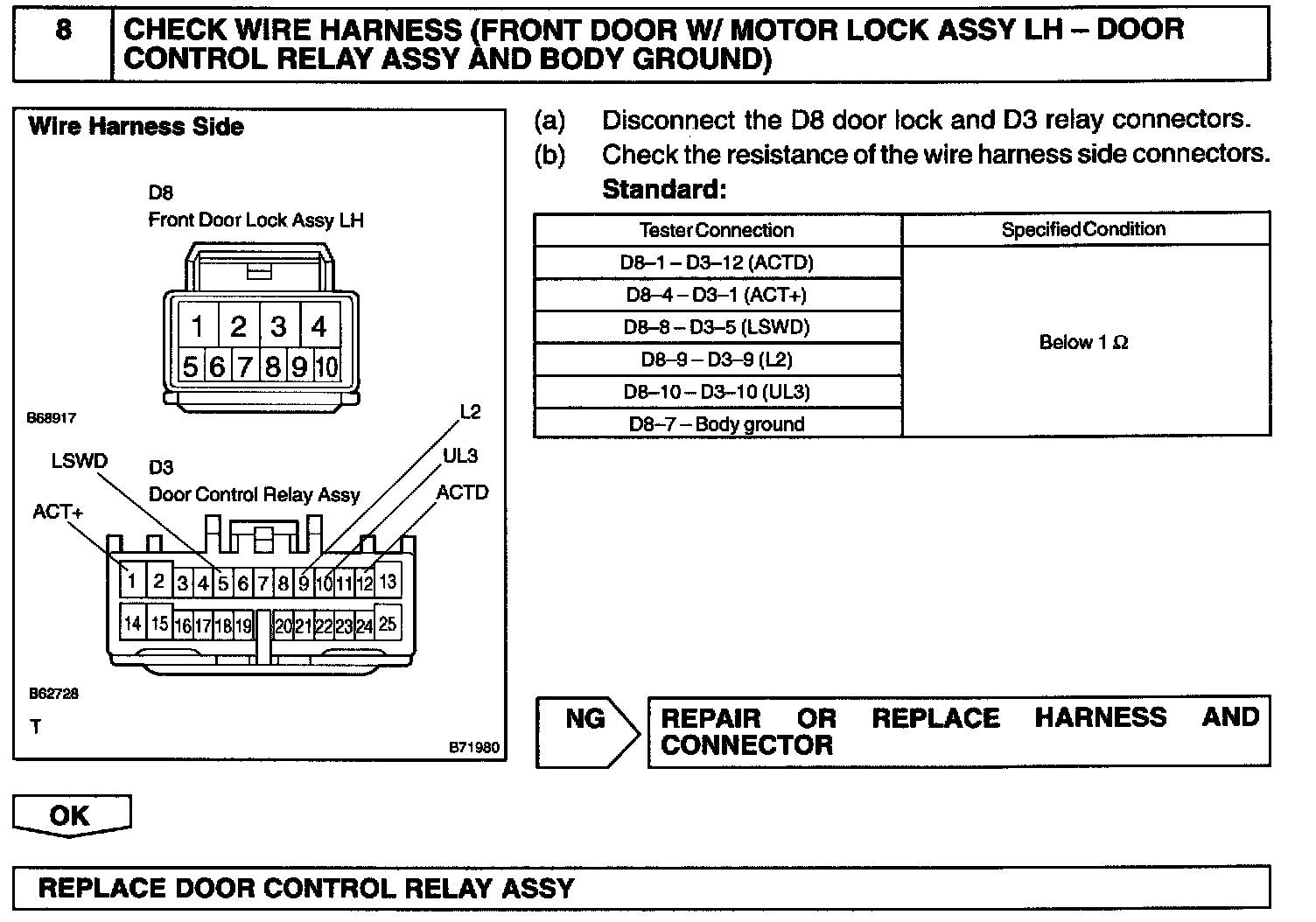

Step 8:

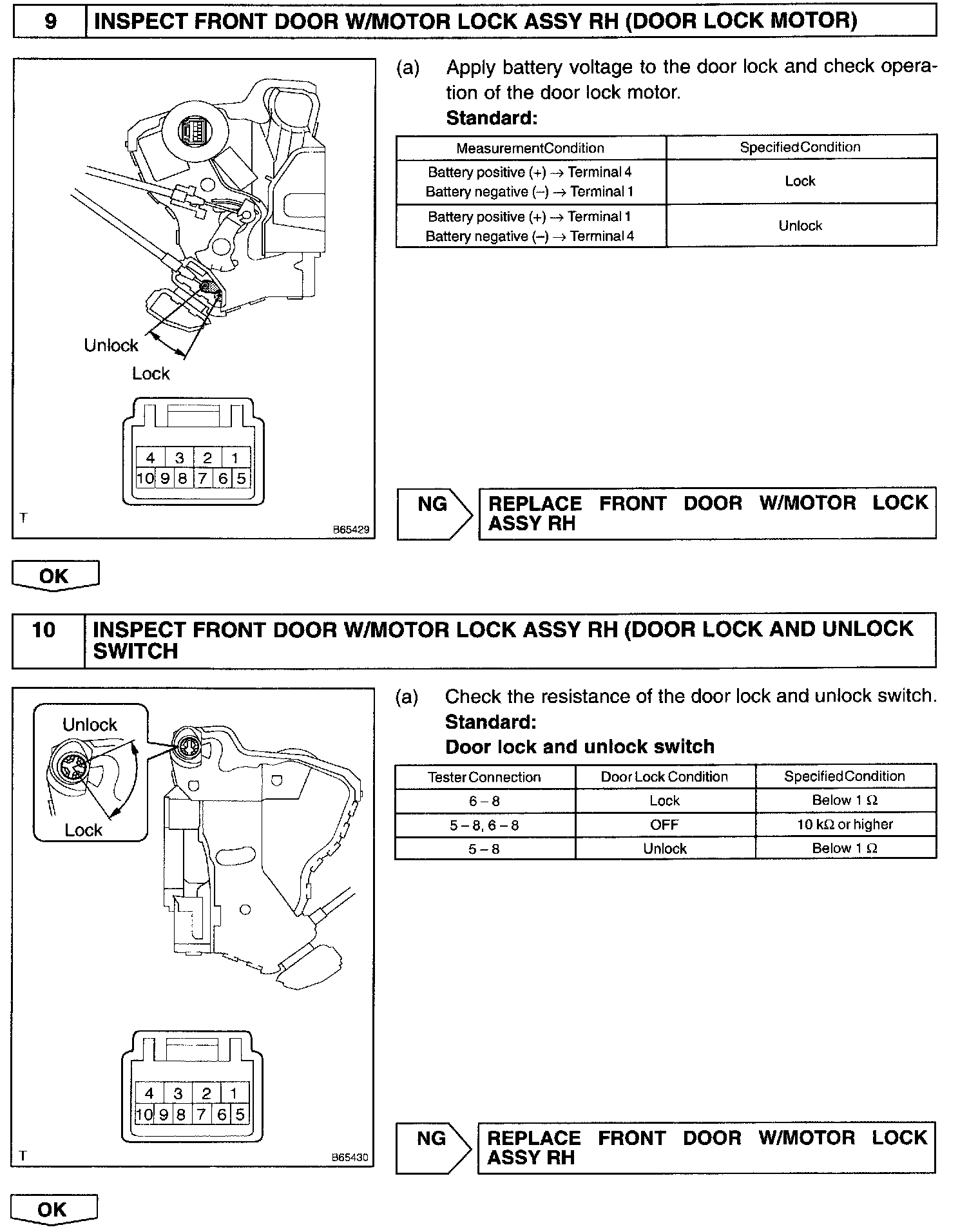

Step 9 - 10:

Step 11:

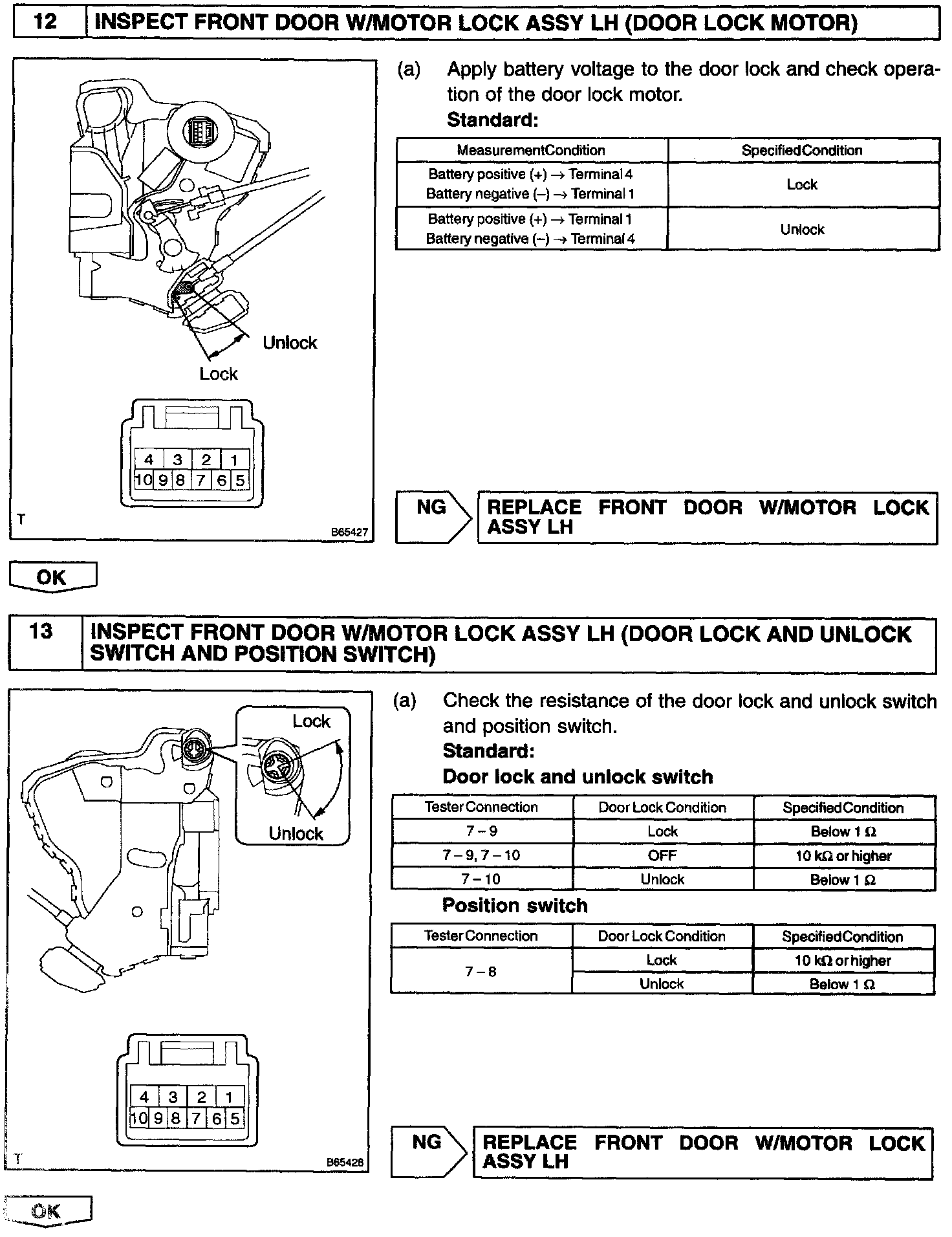

Step 12 - 13:

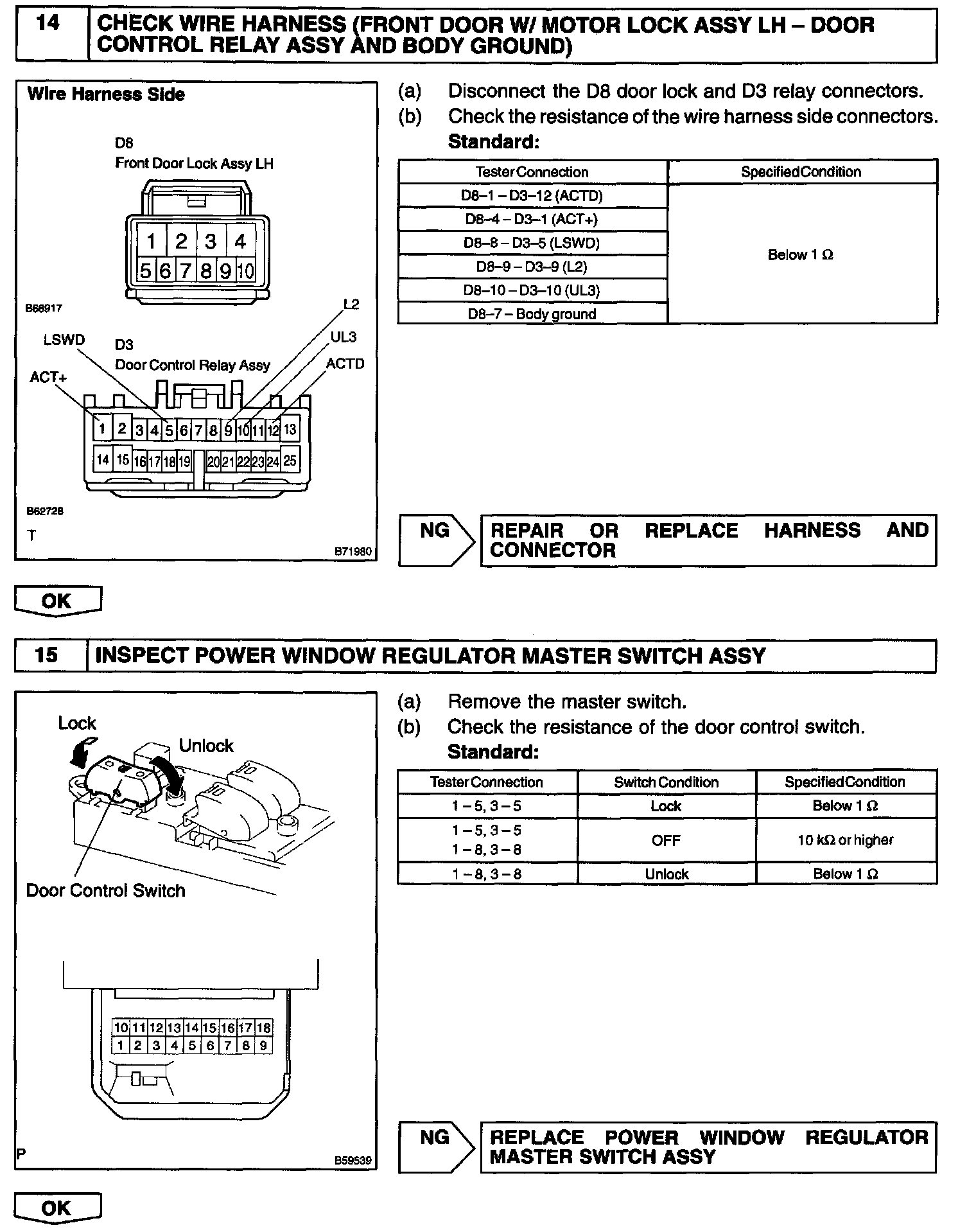

Step 14 - 15:

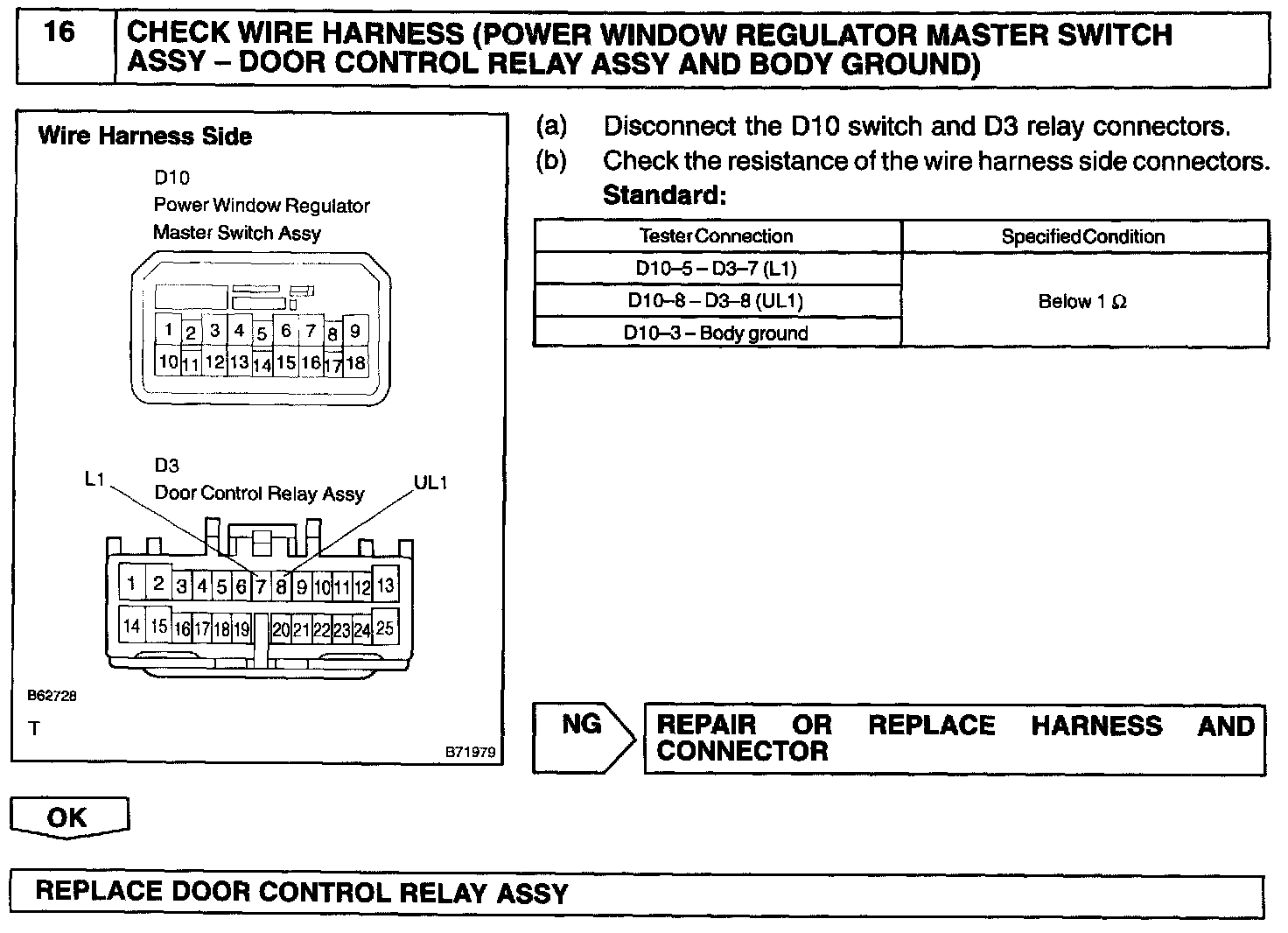

Step 16:

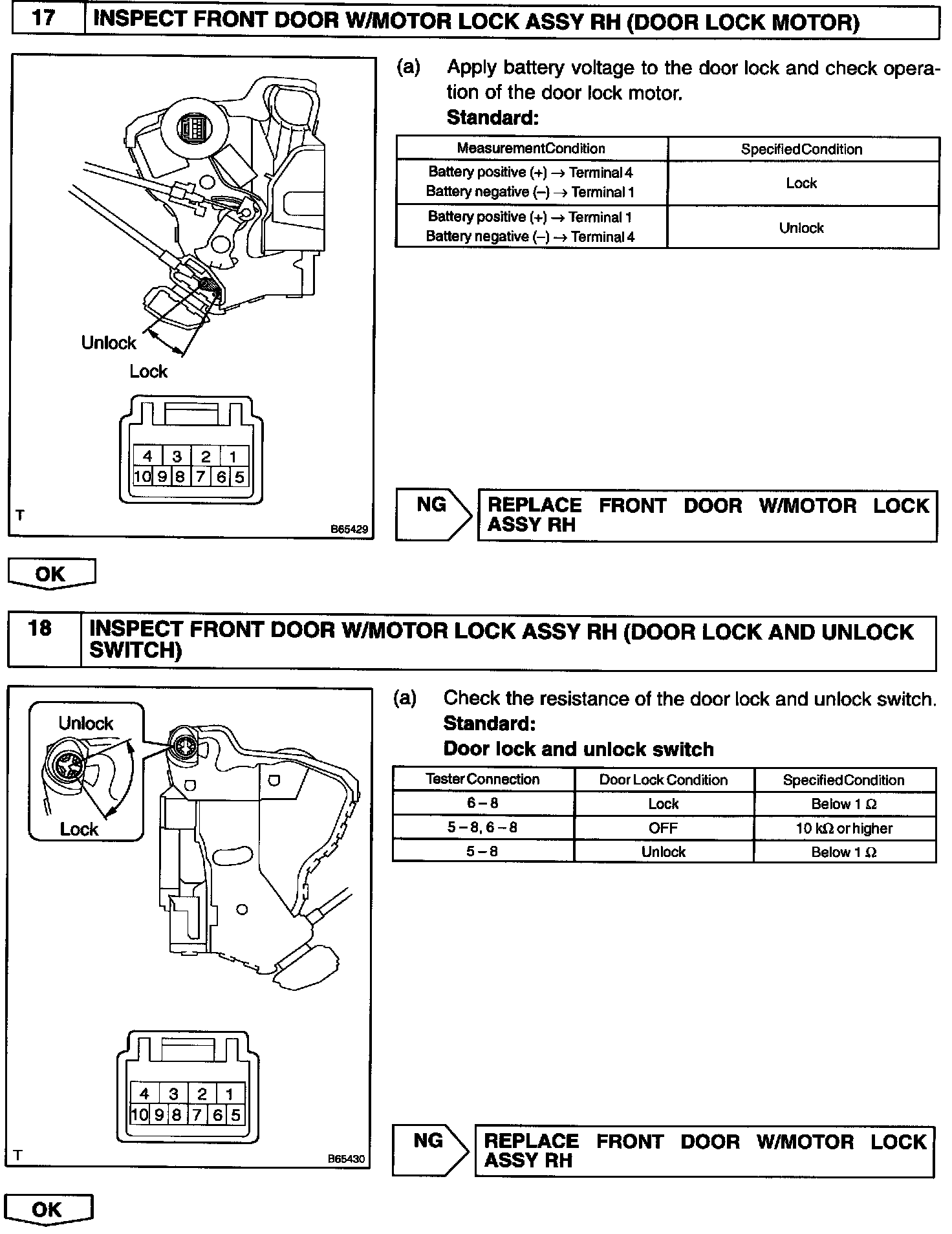

Step 17 - 18:

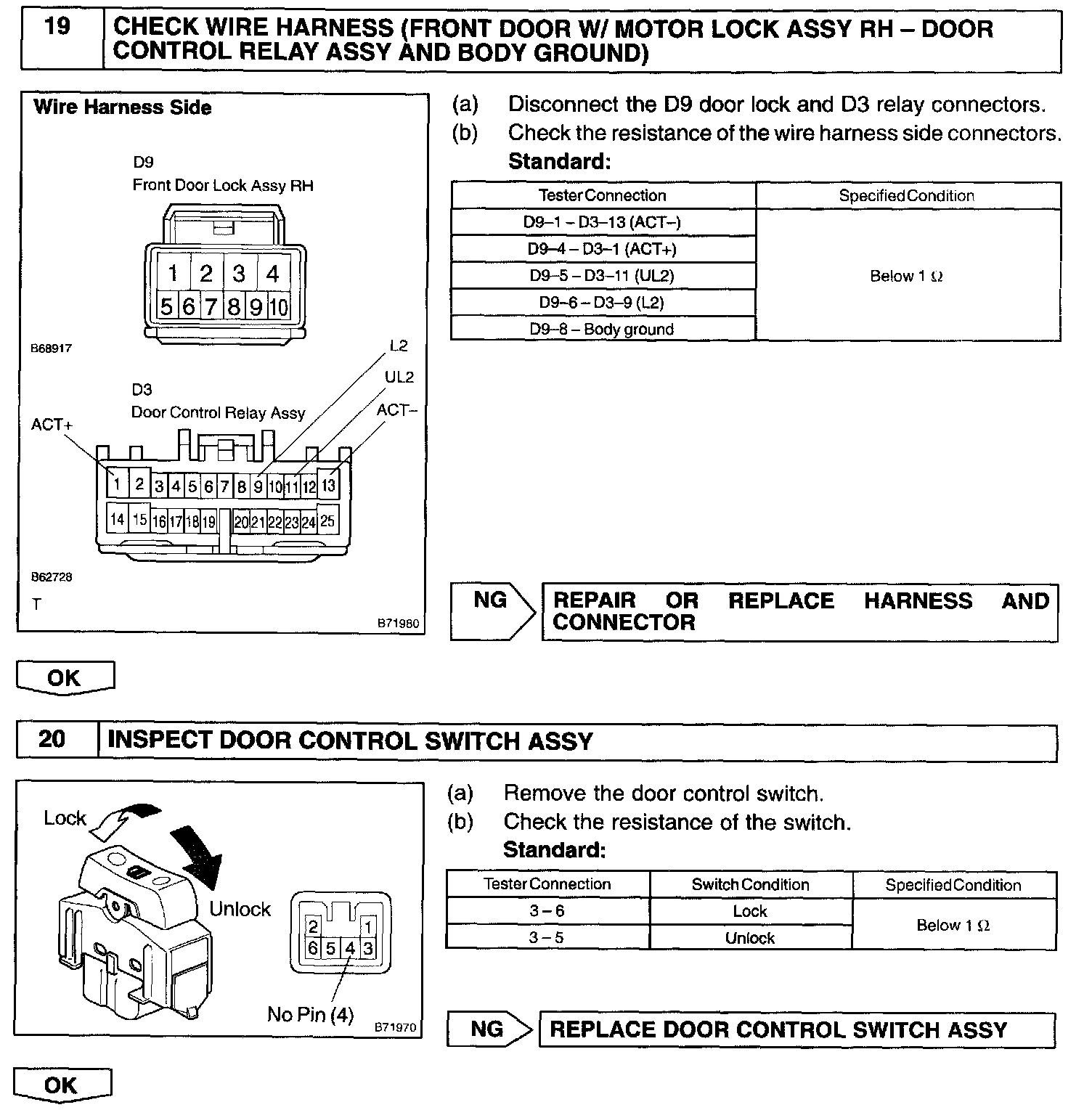

Step 19 - 20:

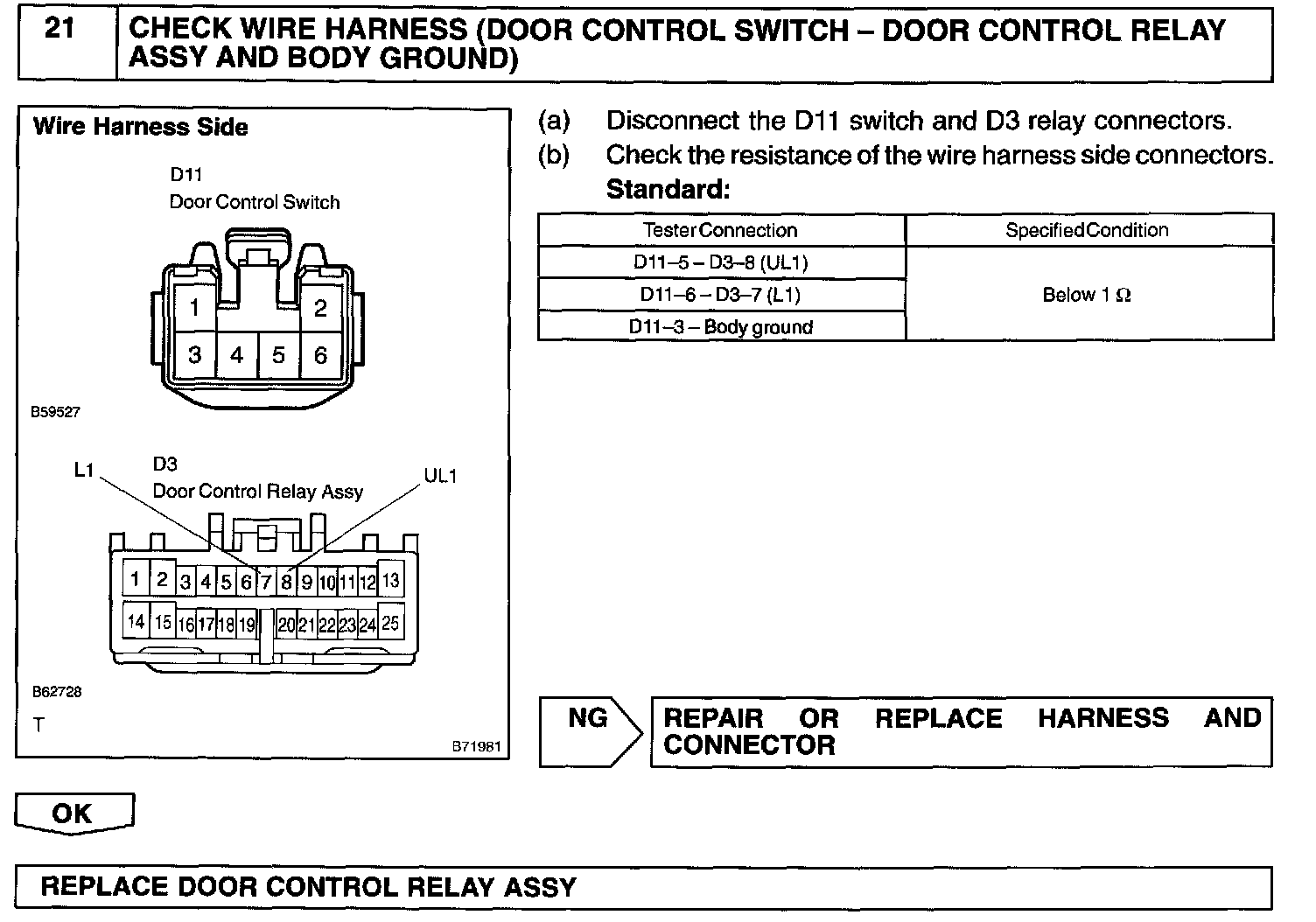

Step 21:

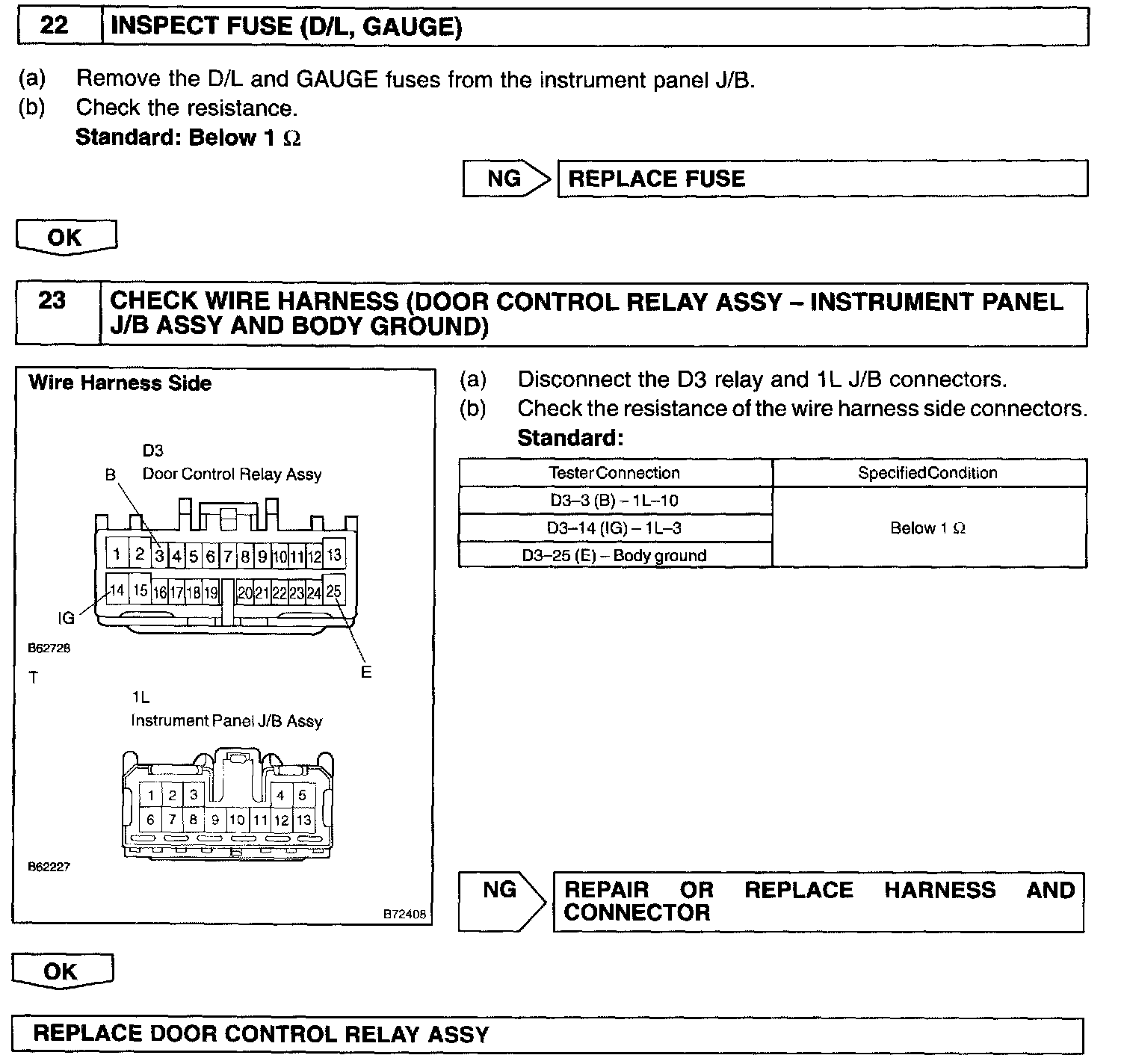

Step 22 - 23:

INSPECTION PROCEDURE
