Front No. 2 Speaker Assy

Audio & Visual System:

FRONT NO.2 SPEAKER ASSY

REPLACEMENT
1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH
2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSY
3. REMOVE FRONT DOOR TRIM BOARD SUB-ASSY LH
4. REMOVE FRONT DOOR SERVICE HOLE COVER LH

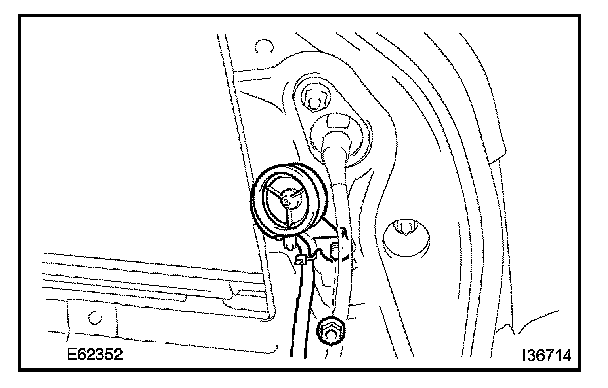

5. REMOVE FRONT NO.2 SPEAKER ASSY
a. Disconnect the connector.
b. Remove the nut and the front No.2 speaker assy.

6. INSTALL FRONT NO.2 SPEAKER ASSY
a. Install the front No.2 speaker assy with the nut.

Torque: 8.0 Nm (82 kgf.cm, 71 in.lbf)

b. Connect the connector.
