Antenna Cable: Service and Repair

Audio & Visual System:

ANTENNA CORD SUB-ASSY

REPLACEMENT

1. REMOVE INSTRUMENT PANEL SUB-ASSY
2. REMOVE INSTRUMENT PANEL ASSY LOWER
3. REMOVE FRONT DOOR SCUFF PLATE RH
4. REMOVE REAR DOOR SCUFF PLATE RH
5. REMOVE COWL SIDE TRIM BOARD RH
6. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
7. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
8. REMOVE CENTER PILLAR GARNISH LOWER RH
9. REMOVE REAR SEAT BACK ASSY RH
10. REMOVE REAR SEAT CUSHION W/COVER PAD SUB-ASSY (FF DRIVE TYPE)
11. REMOVE DECK BOARD NO.2 (FF DRIVE TYPE)
12. REMOVE DECK BOARD NO.1
13. REMOVE DECK TRIM COVER REAR
14. REMOVE DECK FLOOR BOX REAR (FF DRIVE TYPE)
15. REMOVE REAR SEAT BACK HINGE SUB-ASSY RH
16. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY OUTER
17. REMOVE DECK TRIM SIDE PANEL ASSY RH
18. REMOVE ROOF SIDE GARNISH INNER RH

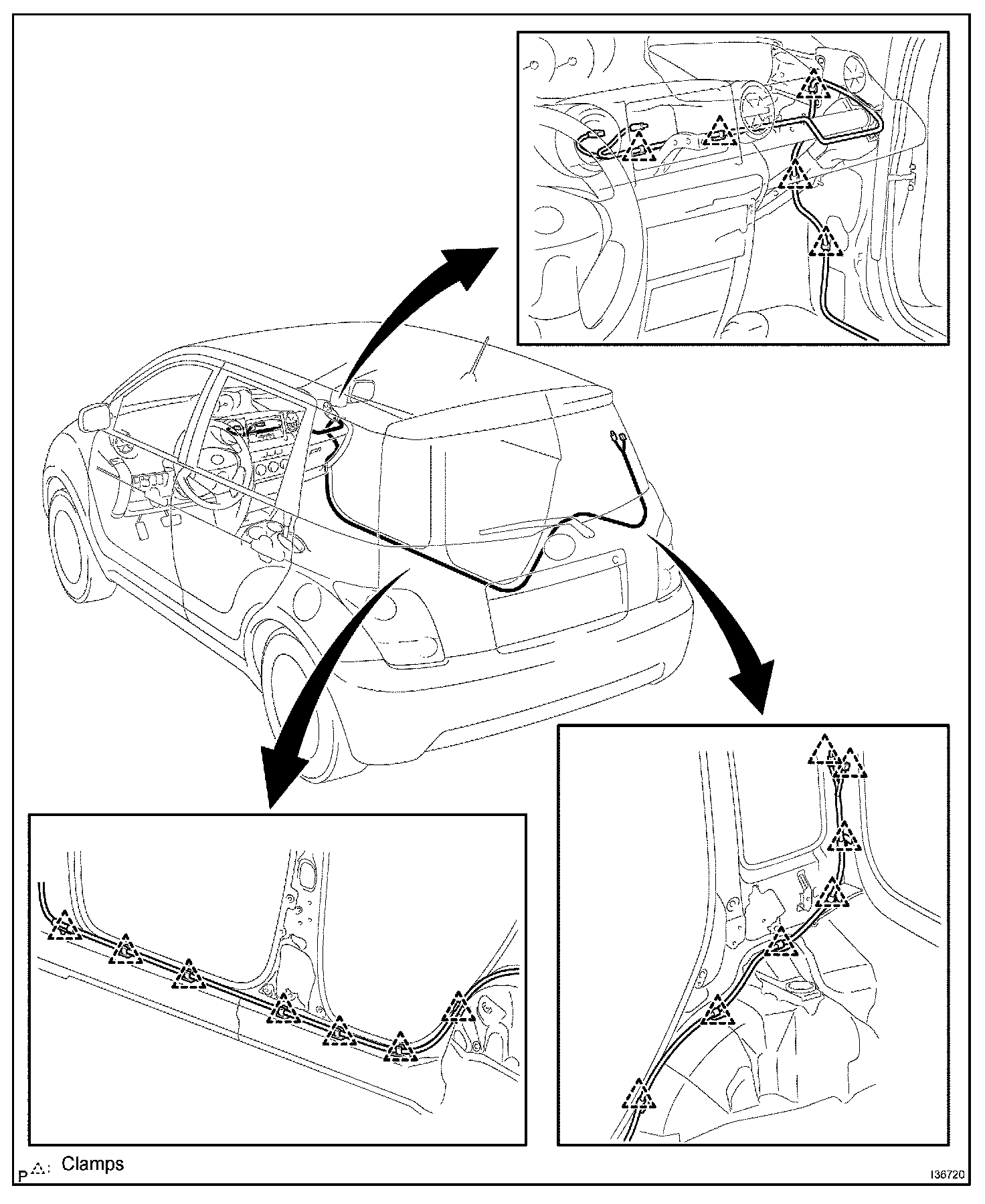

19. REMOVE ANTENNA CORD SUB-ASSY
a. Disconnect the connector.
b. Remove the 18 clamps.
c. Remove the antenna cord sub-assy.
20. INSTALL REAR SEAT BACK HINGE SUB-ASSY RH
21. INSTALL REAR SEAT BACK ASSY RH
22. INSTALL INSTRUMENT PANEL ASSY LOWER
23. INSTALL INSTRUMENT PANEL SUB-ASSY
