Antenna Mast: Service and Repair

ROOF ANTENNA POLE SUB-ASSY

REPLACEMENT

1. REMOVE ROOF ANTENNA POLE SUB-ASSY

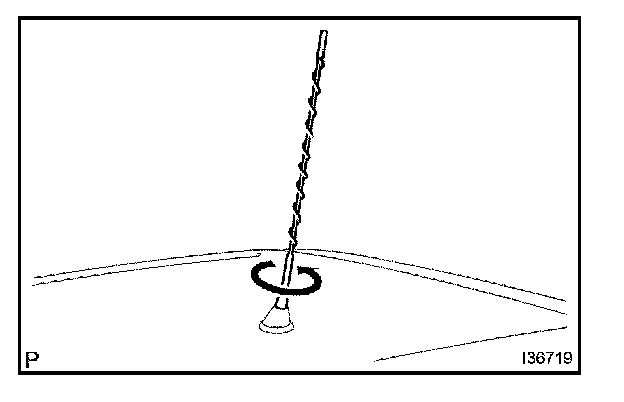

a. Remove the roof antenna pole sub-assy turning in the illustration.
