Antenna Amplifier: Service and Repair

Audio & Visual System:

AMPLIFIER ANTENNA ASSY

REPLACEMENT

1. REMOVE ROOF HEADLINING ASSY
2. REMOVE ROOF ANTENNA POLE SUB-ASSY

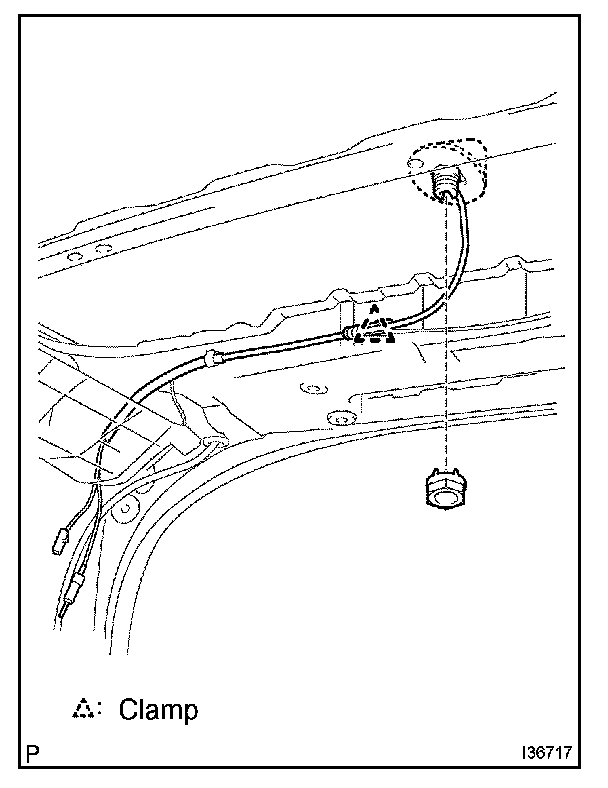

3. REMOVE AMPLIFIER ANTENNA ASSY
a. Disconnect the connectors.
b. Disengage the clamp.
c. Remove the nut and the amplifier antenna assy.




4. INSTALL AMPLIFIER ANTENNA ASSY

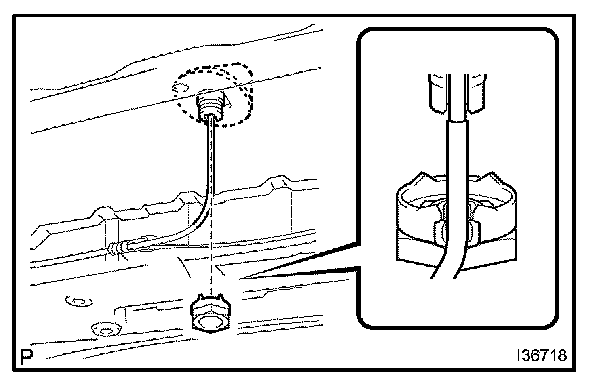

a. Set the amplifier antenna assy to the hole on the roof, and place the antenna cord on the cutout on the antenna nut.
b. Install the amplifier antenna assy with the antenna nut.

Torque: 5.0 Nm (51 kgf.cm, 44 in.lbf)

c. Install the clamp.

5. INSTALL ROOF HEADLINING ASSY
