P0172
DTC P0172 SYSTEM TOO RICH (BANK 1)CIRCUIT DESCRIPTION

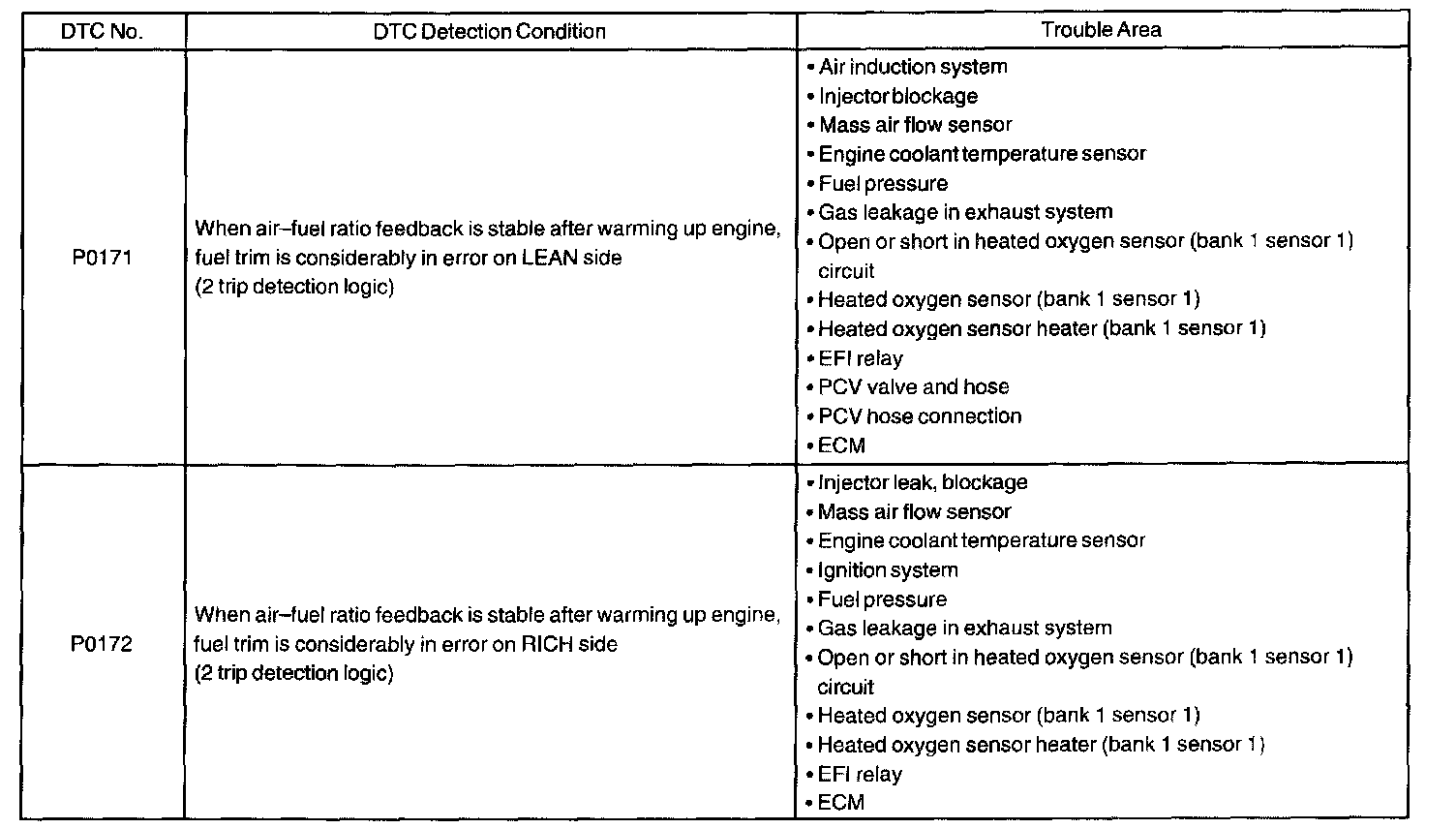

DTC Detection Condition:
The fuel trim is related to the feedback compensation value, not to the basic injection time. The fuel trim includes the short-term fuel trim and the long-term fuel trim.
The short-term fuel trim is the short-term fuel compensation used to maintain the air-fuel ratio at stoichiometric air-fuel ratio. The signal from the heated oxygen sensor indicates whether the air-fuel ratio is RICH or LEAN compared to the stoichiometric air-fuel ratio. This variance triggers a reduction in the fuel volume if the air-fuel ratio is RICH, and an increase in the fuel volume if it is LEAN.
The long-term fuel trim is the overall fuel compensation carried out in long-term to compensate fora continual deviation of the short-term fuel trim from the central value, due to individual engine differences, wear overtime and changes in the operating environment.
If both the short-term fuel trim and the long-term fuel trim are LEAN or RICH beyond a certain value, it is detected as a malfunction and the MIL is illuminated.
HINT:
- When DTC "P0171" is recorded, the actual air-fuel ratio is on the LEAN side. When DTC "P0172" is recorded, the actual air-fuel ratio is on the RICH side.
- If the vehicle runs out of fuel, the air-fuel ratio is LEAN and DTC "P0171" may be recorded. The MIL then comes on.
- If the total of the short-term fuel trim value and long-term fuel trim value is within ± 35% (engine coolant temperature is more than 75°C (167°F)), the system is functioning normally.
MONITOR DESCRIPTION

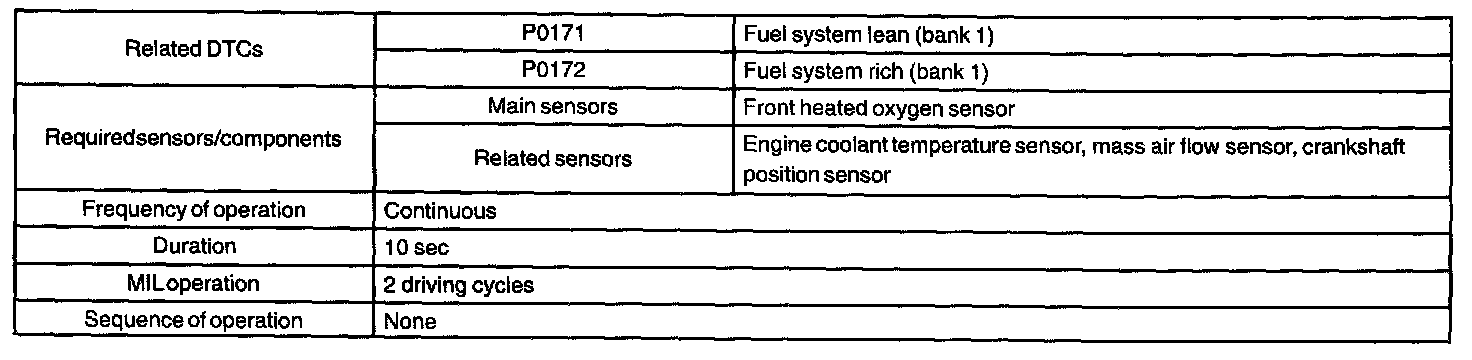

Monitor Strategy:

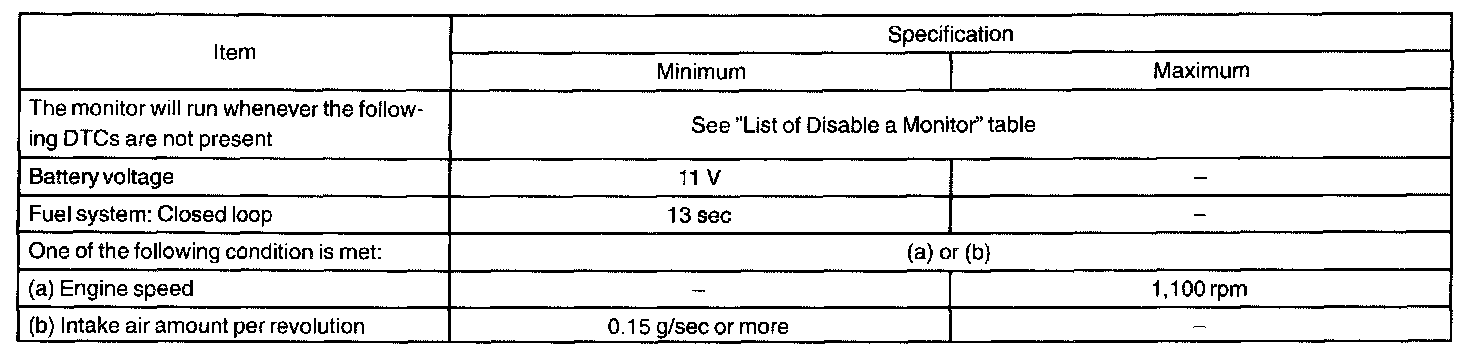

Typical Enabling Conditions:

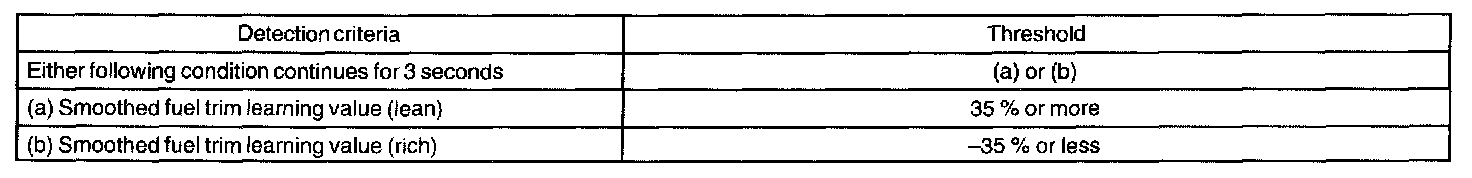

Typical Malfunction Thresholds:
Under closed loop fuel control, fuel injection amounts that deviate from the ECM's estimated fuel amount will cause a change in the long term fuel trim compensation value. This long term fuel trim is adjusted when there are persistent deviations in the short term fuel trim values. And the deviation from a simulated fuel injection amount by the ECM affects a smoothed fuel trim learning value which is the combination of smoothed short term fuel trim (fuel feedback compensation value) and smoothed long term fuel trim (learning value of the air fuel ratio). When the smoothed fuel trim learning value exceeds the DTC threshold, the ECM interprets this as a fault in the fuel system and sets a DTC.

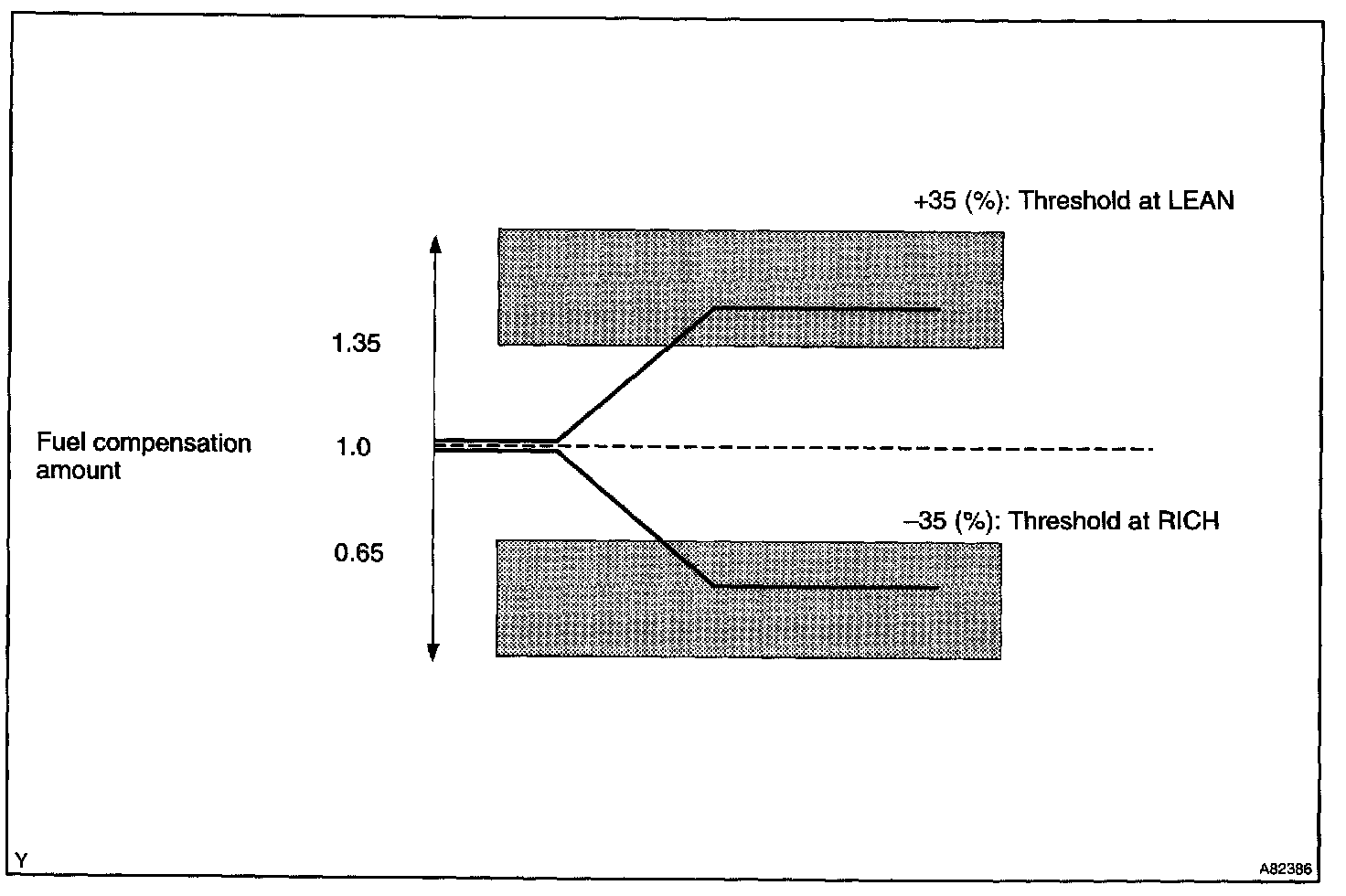

Example:
The smoothed fuel trim leaning value is more than +35%, or less than -35%, the ECM interprets this as a fail in the fuel system.
Wiring Diagram:

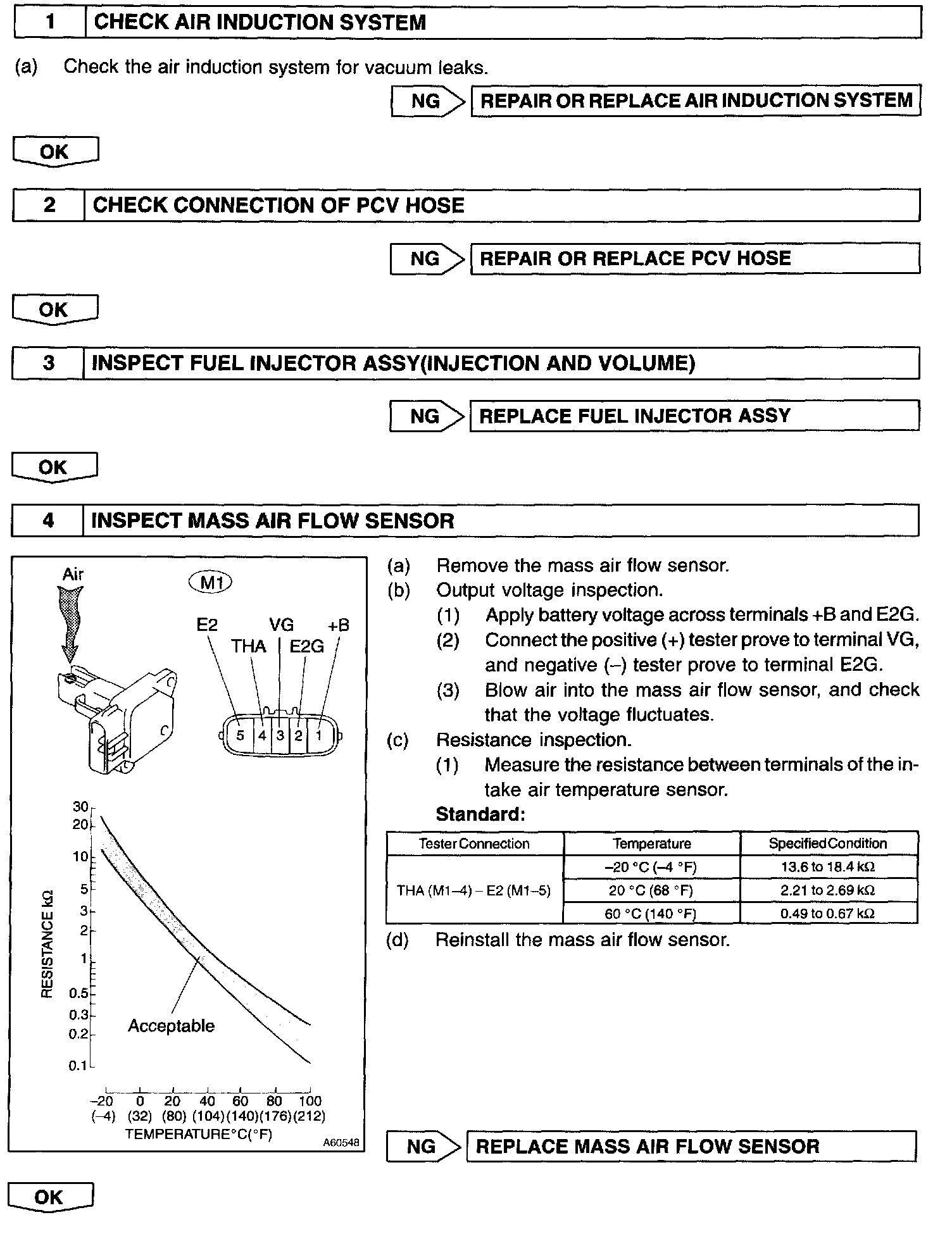

Step 1 - 4:

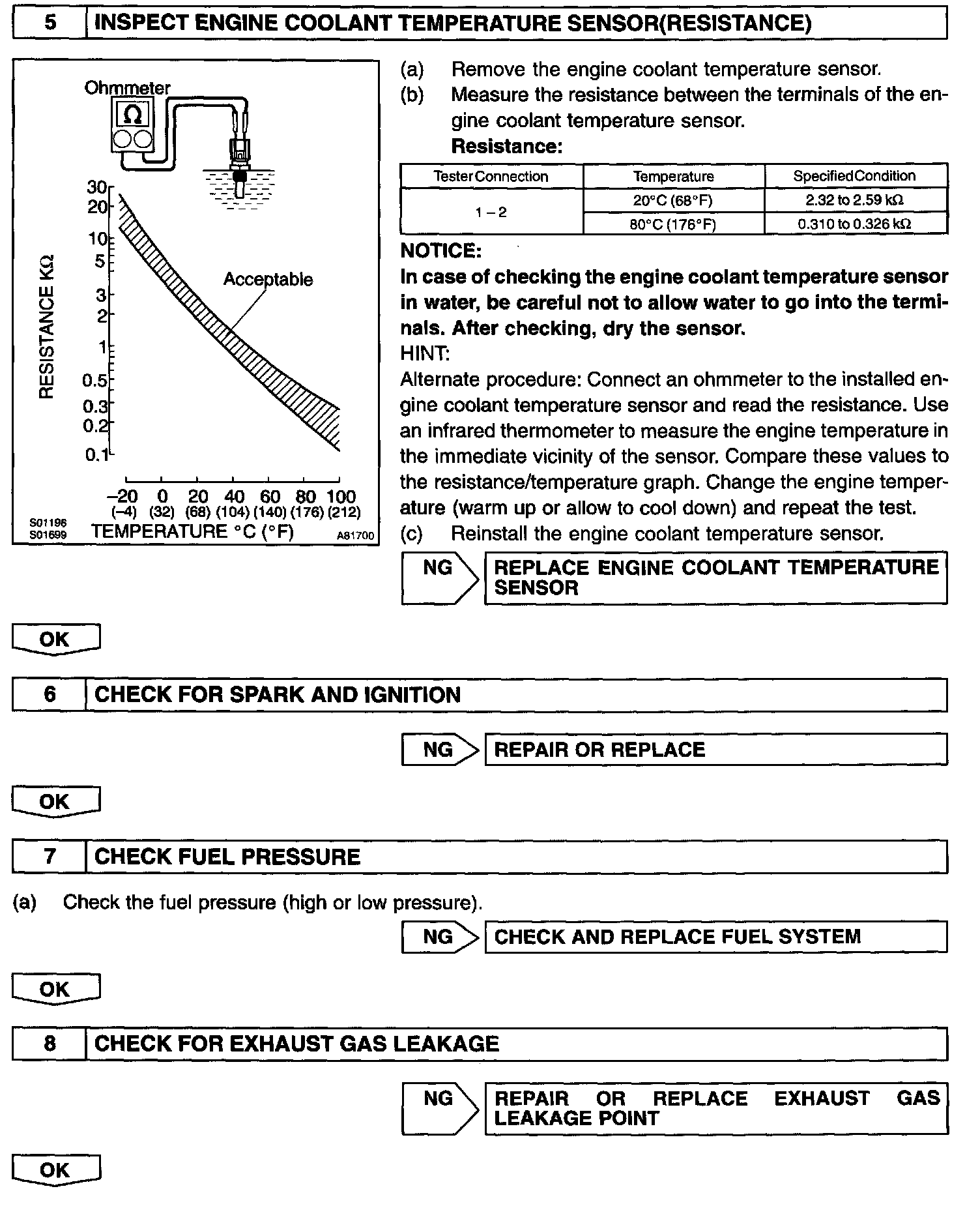

Step 5 - 8:

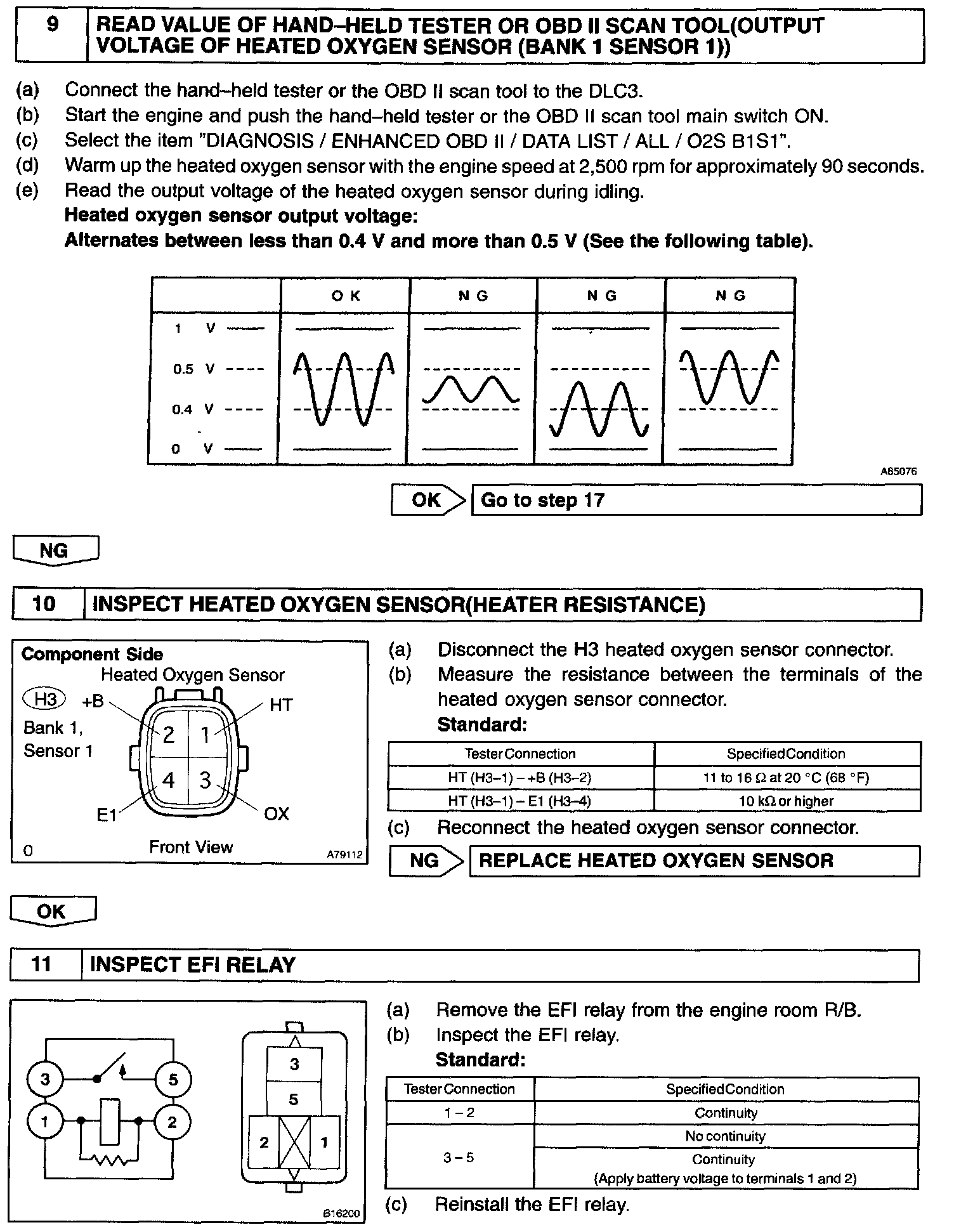

Step 9 - 11:

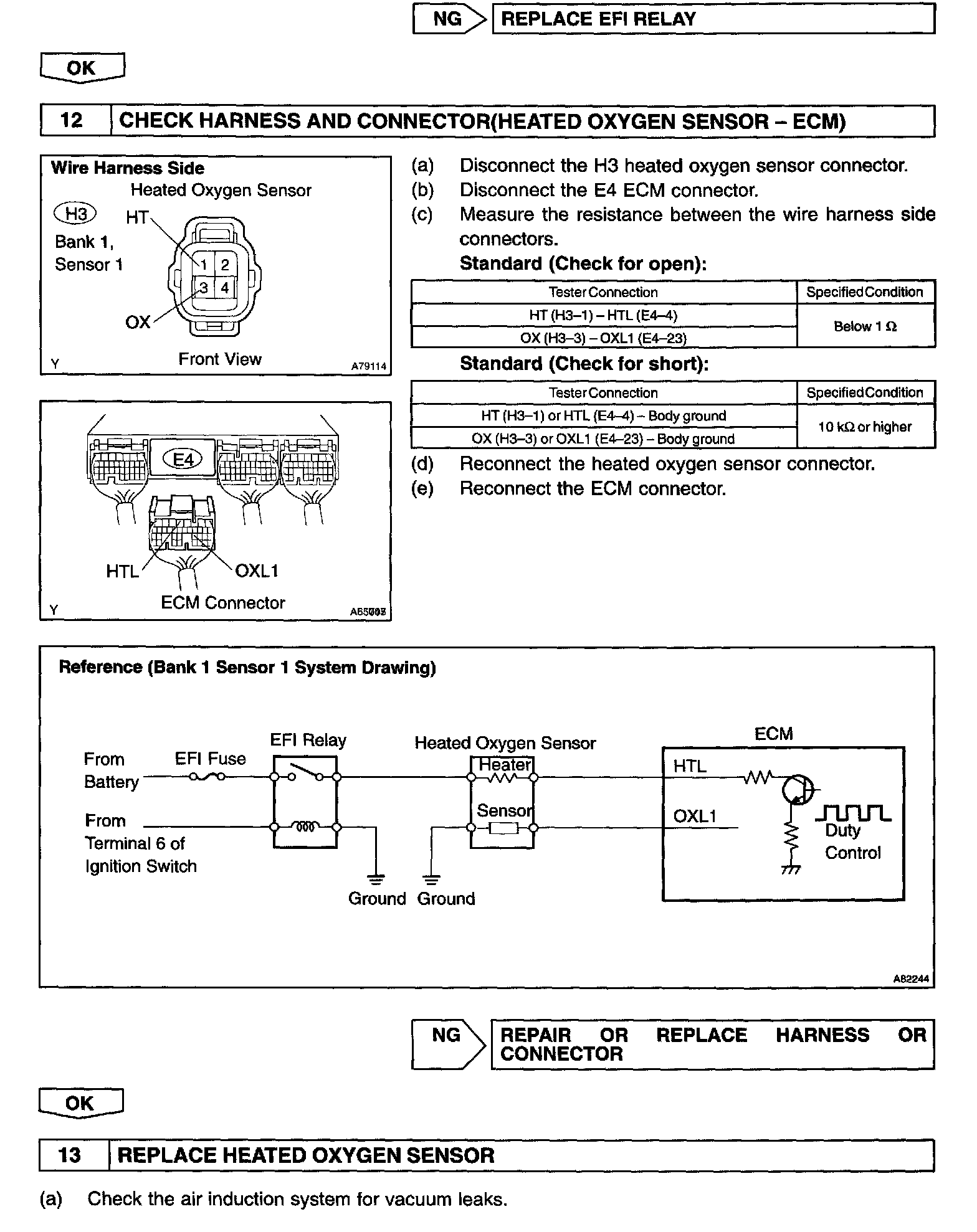

Step (11 Continued - 13):
Step (13 Continued - 15):

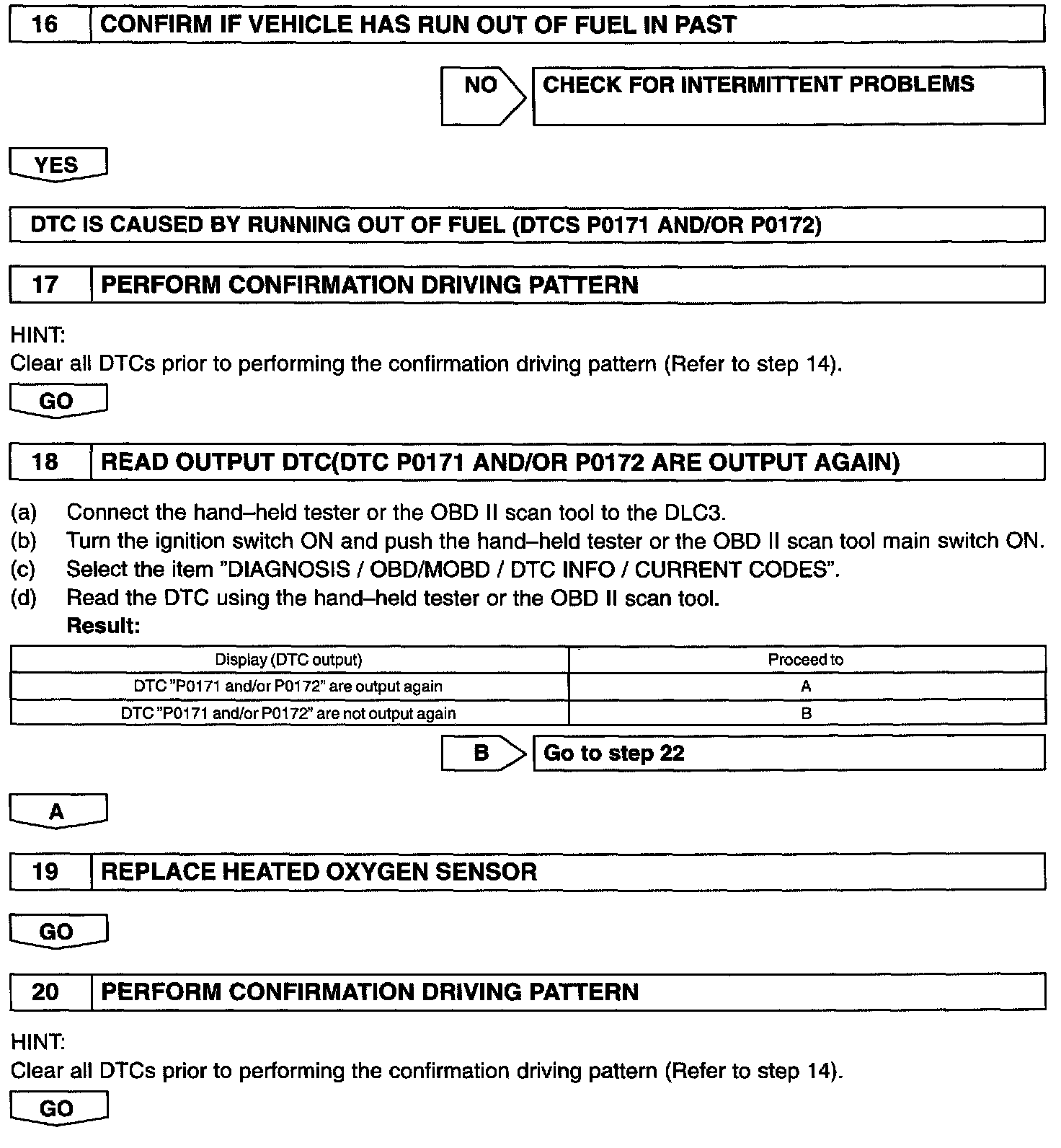

Step 16 - 20:

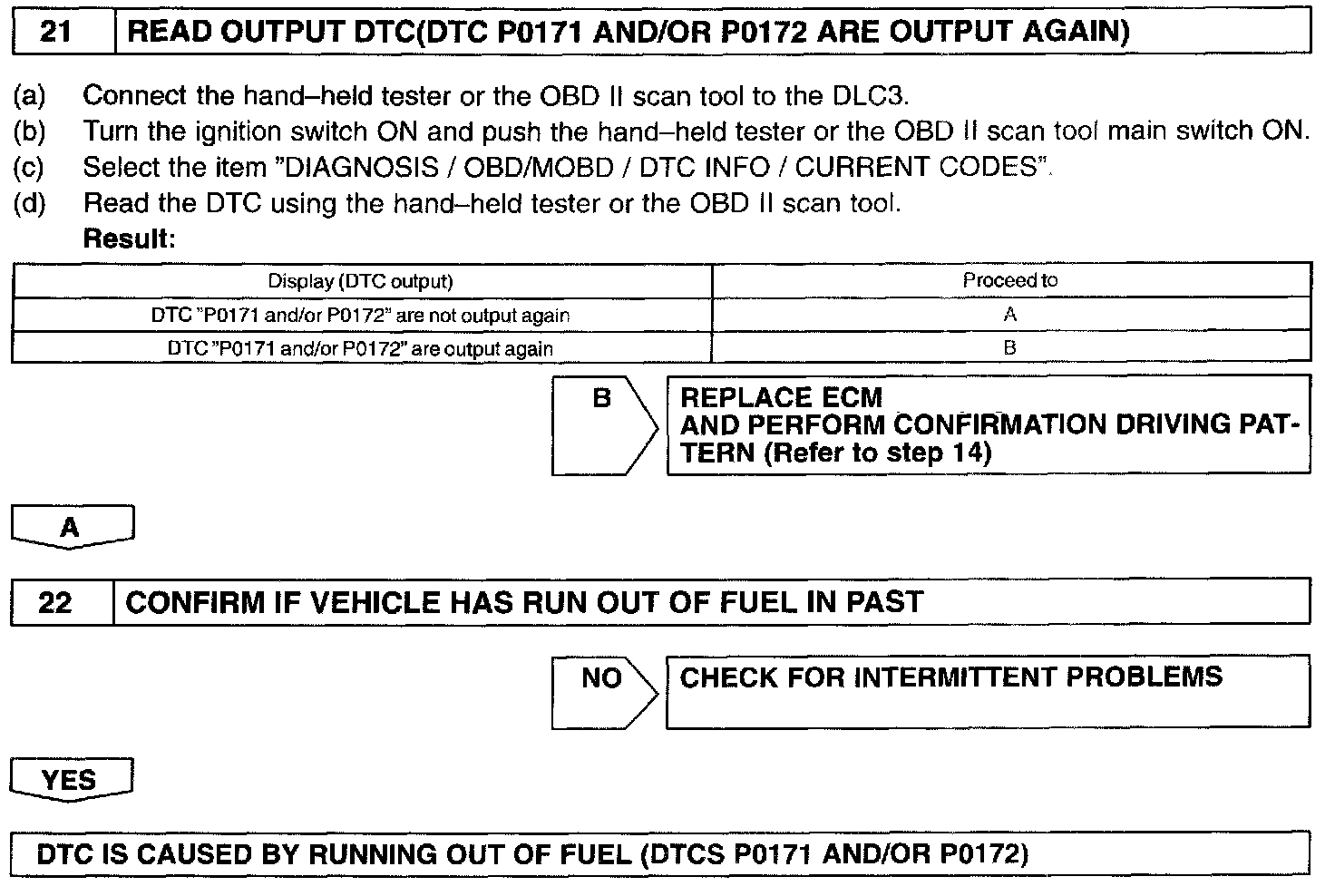

Step 21 - 22:
INSPECTION PROCEDURE
HINT:
Hand-held tester only:
Narrowing down the trouble area is possible by performing the "A/F CONTROL" ACTIVE TEST (heated oxygen sensor or other trouble areas can be distinguished).
a. Perform ACTIVE TEST using the hand-held tester (A/F CONTROL).
HINT: "A/F CONTROL" is ACTIVE TEST which changes the injection volume -12.5% or +25%.
1. Connect the hand-held tester to the DLC3 on the vehicle.
2. Turn the ignition switch ON.
3. Warm up the engine by running the engine at 2,500 rpm for approximately 3 minutes.
4. Select the item "DIAGNOSIS/ENHANCED OBD II/ACTIVE TEST/ A/F CONTROL".
5. Perform "A/F CONTROL" with the engine in an idle condition (press the right or left button).

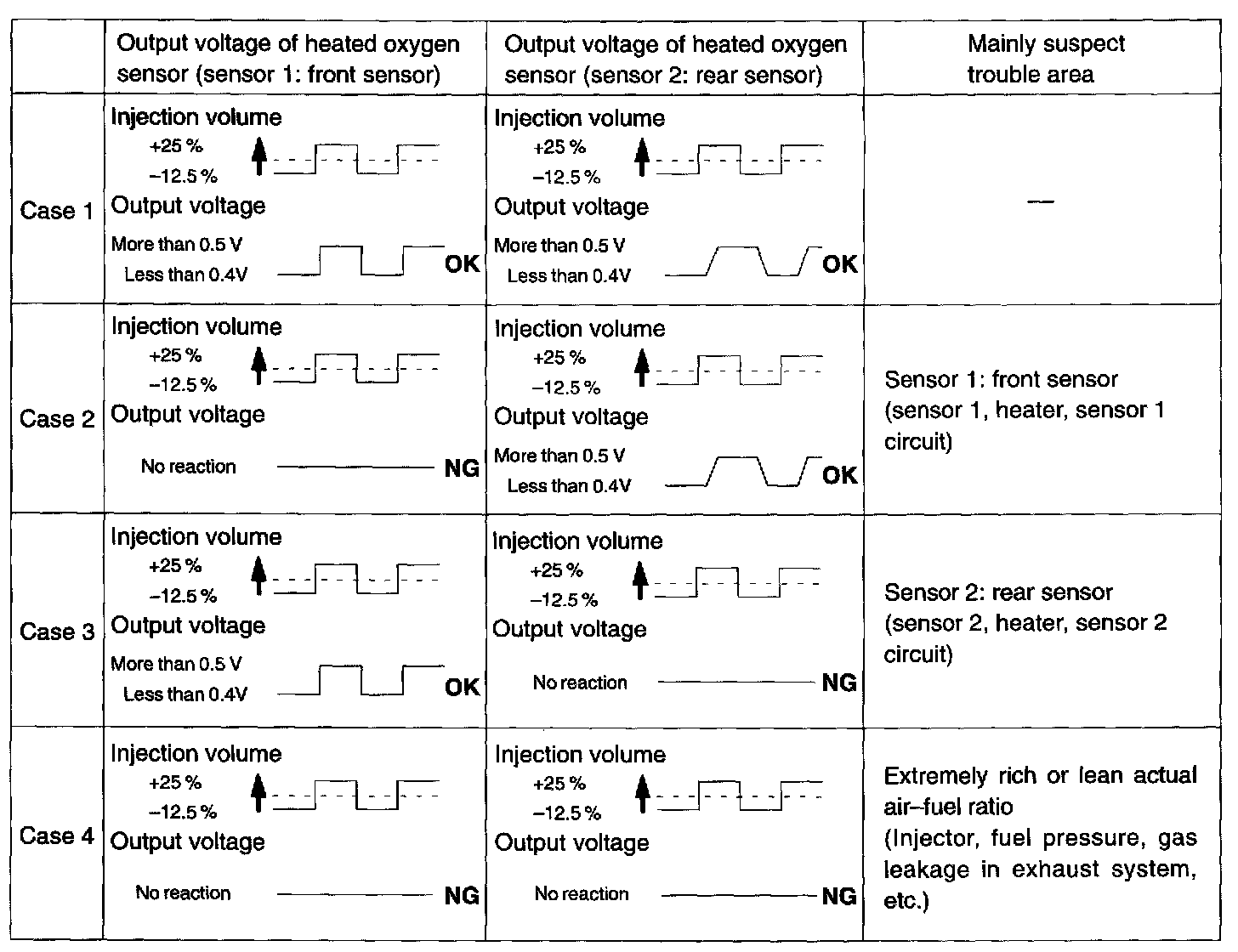

Result:
Heated oxygen sensor reacts in accordance with increase and decrease of injection volume:
+25% -> rich output: More than 0.5 V
-12.5% -> lean output: Less than 0.4 V
NOTE: There is a delay of few seconds in the sensor 1 (front sensor) output, and there is about 20 seconds delay at maximum in the sensor 2 (rear sensor).
The following A/F CONTROL procedure enables the technician to check and graph the voltage outputs of both the heated oxygen sensors.
For displaying the graph indication, enter "ACTIVE TEST / A/F CONTROL / USER DATA", then select "O2S B1S1 and O2S B1S2" by pressing "YES" button and push "ENTER" button before pressing "F4" button.
HINT:
- If different DTCs related to different systems that have terminal E2 as the ground terminal are output simultaneously, terminal E2 may be open.
- Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.
- A high heated oxygen sensor (sensor 1) voltage (0.5 V or more) could be caused by a rich air fuel mixture. Check for conditions that would cause the engine to run rich.
- A low heated oxygen sensor (sensor 1) voltage (0.4 V or less) could be caused by a lean air fuel mixture. Check for conditions that would cause the engine to run lean.
CONFIRMATION DRIVING PATTERN
Confirmation Driving Pattern:
a. Connect the hand-held tester to the DLC3.
b. Switch the hand-held tester from the "normal mode" to the "check mode".
c. Start the engine and let the engine idle for 120 seconds or more.
d. Drive the vehicle at 40 km/h (25 mph) or more for 40 seconds or more.
e. Let the engine idle for 20 seconds or more. Perform steps (d) and (e) at least 3 times.
f. Let the engine idle for 30 seconds.
HINT: If a malfunction exists, the MIL will be illuminated on the multi-information display during step (f).
NOTE: If the conditions in this test are not strictly followed, detection of a malfunction will not occur.
If you do not have a hand-held tester, turn the ignition switch OFF after performing steps from (c) to (f), then perform steps from (c) to (f) again.
CHECK FOR INTERMITTENT PROBLEMS
Hand-held tester only:
By putting the vehicle's ECM in the check mode, the 1 trip detection logic is possible instead of the 2 trip detection logic, and the sensitivity to detect faults is increased. This makes it easier to detect intermittent problems.
a. Clear the DTCs.
b. Set the check mode.
c. Perform a simulation test.
d. Check the connector and terminal.
e. Wiggle the harness and connector.
