DTC 12

DTC 12 SHORT IN D SQUIB CIRCUIT (TO B+)

CIRCUIT DESCRIPTION

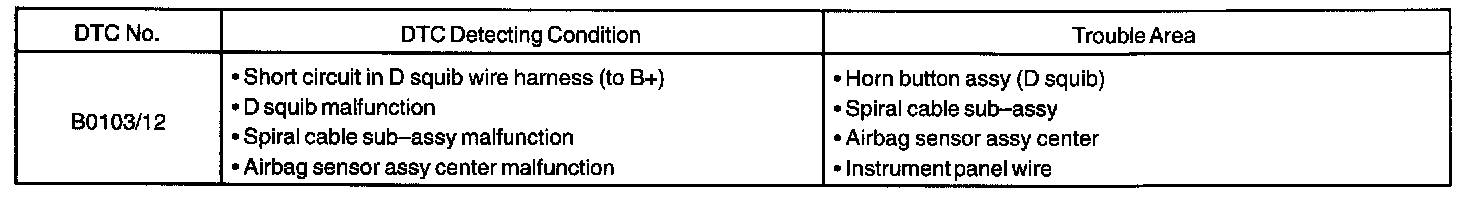

DTC Detecting Condition:

The D squib circuit consists of the airbag sensor assembly center, the spiral cable sub assembly and the horn button assembly.

This circuit actuates the SRS to deploy when deployment conditions are met.

DTC B0103/12 is recorded when a short to B+ is detected in the D squib circuit

Wiring Diagram:

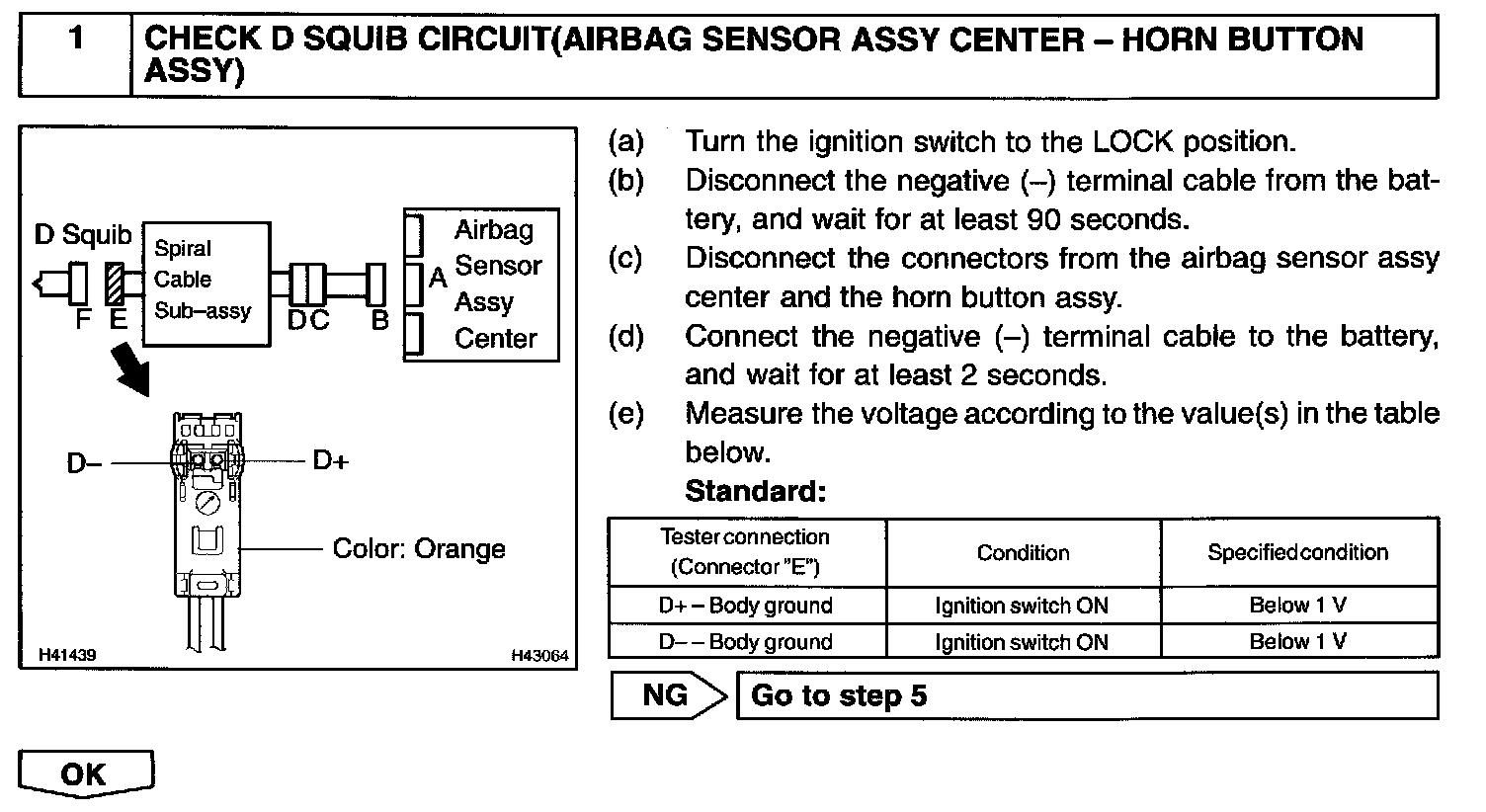

Step 1:

Step 2:

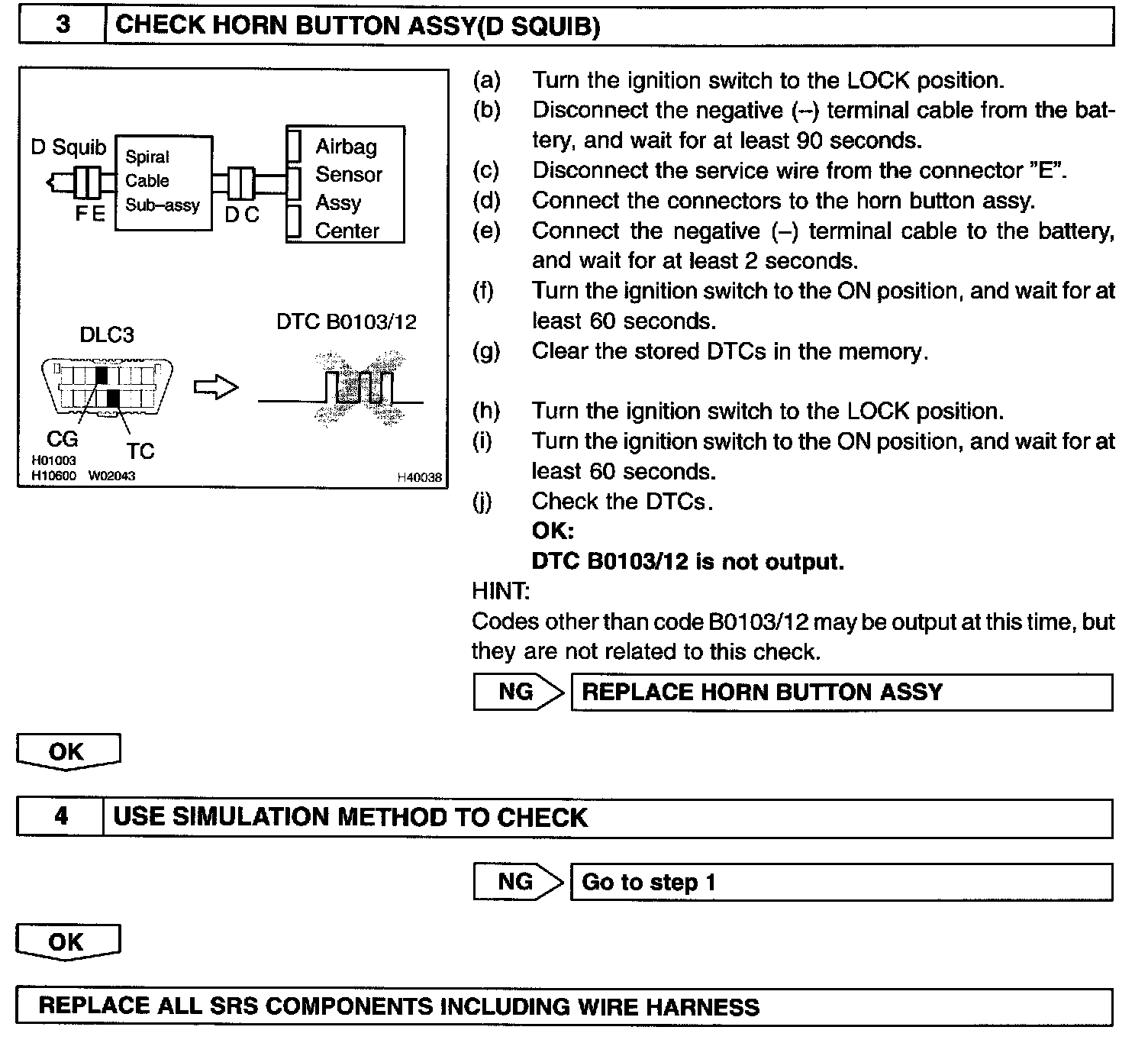

Step 3 - 4:

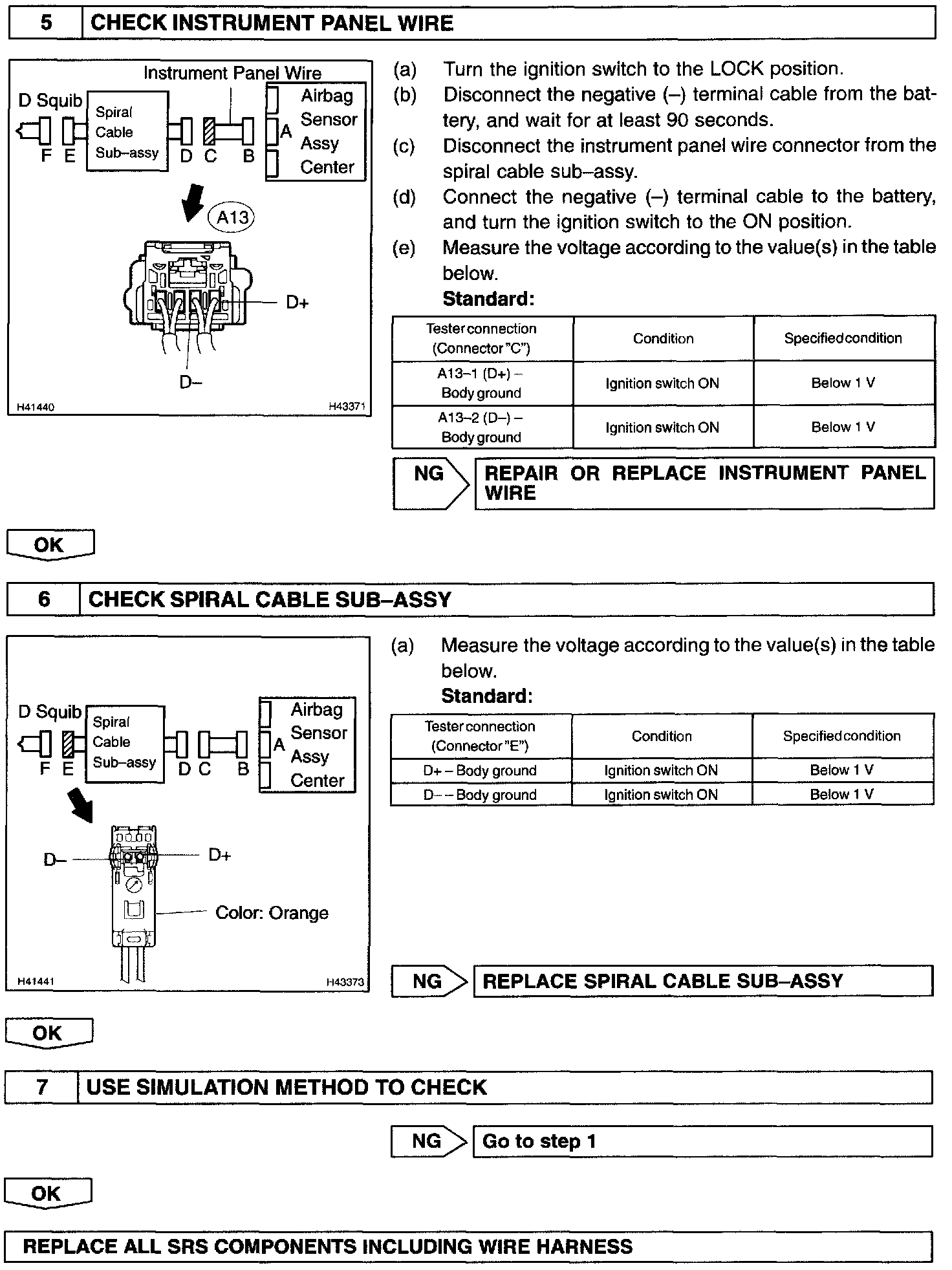

Step 5 - 7:

INSPECTION PROCEDURE
