B1182

DTC B1182 SHORT IN D SQUIB (2ND STEP) CIRCUIT (TO GROUND)

CIRCUIT DESCRIPTION

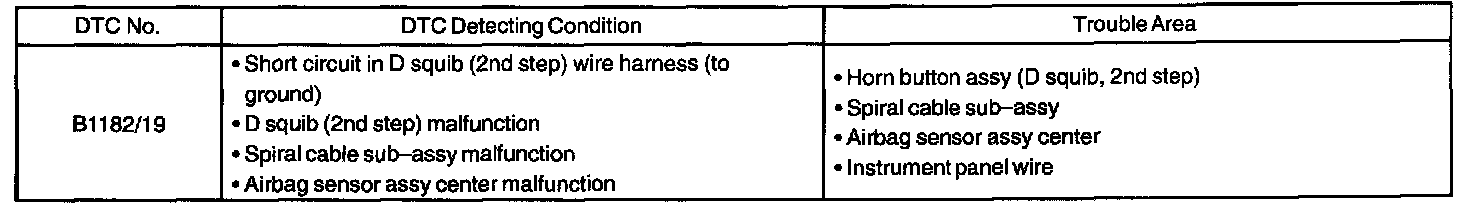

DTC Detecting Condition:

The D squib (2nd step) circuit consists of the airbag sensor assembly center, the spiral cable sub assembly and the horn button assembly.

This circuit actuates the SRS to deploy when deployment conditions are met.

DTC B1182/19 is recorded when a short to ground is detected in the D squib (2nd step) circuit.

Wiring Diagram:

Step 1:

Step 2:

Step 3 - 4:

Step 5 - 7:

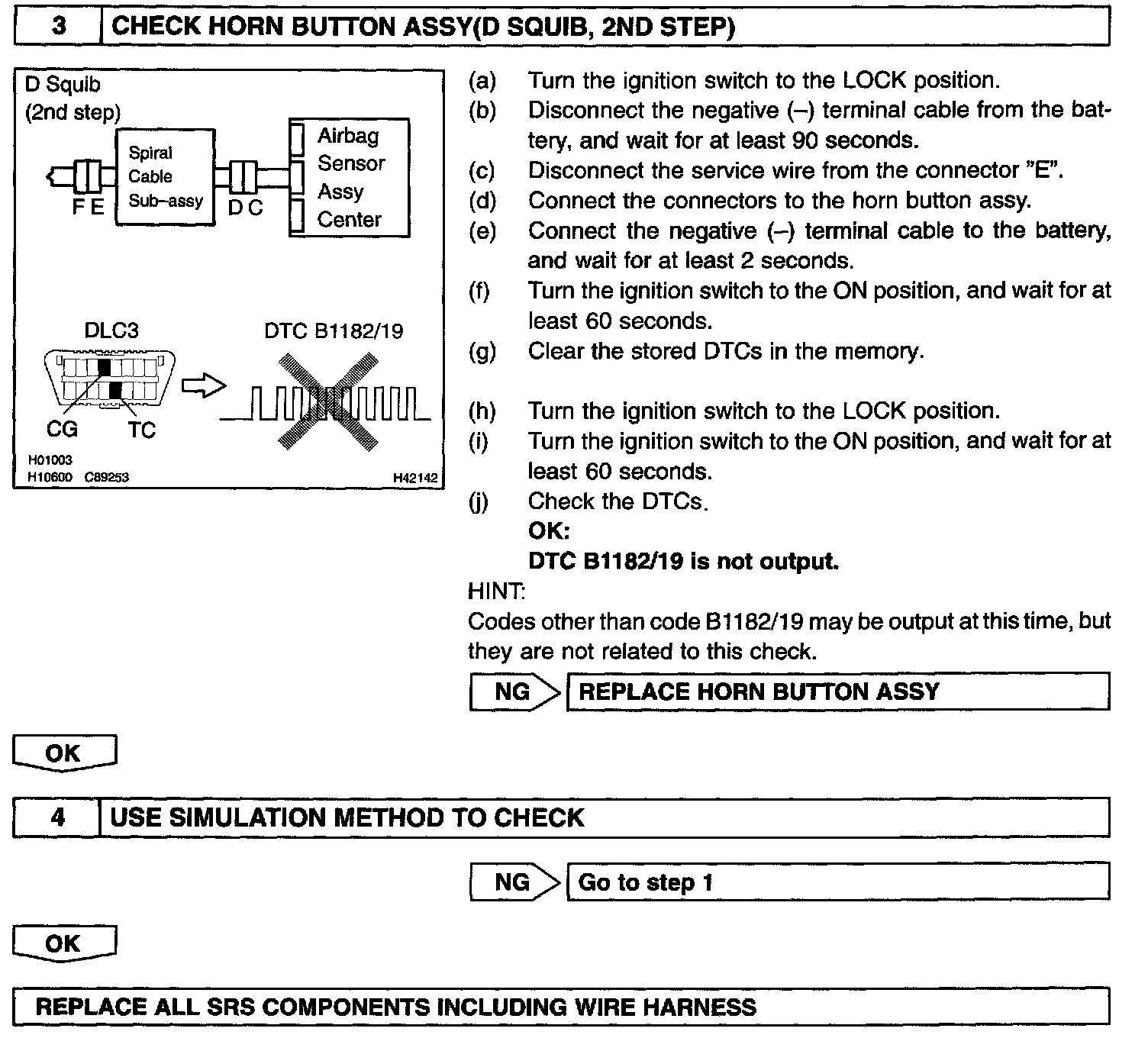

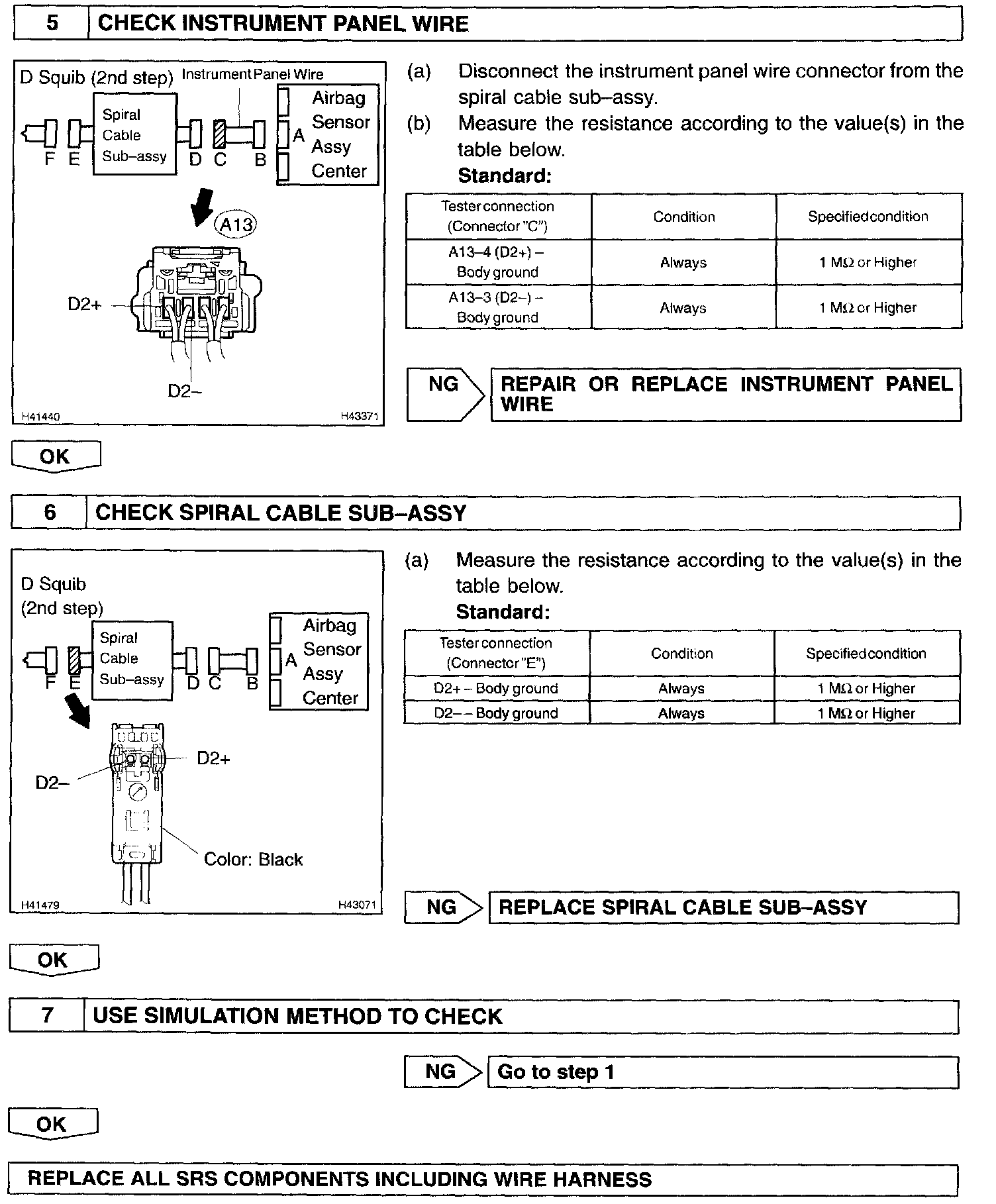

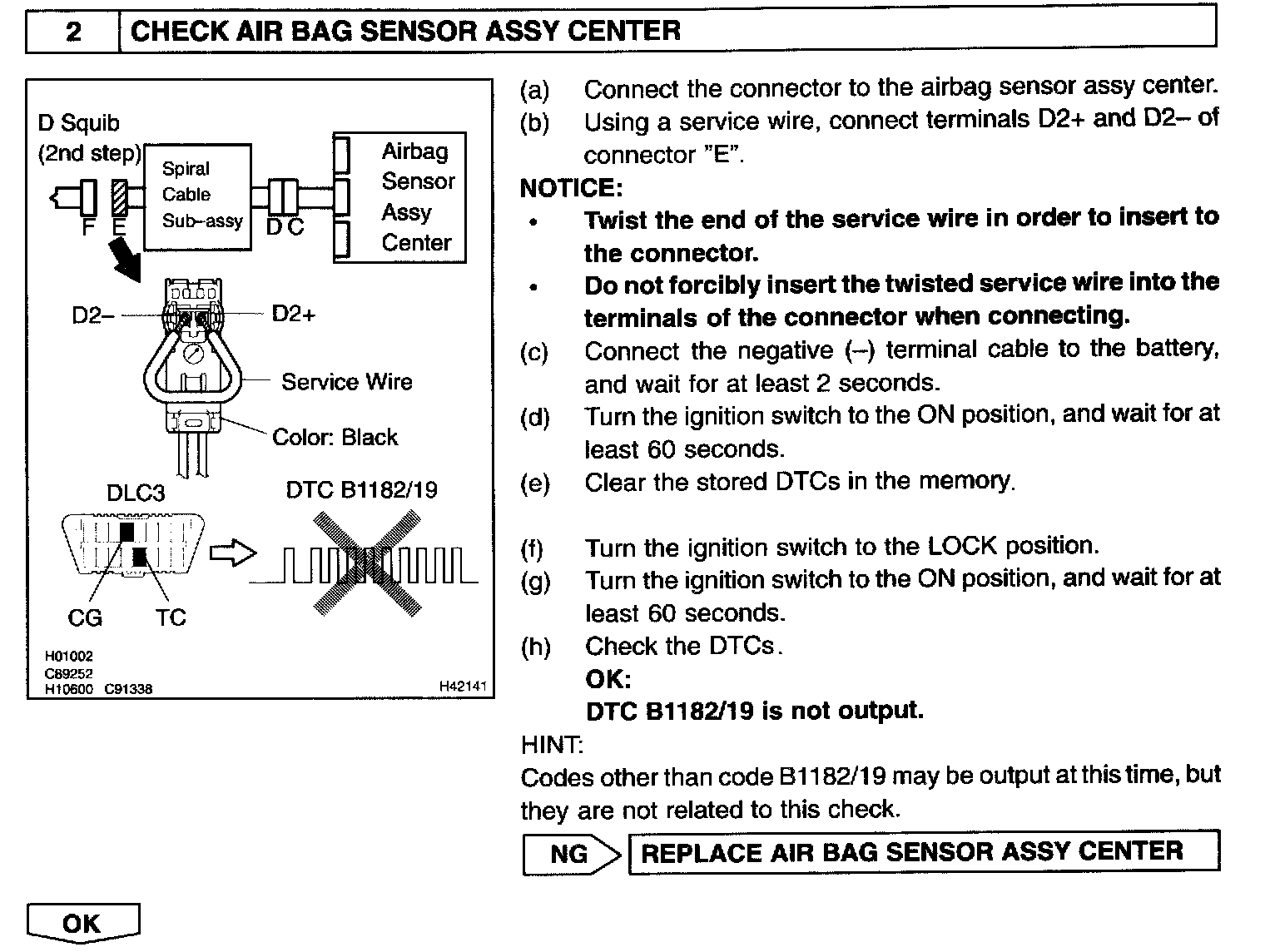

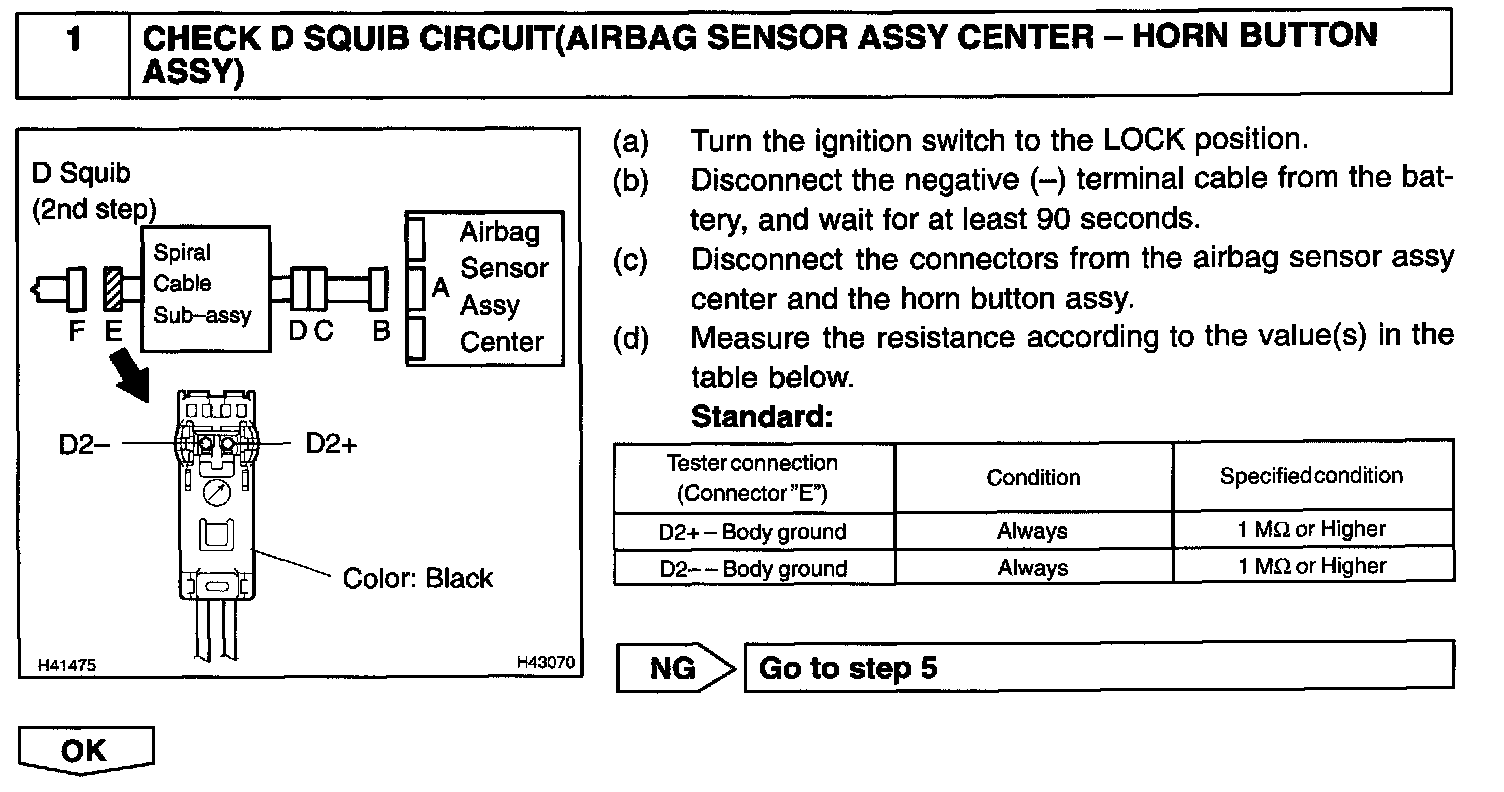

INSPECTION PROCEDURE
