Engine Mount Bracket Replacement - Right

Engine Mount Bracket Replacement - Right Side

Removal Procedure




1. Remove the right engine mount. Refer to Engine Mount Replacement - Right Side (Service and Repair).
2. Remove the right engine mount bracket bolts and bracket.

Installation Procedure




1. Position the right engine mount bracket to the engine block.
2. Install the right engine mount bracket bolts until snug.
Caution: Refer to Fastener Caution (Fastener Caution).

3. Tighten the right engine mount bracket bolts.

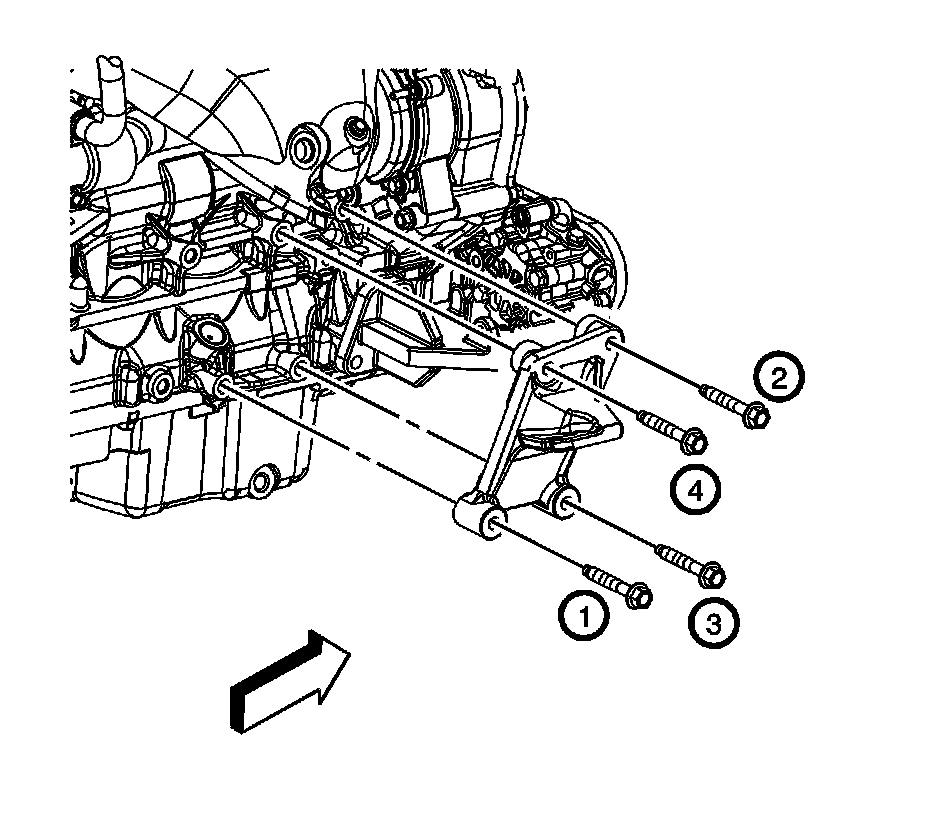

Tighten the bolts in the sequence shown to 55 Nm (41 lb ft).

4. Install the right engine mount. Refer to Engine Mount Replacement - Right Side (Service and Repair).
