Engine Control Module (ECM) - X2




Component Connector End Views

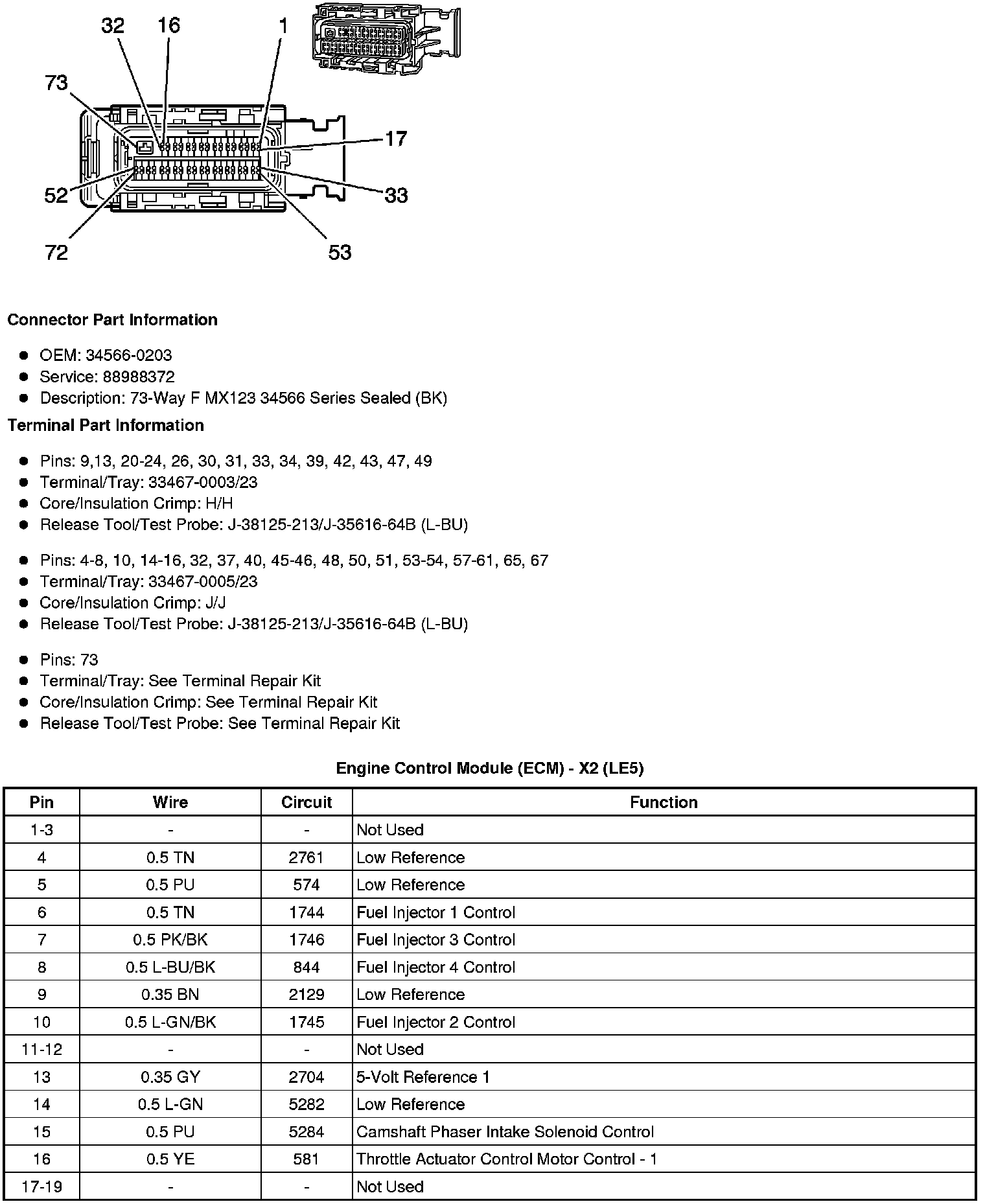

Engine Control Module (ECM) - X2 (LE5)
