Transmission Support Replacement (Automatic Transmission)


Transmission Support Replacement (Automatic Transmission)

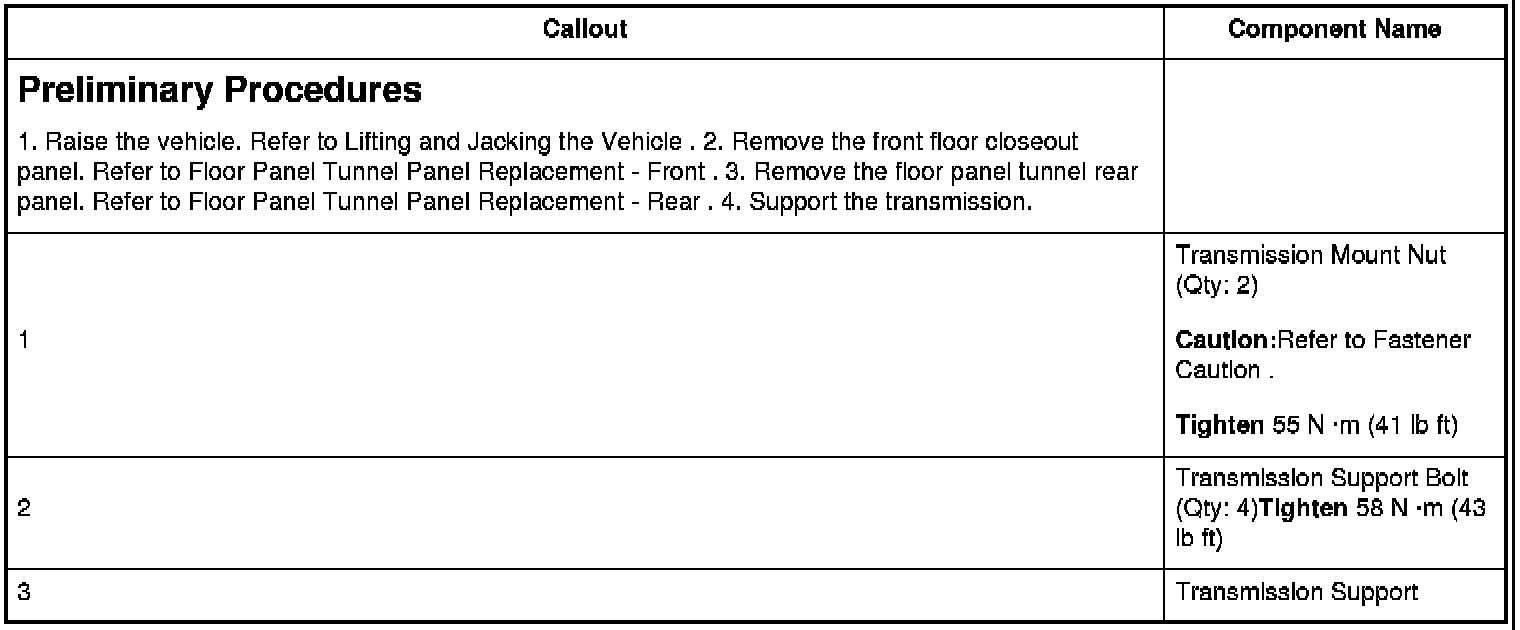

Preliminary Procedures

Caution:Refer to Fastener Caution.
TightenTighten
