Rear Door Window Motor: Diagrams




Component Connector End Views

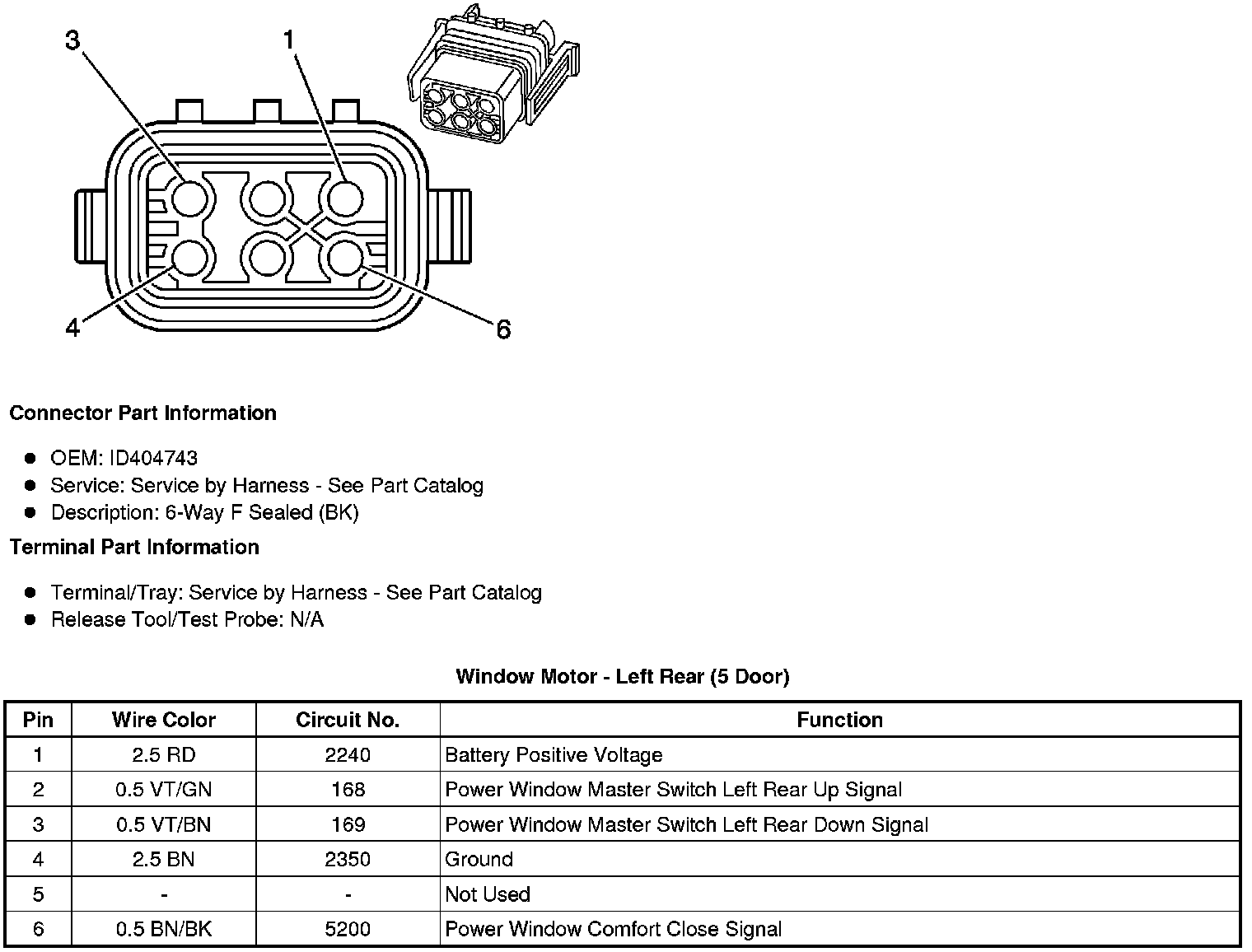

Window Motor - Left Rear (5 Door)





Window Motor - Right Rear (5 Door)
