Home
>>
Saturn
>>
2009
>>
Astra L4-1.8L
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Sensors and Switches - Windows and Glass
>>
Power Window Switch
>>
Locations
Power Window Switch: Locations
Door Component Views

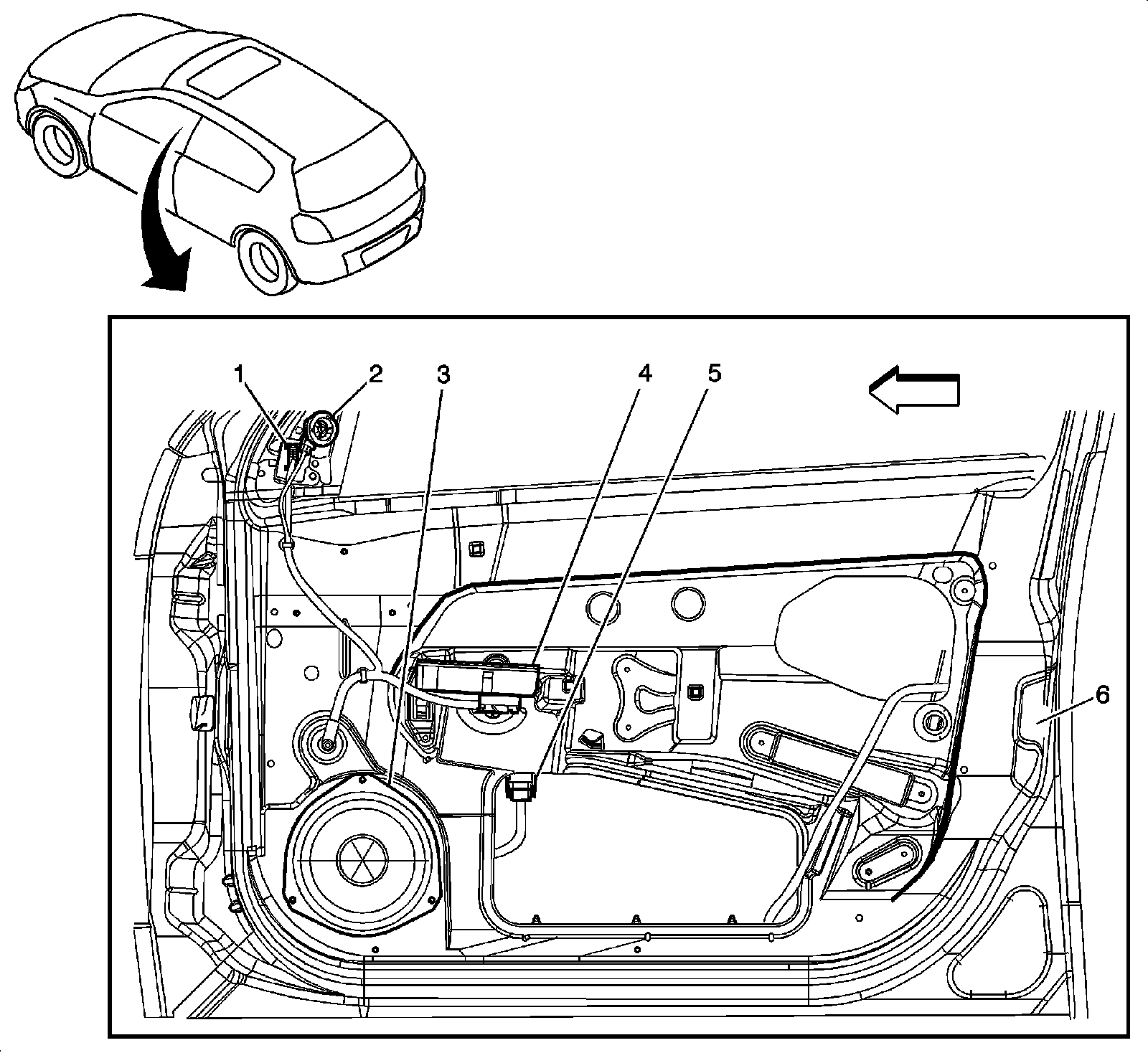

Driver Door
1
- Window Switch - Driver

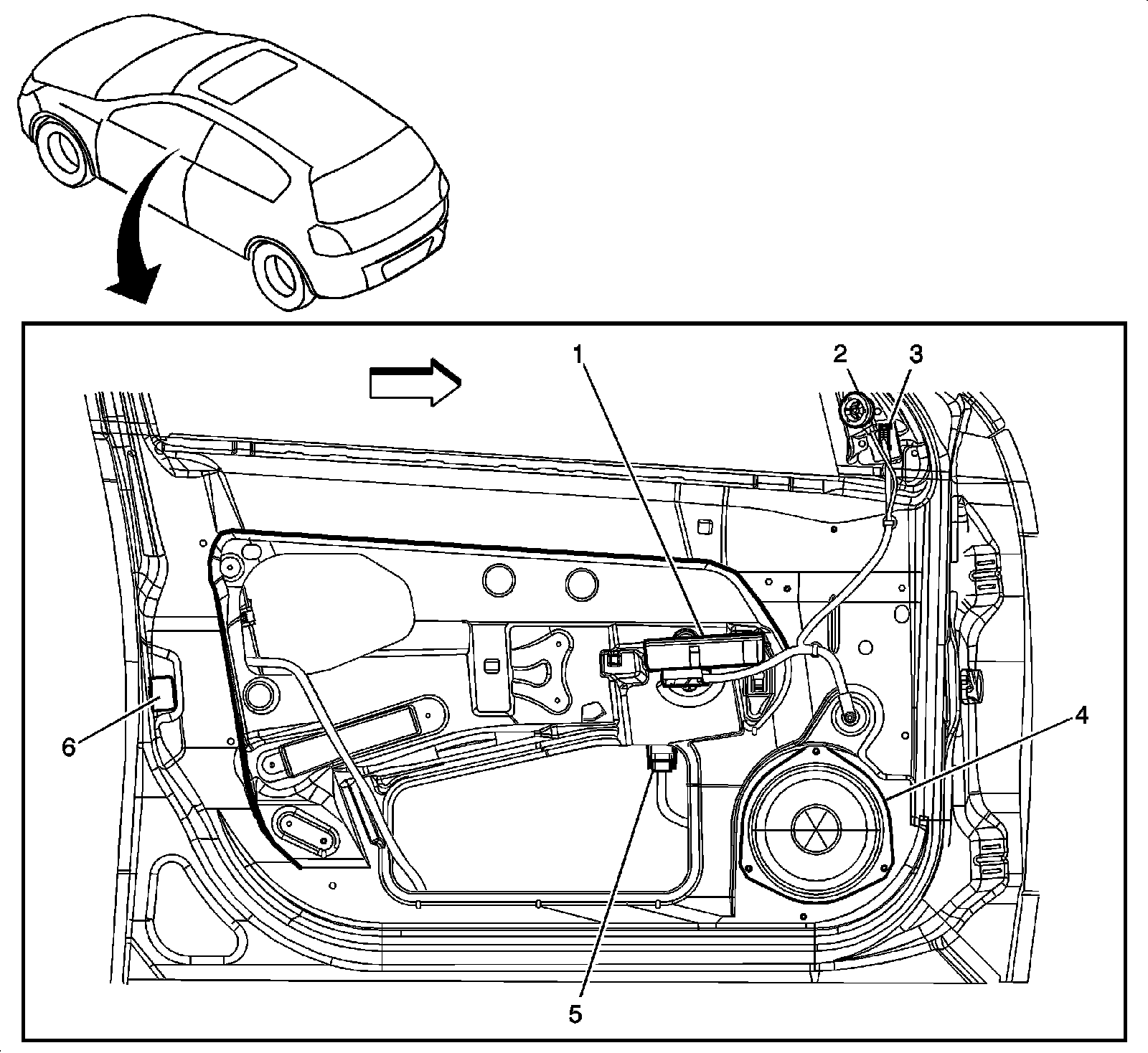

Passenger Door
4
- Window Switch - Passenger

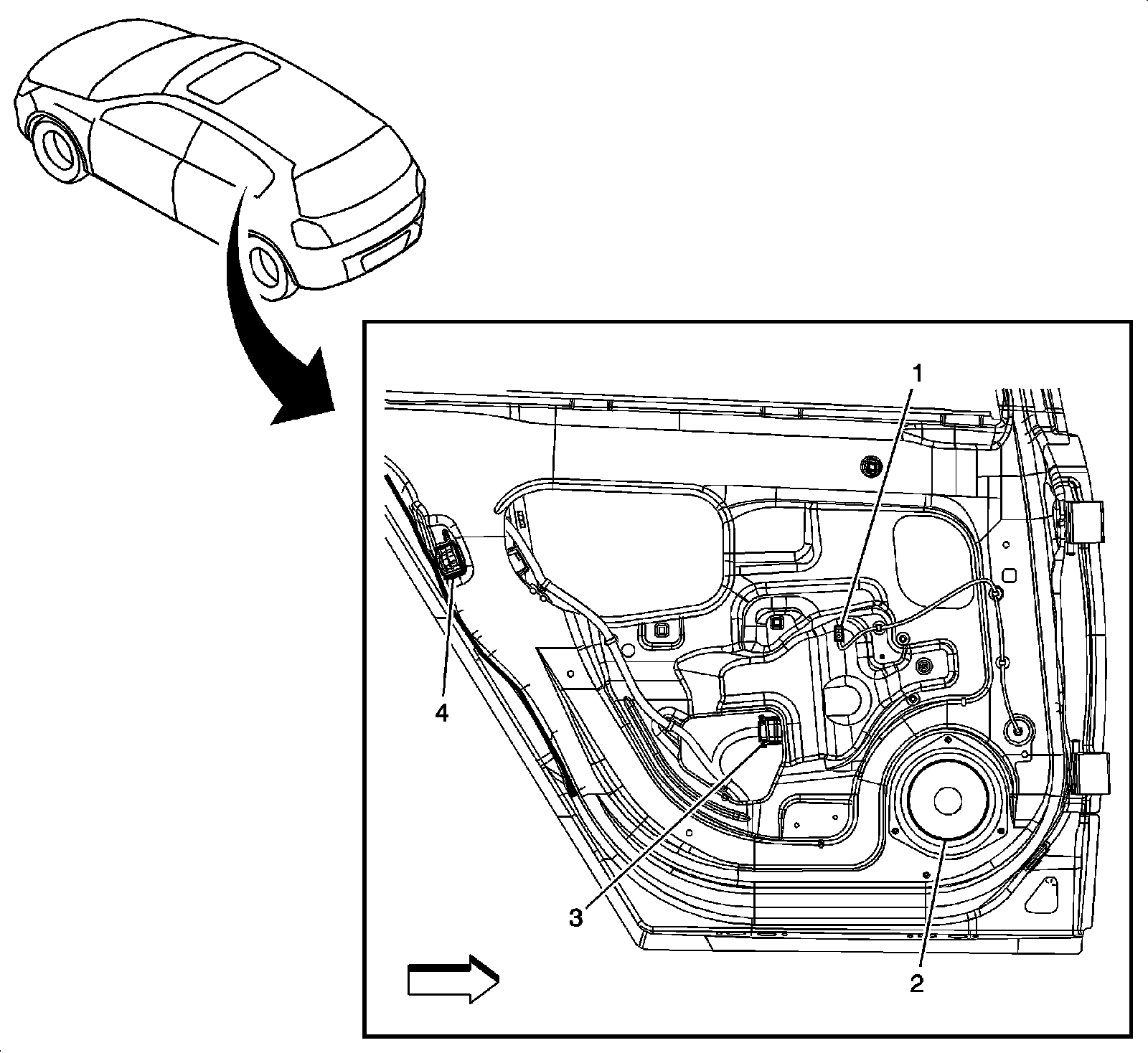

Left Rear Door (5 Door)
1
- Window Switch - Left Rear

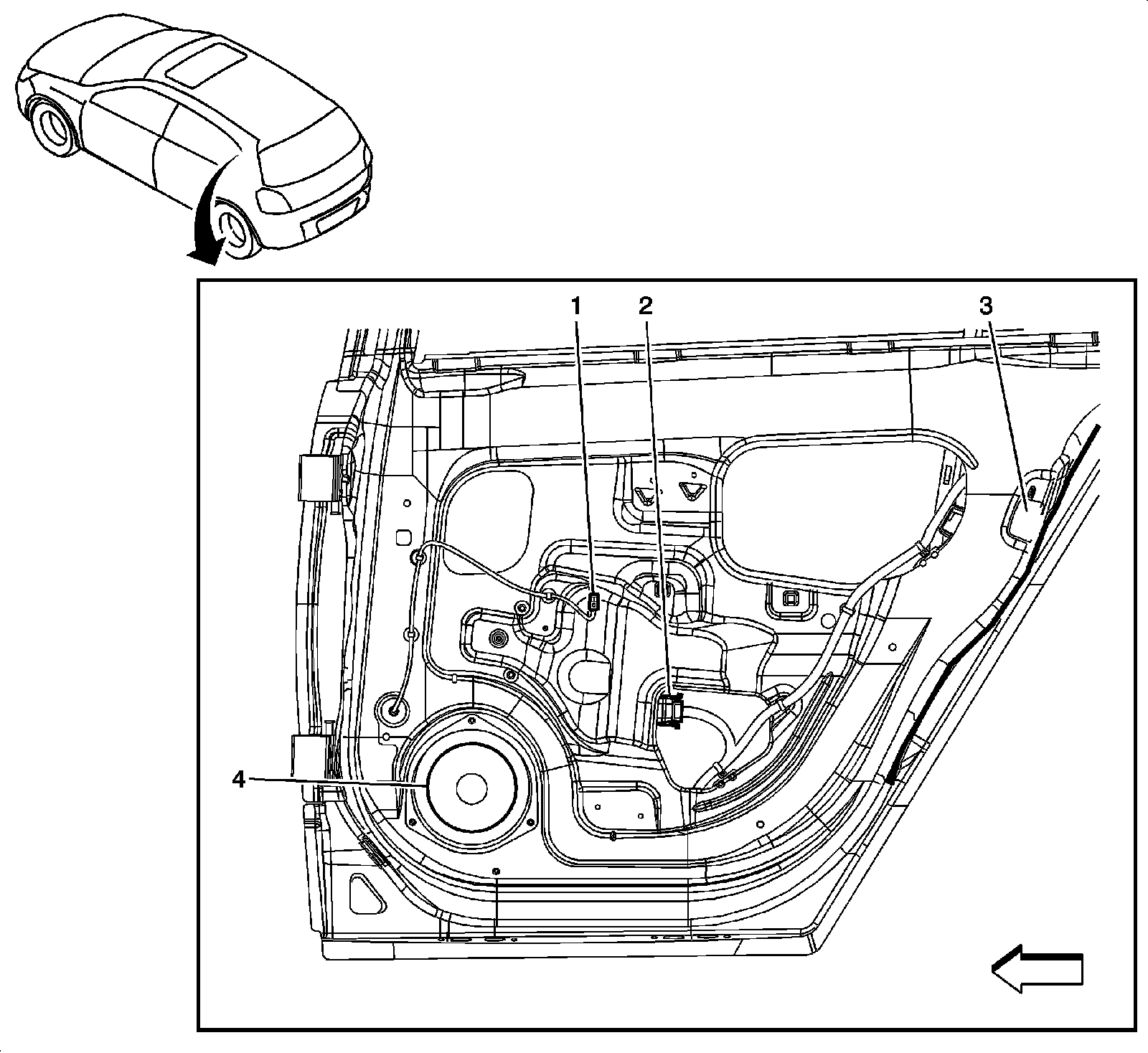

Right Rear Door (5Door)
1
- Window Switch - Right Rear
