Power Window Switch: Diagrams




Component Connector End Views

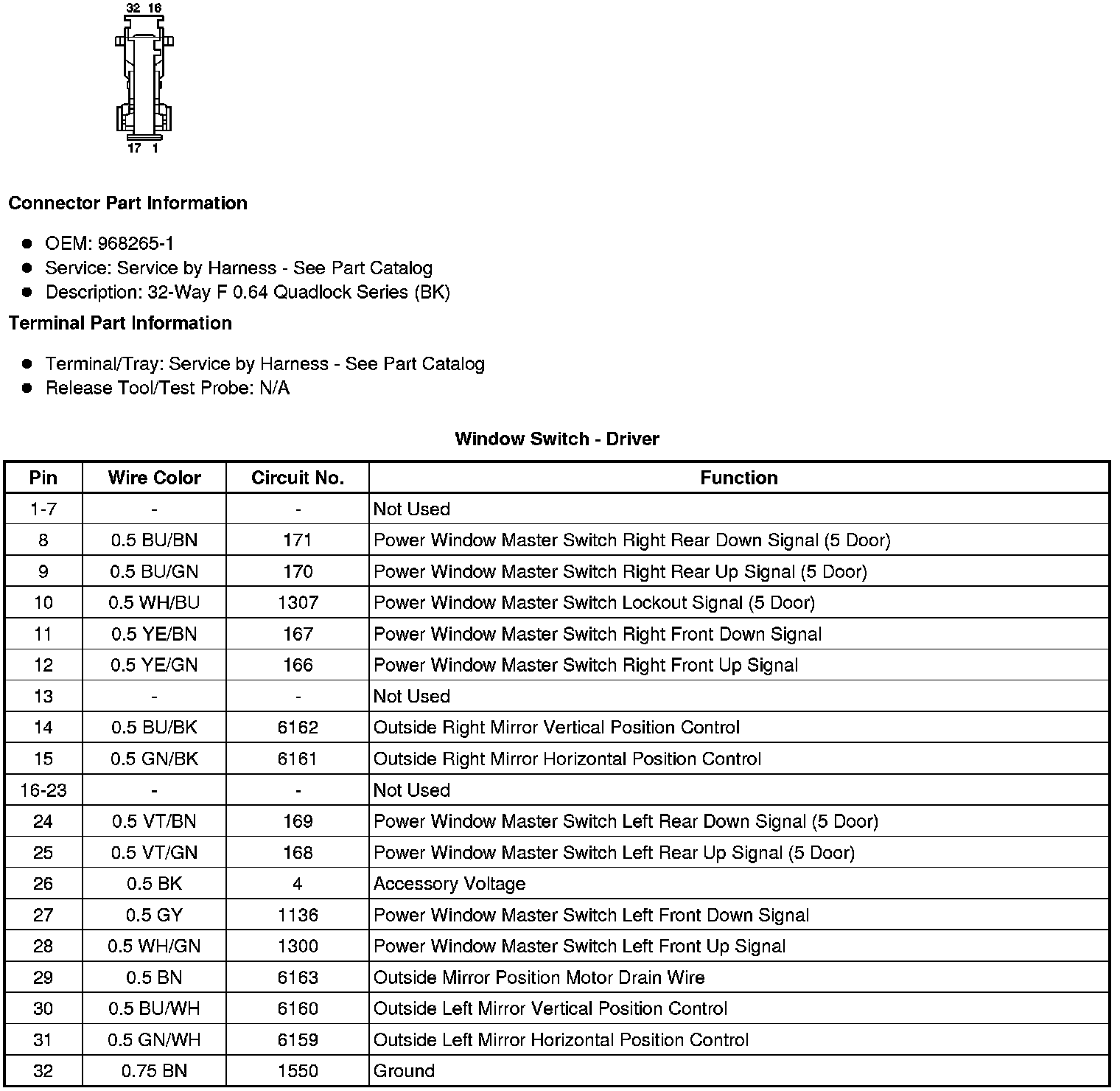

Window Switch - Driver

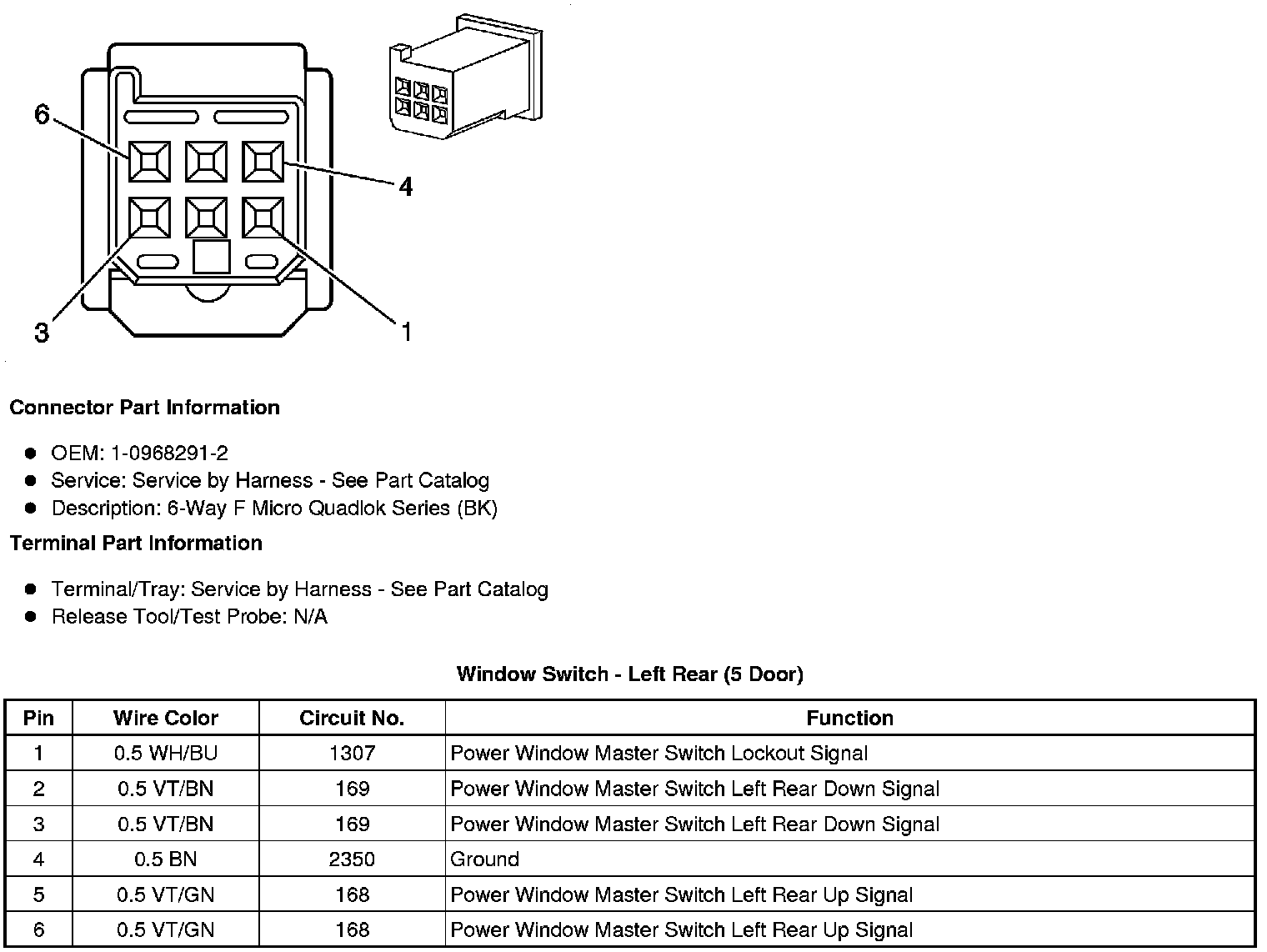

Window Switch - Left Rear (5 Door)

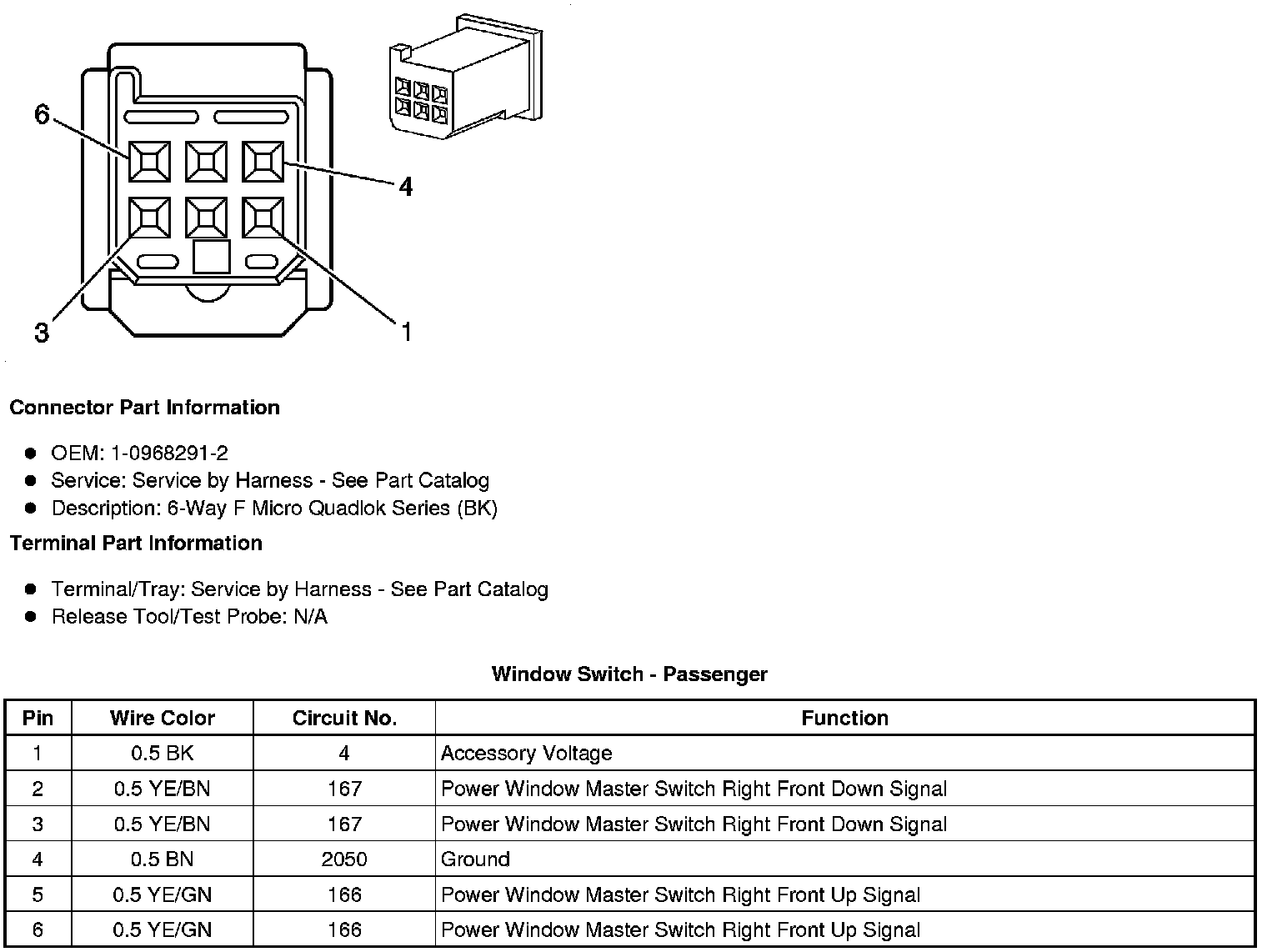

Window Switch - Passenger

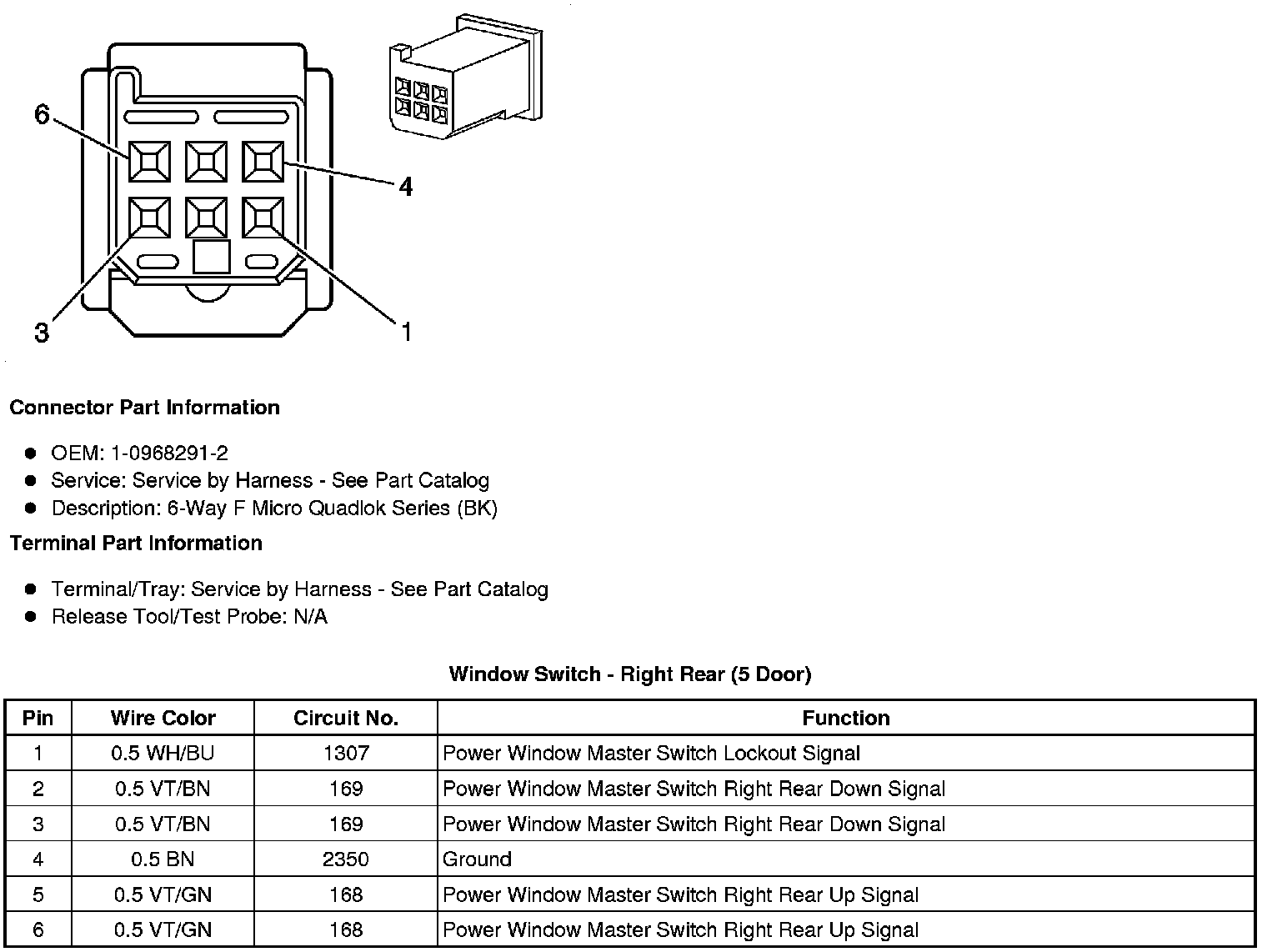

Window Switch - Right Rear (5 Door)
