Transmission Case Assemble
Transmission Case Assemble
Special Tools
* KM-113-2 - Bracket
* KM-308 - Remover/Installer
* KM-446 - Installer Drift
* KM-447 - Remover/Installer
* KM-454-B - Remover/Installer
* KM-473 - Sleeve
* KM-523 - Remover/Installer
* KM-552 - Fixture
* KM-982 - Mount
* KM-6037 - Adapter
* KM-6115 - Bracket for Clutch Housing
* KM-6155 - Guide Pins
* KM-6157 - Assembly Sleeve
* KM-6336 - Installer
* KM-6337 - Installer
* KM-6338 - Installer
* KM-6339 - Installer
* MKM-536-A - Friction Coefficient Meter
1. Attach new transmission housing to KM-6115 - bracket.
2. Fit roller bearing (3) for main shaft.
Install roller bearing flush in transmission housing with KM-454-B - installer -3 (5) and KM-454-B - installer -4 (4).
Note: Needle bearing side with writing points to transmission.
3. Fit needle bearing (2) for drive shaft.
Install needle bearing flush in transmission housing with KM-454-B - installer -2 (6) and KM-454-B - installer -4 (1).
4. Insert differential into transmission from below.
Note: Align bearing race with marking previously made.
5. Install bearing race with KM-447 - installer (2).
Note: The connection must be oil-tight.
Coat thread (arrow) and new O-ring (1) with multi-purpose grease.
6. Check clearance between tapered roller bearing and differential housing (external LU).
Note: Adjust bearing pre-tension by screwing in bearing race.

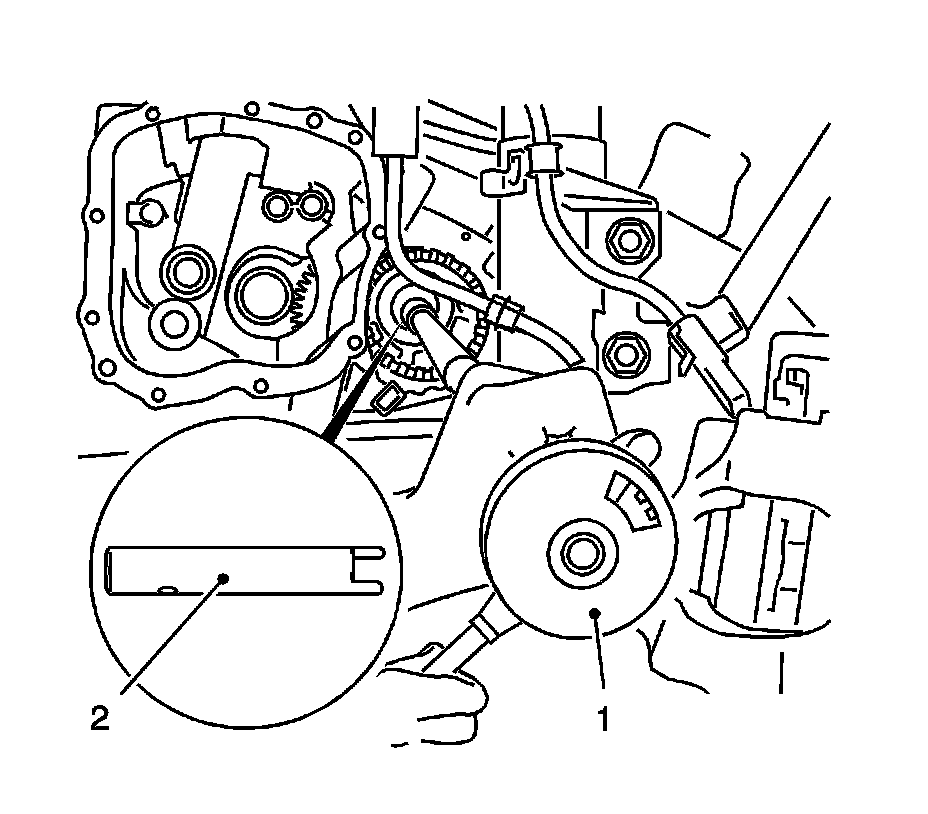

7. Check breakaway torque with MKM-536-A - meter (1) and KM-6037 - adapter (2).
Note: Adhere to specified breakaway torques.
8. Test rpm 1 revolution per second.
* Re-use all the dismantled parts. Adjust to marking.
* Re-use bearing, replacement of bearing race, bearing flange, differential or transmission housing.
60.100 Ncm
* Bearing as new part
150.210 Ncm
9. Clean thread for retaining plate bolt in transmission housing.
Note: Insert bolt with locking compound.
10. Attach retaining plate for bearing ring.
Caution: Refer to Fastener Caution (Fastener Caution).
Re-cut thread. Tighten bolt 9 Nm (80 lb in).
Note: Note seating and condition of the O-ring (2). Damage to or absence of the O-ring leads to leaks.

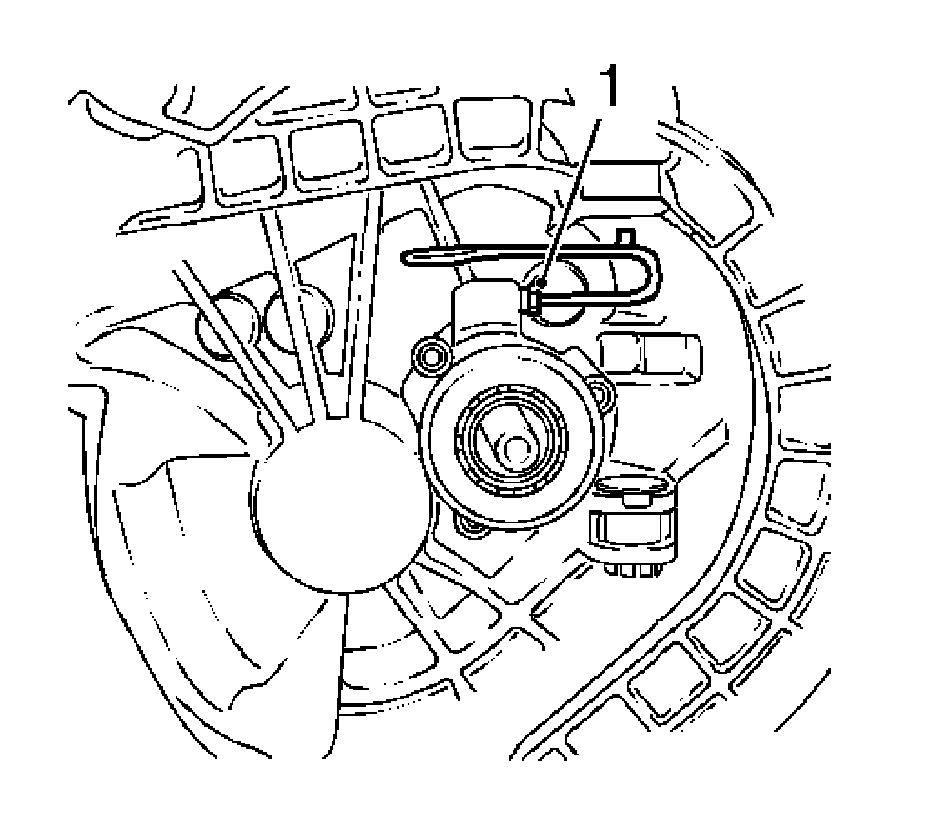

11. Install fastening sleeve for pressure line (1). The lug (arrow) on the sleeve must sit in the groove in the clutch housing.
12. Engage pressure line in fastening sleeve.

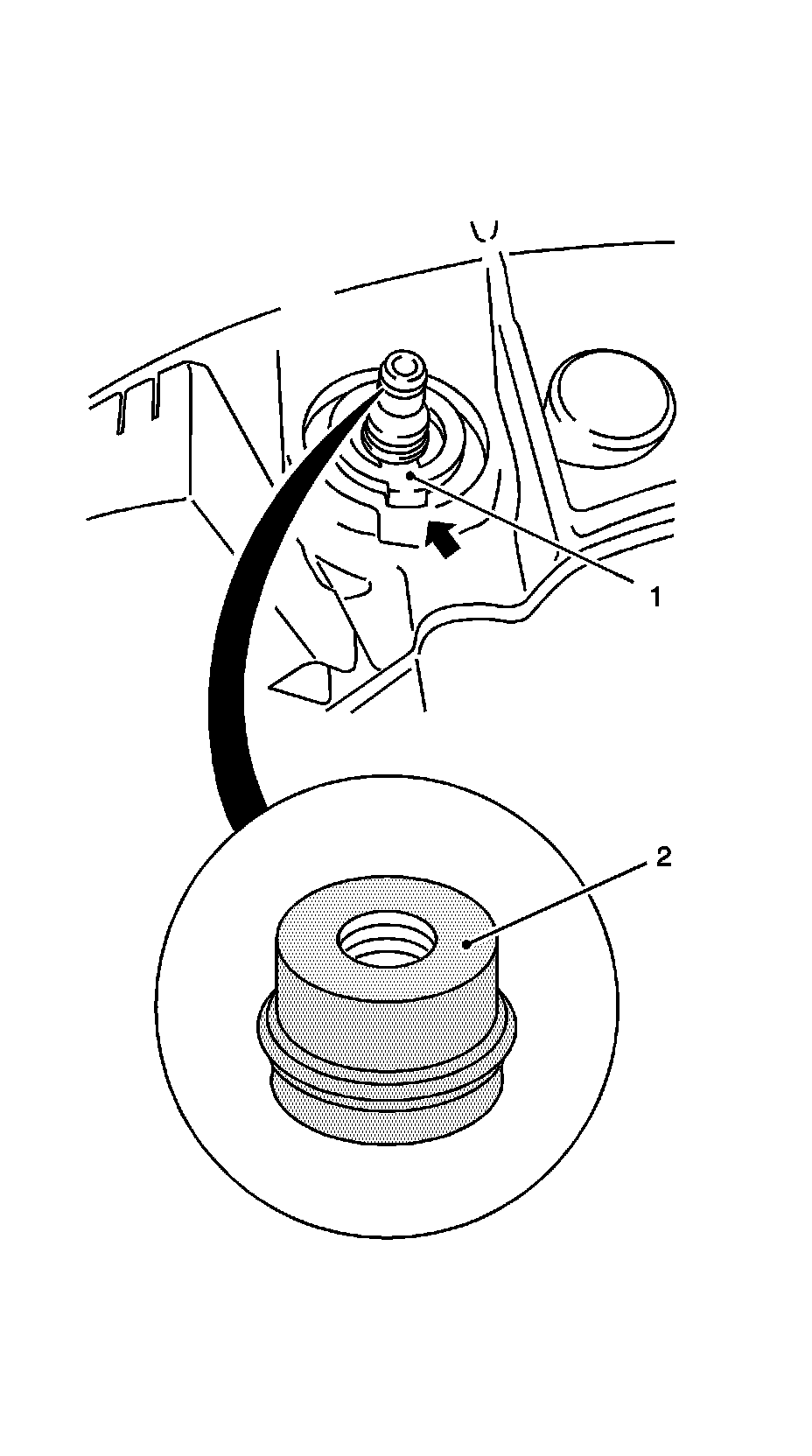

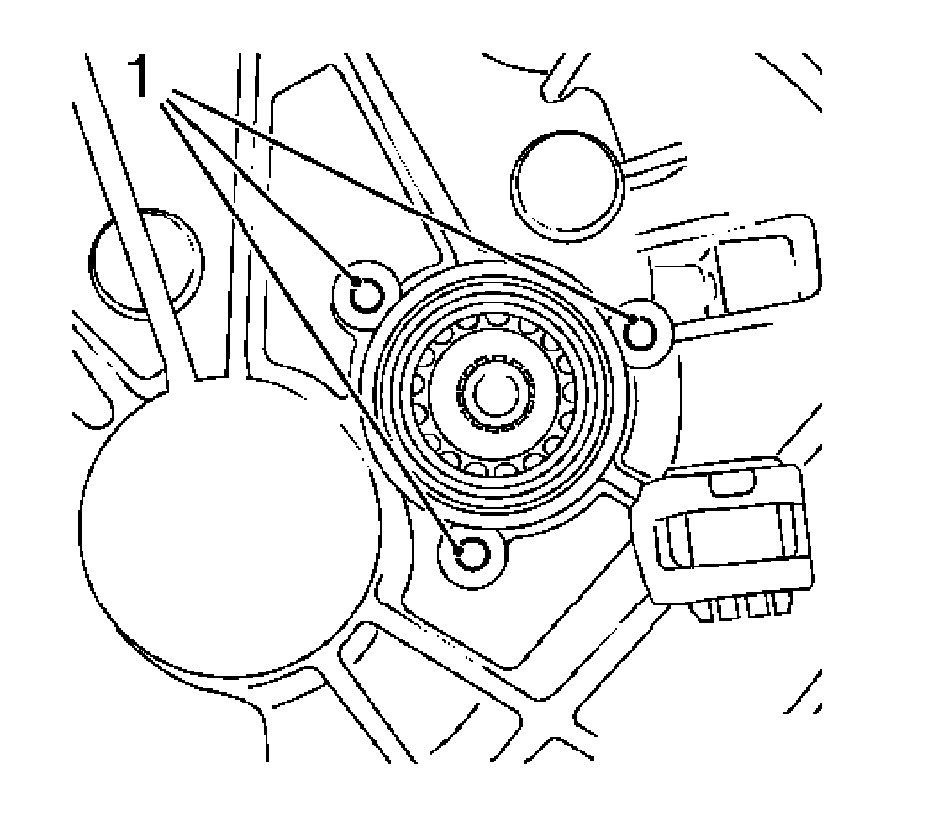

13. Clean 3x thread (1) in transmission.
14. Install central release (1).

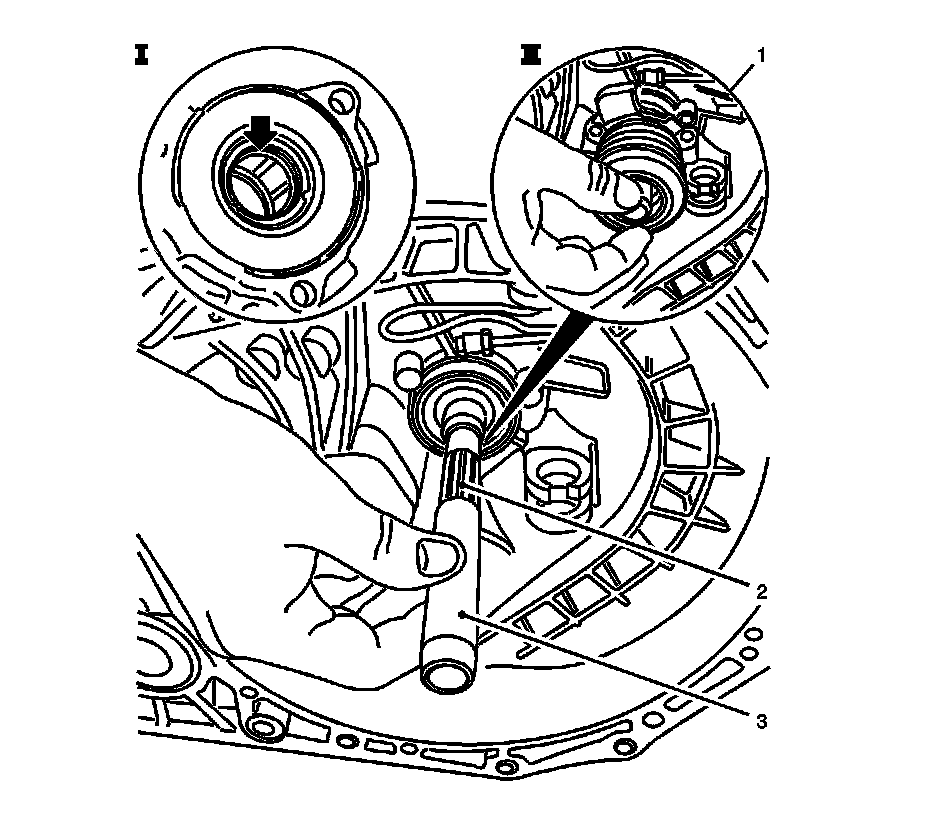

* Attach assembly aid MTA KM-6157 - sleeve (3) to drive shaft (2), so that the seal ring (arrow) is not damaged
* Lightly coat seal ring in central release with transmission fluid.
* Preassemble 3x bolt evenly in contact with the flange. Use new bolts.
Note: It is essential to avoid pulling the central release at an angle.
* Tighten 3x bolt to 5 Nm (44 lb in).
15. Attach pressure line (1). Tighten retaining nut 14 Nm (10 lb ft).
16. Lubricate rotating parts on their bearing, running, seating, and pressure surfaces using transmission fluid.

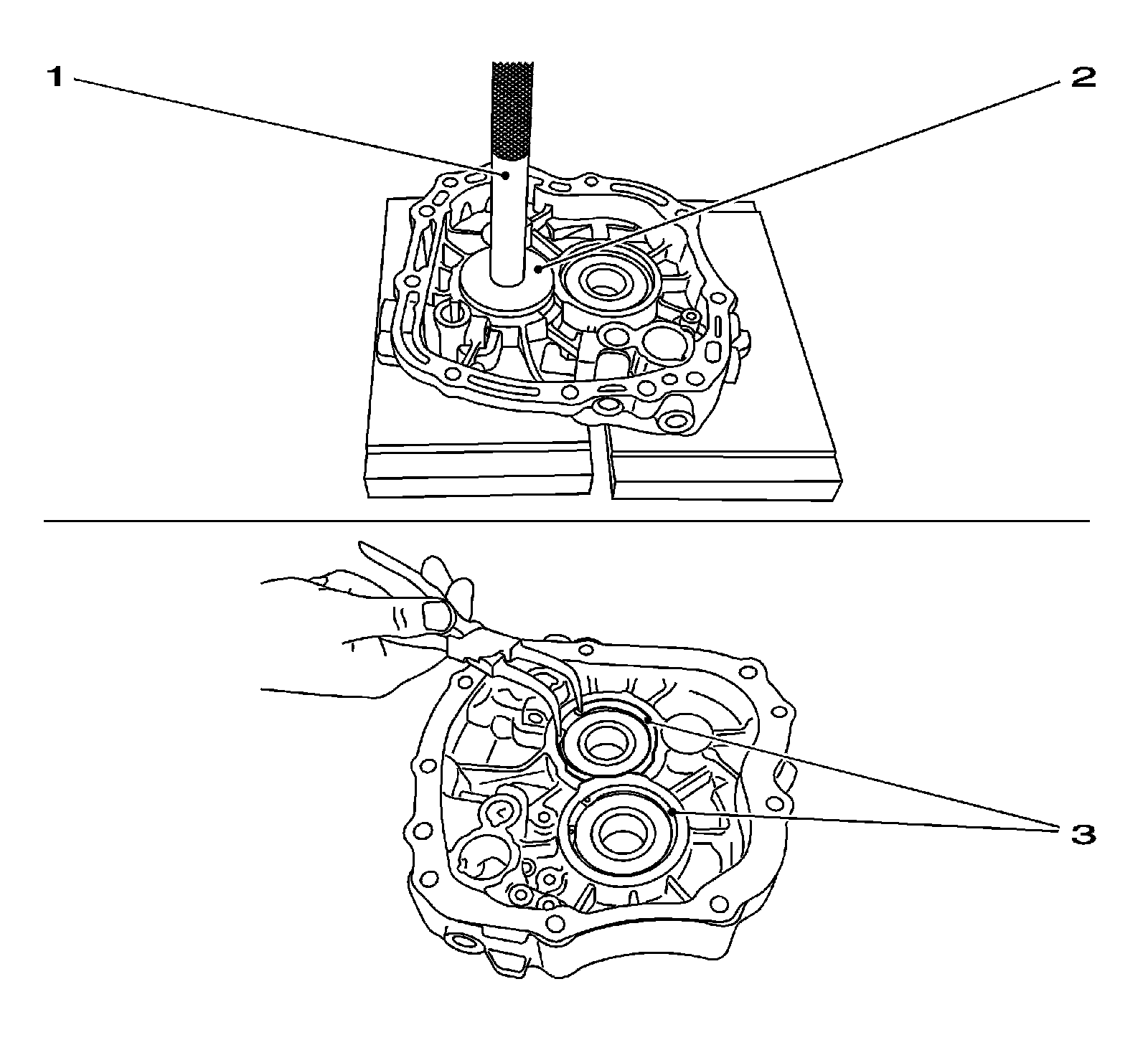

17. Install bearing for main and drive shafts.
* Press in 2x bearings using KM-523 - installer -1 (1) and KM-6336 - installer (2)
* Fit 2x retaining rings (3) - check retaining ring for proper seating.
Note: Check shaft for proper seating.

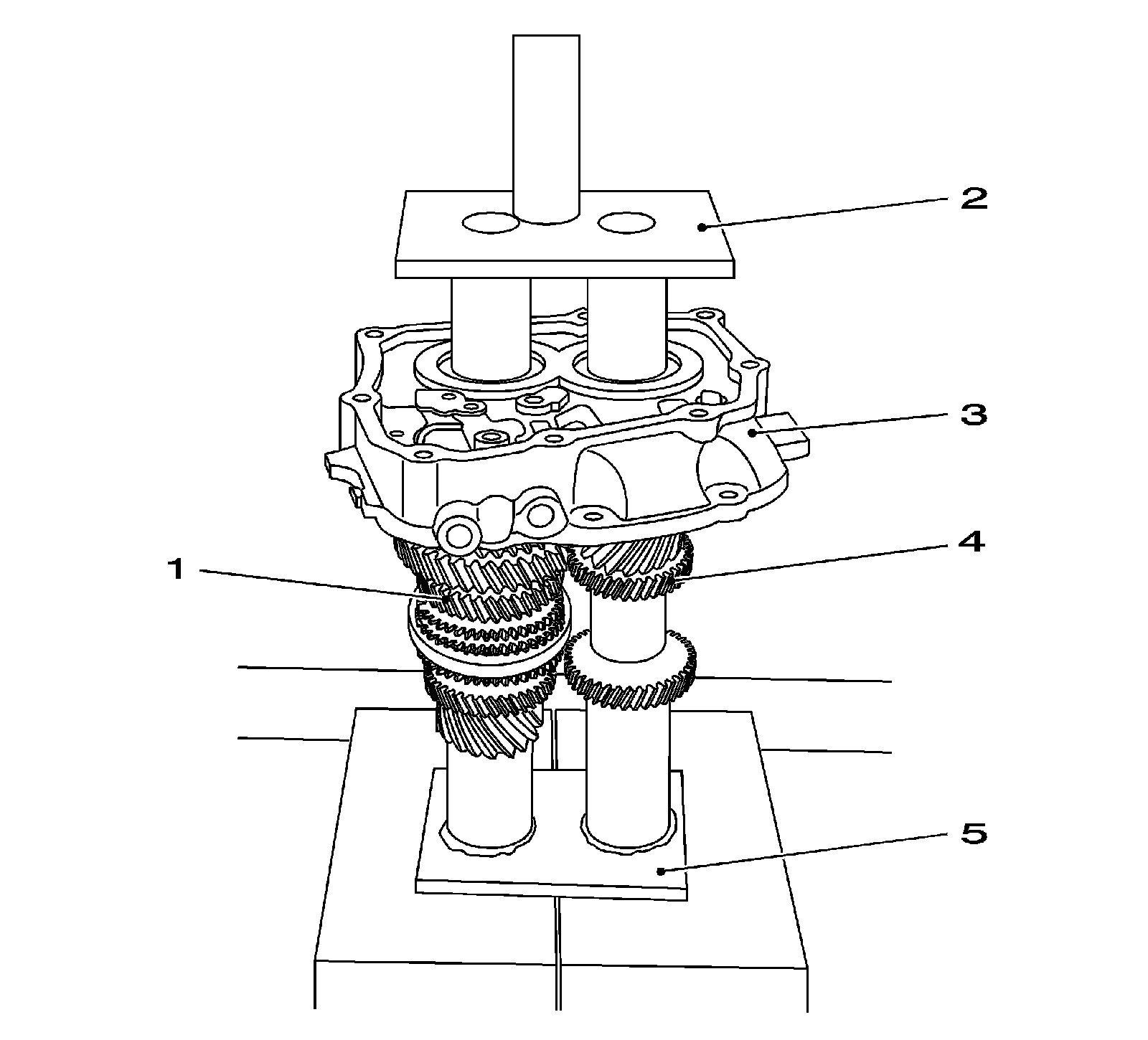

18. Fit main and drive shafts.
* Place main shaft (1) and drive shaft (4) on KM-6337 - installer (5)

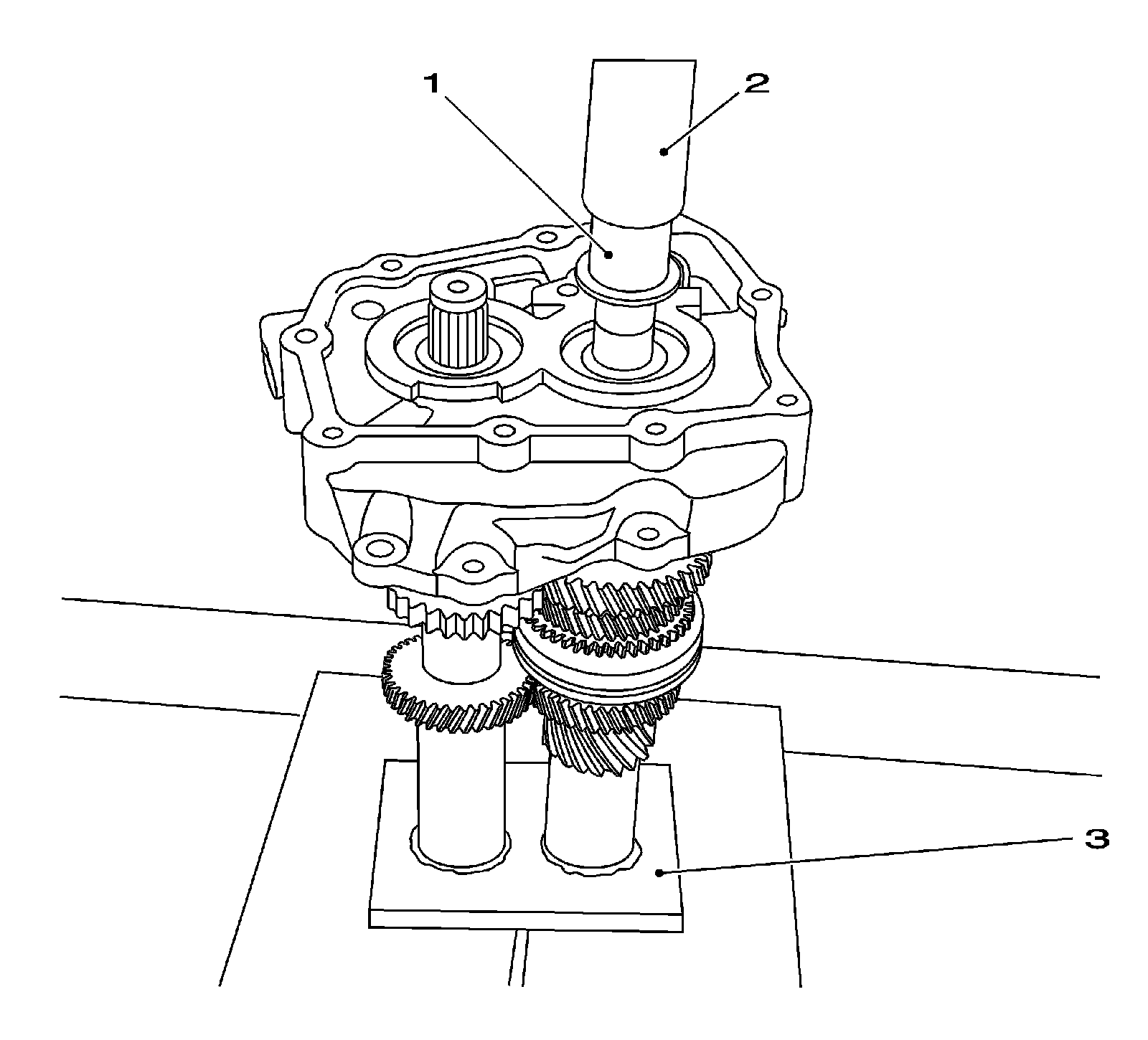

* Place end shield (3) on main shaft and drive shaft and press on with KM-6338 - installer (2)
19. Fit 5th gear bearing sleeve (1).
* Locate end shield on KM-6337 - installer (3)
* Press bearing sleeve on main shaft using KM-6339 - installer (2)
Note: Note installation position.

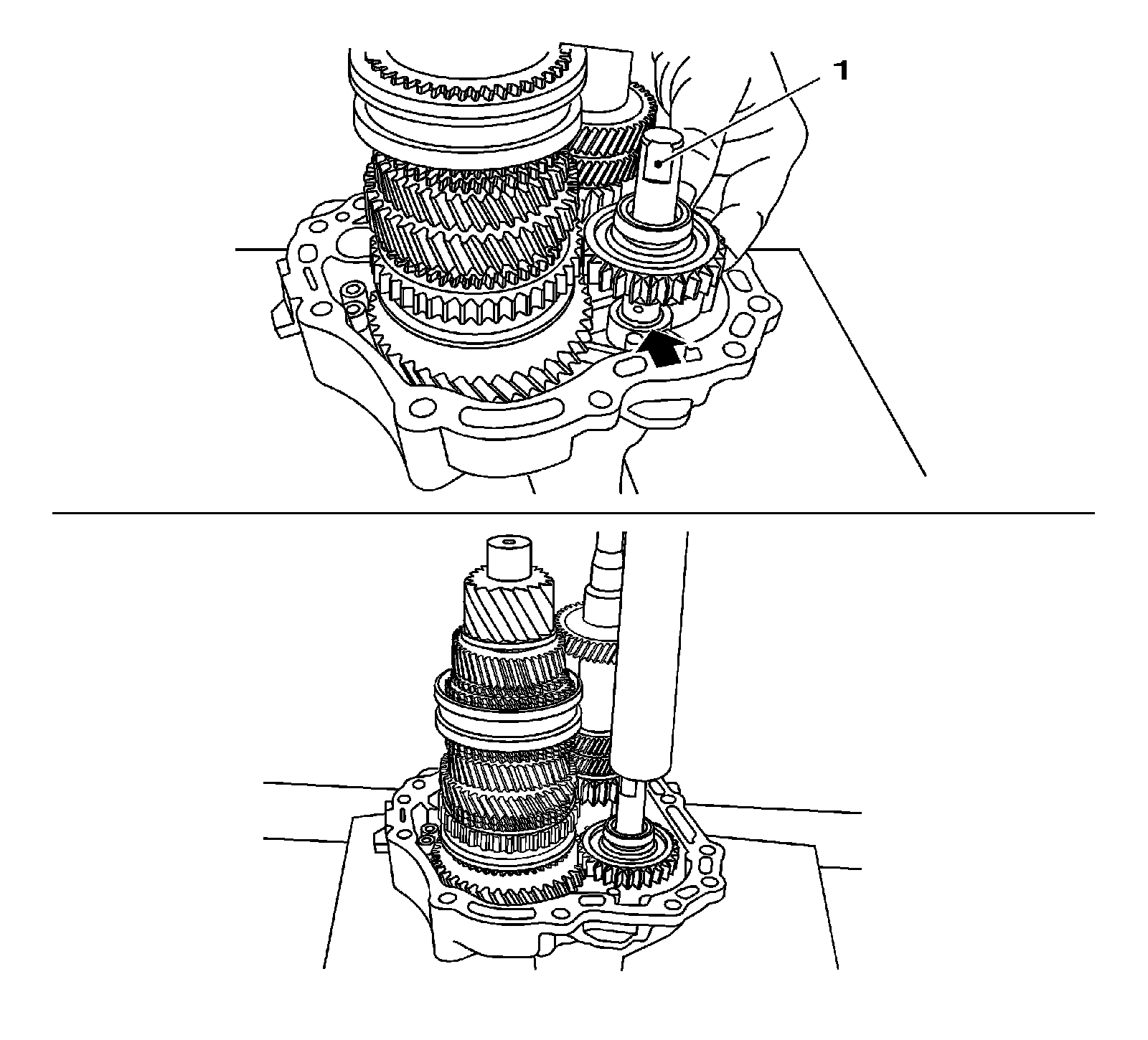

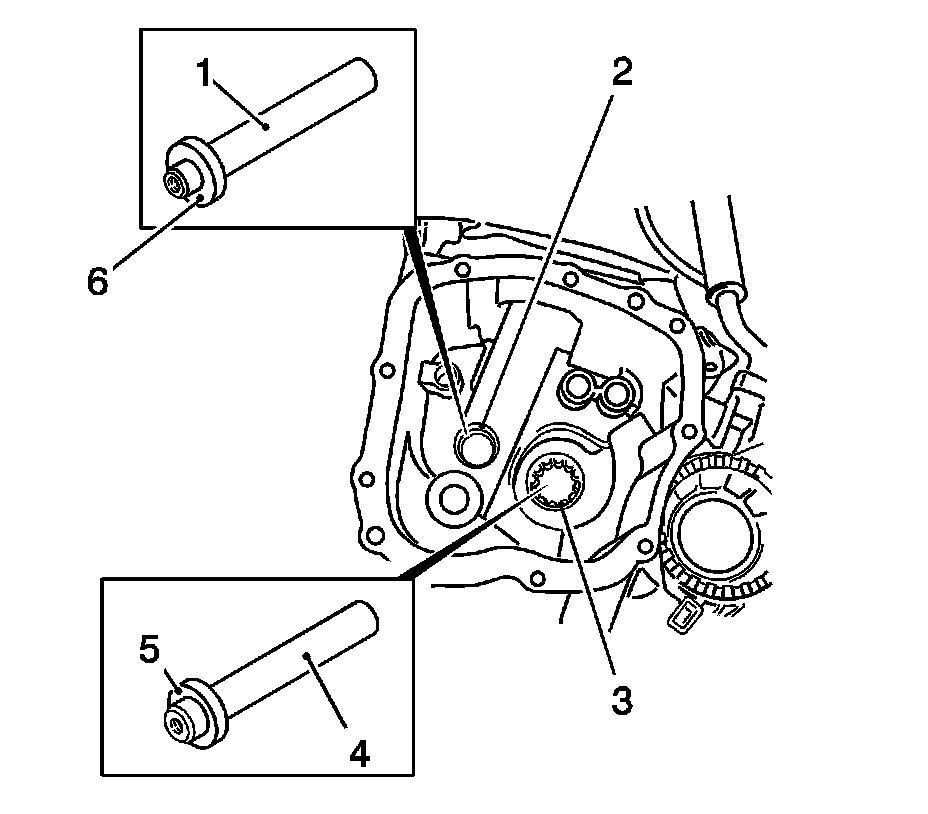

20. Fit reverse gear axle (1).
* Locate reverse idler on axle - note installation position, shift fork groove to top
* Press reverse gear axle with inserted lock ball (arrow) to stop in end shield
21. Attach end shield to KM-552 - fixture (2).
22. Attach end shield to KM-113-2 - bracket (1) using KM-552 - fixture (2).
23. Fit locking pin (5). Insert 3rd/4th gear and reverse gear locking pins.
Note: To relieve pressure on gearshift rod guides in end shield, support gearshift rods with wooden wedge (1) when securing with pin.
24. Fit reverse gear shift fork.

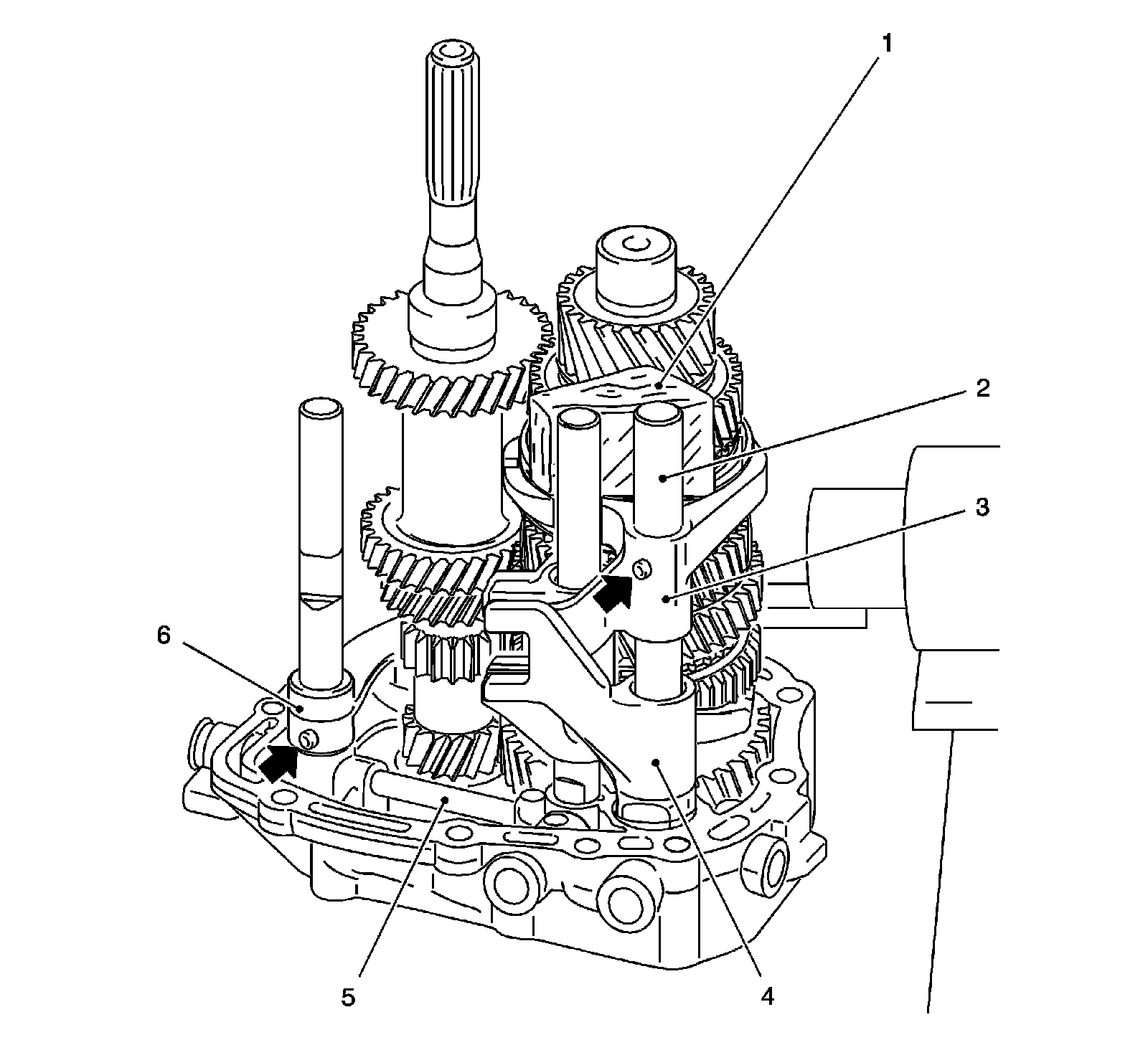

* Insert reverse gear shift fork (6) and gearshift rod
* Insert new roll pin using KM-308 - installer (arrow) - allow new roll pin to protrude approximately 2 mm (0.08 in).
Note: To relieve pressure on gearshift rod guides in end shield, support gearshift rods with wooden wedge (2) when securing with pin.
25. Fit 1st/2nd gear shift fork.
* Insert 1st/2nd gear shift fork (4) and gearshift rod (1)
* Insert new roll pin using KM-308 - installer (3) - allow new roll pin to protrude approximately 2 mm (0.08 in).

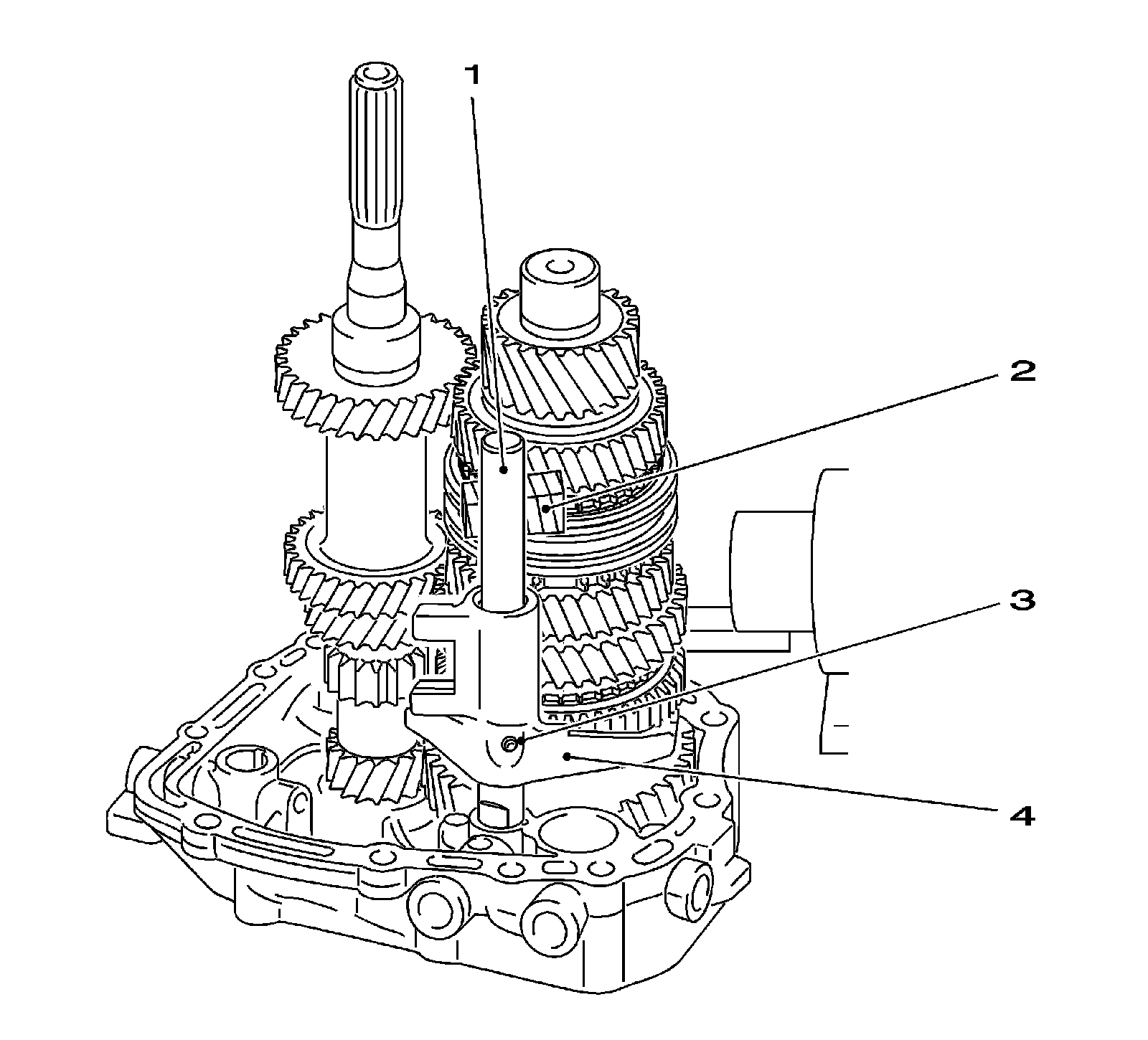

26. Insert 5th gear (4) shift driver.
Note: To relieve pressure on gearshift rod guides in end shield, support gearshift rods with wooden wedge when securing with pin.

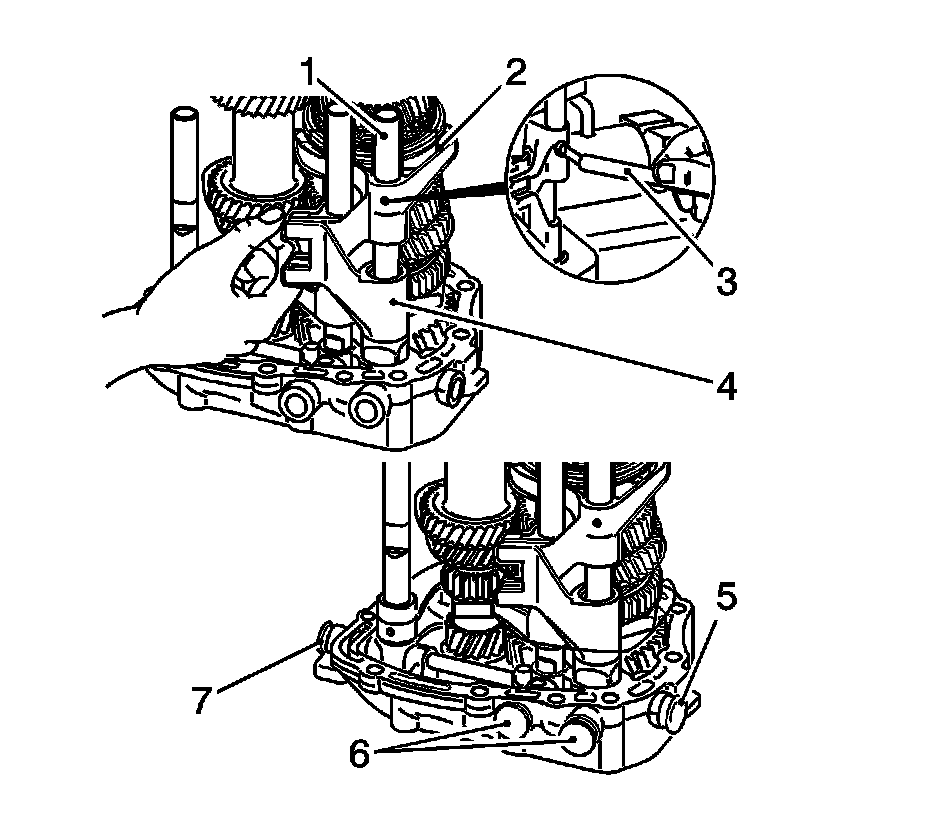

27. Fit 3rd/4th gear shift fork.
* Insert 3rd/4th gear shift fork (2) and gearshift rod (1)
* Insert new roll pin using KM-308 - installer (3) - allow roll pin to protrude approximately 2 mm (0.08 in).
28. Fit locking plugs.
Install 4x locking plugs (5-7) - drive to stop with plastic hammer or soft metal drift.
29. Bring gear shift fork into neutral speed position.
30. Engage gear 3x.
* Engage 2nd gear
* Engage 3rd gear
* Engage 5th gear

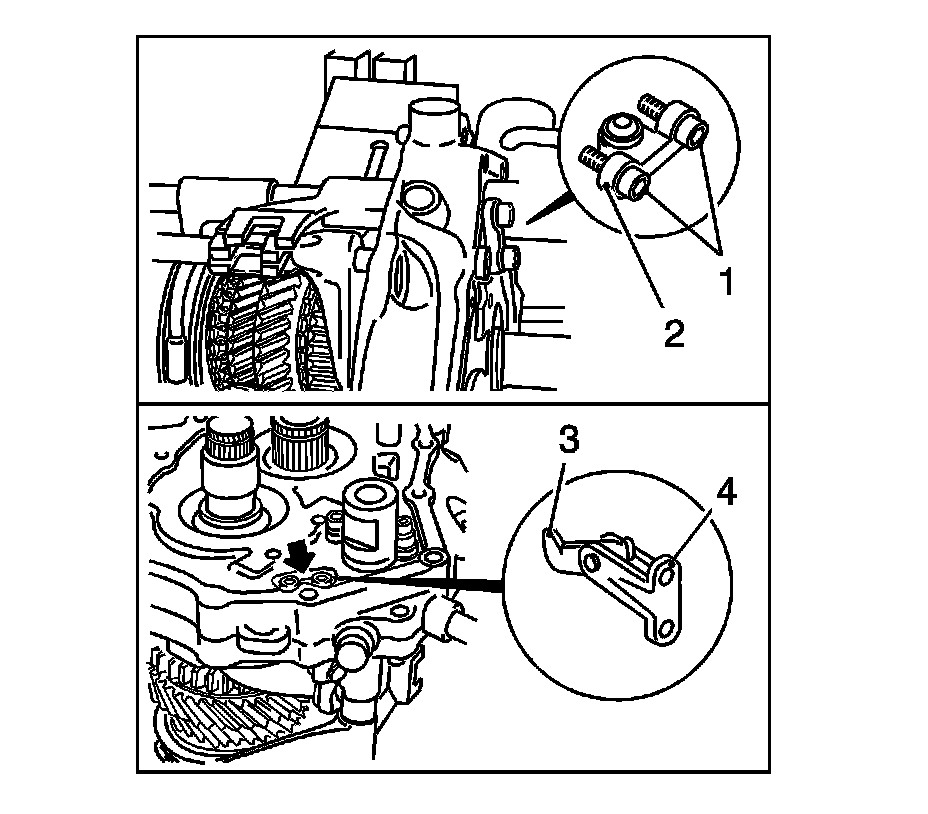

31. Attach bridge (2) for locking bolt on end shield.
Note: Coat bolts with locking compound
Screw in 2x new bolt.
32. Move gearshift fork 1st/2nd gear into neutral.
33. Fasten 2x bolt for bridge. Tighten 2x bolt for bridge 7 Nm (62 lb ft).
34. Bring shift fork into neutral position.
35. Attach bearing support (4) to end shield with pawl (3).
Note: Coat bolts with locking compound.
Tighten 2x bolt 9 Nm (80 lb ft).
Note: Note installation direction. Long gear hub points to end shield.
36. Install 5th gear (driven) (2).
* Insert end shield with main and drive shafts in KM-6337 - installer (3)
* Press on 5th gear using KM-473 - sleeve (1)
Note: Retaining ring must engage completely.
* fit new retaining ring

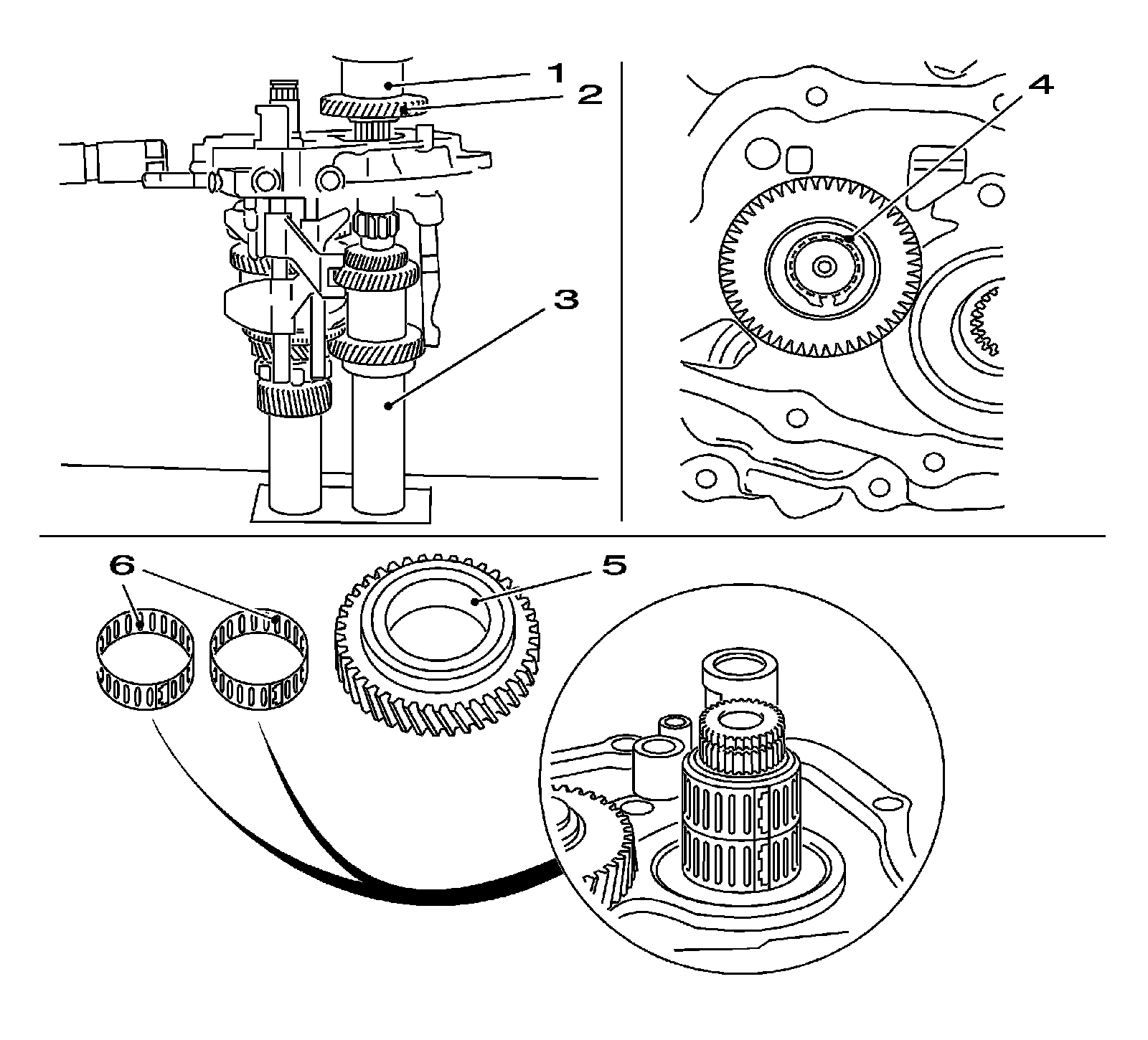

37. Fit 5th gear (5) (driven).
Note: Ensure correct seating of slotted needle bearings.
* Coat needle bearings (6) with transmission fluid and place on main shaft
* Locate 5th gear and 5th gear synchronizer ring on main shaft
38. Press on 5th gear synchro body assembly.
* Insert end shield in KM-6337 - installer
Note: Synchronizer ring lugs must be aligned with synchro body grooves.
* Place synchro body assembly (1) on main shaft
* Press synchro body in KM-473 - sleeve on to main shaft
Note: Retaining ring must engage completely
* fit new retaining ring

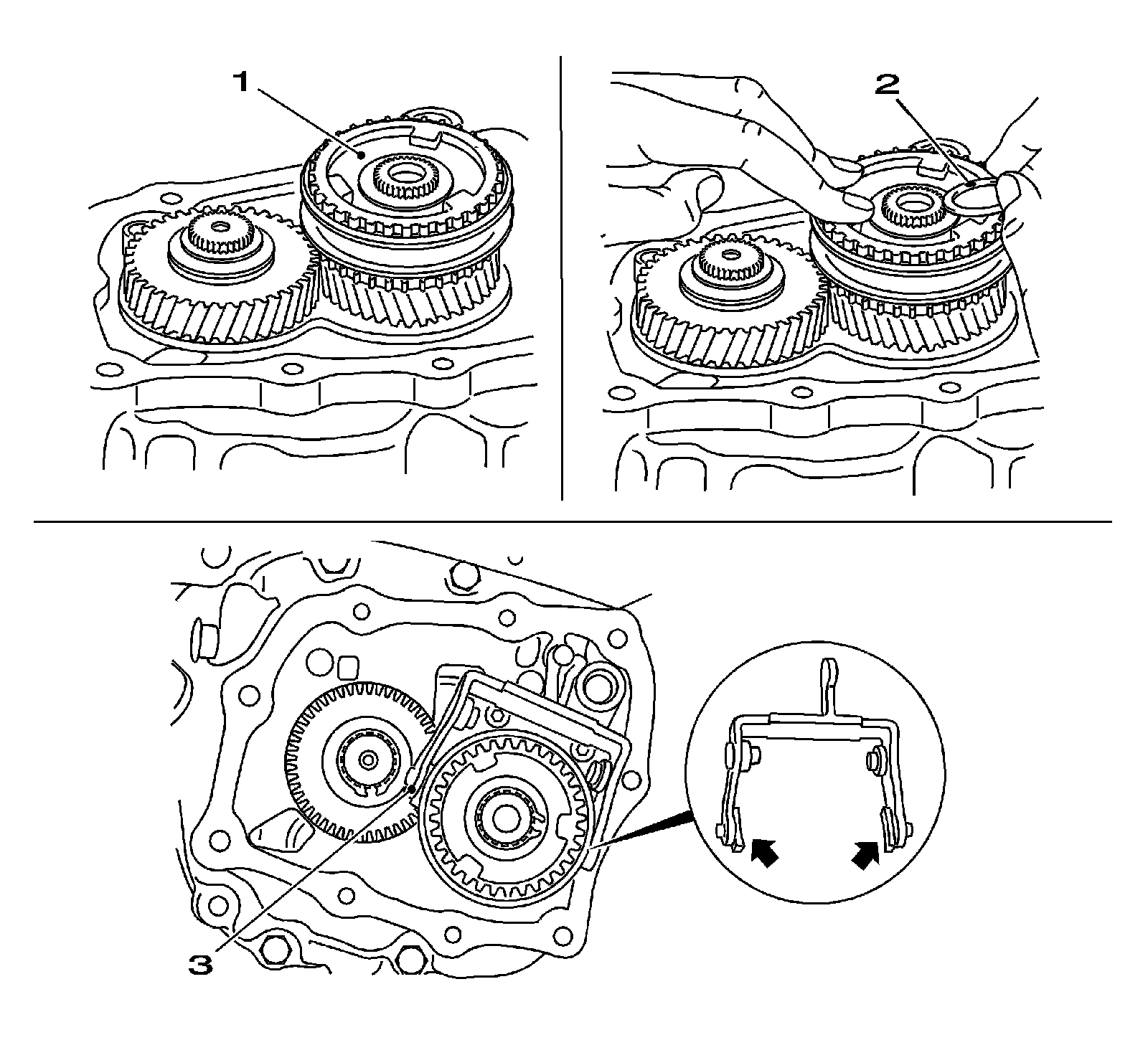

39. Fit bearing support with rocker arm.
* Insert 2x crosshead shoes (arrow) in 5th gear shift fork (3)
* Insert bearing support with rocker arm in end shield
* Insert 2x bolts with locking compound
* Tighten 2x bolt 22 Nm (16 lb ft).
40. Install friction washer and magnet.
* Fit friction washer (arrow) on axle, reverse gear wheel, with grease
* Insert magnet with grease

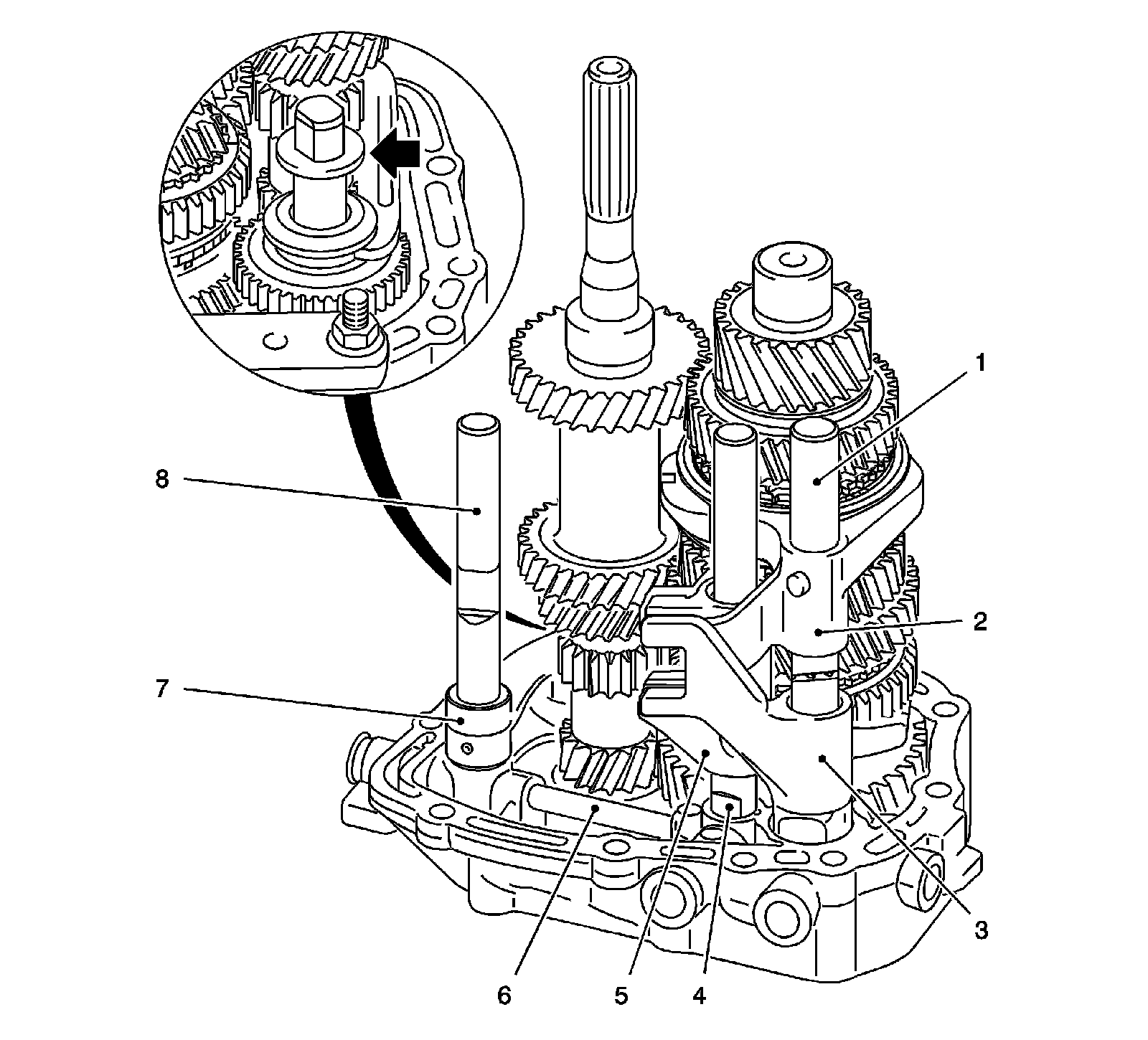

Note: Before installing end shield, check following items for position and seating:
1. 3rd/4th gear shift fork
2. 3rd/4th gear shift rod
3. 5th gear shift driver
4. 1st/2nd gear shift rod
5. Lock pin for gear stop
6. 1st/2nd gear shift fork
7. Reverse gear shift fork
8. Reverse gear shift rod
41. Detach end shield from KM-113-2 - bracket. Detach end shield from KM-552 - fixture.
42. Attach KM-6155 - guide pins to transmission.
43. Stick new end shield gasket to transmission with roller bearing grease.
Note: Check that magnet (1) and friction washer (2) are correctly seated.
44. Install end shield (4).
* Carefully insert end shield into transmission housing
* Use new bolts. Tighten 4x bolt (arrows) 22 Nm (16 lb ft).
45. Unscrew KM-6155 - guide pins (3).
Note: Note close tolerance bolts.
46. Attach end shield cover.
* Attach with new gasket to transmission housing
* Tighten 4x bolt M7 15 Nm (11 lb ft).
* Tighten 5x bolt M8 20 Nm (15 lb ft).
Note: Coat seal ring with grease.
47. Drive new seal ring with matching sleeve (1) flush into housing.
48. Push gearshift rod into gearbox cover and gearshift finger.
Note: Allow roll pin to protrude approximately 2 mm (0.0787 in).
Drive new roll pin into gearshift finger and gearshift rod.
Note: Gearshift finger must sit in gearbox intermediate lever.

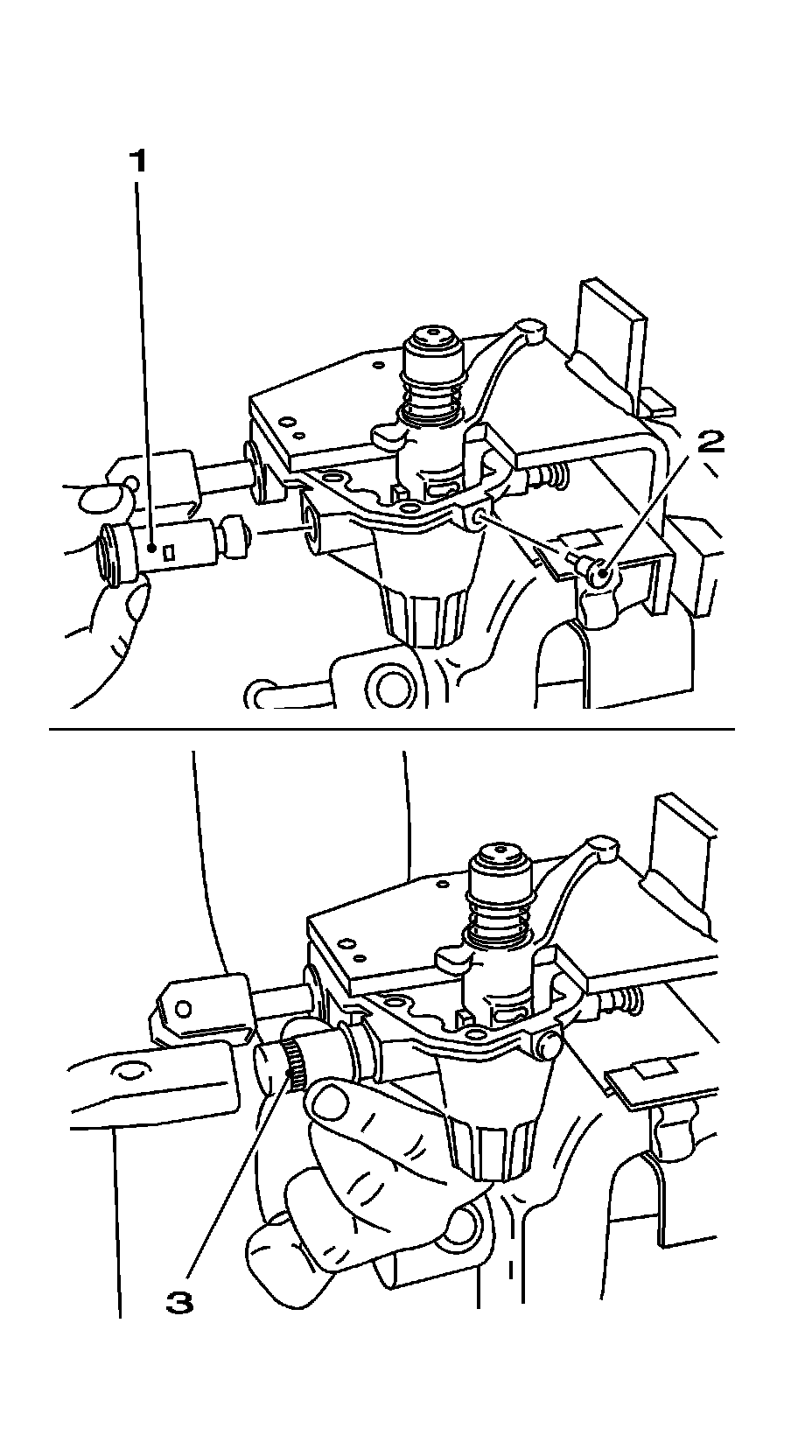

49. Insert intermediate gearshift lever into gearbox cover.

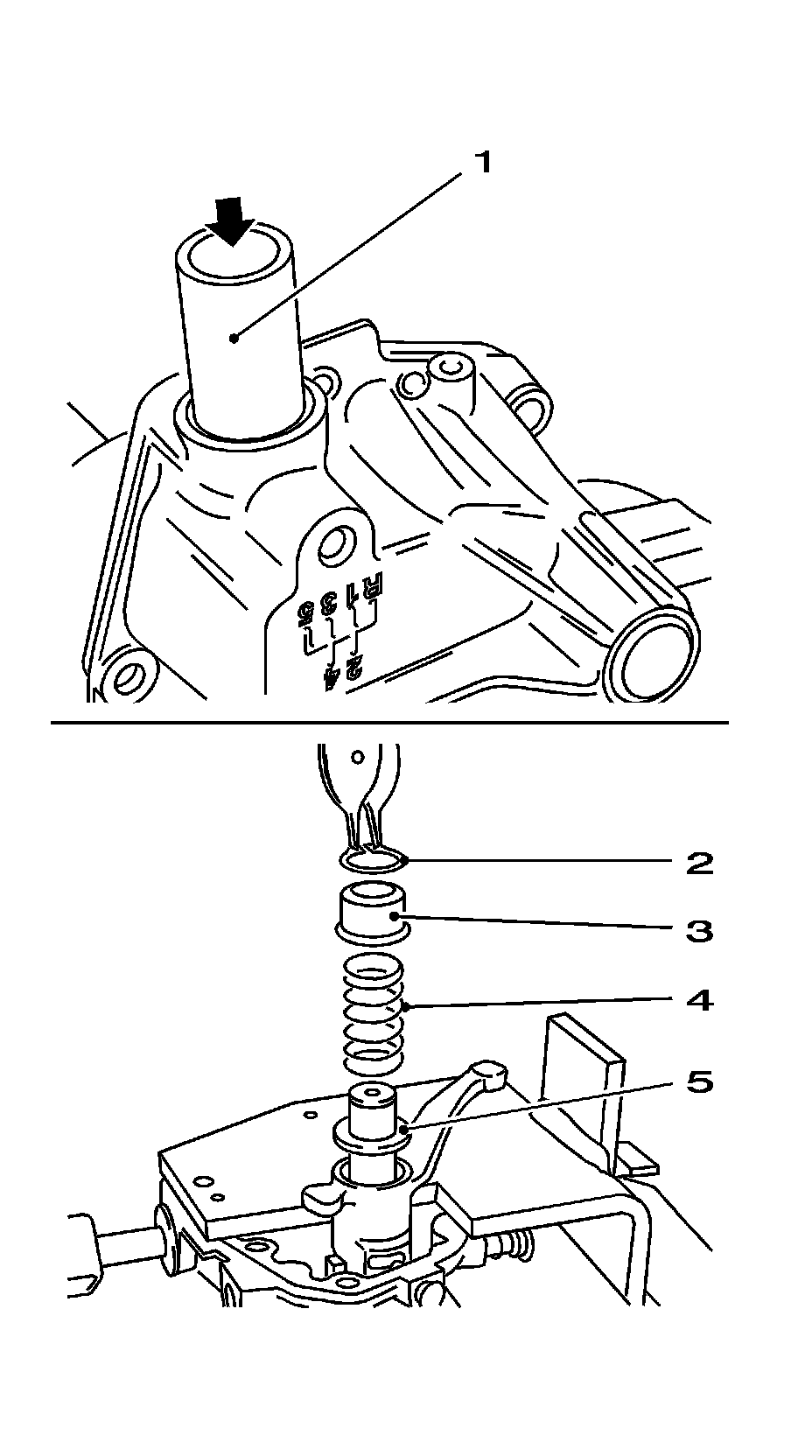

50. Place washer (5), spring (4) and sleeve (3) on gearshift lever shaft.
Fit new retaining ring (2).

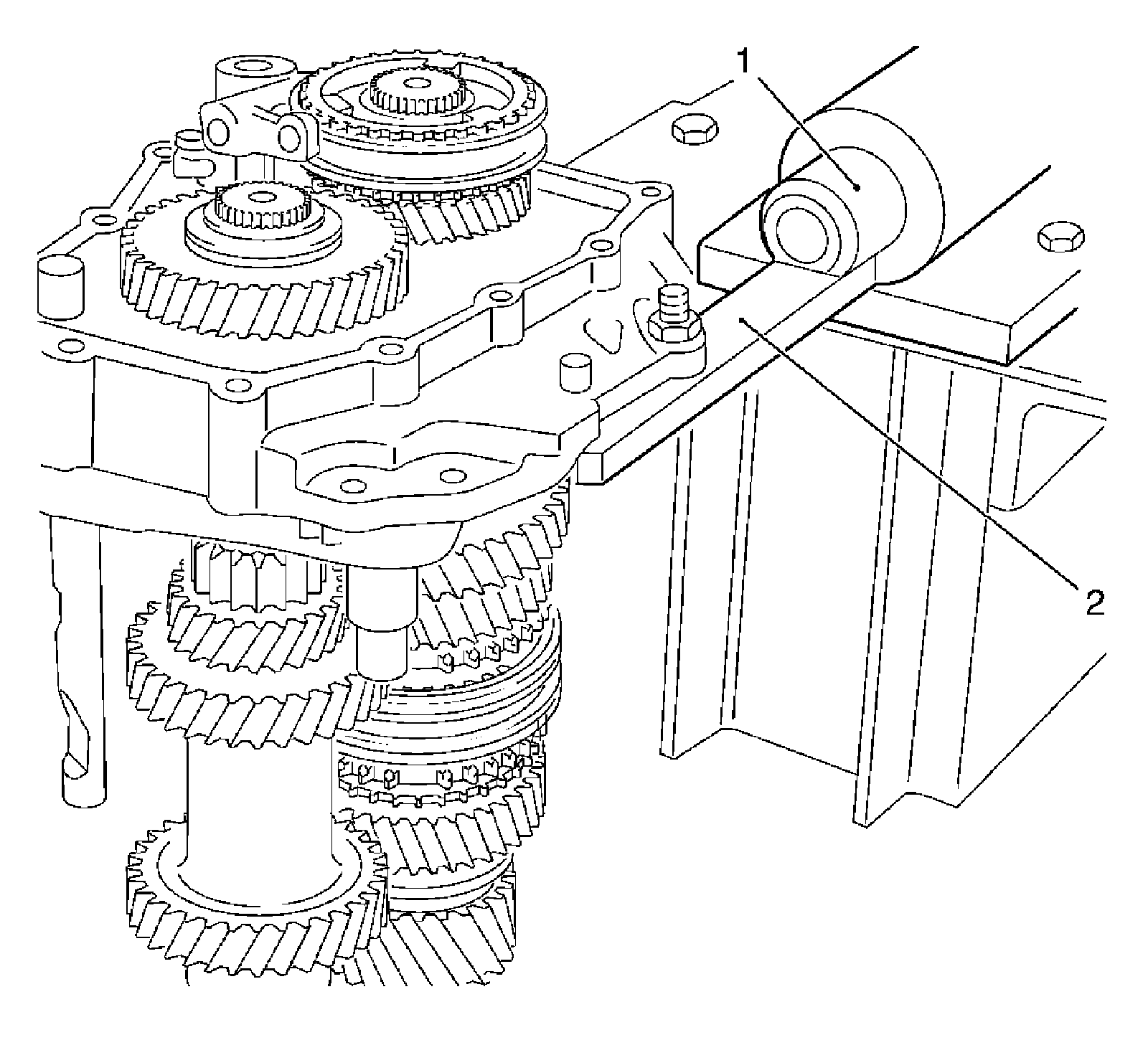

51. Attach gearbox cover to KM-982 - mount.
Note: Guide bolt must sit in connecting link.
52. Drive guide bolt for connecting link (2) in gearbox cover.
Note: Do not damage engaging sleeve.
53. Drive engaging sleeve for intermediate shaft (1) with matching sleeve (3) into gearbox cover.
54. Detach gearbox cover from KM-982 - mount.

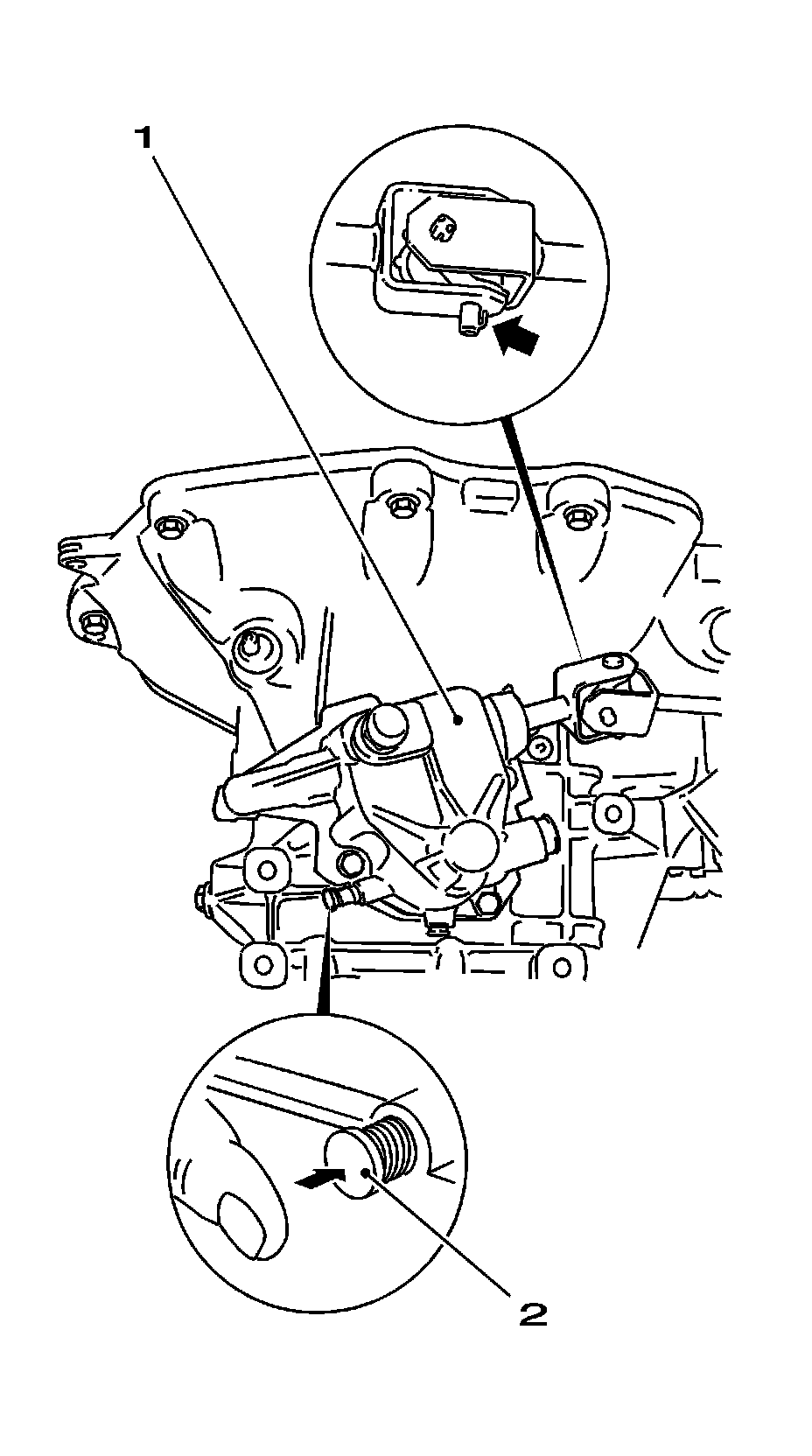

55. Attach gearbox cover (1) to transmission.
* Cement new gasket to transmission housing with grease
Note: Adjusting pin must sit in adjusting bore and lock the gearbox.
* Place gearbox cover on transmission
* Tighten 4x bolt 15 Nm (11 lb ft).
* Draw adjusting pin (2) out of adjusting bore.
Note: Use new seal ring.
56. Fit reversing lamp switch (1).
Tighten reversing lamp switch (1) 20 Nm (15 lb ft).
57. Install new axle shaft seal ring.
* Coat axle shaft seal ring with transmission fluid.
* Install axle shaft seal ring flush in the transmission with KM-446 - drift.
58. Install left engine damping block. Tighten 3x bolt 55 Nm (41 lb ft).

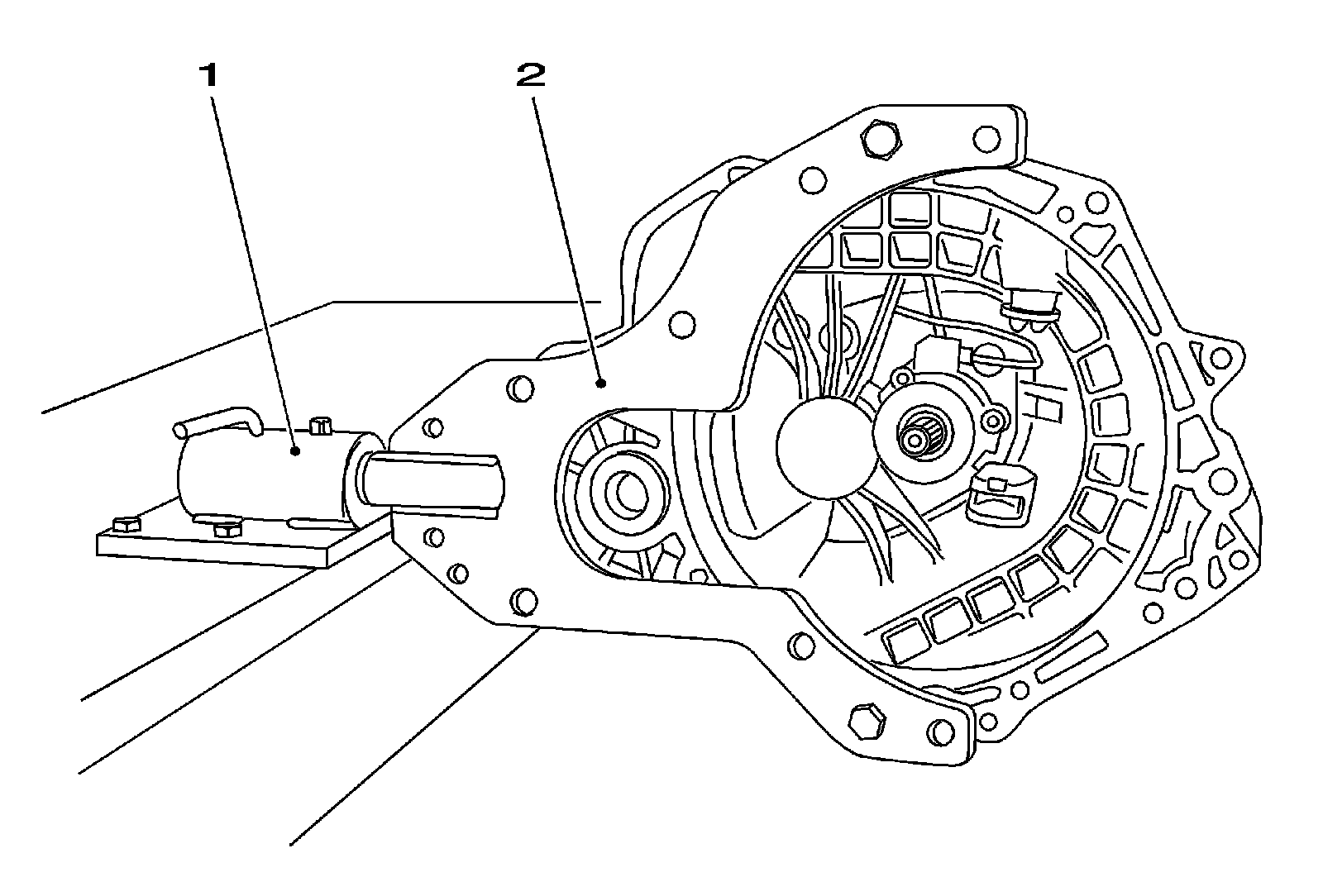

59. Detach transmission from KM-113-2 - bracket (1) using KM-6115 - bracket (2).
60. Detach transmission from KM-6115 - bracket.
