Transmission Identification Information

Transmission Identification Information

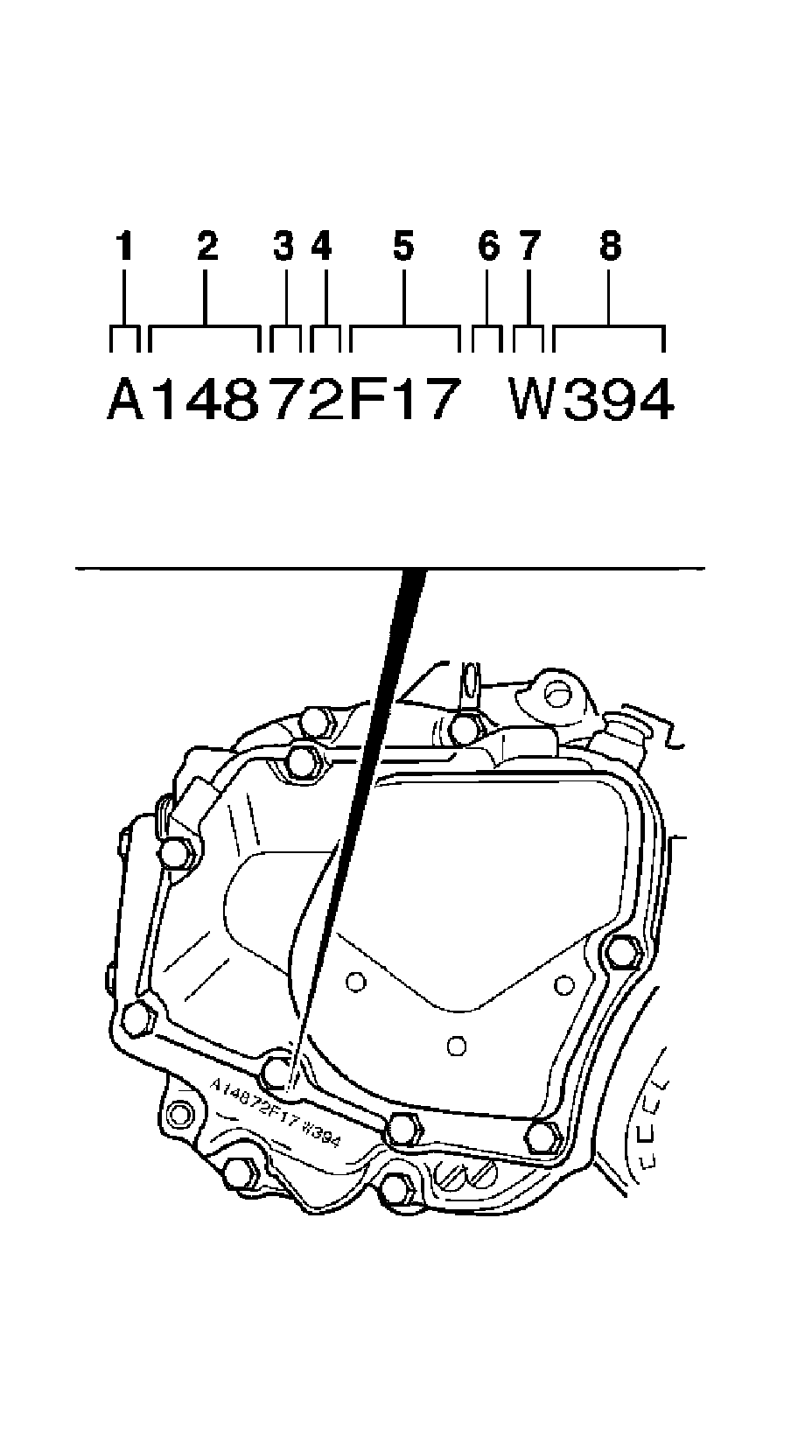

The transmission number is to be found on the end shield

1. Manufacturing plant (A = Aspern, B = Bochum)
2. Day in year
3. Last digit of year
4. Work shift (1 = early shift, 2 = late shift)
5. Transmission type (F17+)
6. Not applicable to F17 series
7. Transmission code

* W = Wide Ratio
* C = Close Ratio
* E = Economy Ratio

8. Final drive ratio
