Reverse Clutch Housing and Input Shaft Removal

Reverse Clutch Housing and Input Shaft Removal

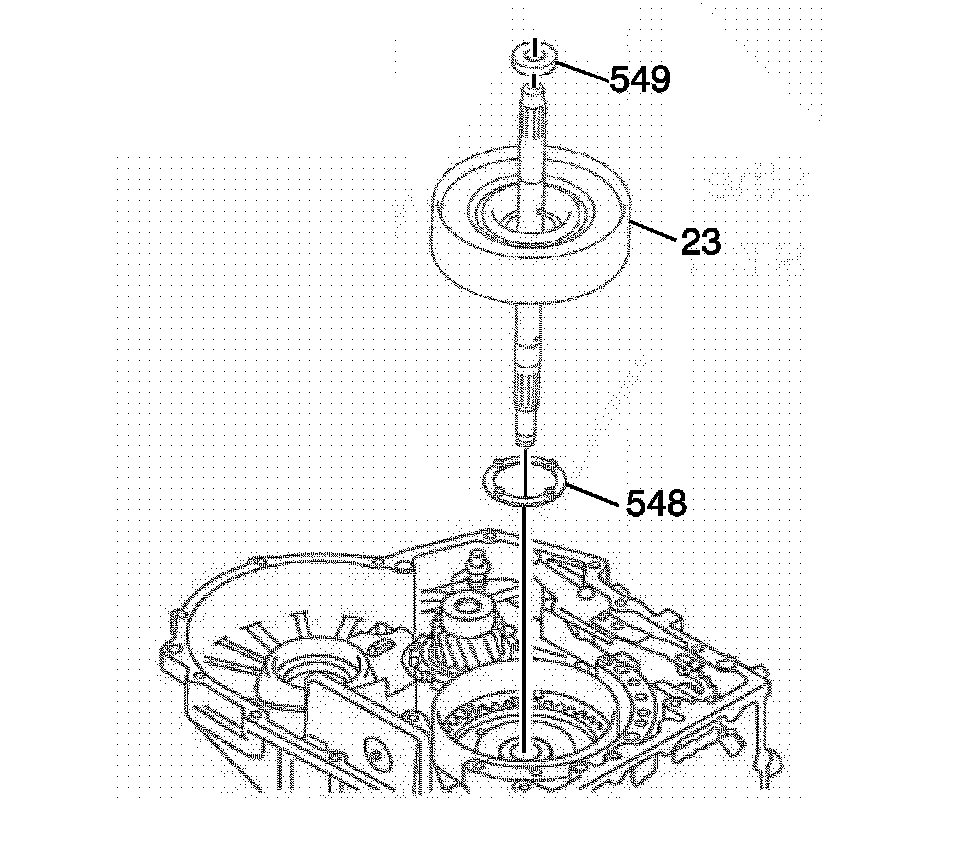

1. Remove the reverse clutch assembly and input shaft assembly (23).
2. Remove the sun gear input flange thrust washer (548) from the input flange.
3. Remove the input shaft front thrust washer (549).
