Holding Fixture Installation

Holding Fixture Installation

Special Tools
* J 3289-20 - Holding Fixture
* KM 910 - Transmission Holder

For equivalent regional tools, refer to Special Tools (Tools and Equipment).

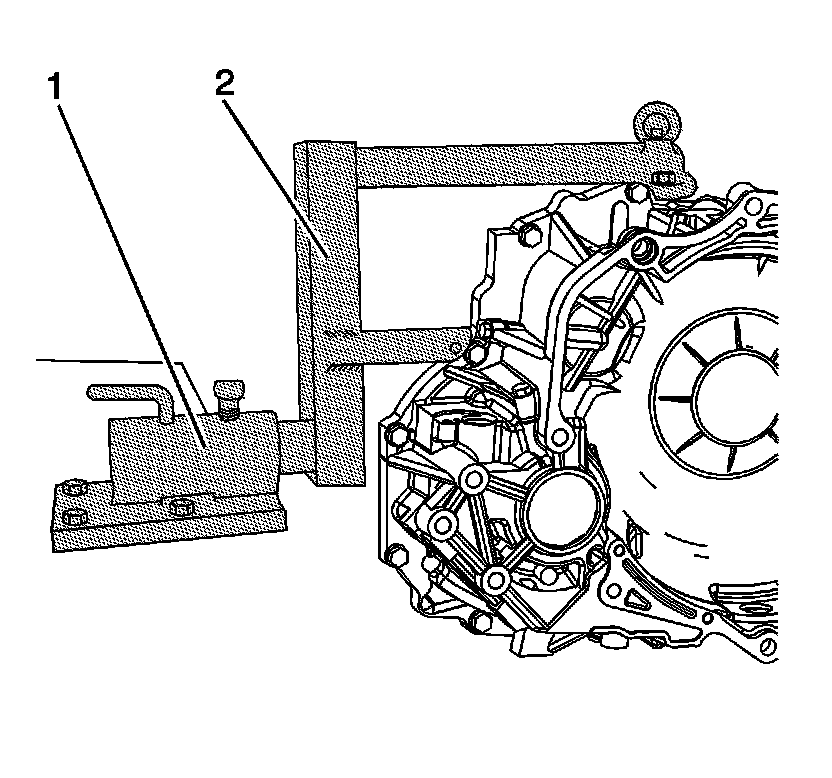

1. Attach KM 910 - transmission holder (2) to transmission.
2. Using KM 910 - transmission holder , attach transmission to J 3289-20 - holding fixture (1).
